ICY BOX IB-2242SSK

ICY BOX IB-2242SSK. Size (imperial): 13.3 cm (5.25"), Type: Storage drive tray, Product colour: Black. Width: 150 mm, Depth: 145 mm, Height: 41 mm. Package width: 195 mm, Package depth: 205 mm, Package height: 80 mm. Quantity per pack: 1 pc(s), Cables included: SATA, Number of lock keys included: 2 pc(s). Products per master (outer) case: 8 pc(s), Country of origin: China
Now for the little ones
We are not only offering a backplane solution for 3.5", now there is a solution for 2.5" HDDs and SSDs. It can hold 4 HDDs with a maximum height of 15 mm.
An elaborated system

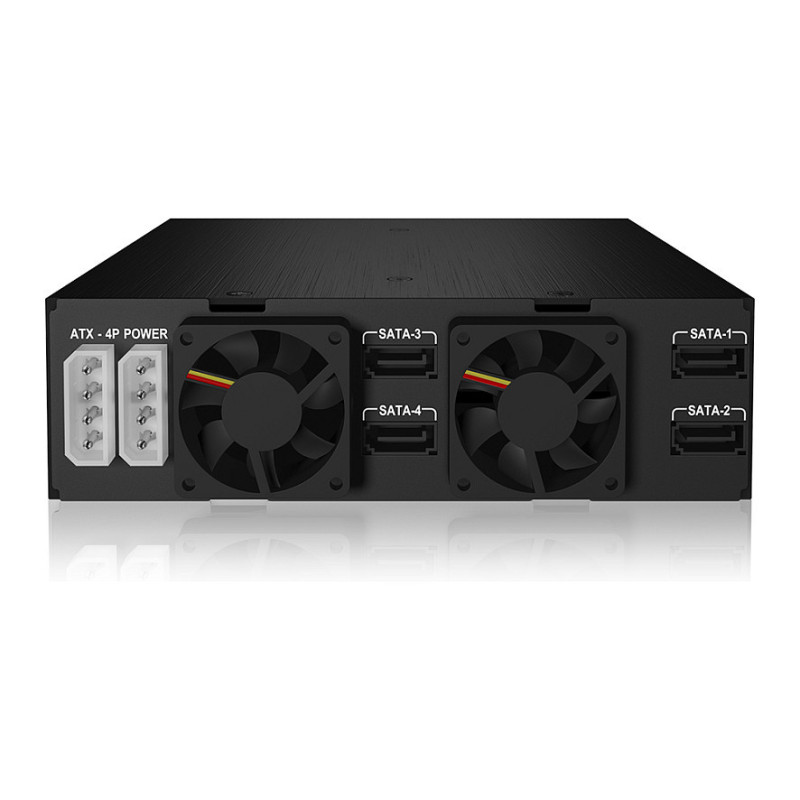

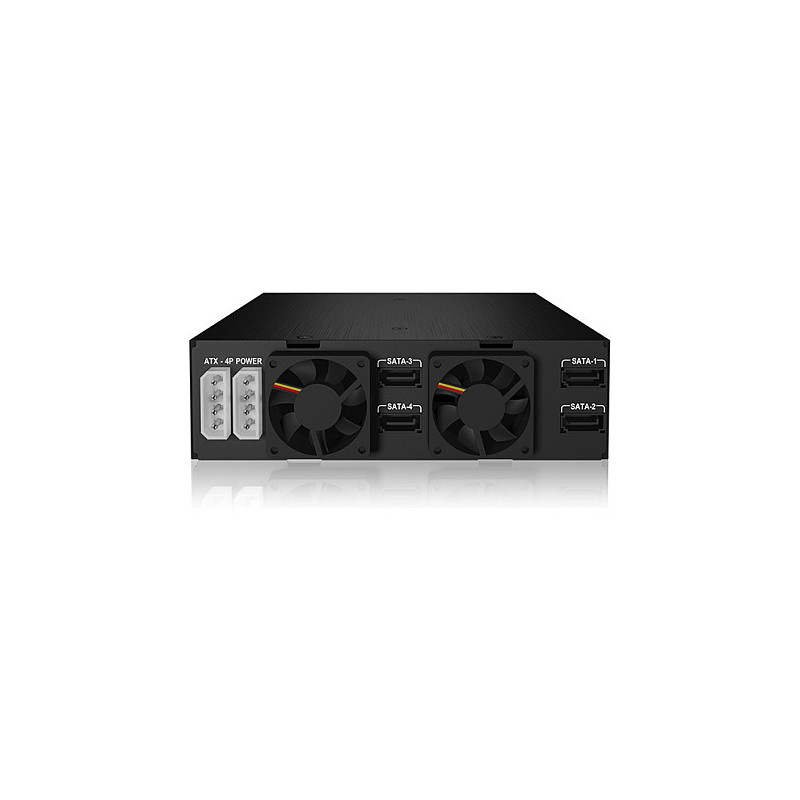

To prevent overheating of the HDDs and SSDs at full duty, the aluminium case provides a good heat dissipation and is a perfect match wit the two 40-mm Fans.
Fast transport...
is assure by SATA III and a SAS chipset. Due to Sata Power no extra powerline is needed for the Backplane. The lock protects the HDD from unauthorized or accidental access

Features

Size (imperial): 13.3 cm (5.25")
Type: Storage drive tray
Product colour: Black
Number of HDDs supported: 4
HDD size: 2.5"
HDD interface: SATA II, SATA III
Material: Aluminium
Supported storage drive heights: 7,9,9.5,12,12.5,12.7,15 mm
Feature: Hot-swap
Number of fans: 2 fan(s)
Fan diameter: 4 cm
Data transfer rate: 6 Gbit/s
LED indicators: HDD, Power
Feature: Key lock

Ports interfaces

External SATA ports quantity: 4

Weight dimensions

Width: 150 mm
Depth: 145 mm
Height: 41 mm
Weight: 752 g

Packaging data

Package width: 195 mm
Package depth: 205 mm
Package height: 80 mm
Package weight: 1.14 kg

Packaging content

Quantity per pack: 1 pc(s)
Cables included: SATA
Feature: Screws included
Feature: Manual
Number of lock keys included: 2 pc(s)
Number of screws: 24

System requirements

Feature: Mac compatibility
Mac operating systems supported: Yes
Windows operating systems supported: Yes

Logistics data

Products per master (outer) case: 8 pc(s)
Harmonized System (HS) code: 84718000
Country of origin: China
