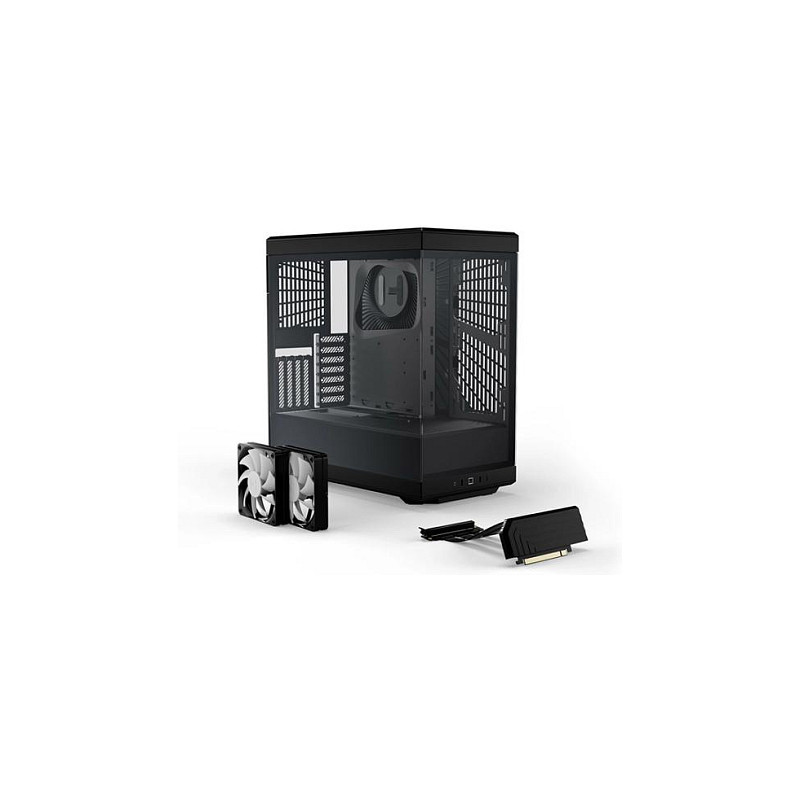

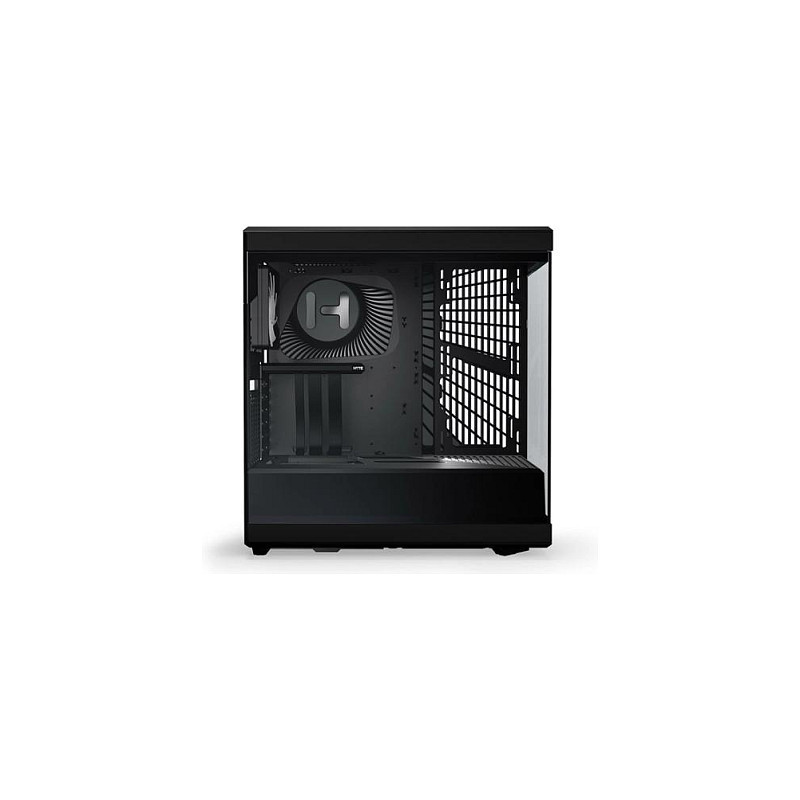

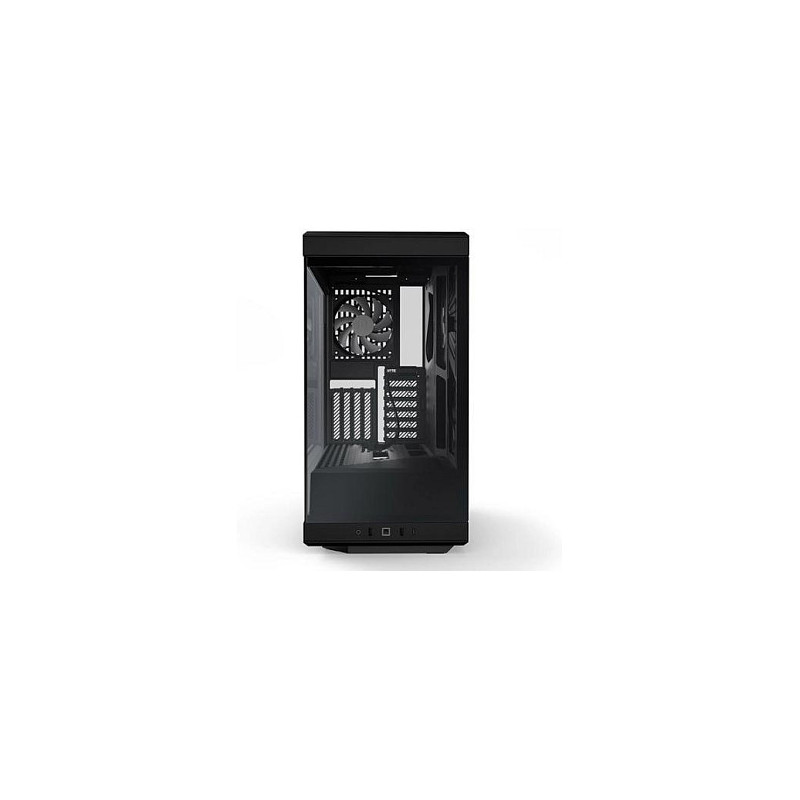

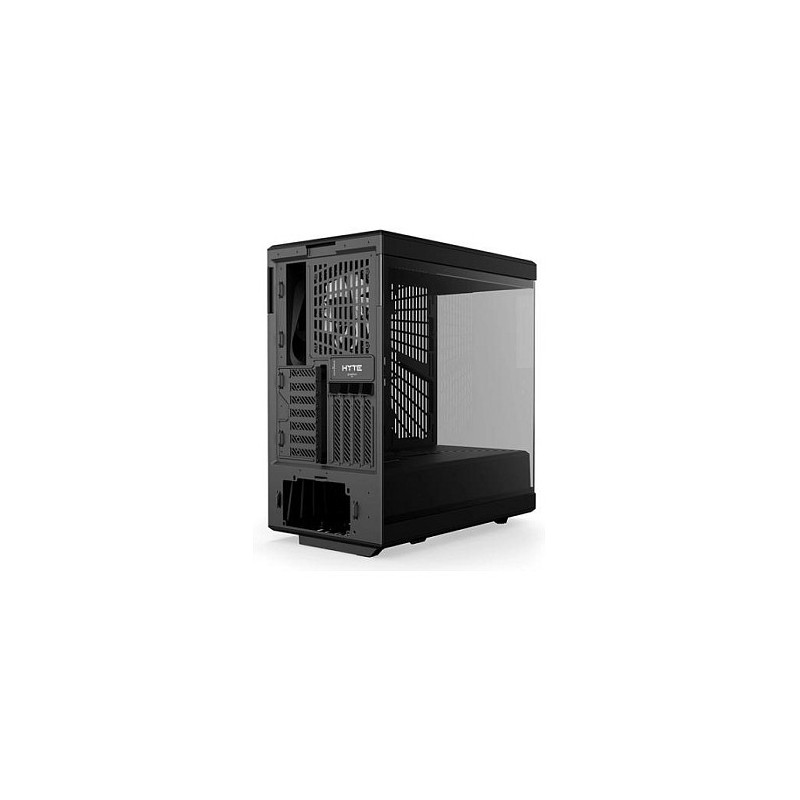

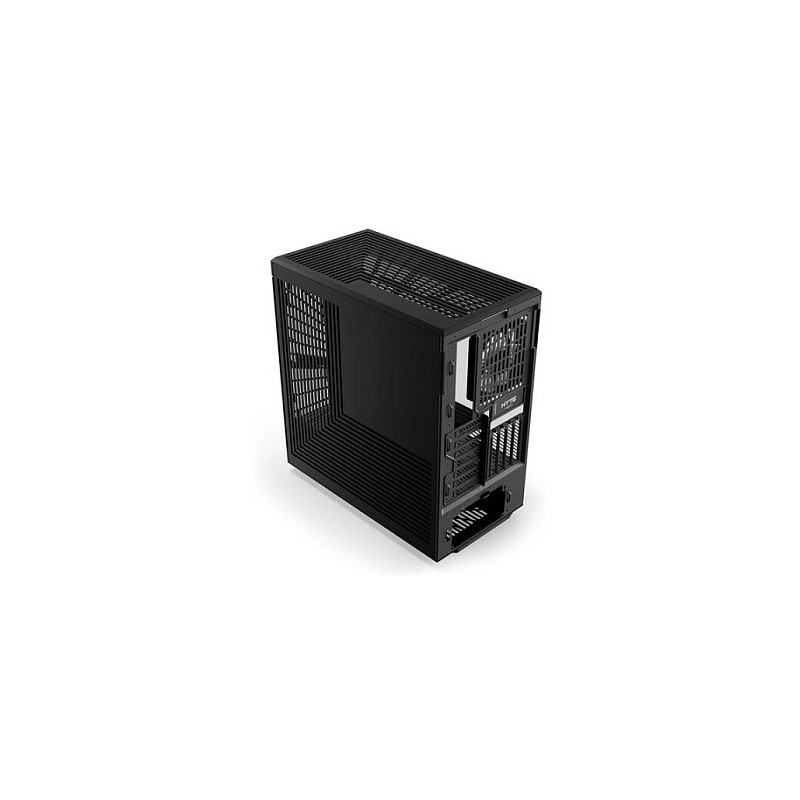

HYTE Y40

HYTE Y40. Form factor: Midi Tower, Type: PC, Product colour: Black. Side fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 240 mm, Depth: 439 mm, Height: 472 mm. Cables included: PCIe

Y40
S-Tier Aesthetic Case
Designed From Every Dimension
The all-new Y40 is designed to wow and priced to thrill while defining new industry standards for ATX cases everywhere. Elevate your expectations of multi-dimensional case design, next-gen GPU compatibility, and overall system harmony today.

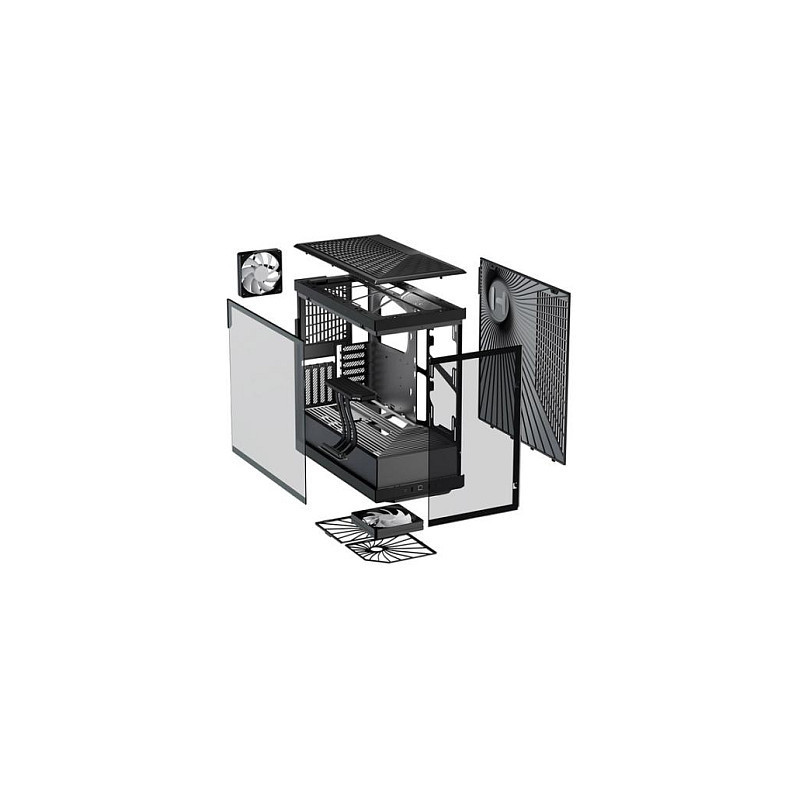

Multi-Dimensional Design
Details connect every part into a deeply harmonic design structure. Every edge is adorned in tightly controlled beveling for s-tier aesthetics. 2-Piece Panoramic Glass set the stage for a completely unobstructed view of your system's performance.

Ginormous Vertical Graphics Support
Y40 grows GPU support to 4 full slots with additional airflow space between the edge of the card and the glass. An intake fan below the power supply shroud provides fresh air upwards to the GPU to improve cooling further.

Included Luxury PCIE 4.0 Riser Cable
A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card.

Cooling
Y40 comes with 2x 120mm fans pre-installed, one beneath the floor and one at the rear. The side mount can fit up to a 280mm radiator with a combined thickness of up to 120mm allowing for large 60mm+ radiators to be used for custom loop configurations, and the top mount can fit up to a 360mm radiator for dual radiator setups. Y40 also brings support for large air coolers over 180mm in height, allowing for almost every CPU cooler on the market.

Design

Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, ITX, micro ATX
Number of 3.5" bays: 1
Number of 2.5" bays: 2
Number of expansion slots: 10
Full-Height expansion slots: 4
Half-Height expansion slots: 6
Feature: Side window
Feature: Anti-dust filter
Feature: On/off button
Maximum CPU cooler height: 18.3 cm
Maximum graphics card length: 42.2 cm
Maximum PSU length: 22.4 cm

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: Combo headphone/mic port

Cooling

Number of side fans supported (max): 2
Side fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120 mm
Bottom fans installed: 1x 120 mm
Number of bottom fans supported (max): 1
Bottom fans diameters supported: 120,140 mm
Fan speed: 0 - 1300 RPM
Side radiator sizes supported: 120,140,240,280 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 120,240,360 mm

Storage

Supported HDD sizes: 2.5,3.5"

Weight & dimensions

Width: 240 mm
Depth: 439 mm
Height: 472 mm

Packaging data

Cables included: PCIe
