Fractal Design North

Fractal Design North . Form factor: Midi Tower, Type: PC, Product colour: White. Power supply location: Bottom, Supported power supply form factors: ATX. Front fans installed: 2x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 215 mm, Depth: 447 mm, Height: 469 mm

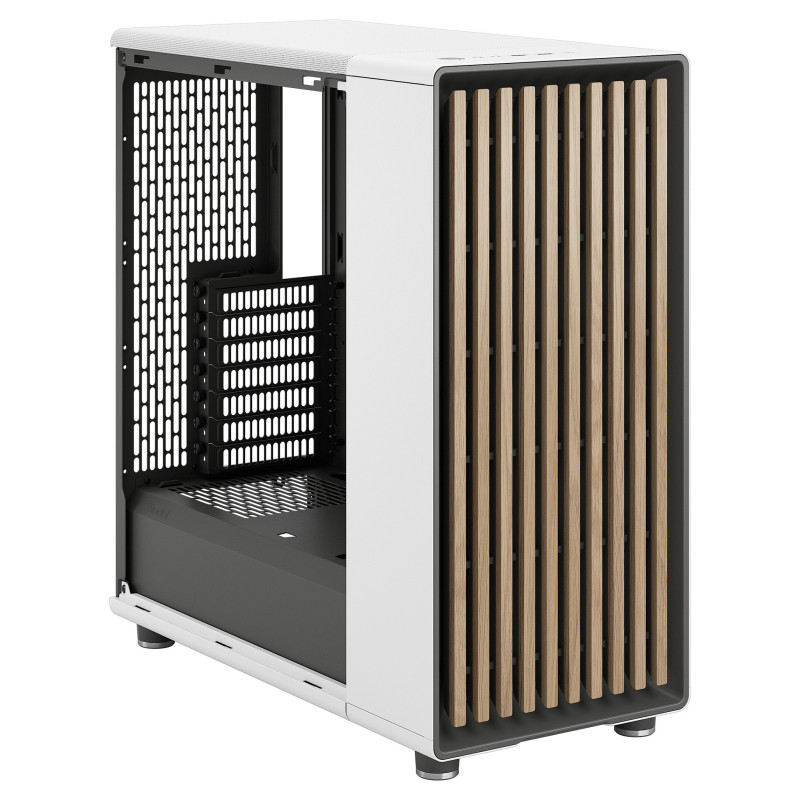

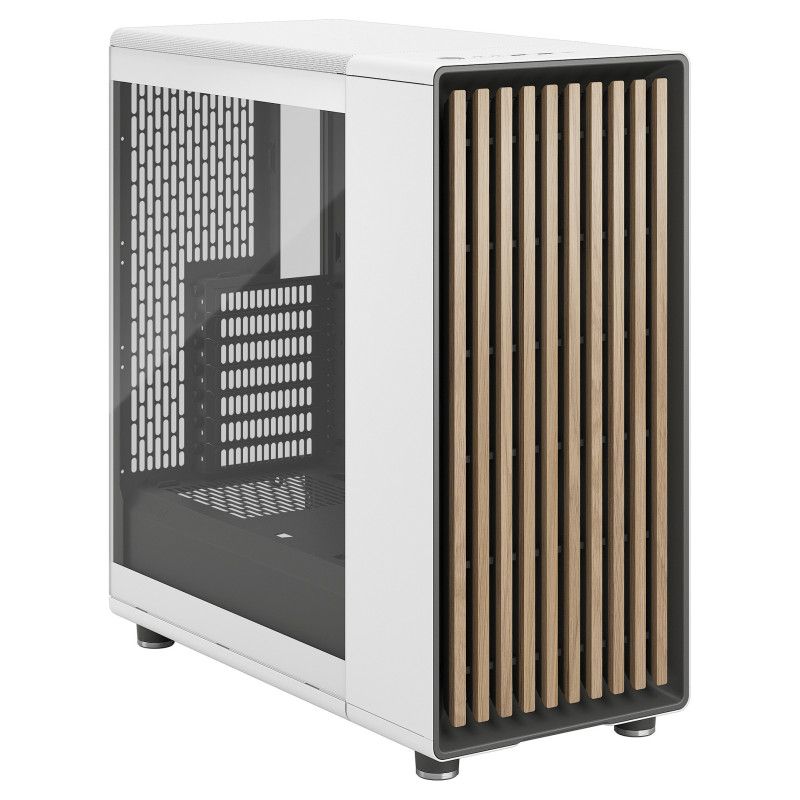

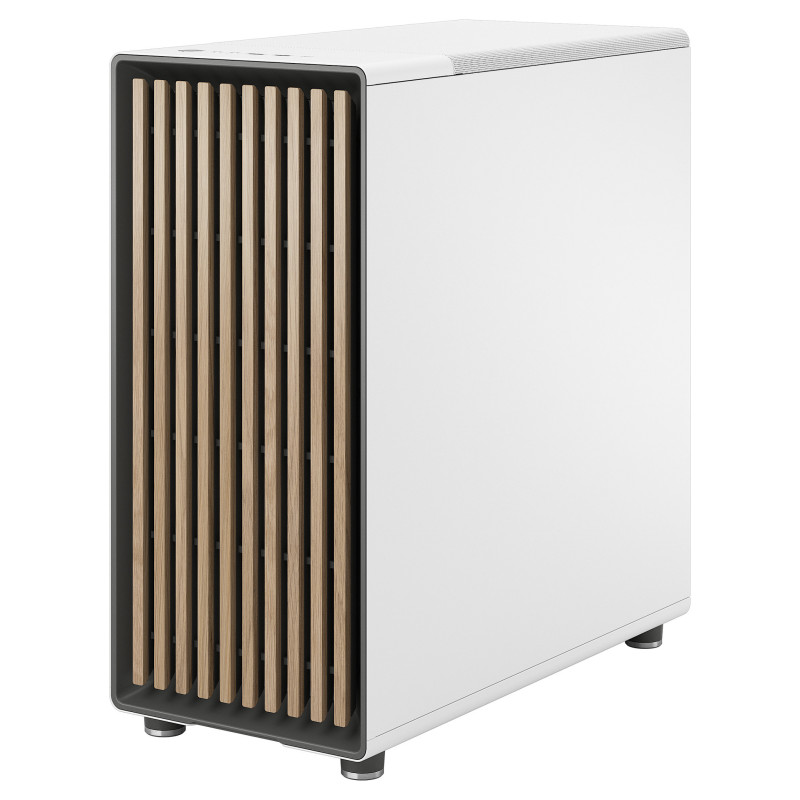

North reimagines the gaming PC, introducing natural materials and bespoke details to make gaming a stylish addition to the living space. Fusing design and airflow engineering, the case features fine-patterned mesh ventilation and an open front with real walnut or oak panels. The design is complemented by sleek brass or steel details and an integrated tab for easy access to the top of the case. Inside, North offers an intuitive interior layout and generous compatibility.
Natural design
- Enjoy a sophisticated looking case which integrates effortlessly into your living space

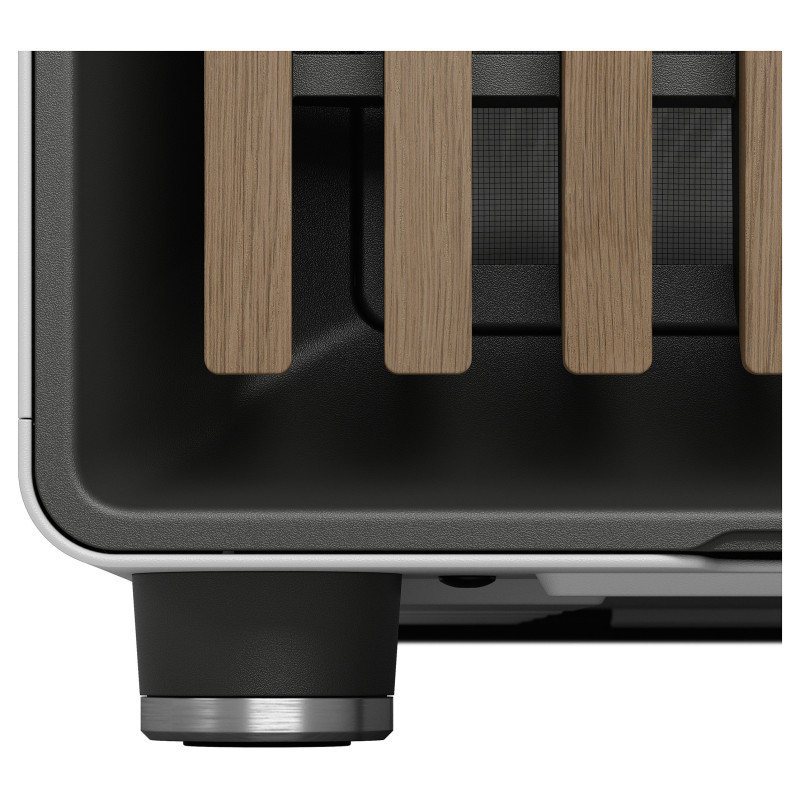

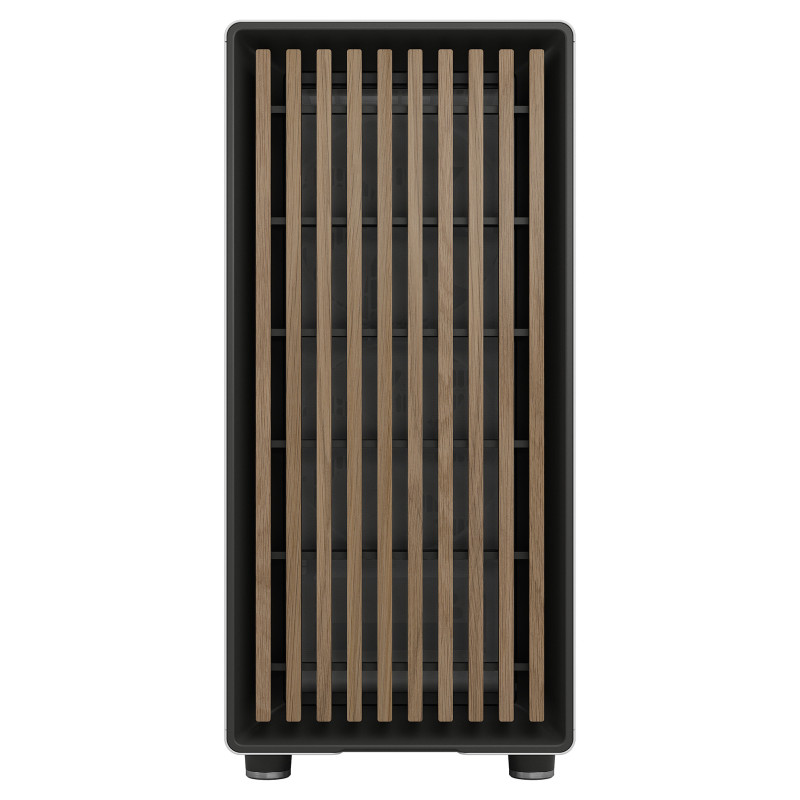

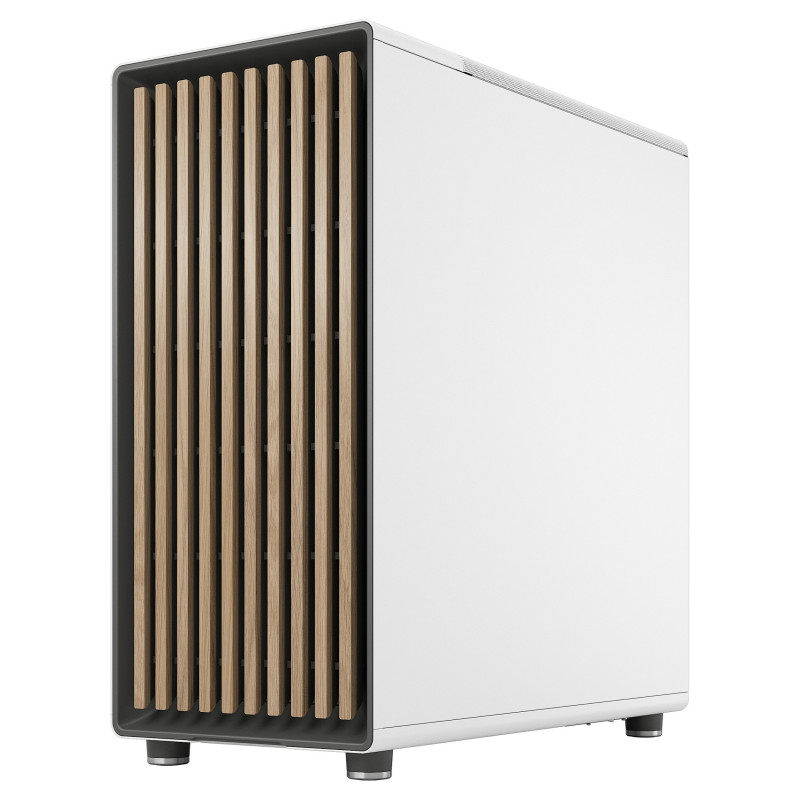

- Enhance your gaming station with a real oak or walnut front, a faux leather tab and sleek steel or brass details
Type-C interface

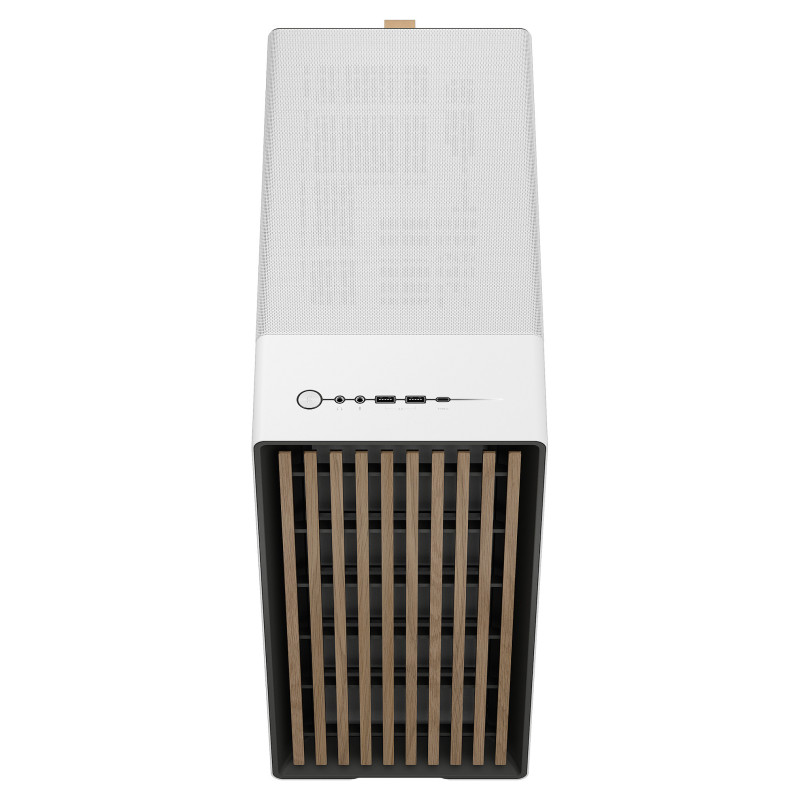

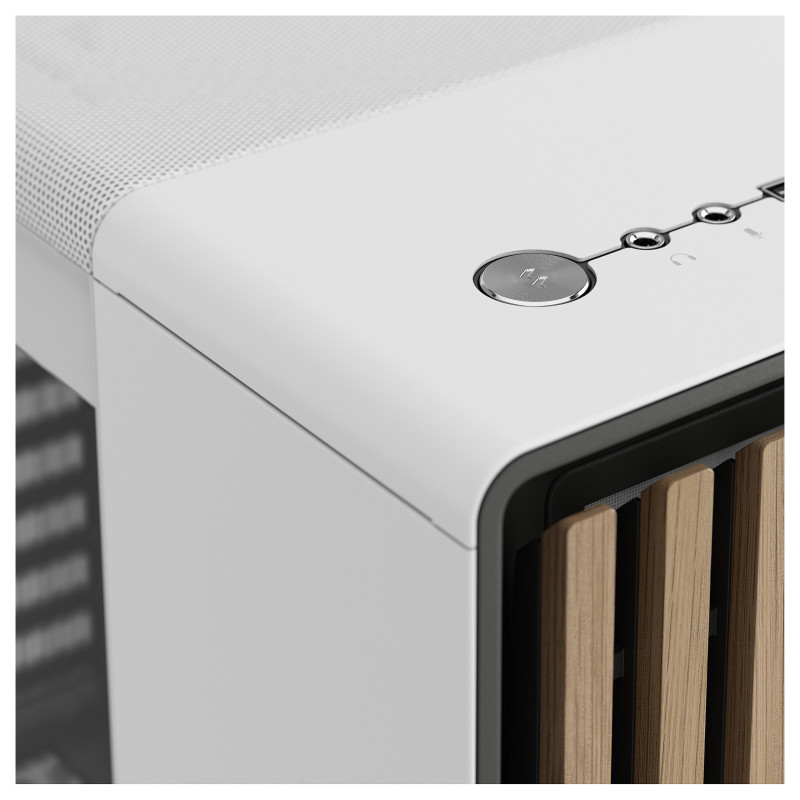

Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
Gaming ready
- Support radiators up to 240 mm in the top and 360 mm in the front
- Room for a GPU up to 355 mm with front fans installed or up to 300 mm with a front radiator

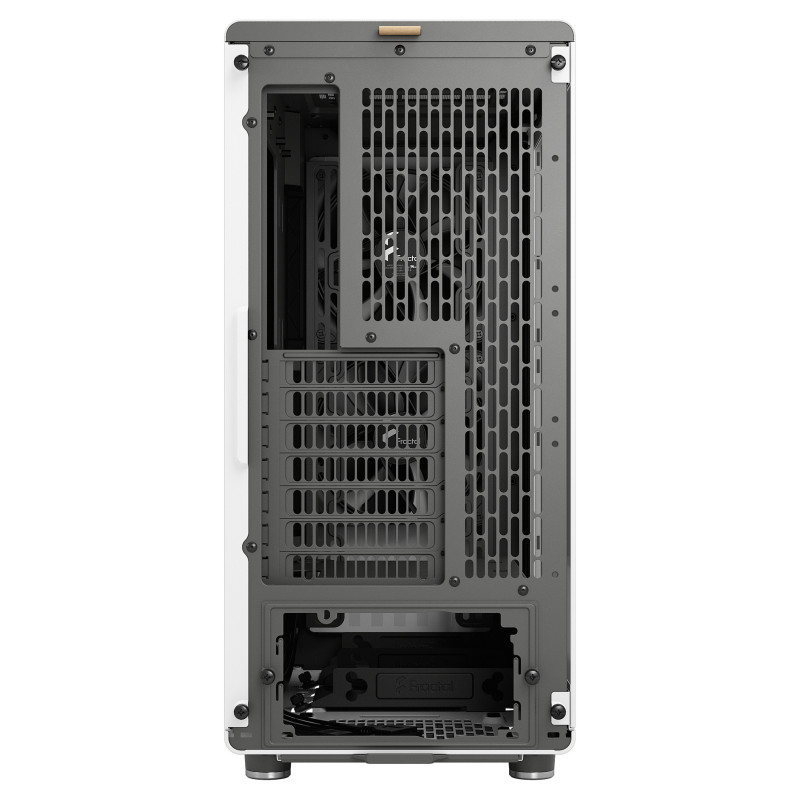

- Seven bridgeless expansion slots allow for extensive customization
- Designed for ATX / mATX / ITX motherboards
Easy access

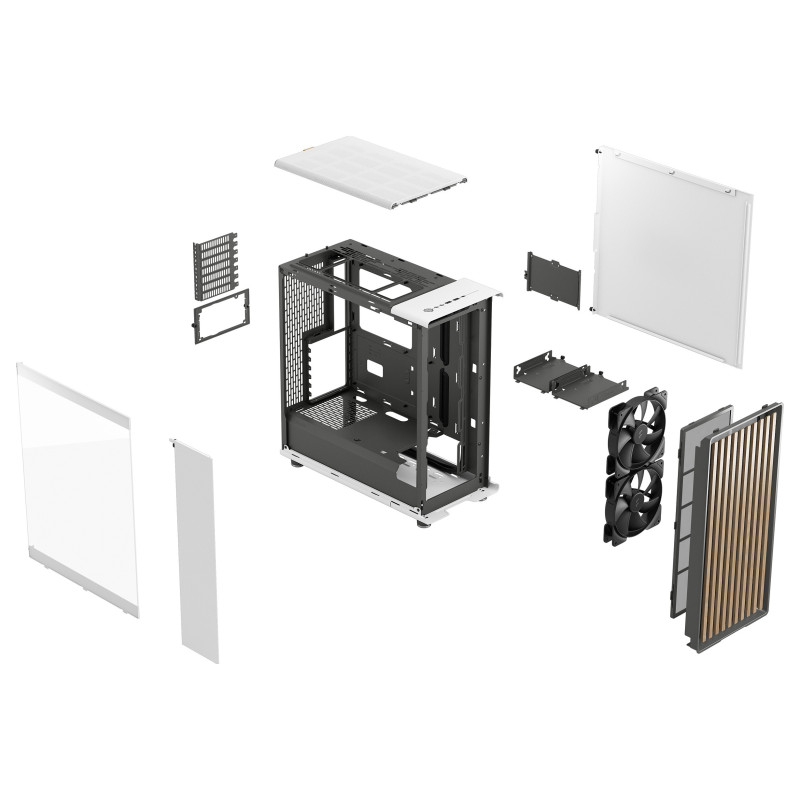

Remove the side panels, unclip the front and pop off the top panel using an integrated tab
Ventilated performance
- Natural ventilation through an open front and a stylishly integrated mesh top panel
- The mesh version of the case features a full mesh side panel in addition to the top
Flexible storage

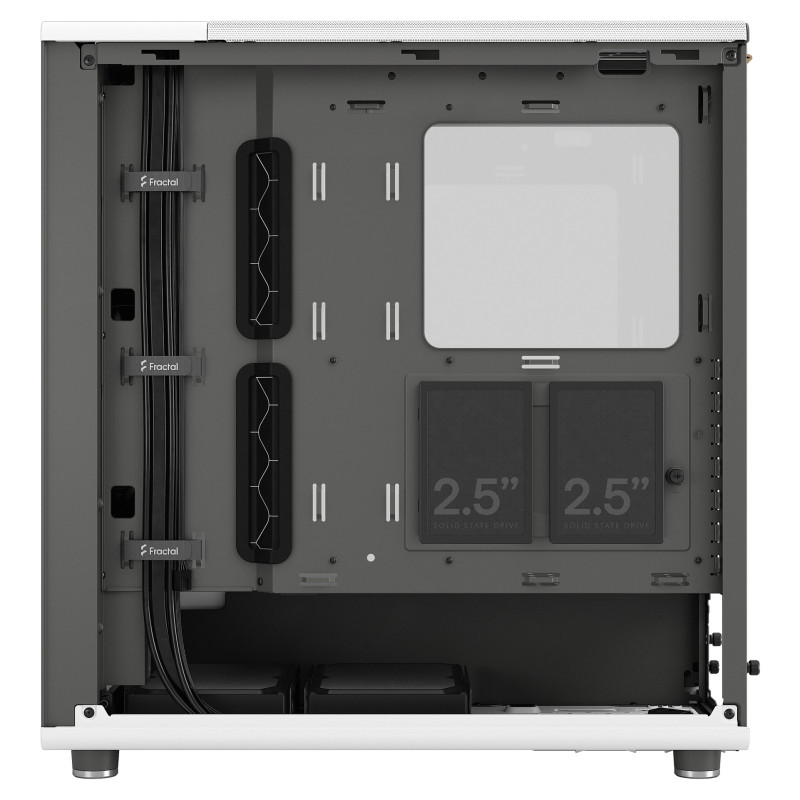

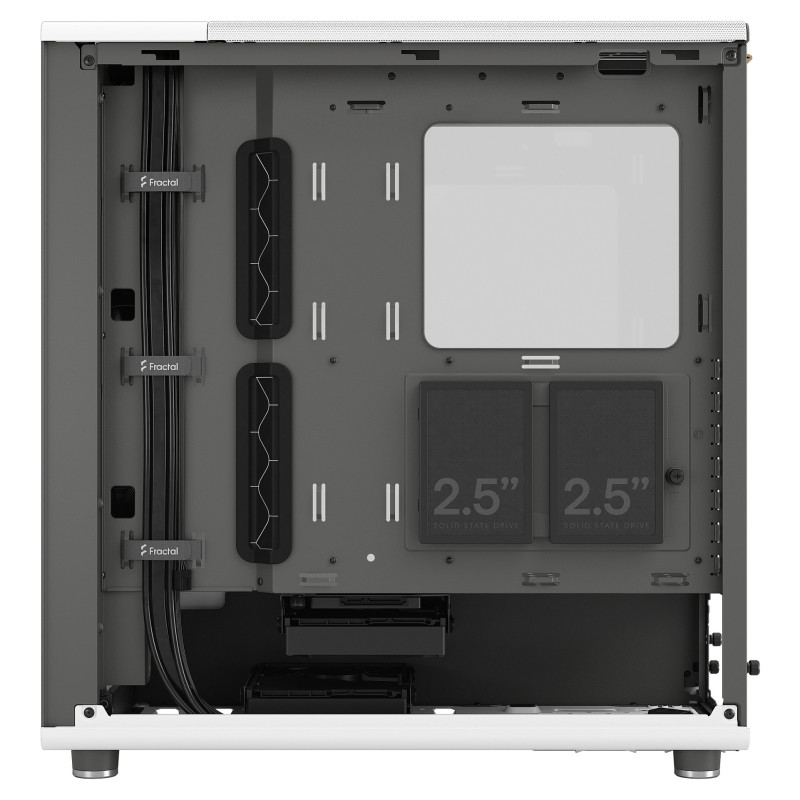

North features two included combined 3.5″/2.5″ drive mounts and two dedicated 2.5″ drive mounts out of the box
Build versatility

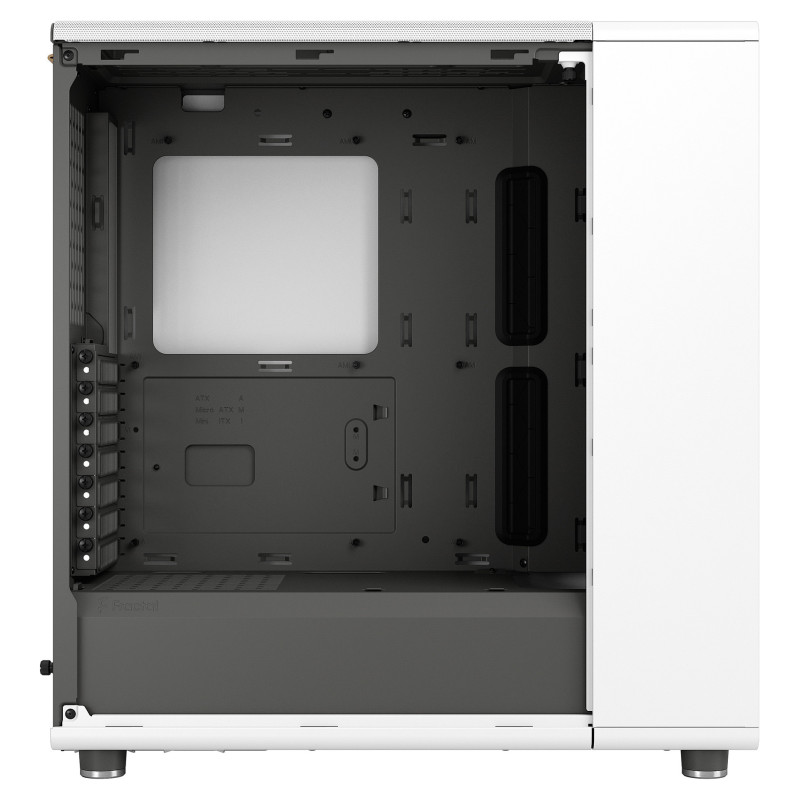

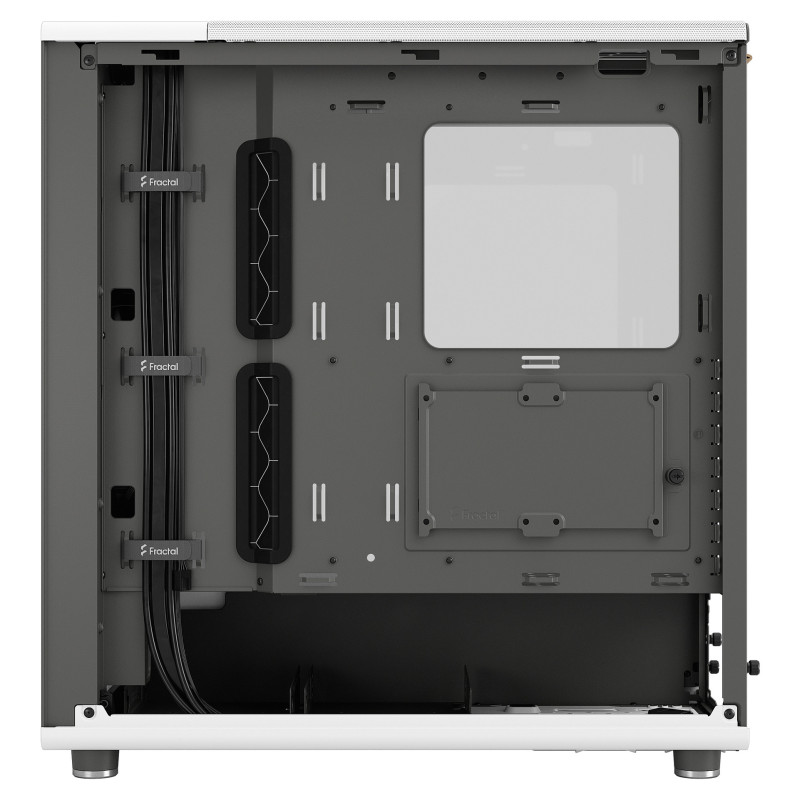

- Make the most of your building experience with an intuitive interior layout

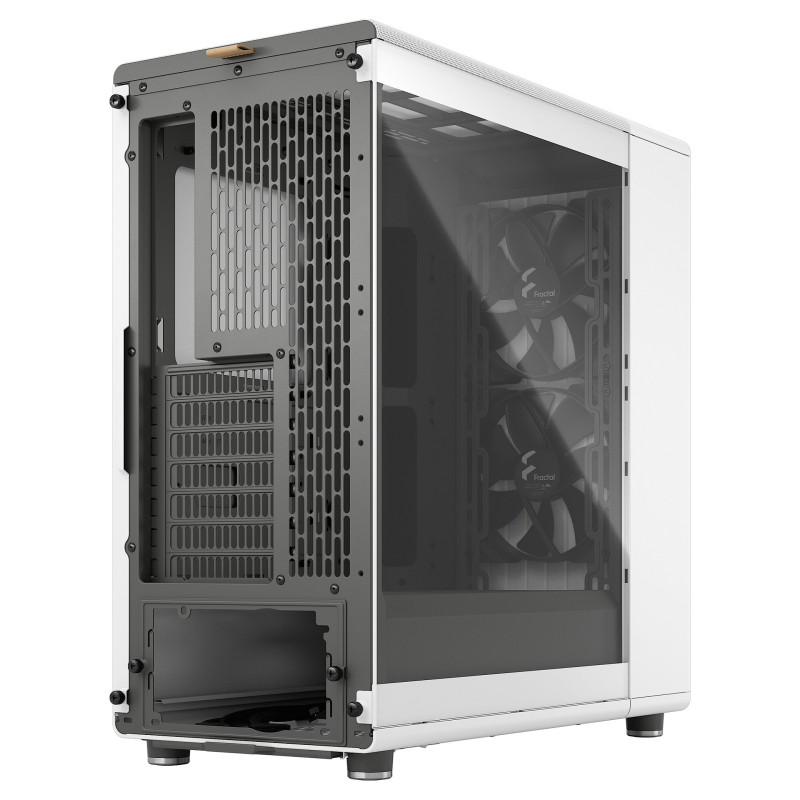

- Two Aspect 14 PWM fans preinstalled with room to expand up to a total of four 140 mm or six 120 mm fans
- The mesh version also ships with a fanhub and a fan bracket, providing an additional two fan positions

Design

Material: Steel, Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: White
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 2
Number of internal 3.5" bays: 2
Number of expansion slots: 7

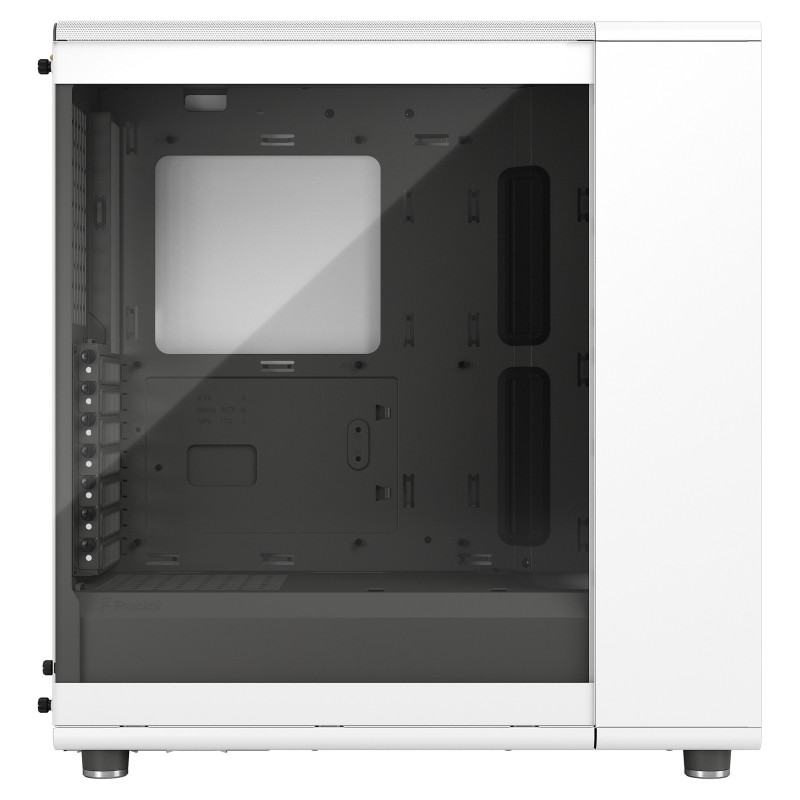

Side window: Yes
Suitable for: Gaming
Illumination: No
Tempered glass panel(s): Yes
Anti-dust filter: Yes
Cable management: Yes
On/off button: Yes
Maximum CPU cooler height: 17 cm
Maximum graphics card length: 35.5 cm
Maximum PSU length: 25.5 cm

Power supply

Power supply included: No
Power supply location: Bottom
Supported power supply form factors: ATX

Ports interfaces

Audio input: Yes
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Cooling

Front fans installed: 2x 140 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Liquid cooling capability: Yes
Front radiator installed: No
Front radiator sizes supported: 60,120,140,200,240,280,360 mm
Rear radiator installed: No
Rear radiator sizes supported: 120 mm
Top radiator installed: No
Top radiator sizes supported: 120,140,180,240 mm

Storage

Supported HDD sizes: 2.5,3.5"

Packaging content

Manual: Yes

Weight dimensions

Width: 215 mm
Depth: 447 mm
Height: 469 mm
Weight: 7.7 kg

Packaging data

Package width: 326 mm
Package depth: 565 mm
Package height: 553 mm
Package weight: 9.3 kg
