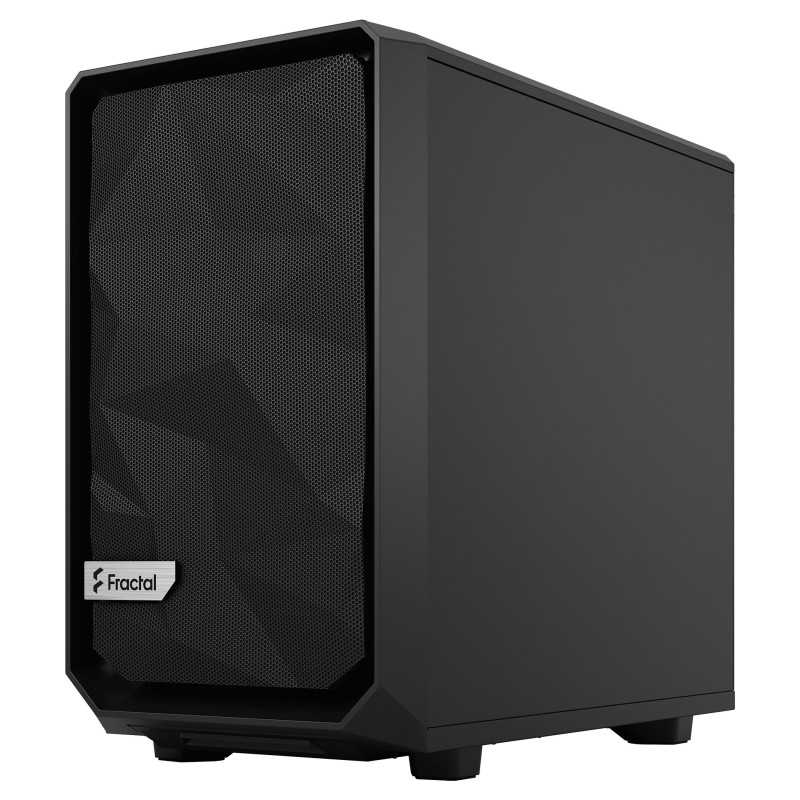

Fractal Design Meshify 2 Nano

Fractal Design Meshify 2 Nano. Type: PC, Product colour: Black, Supported motherboard form factors: Mini-DTX, Mini-ITX. Supported power supply form factors: ATX. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5", SSD form factor: 2.5". Width: 205 mm, Depth: 396 mm, Height: 361 mm

Robust cooling

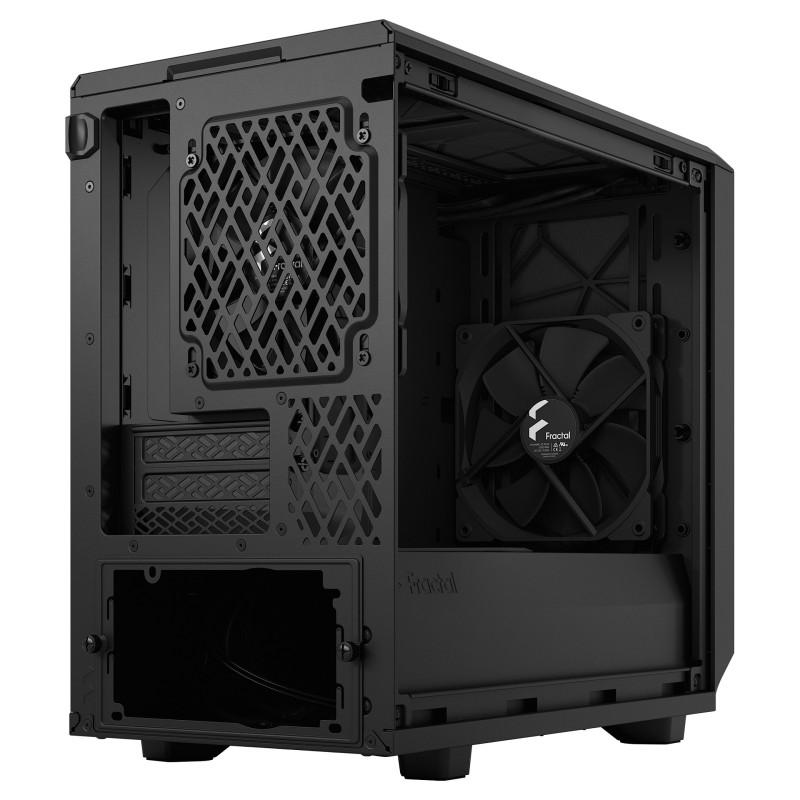

- Pre-installed Dynamic X2 GP 1x 120 mm and 1x 140 mm fans ensure smooth airflow with minimal noise
- Install up to 6x 120 mm or 3x 140 mm fans and front radiators up to 280 mm
- Room for GPUs up to 306 mm long including front fans with 331 mm total space

All access

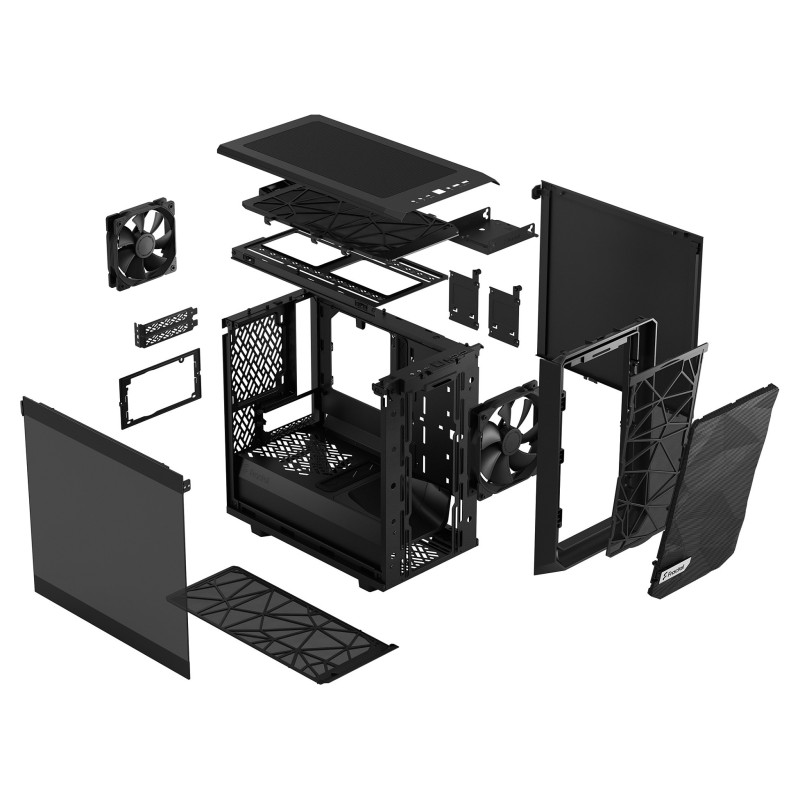

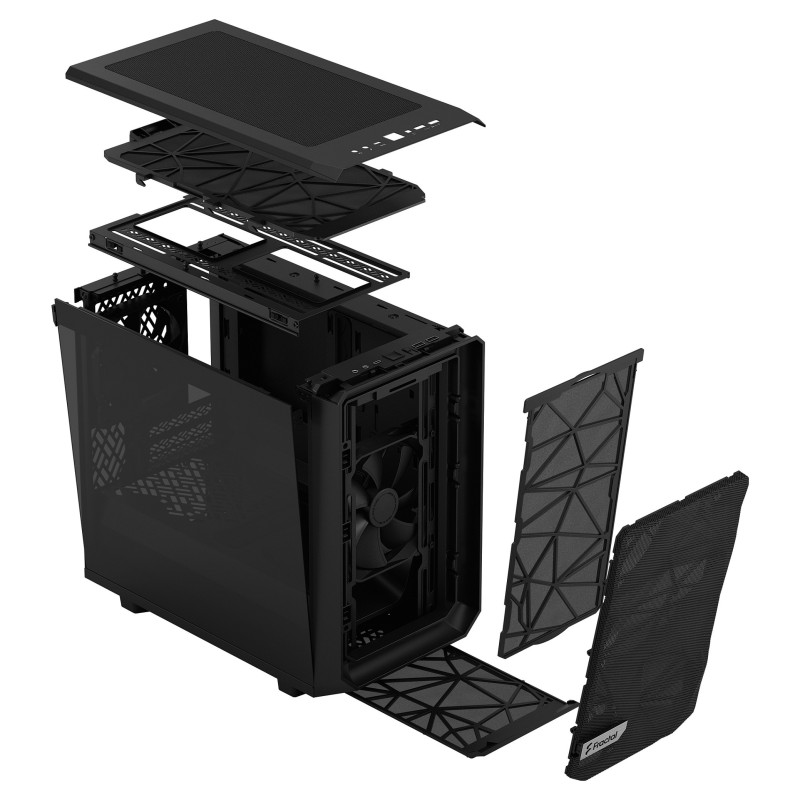

- Fully removable top panel and a top fan bracket that opens to provide excellent interior access and easy cable routing
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
- Front filter with double layered detachable nylon for increased airflow

Slick and streamlined

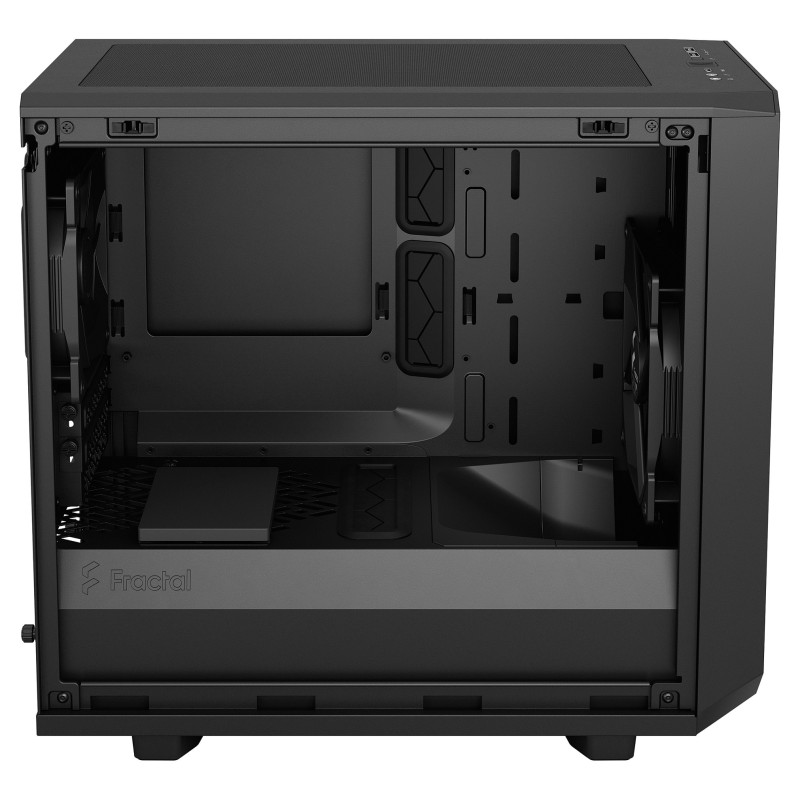

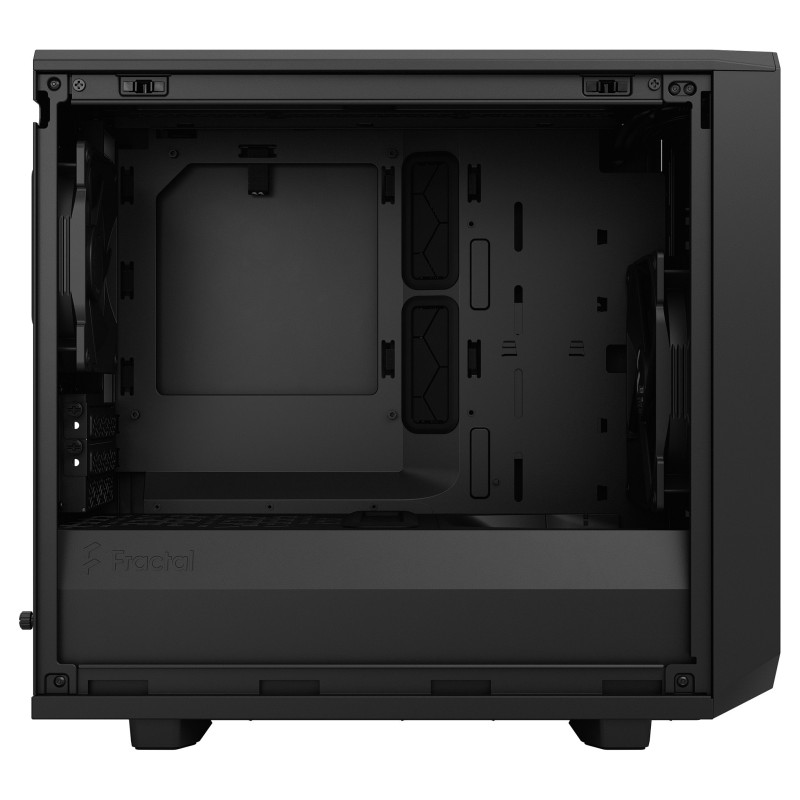

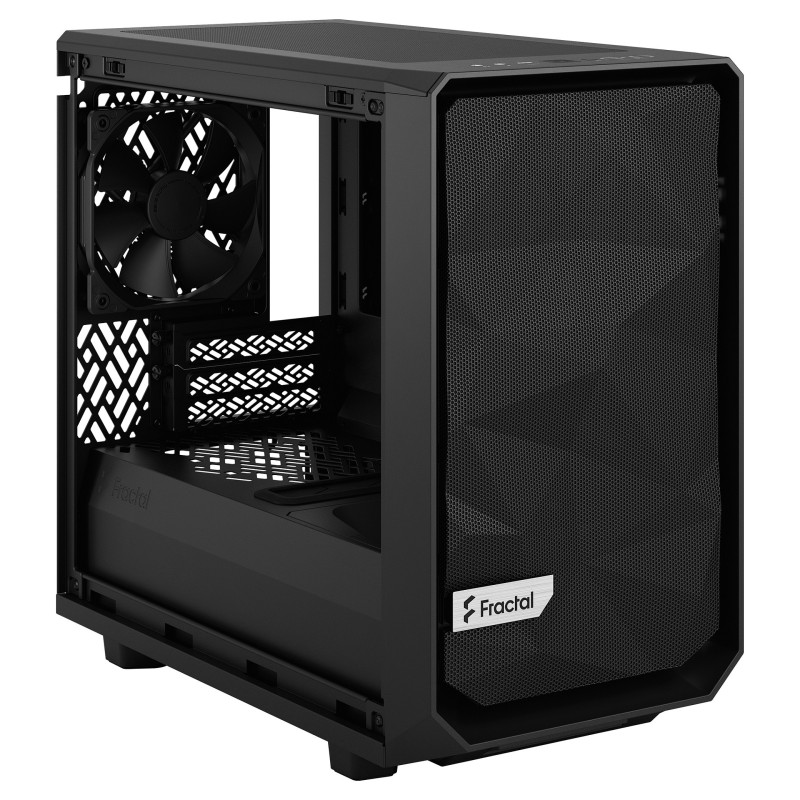

The open interior layout creates a smooth airflow path from intake to rear exhaust

Guided airflow
- Two-part modular air duct for increased GPU airflow

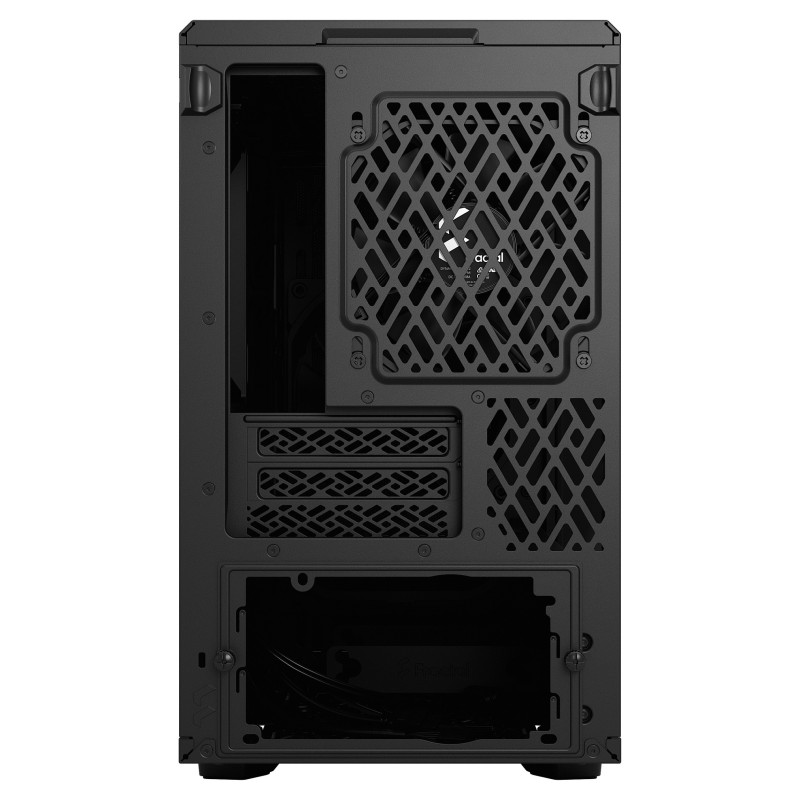

- Bridgeless PCI expansion slots ensure unrestricted GPU exhaust

More in store
- Flexible storage option supporting one 3.5" drive and three 2.5'' drives

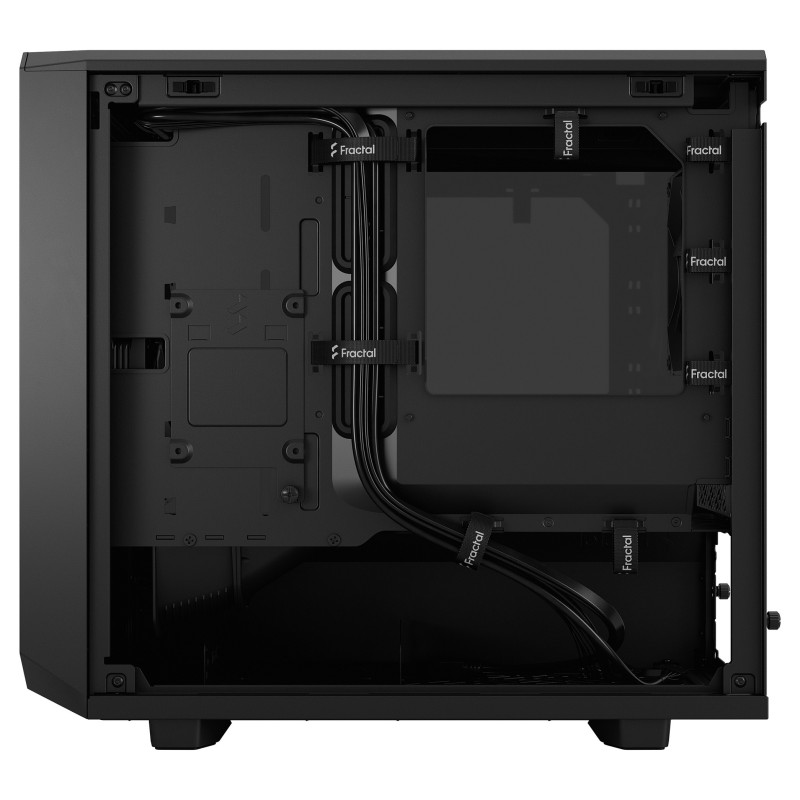

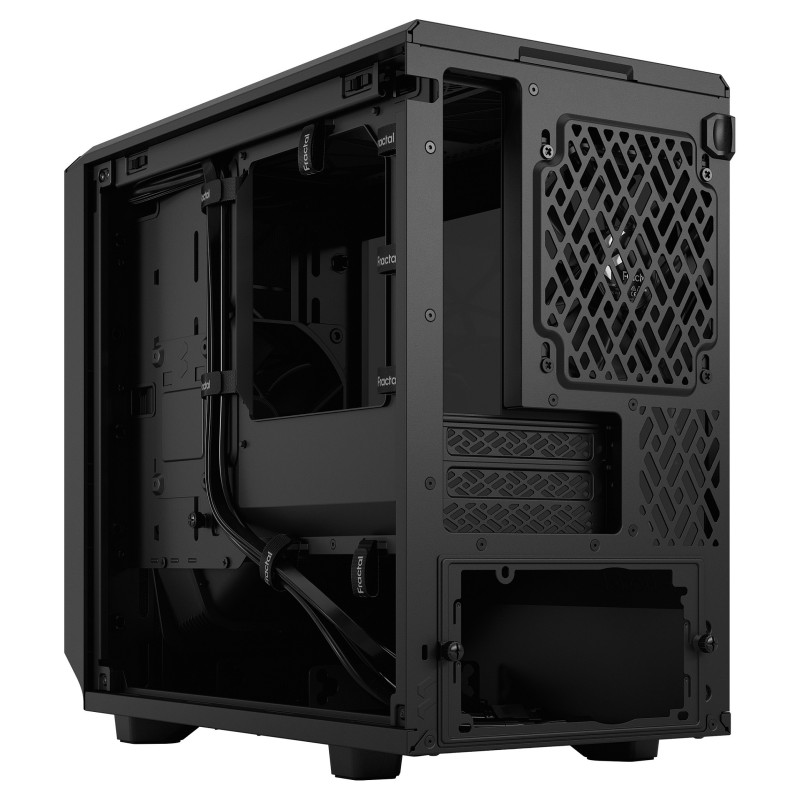

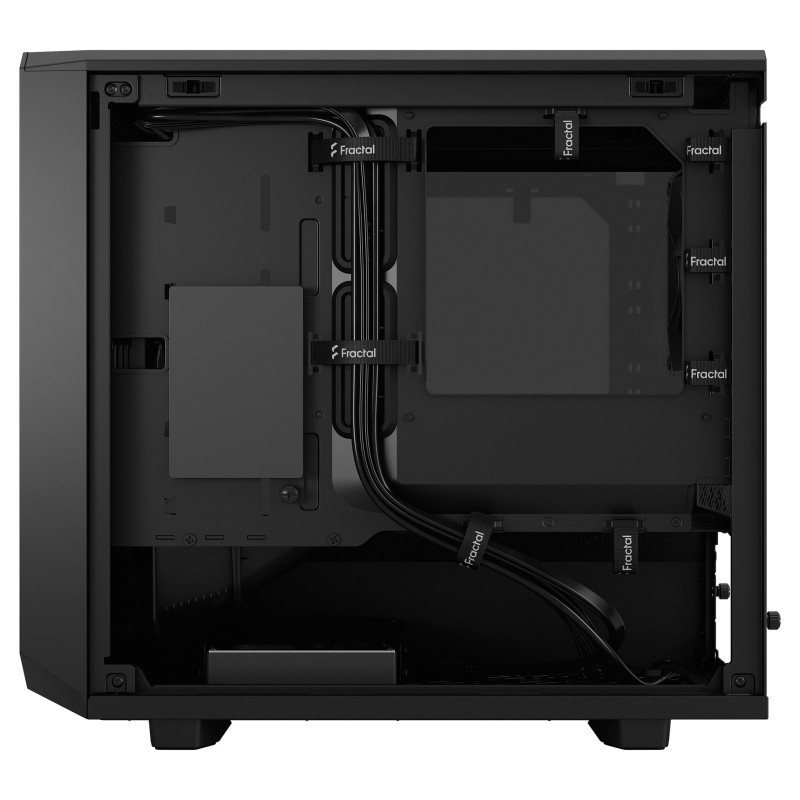

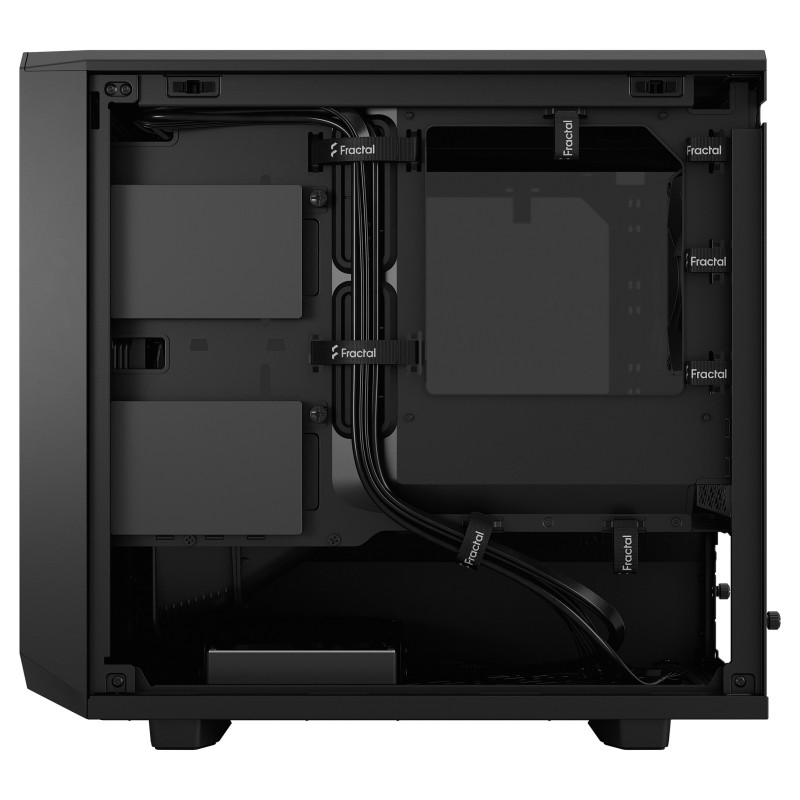

- Integrated cable guides with cable straps further simplify cable management behind the board

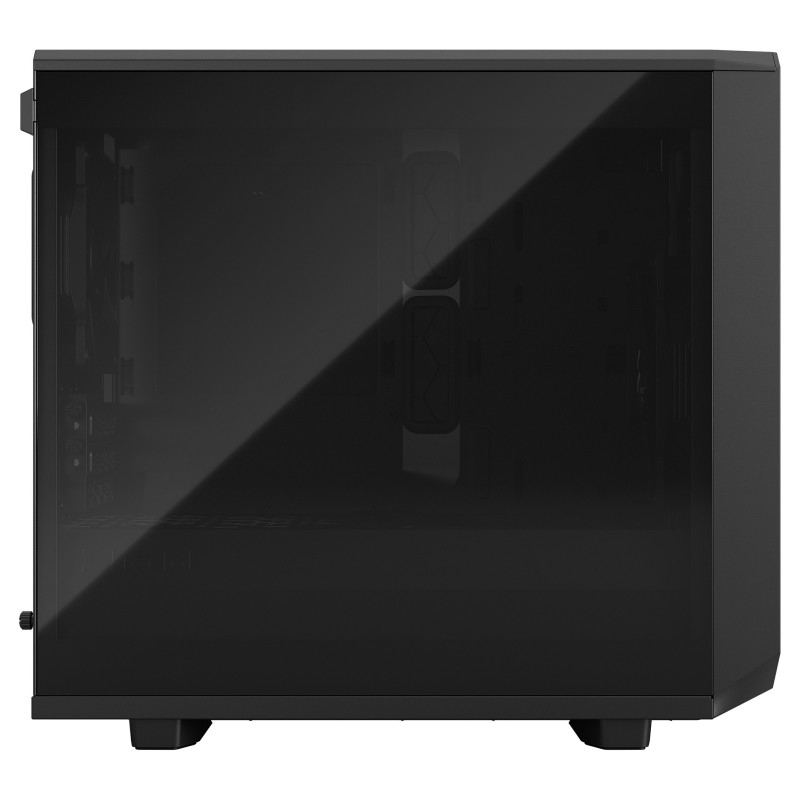

Bolt-free glass

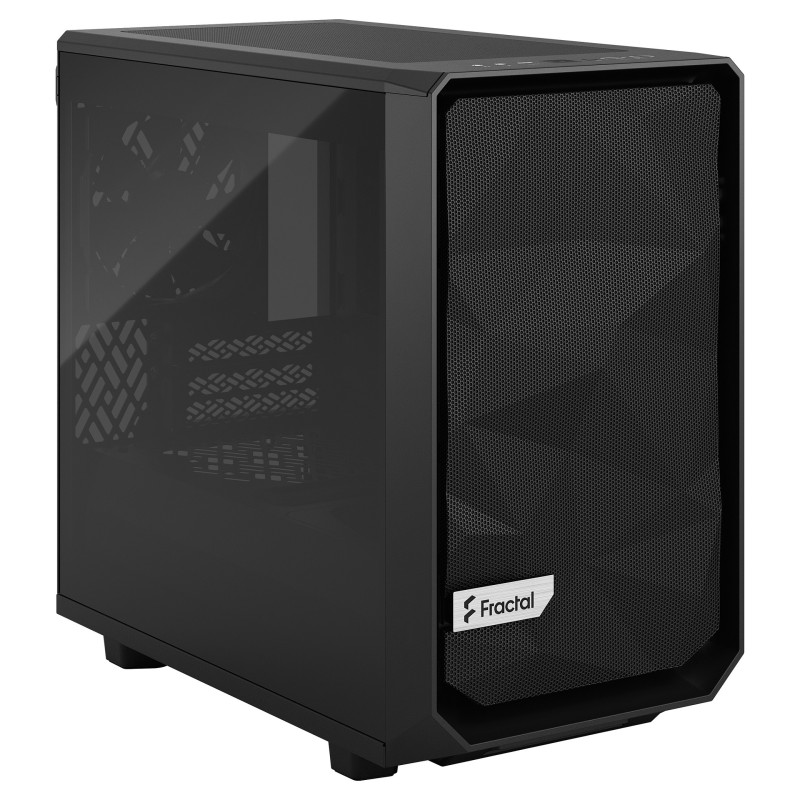

- Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism

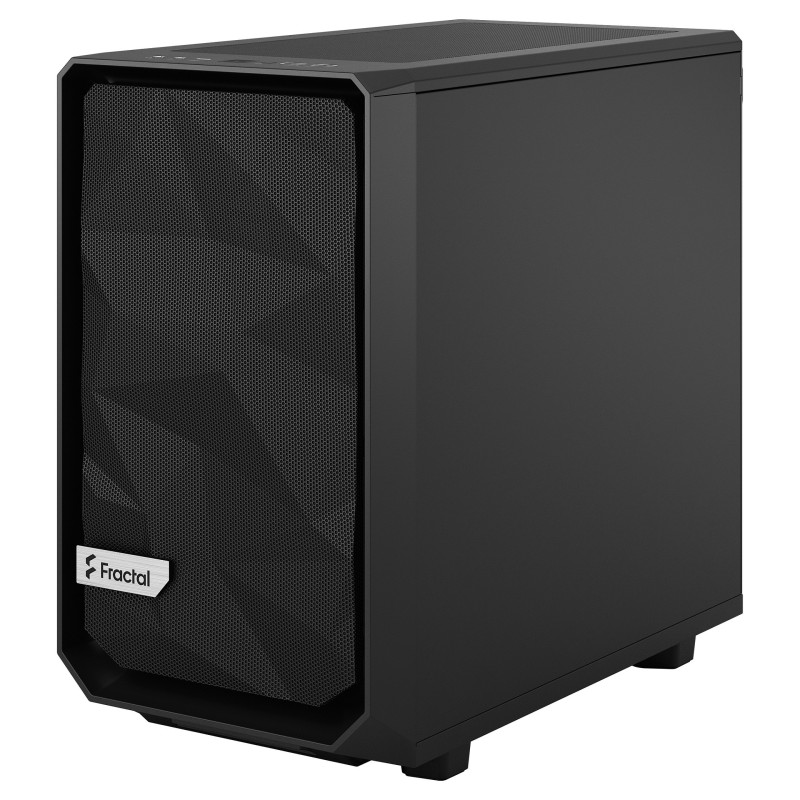

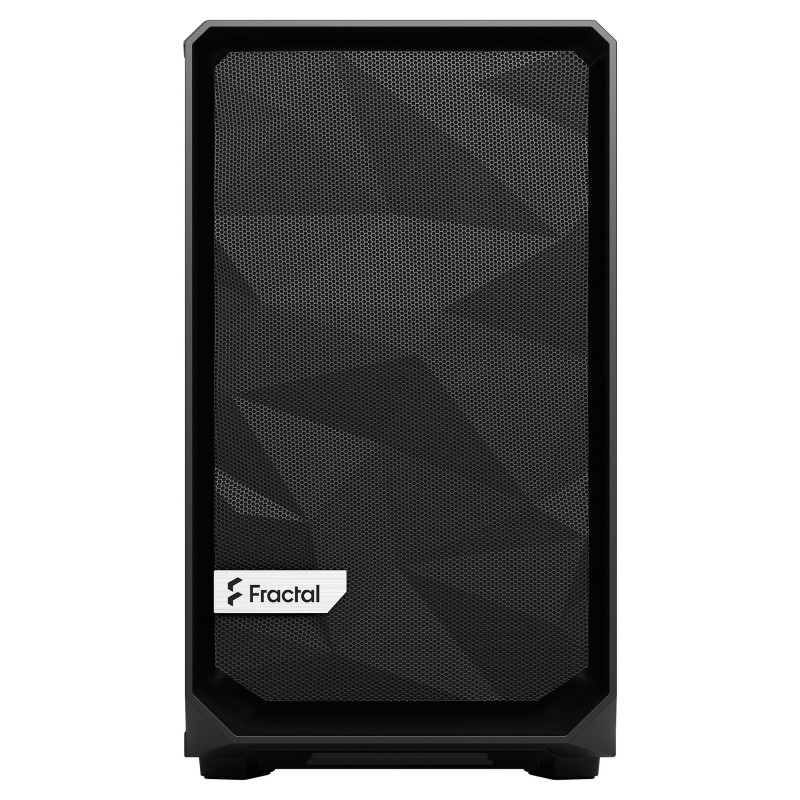

- Front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts

Type-C interface

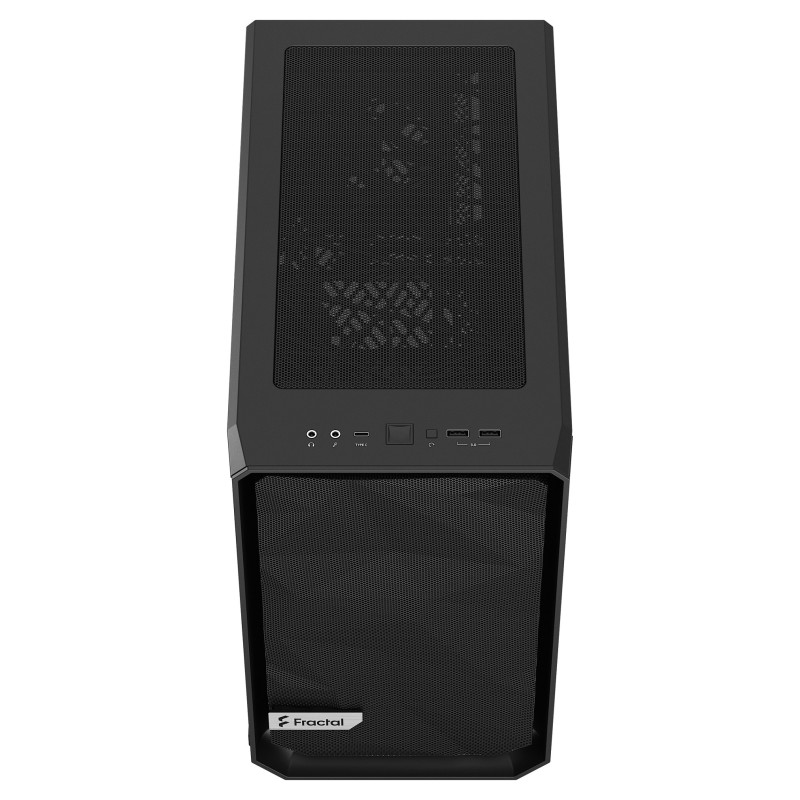

USB-C front I/O offers quick access to fast charging and speeds up to 10 Gbps

Design

Material: Steel, Tempered glass
Type: PC
Product colour: Black
Supported motherboard form factors: Mini-DTX, Mini-ITX
Number of 3.5" bays: 1
Number of 2.5" bays: 3
Number of expansion slots: 2
Feature: Side window
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: Reset button
Feature: On/off button
Maximum CPU cooler height: 16.7 cm
Maximum graphics card length: 33.1 cm
Maximum PSU length: 20 cm

Power supply

Supported power supply form factors: ATX

Ports & interfaces

Audio input: Yes
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Cooling

Front fans installed: 1x 140 mm
Number of front fans supported (max): 2
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 1
Bottom fans diameters supported: 120 mm
Front radiator sizes supported: 120,140,240,280 mm
Rear radiator sizes supported: 120 mm

Storage

Supported HDD sizes: 2.5,3.5"
SSD form factor: 2.5"

Packaging content

Feature: Manual

Weight & dimensions

Width: 205 mm
Depth: 396 mm
Height: 361 mm
Weight: 5.9 kg

Packaging data

Package width: 277 mm
Package depth: 412 mm
Package height: 462 mm
Package weight: 7.1 kg
