Fractal Design Meshify 2 Lite

Fractal Design Meshify 2 Lite. Type: PC, Product colour: Black, Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX. Supported power supply form factors: ATX. Front fans installed: 3x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5", SSD form factor: 2.5". Width: 240 mm, Depth: 542 mm, Height: 474 mm

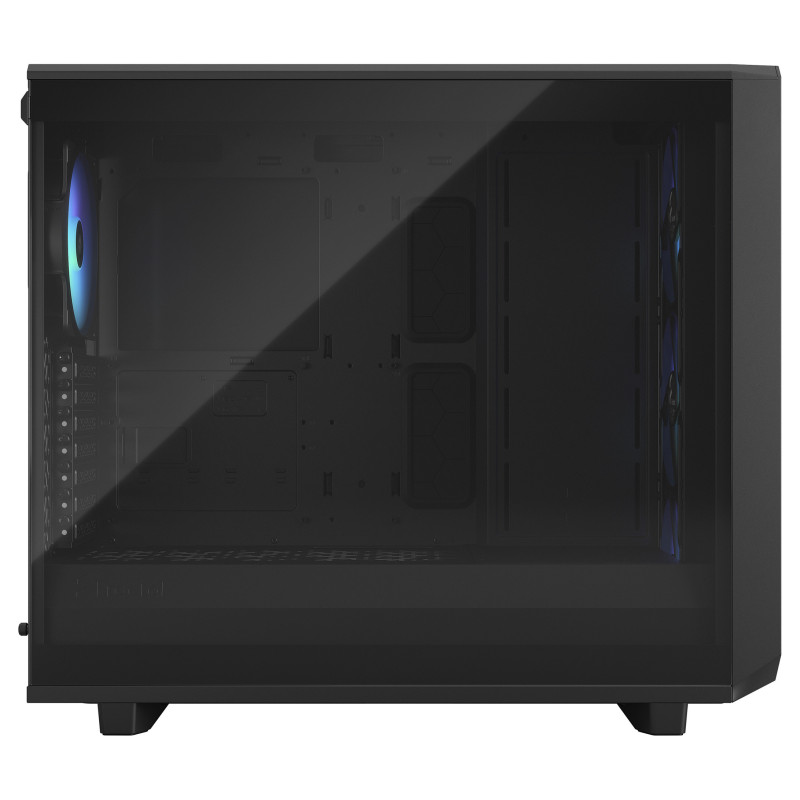

The Meshify 2 Lite is a high-performance case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a front with a hinged, iconic mesh panel, and a spacious interior that supports multi-radiator setups.

Smooth and sturdy

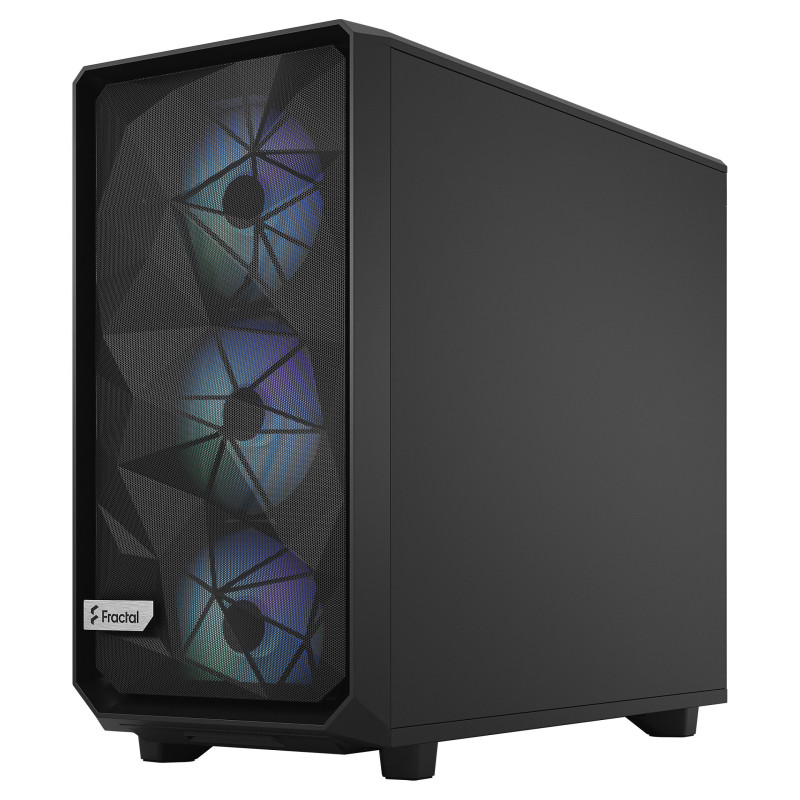

- Iconic angular mesh design offers airflow with a bold, stealth-inspired aesthetic

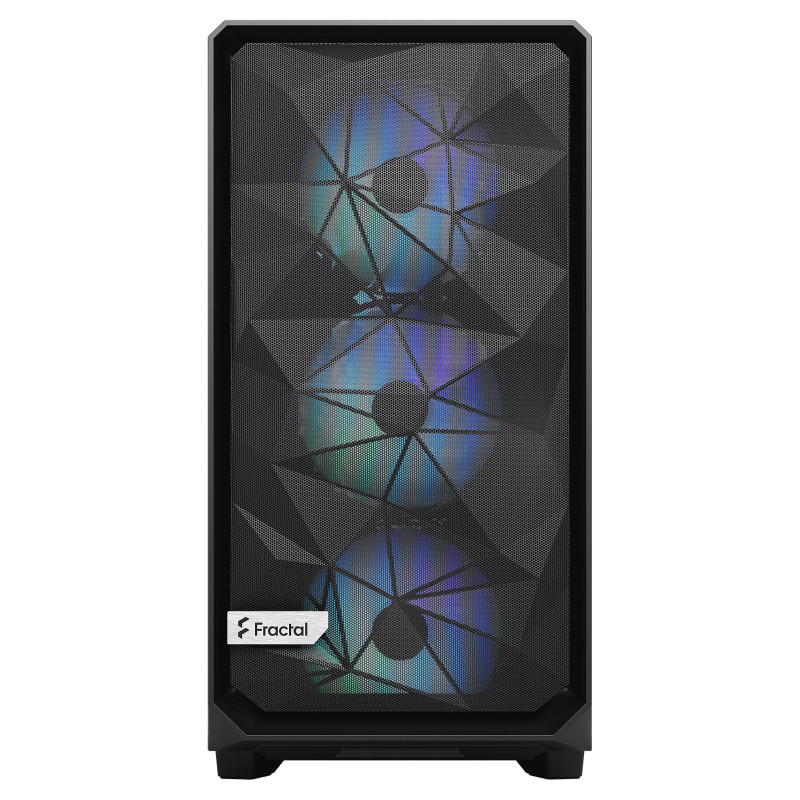

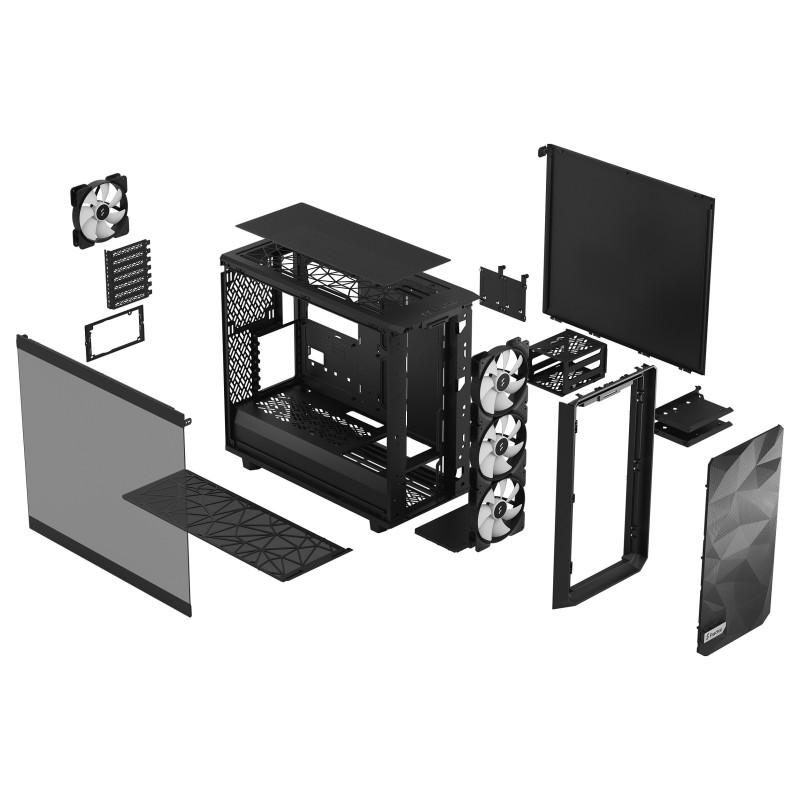

- Front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and either four preinstalled Aspect 14 RGB fans (RGB version) or three preinstalled Aspect 14 fans (standard version)

Generous space
- Spacious interior easily accommodates large motherboards up to and including 285 mm E-ATX
- Support for radiators up to 360 mm in front, 360 mm up top, or 280 mm in the base
- Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support

More in store
- Built in RGB controller on the front/top I/O with iconic Fractal Northern Lights effect (RGB version)
- Tool-less, top-latching side panels allow quick access while preventing accidental drops
- Includes 2 HDD/SSD trays and 2 SSD brackets for mounting up to 4 drives

Easier front access
- I/O connections are separated from the redesigned front panel to simplify installation and modding
- USB Type-C ready with the Model E accessory cable (sold separately)
- Expandable using Multibrackets, trays and cages sold separately

Design

Material: Steel, Tempered glass
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 4
Number of expansion slots: 7
Feature: Side window
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: On/off button
Feature: RGB control button
Maximum CPU cooler height: 18.5 cm
Maximum graphics card length: 45 cm
Maximum PSU length: 25 cm

Power supply

Supported power supply form factors: ATX

Ports & interfaces

Audio input: Yes
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Cooling

Front fans installed: 3x 140 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 2
Bottom fans diameters supported: 120,140 mm
Front radiator sizes supported: 280,360 mm
Bottom radiator sizes supported: 240 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 360 mm

Storage

Supported HDD sizes: 2.5,3.5"
SSD form factor: 2.5"

Weight & dimensions

Width: 240 mm
Depth: 542 mm
Height: 474 mm
Weight: 9.6 kg

Packaging data

Package width: 330 mm
Package depth: 540 mm
Package height: 640 mm
Package weight: 11.2 kg

Logistics data

Harmonized System (HS) code: 84733080
