Fractal Design Meshify 2 Compact RGB

Fractal Design Meshify 2 Compact RGB. Type: PC, Product colour: White, Supported motherboard form factors: ATX, micro ATX, Mini-ITX. Supported power supply form factors: ATX. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5", SSD form factor: 2.5". Width: 210 mm, Depth: 424 mm, Height: 475 mm

Refined airflow
- Repositioned front fan mounting sets a wider stage for light and color
- Install up to 7x 120 mm or 4x 140 mm fans (4x 120 mm Aspect 12 RGB PWM fans included)
- Open interior layout creates a smooth airflow path from front intake to rear exhaust

Detachable front filter

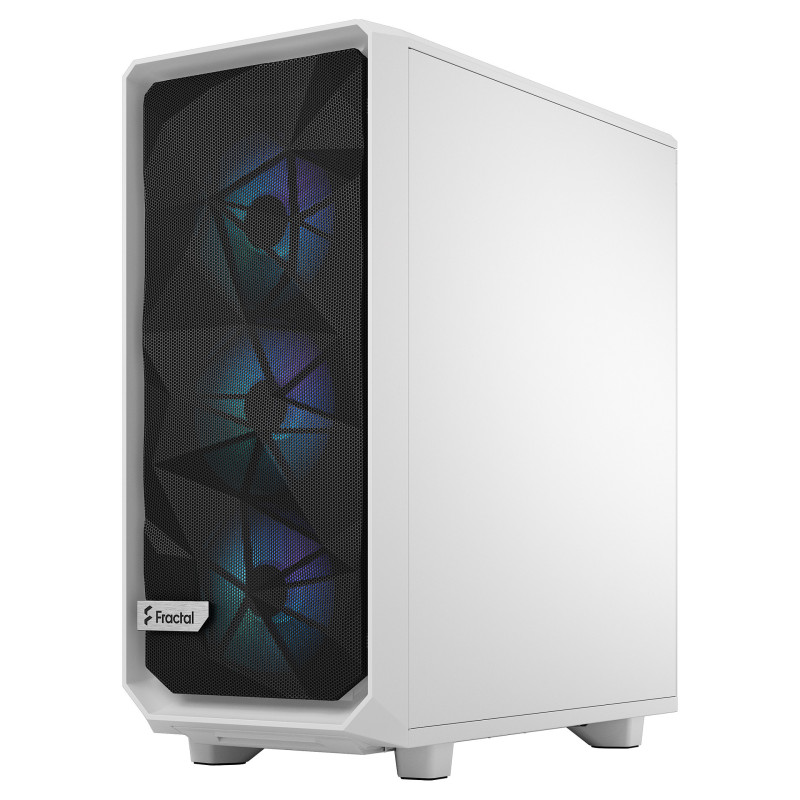

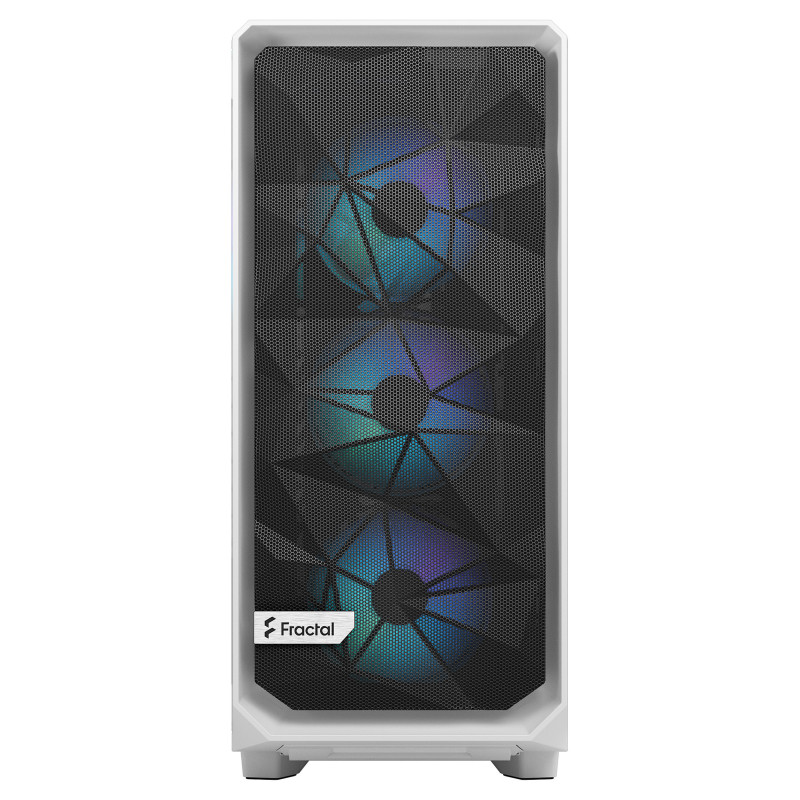

- Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
- Front nylon filter that can be removed for increased airflow
- Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access

Light and color

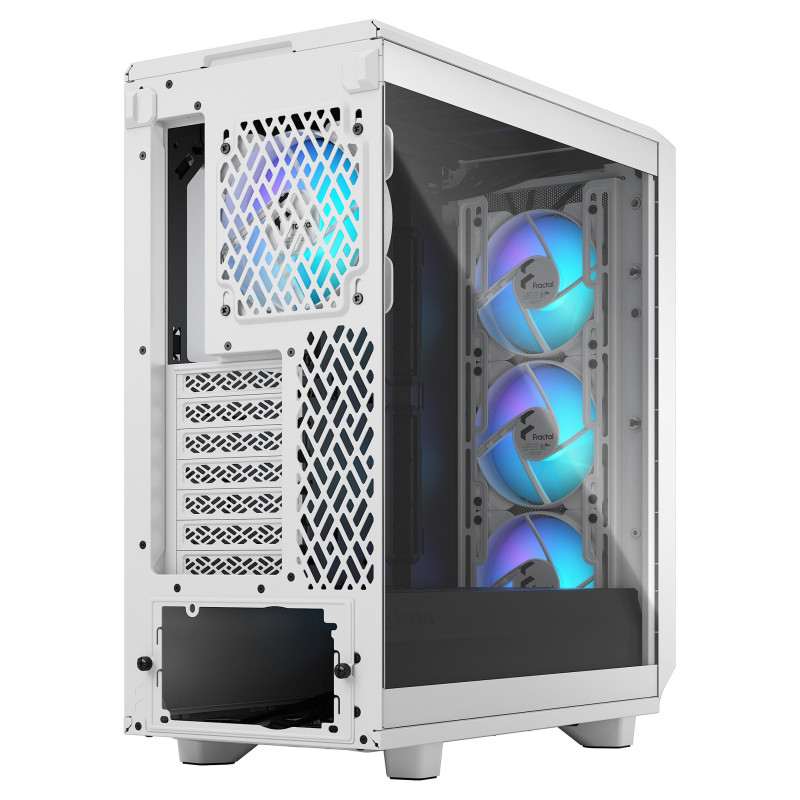

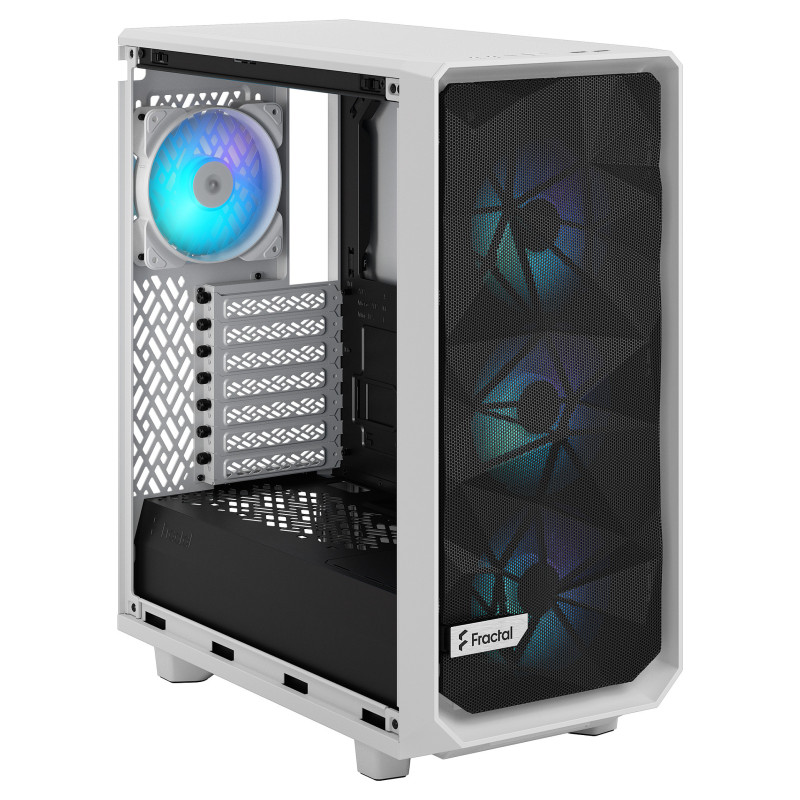

Comes with 4x Aspect 12 RGB PWM fans pre-installed

Extremely flexible
- Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
- Full length power supply shroud with two-part removable cover conceals drive cage and excess cabling for smooth airflow and a clean interior

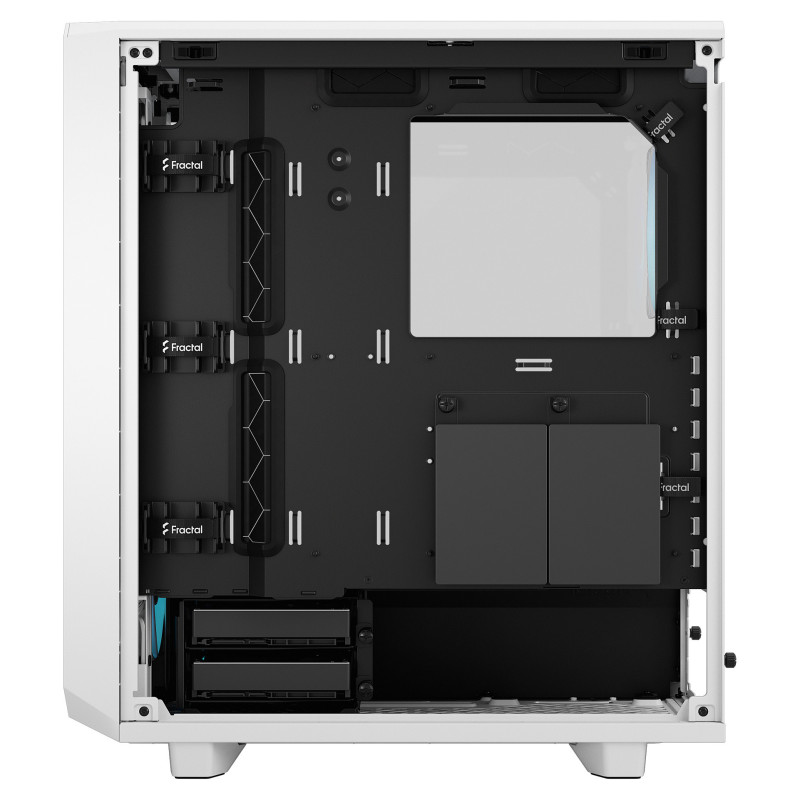

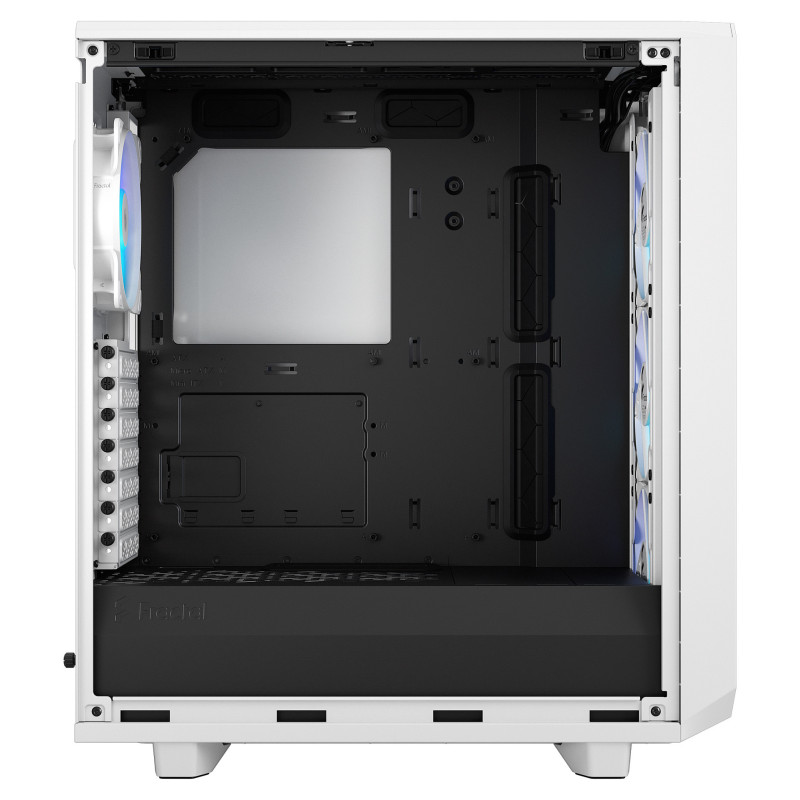

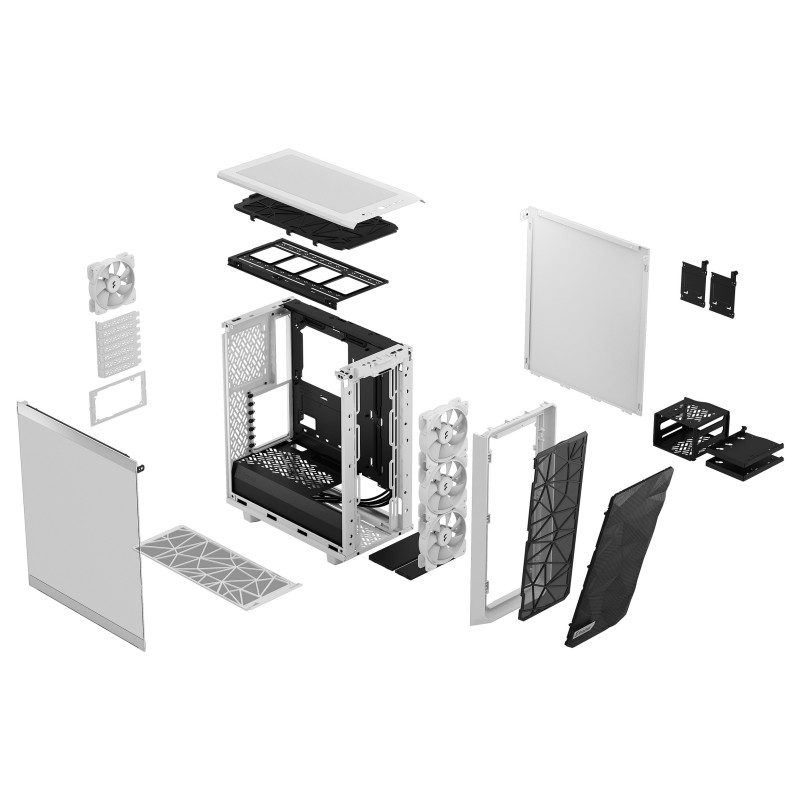

- Chassis opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing

Type-C Interface

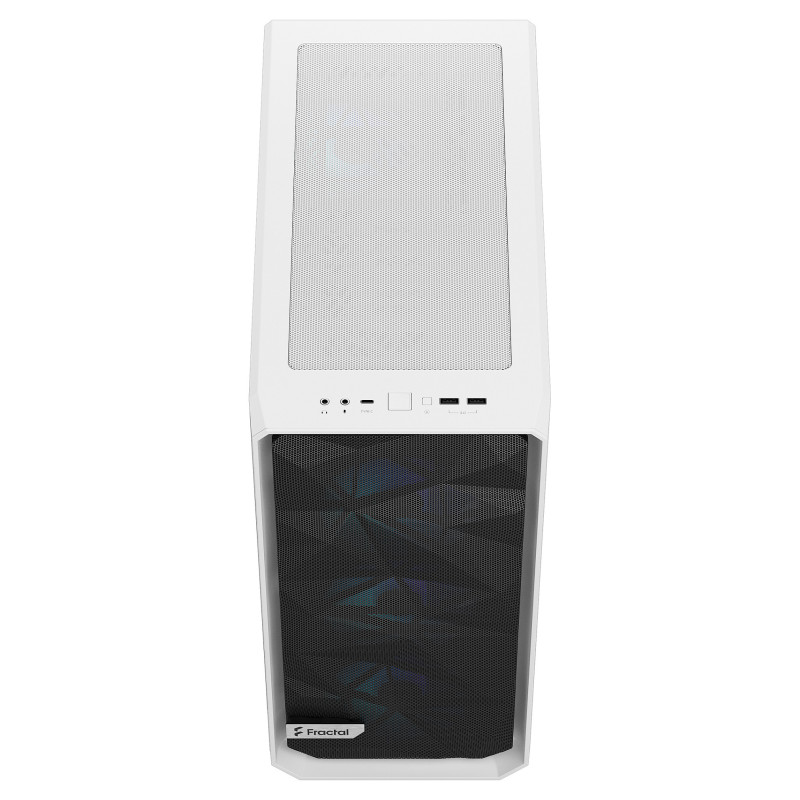

- Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
- Built in RGB controller on the front/top I/O with iconic Fractal Northern Lights effect

Bolt-free glass

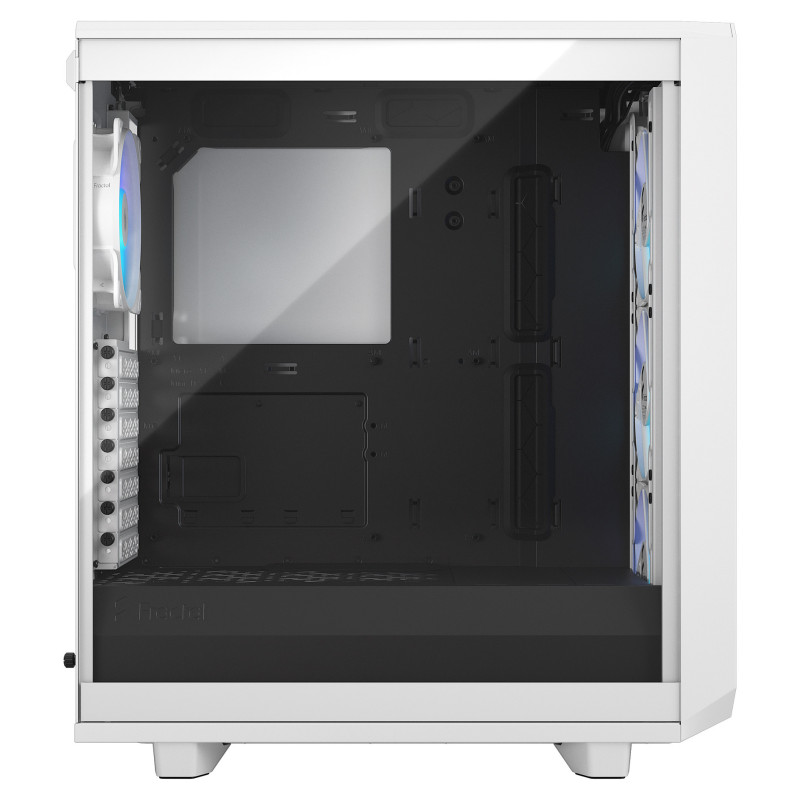

- Seamlessly integrated tempered glass panel with steel frame support and bolt-free top-latching mechanism
- Flexible storage options supporting two 2.5"/3.5" drives and up to four SSDs (two SSD brackets included)

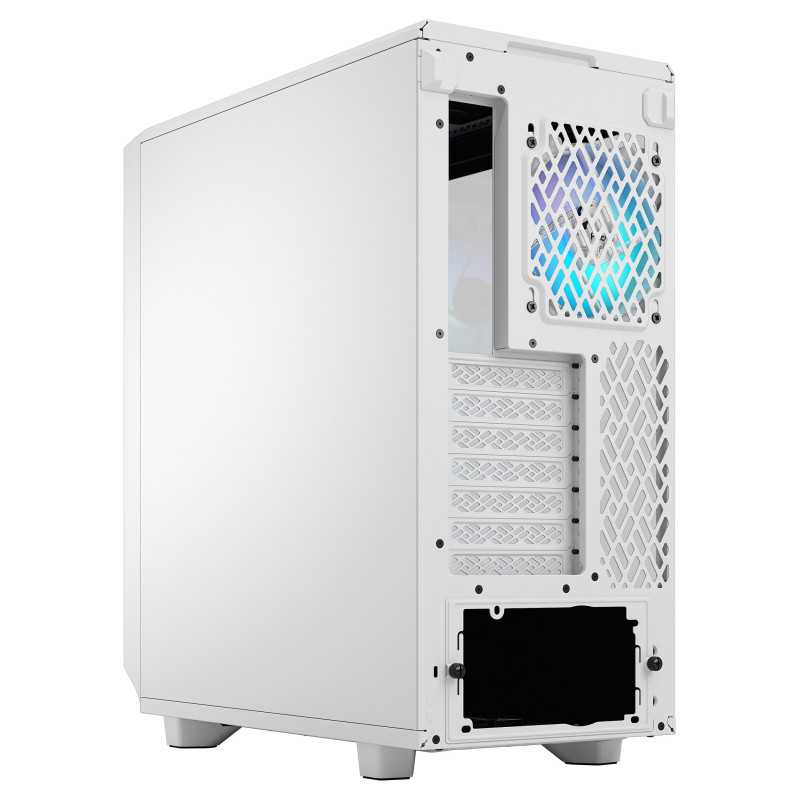

- Seven bridgeless expansion slots ensure obstruction-free connections

Top priority access
Fully removable top panel and top fan bracket opens to provide excellent interior access and easy cable routing

Design

Material: Steel, Tempered glass
Type: PC
Product colour: White
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 4
Number of expansion slots: 7
Feature: Side window
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Tempered glass panel(s)
Feature: Anti-dust filter

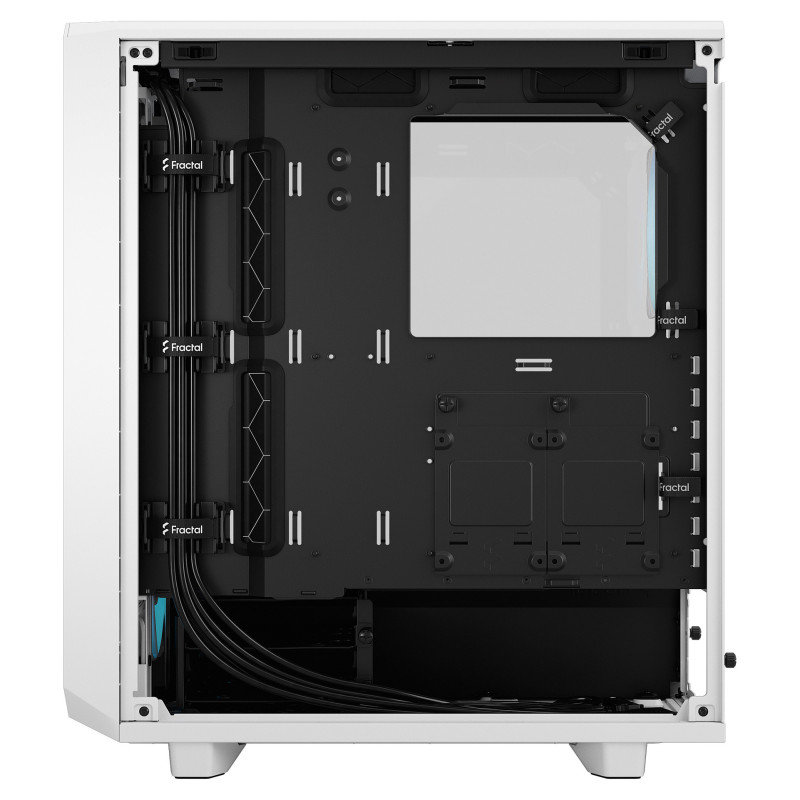

Feature: Cable management
Feature: On/off button
Feature: RGB control button
Maximum CPU cooler height: 16.9 cm
Maximum graphics card length: 34.5 cm
Maximum PSU length: 16.5 cm

Power supply

Supported power supply form factors: ATX

Ports & interfaces

Audio input: Yes
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Cooling

Front fans installed: 3x 120 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 1
Bottom fans diameters supported: 120 mm
Front radiator sizes supported: 60,120,140,200,240,280,360 mm
Bottom radiator sizes supported: 120 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 120,140,180,240 mm

Storage

Supported HDD sizes: 2.5,3.5"
SSD form factor: 2.5"

Packaging content

Feature: Manual

Weight & dimensions

Width: 210 mm
Depth: 424 mm
Height: 475 mm
Weight: 8.5 kg

Packaging data

Package width: 320 mm
Package depth: 542 mm
Package height: 554 mm
Package weight: 9.8 kg
