Fractal Design Meshify 2 Compact

Fractal Design Meshify 2 Compact. Form factor: Tower, Type: PC, Product colour: White. Supported power supply form factors: ATX. Front fans installed: 2x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 210 mm, Depth: 424 mm, Height: 475 mm

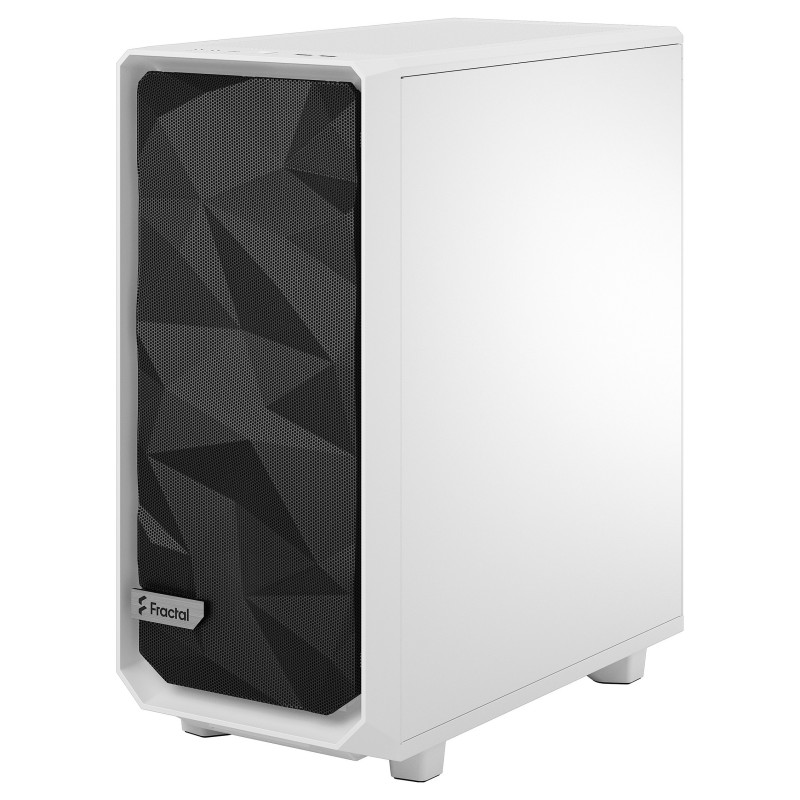

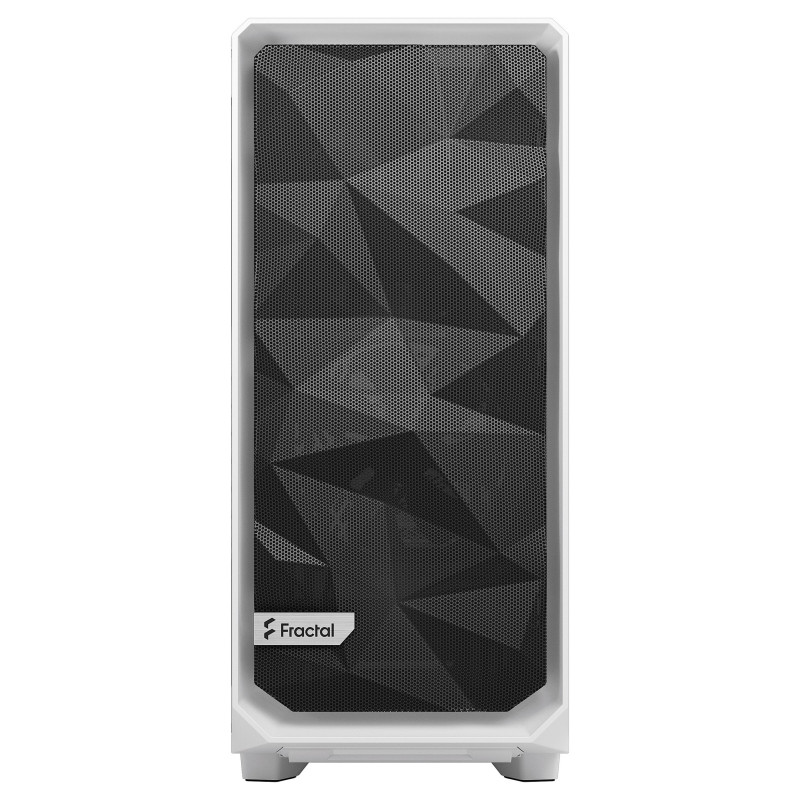

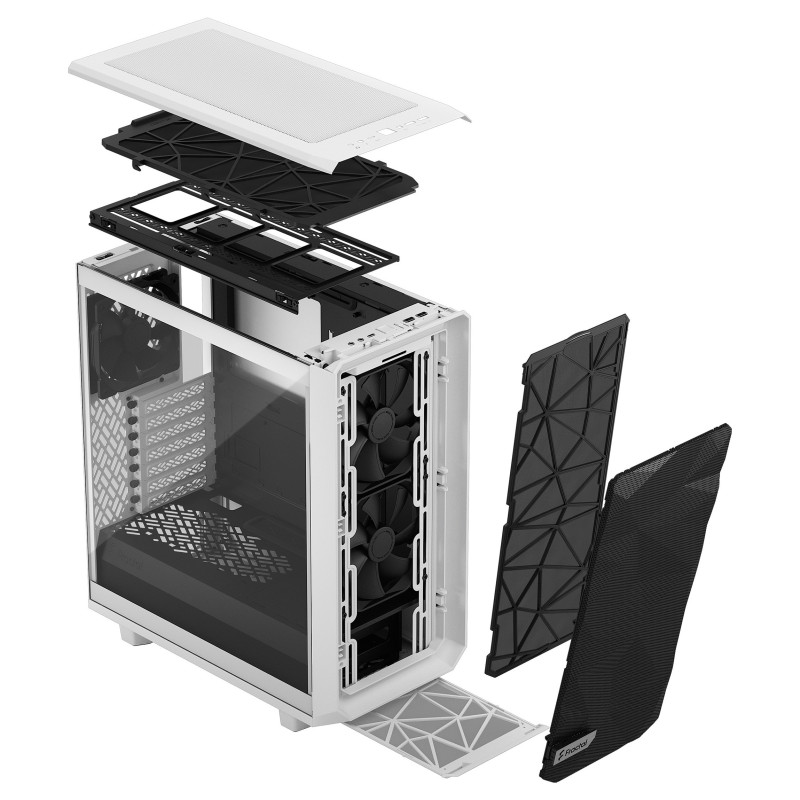

Removable front filter
- New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
- New front nylon filter that can be removed for increased airflow
Robust cooling
- Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm

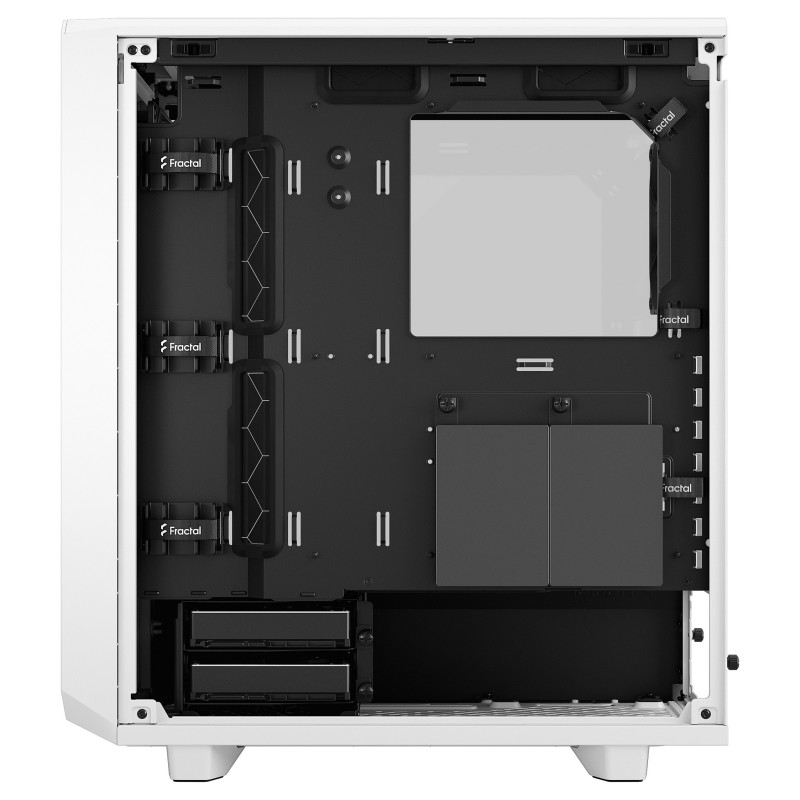

- Open interior layout creates a smooth airflow path from intake to exhaust
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)
Fully featured
- Seamlessly integrated steel panel with steel frame support and bolt-free top-latching mechanism
- Flexible storage options supporting two 2.5"/3.5" drives and up to four SSDs (two SSD brackets included)

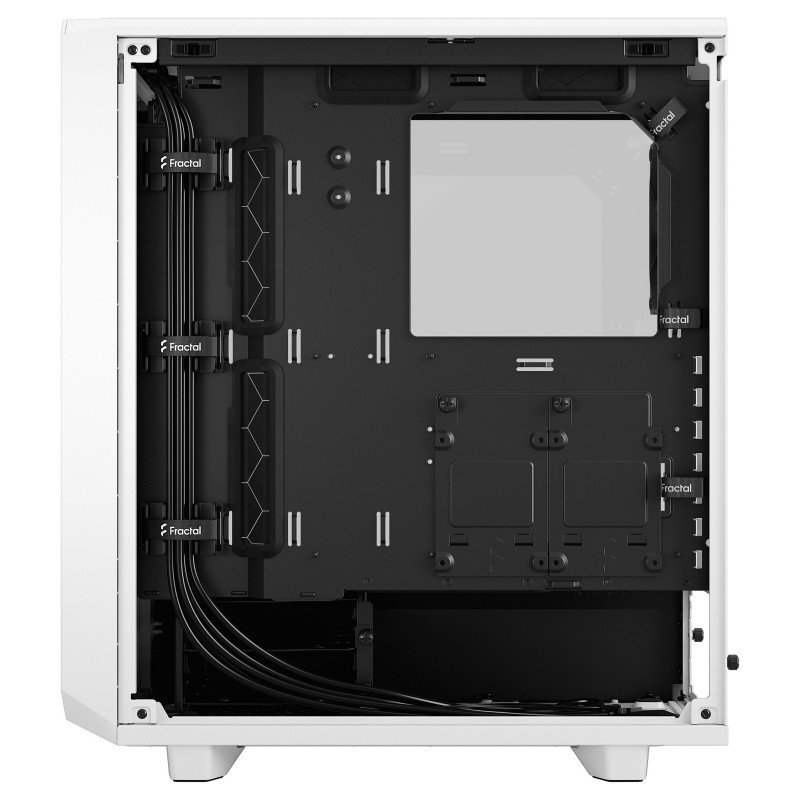

- Improved cable routing with three integrated cable alignment clips and six velcro straps
Top priority access

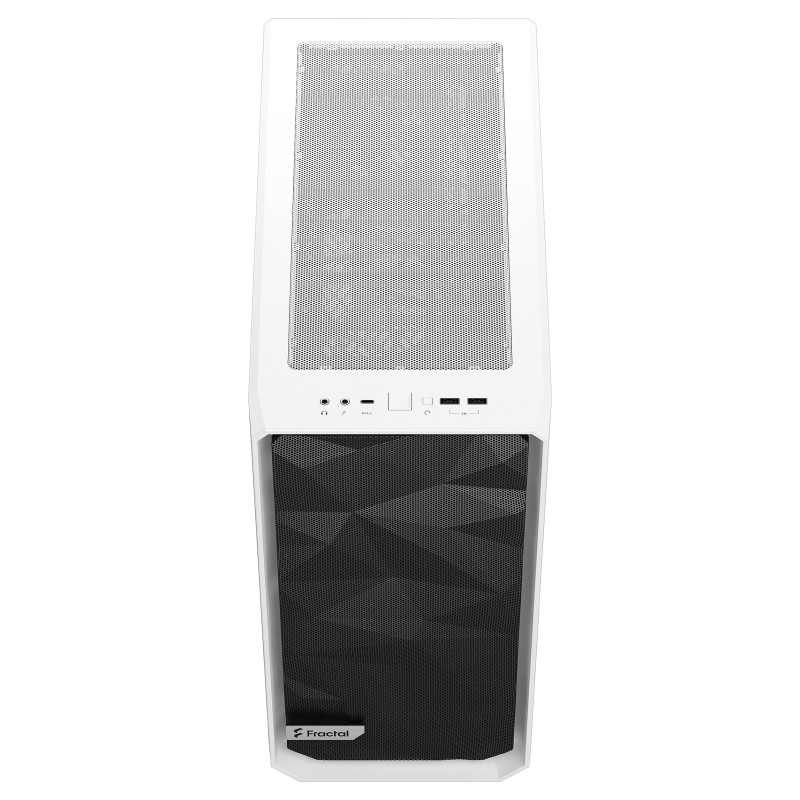

The fully removable top panel opens to provide excellent interior access
Spaciously compact
Clever layout enables the capacity of much larger cases
Type-C interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps
Smooth and quiet operation
The sturdy steel drive trays are vibration-damped by cushioning rubber grommets
Full length shroud
A full-length power supply shroud readily conceals the drive cage and excess cabling

Design

Material: Steel, Tempered glass
Form factor: Tower
Type: PC
Product colour: White
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 4
Number of expansion slots: 7
Feature: Side window
Suitable for: Gaming

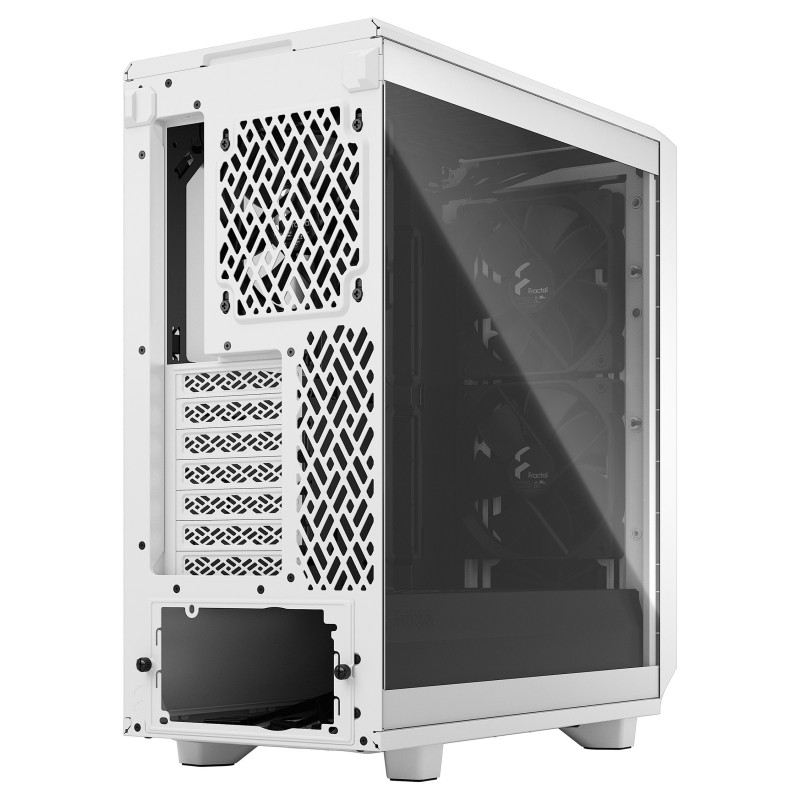

Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: Reset button
Feature: On/off button
Maximum CPU cooler height: 16.9 cm
Maximum graphics card length: 36 cm
Maximum PSU length: 20 cm

Power supply

Supported power supply form factors: ATX

Ports interfaces

Audio input: Yes
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Cooling

Front fans installed: 2x 140 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 1
Bottom fans diameters supported: 120 mm
Feature: Liquid cooling capability
Front radiator sizes supported: 280,360 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 240 mm

Storage

Supported HDD sizes: 2.5,3.5"

Weight dimensions

Width: 210 mm
Depth: 424 mm
Height: 475 mm
Weight: 8.1 kg

Packaging data

Package width: 320 mm
Package depth: 542 mm
Package height: 554 mm
Package weight: 9.8 kg

Logistics data

Harmonized System (HS) code: 84733080
