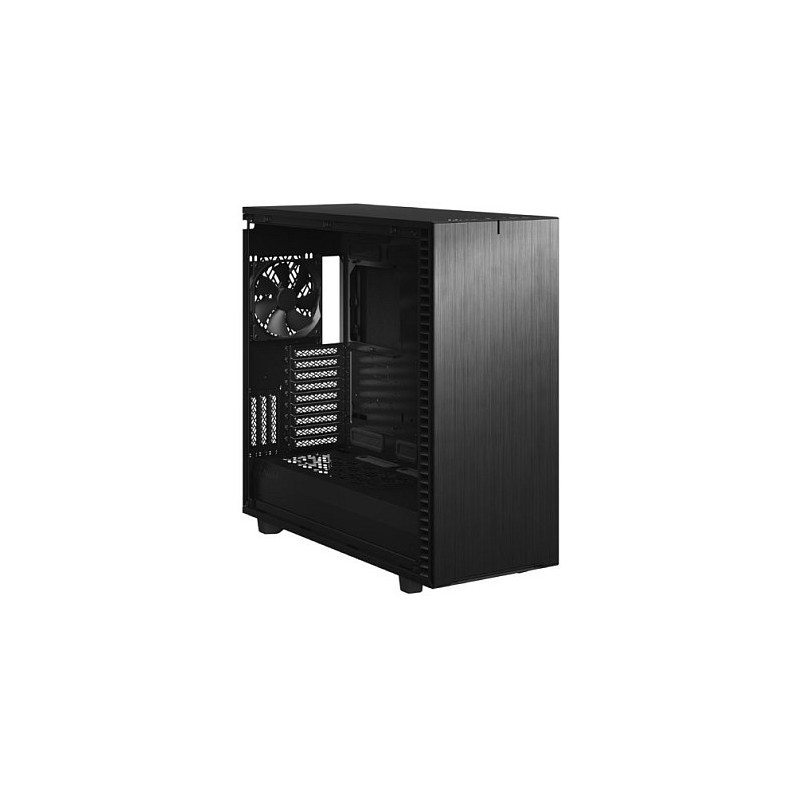

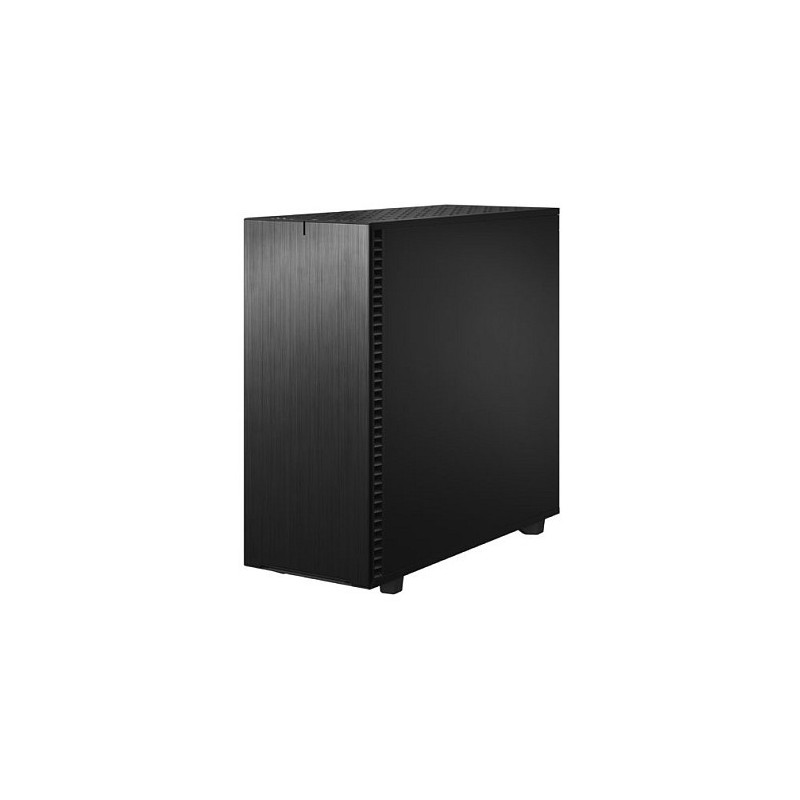

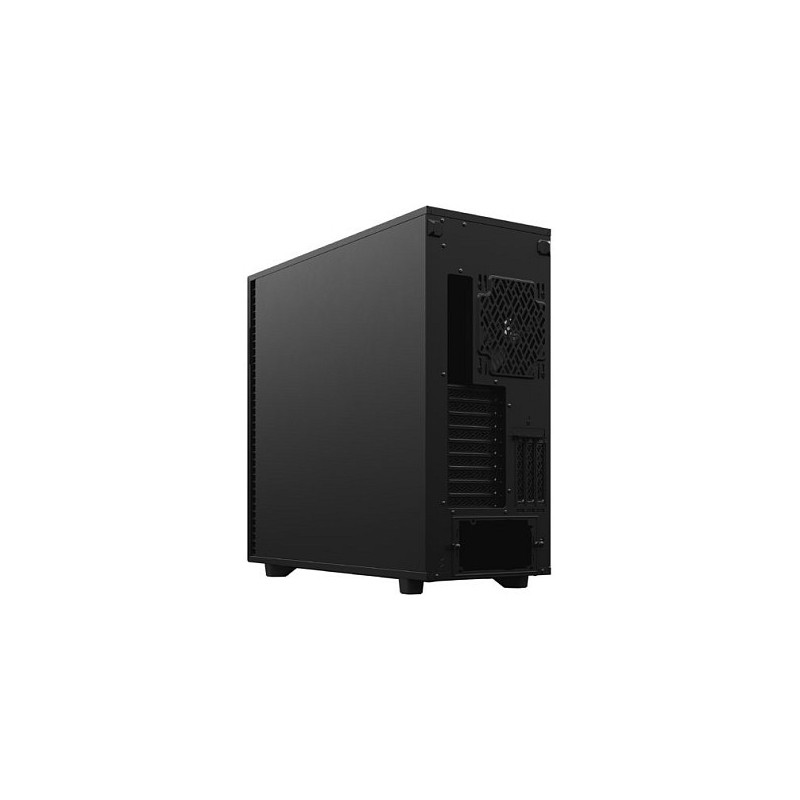

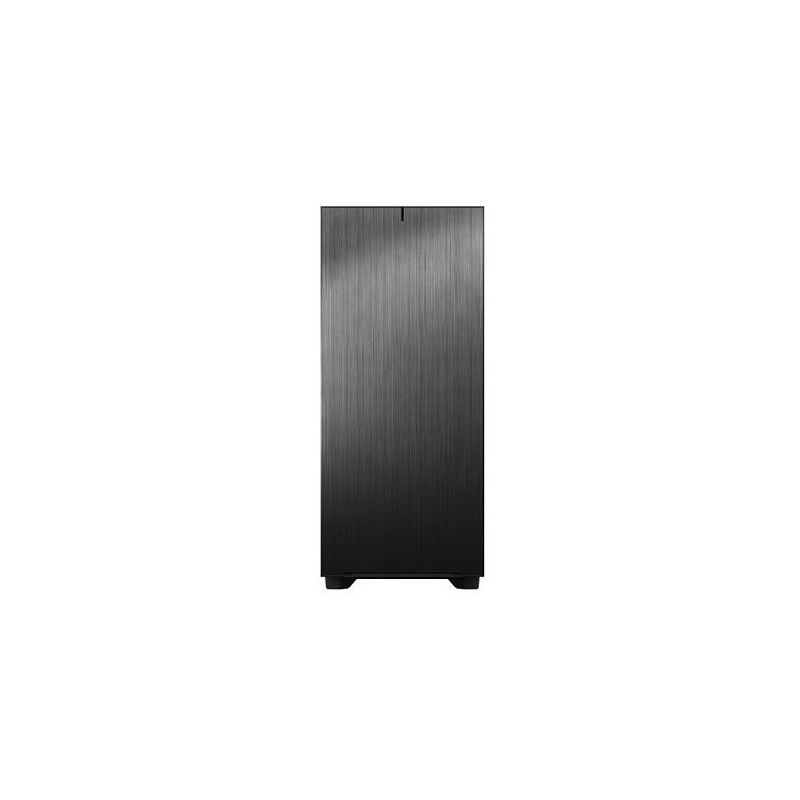

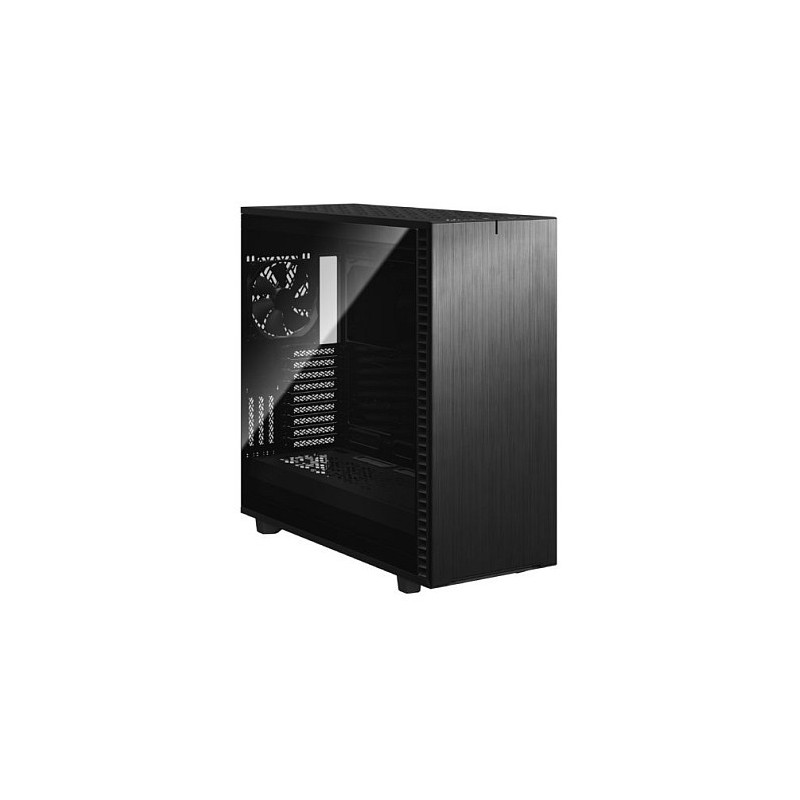

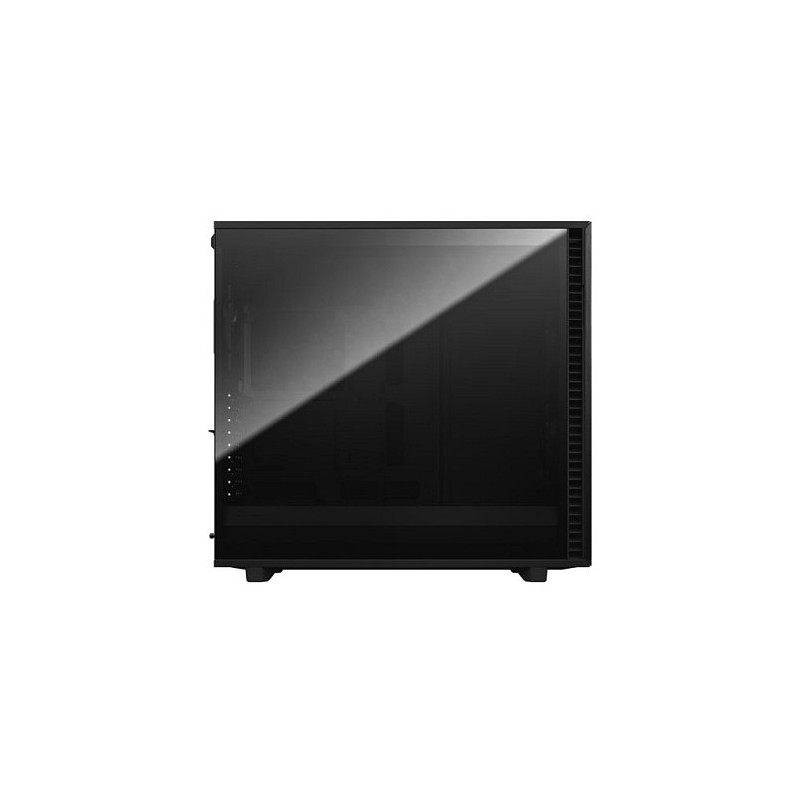

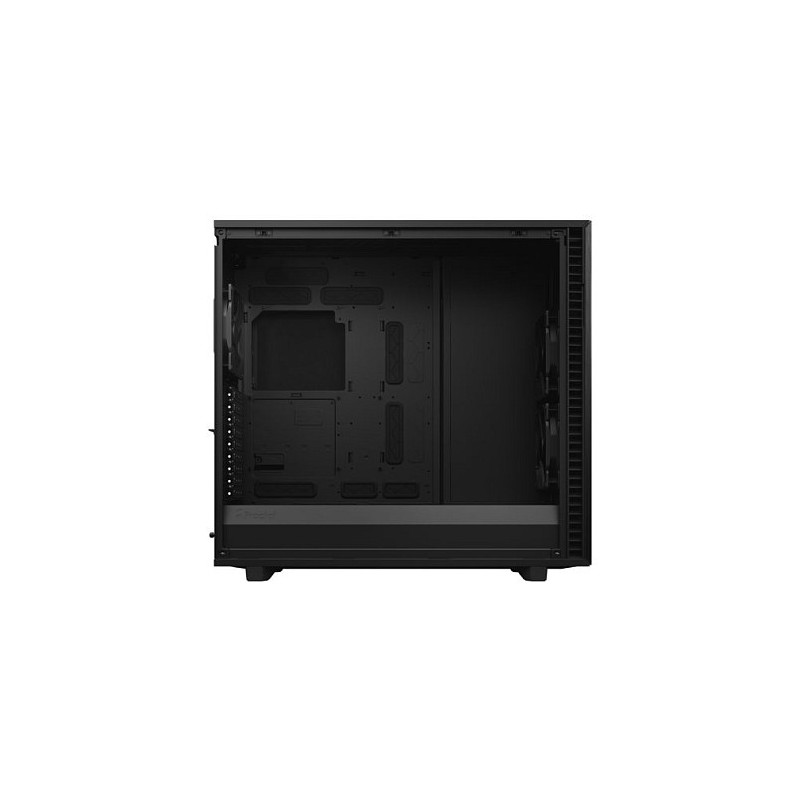

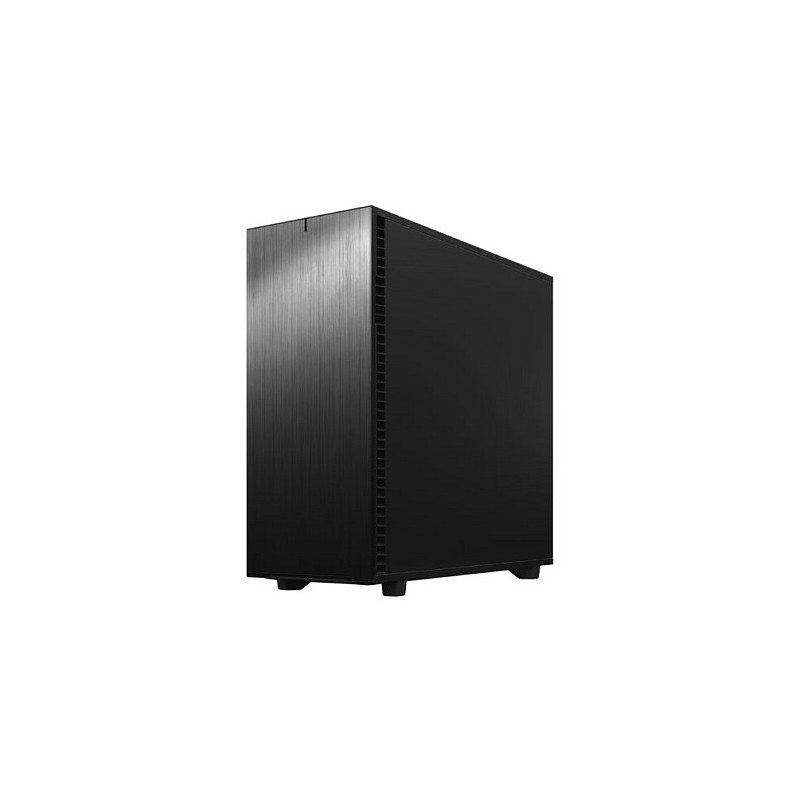

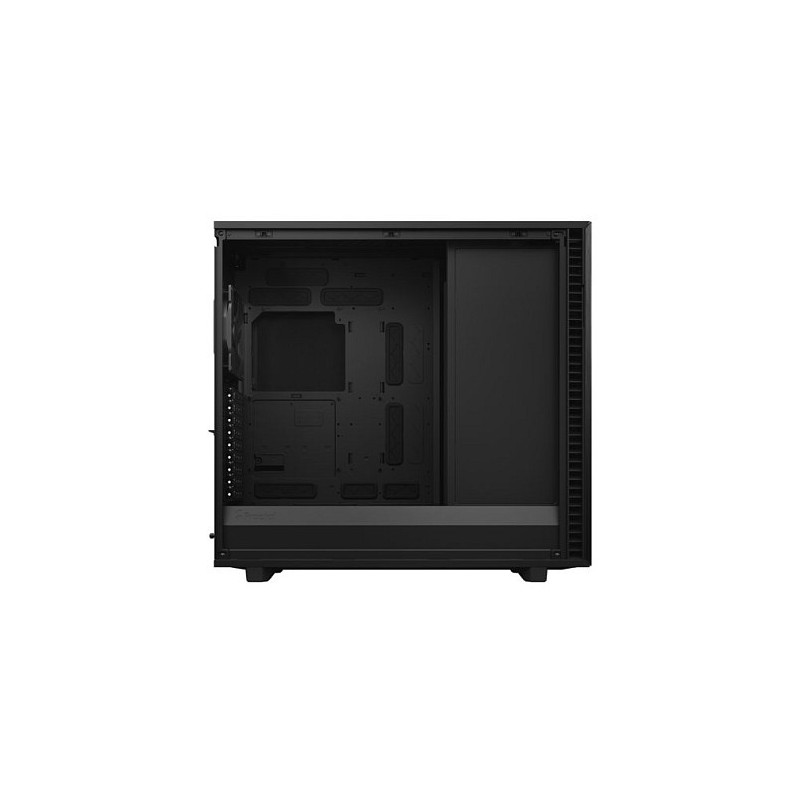

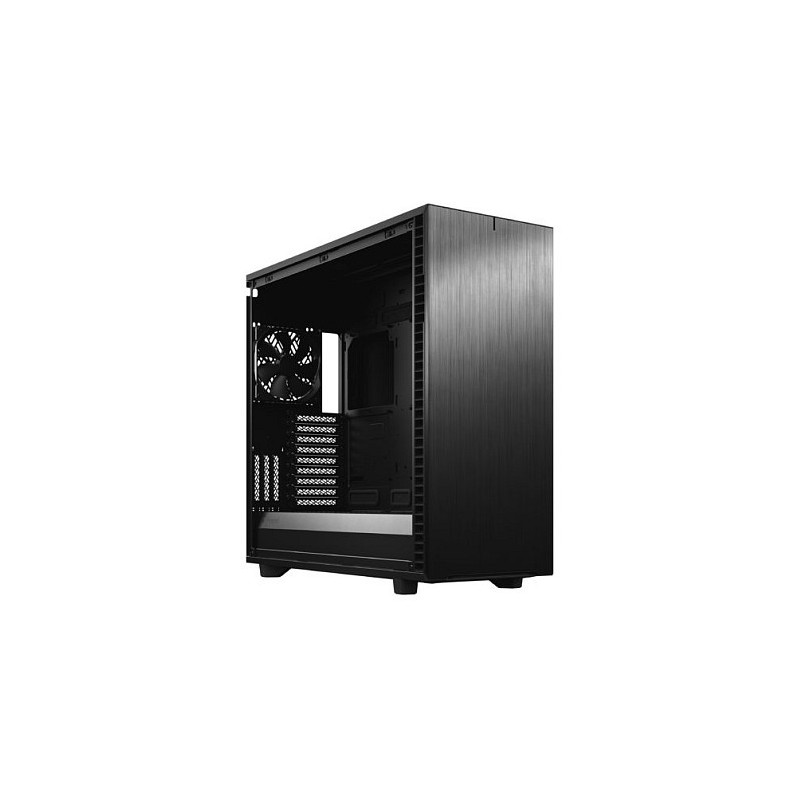

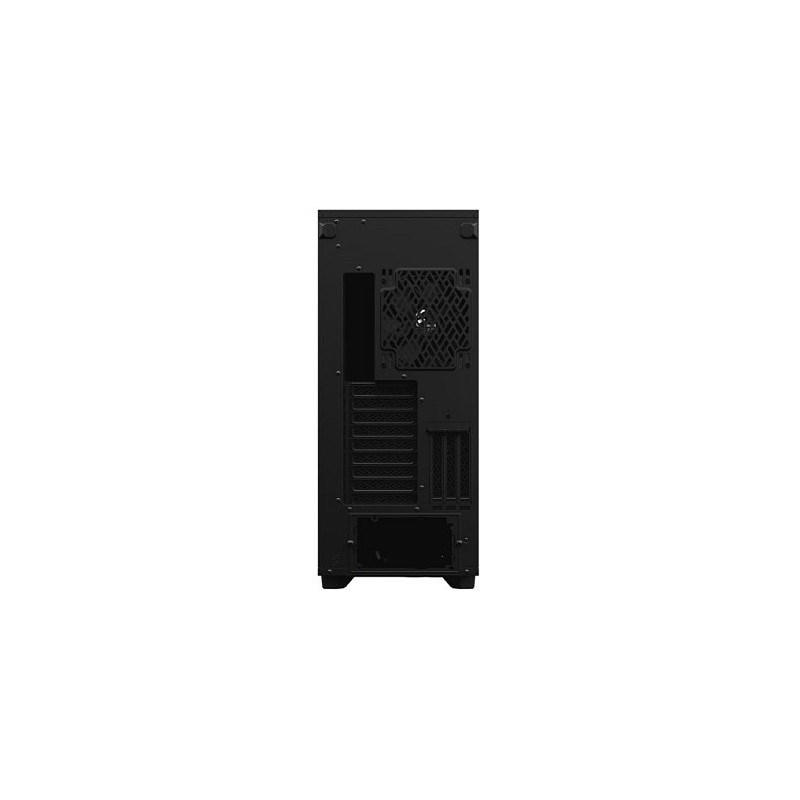

Fractal Design Define 7 XL

Fractal Design Define 7 XL. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom, Supported power supply form factors: ATX. Front fans installed: 2x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5". Width: 240 mm, Depth: 604 mm, Height: 566 mm

The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.

Plenty of room for massive builds

- Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
- Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
- Two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering
- Ventilated PSU shroud with two-part removable cover
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans

Superlative storage possibilities

- Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)
- Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
- Sturdy new HDD cage design with vibration damped trays
- 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size

Airflow and cooling

- Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
- Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
- The two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering

Exceptionally silent

Silence-optimized construction with industrial sound-damped front, top, and side panels.

USB Type-C

USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps.

SSI-EEB

Easily holds your SSI-EEB motherboard.

Moduvent

Top panel effortlessly swaps from sound damped solid steel to filtered ventilation.

Versatile new Multibracket

The included Multibrackets lets you convert any unused fan position to an HDD, SSD or pump mount.

Design

Material: Steel
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB
Number of 3.5" bays: 6
Number of 5.25" bays: 2
Number of 2.5" bays: 2
Number of expansion slots: 12
Suitable for: Gaming
Feature: Anti-dust filter
Feature: Cable management
Maximum CPU cooler height: 18.5 cm
Maximum graphics card length: 54.9 cm
Maximum PSU length: 25 cm

Power supply

Power supply location: Bottom
Number of power supply units: 1
Supported power supply form factors: ATX

Ports & interfaces

Audio input: Yes
Audio output: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Cooling

Front fans installed: 2x 140 mm
Number of front fans supported (max): 4
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Number of top fans supported (max): 4
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 2
Bottom fans diameters supported: 120,140 mm
Feature: Liquid cooling capability
Front radiator sizes supported: 420,480 mm
Feature: Rear radiator installed
Rear radiator type: Single radiator
Bottom radiator sizes supported: 240,280 mm
Rear radiator fan size installed: 120
Top radiator sizes supported: 420,480 mm

Storage

Supported HDD sizes: 2.5,3.5"

Weight & dimensions

Width: 240 mm
Depth: 604 mm
Height: 566 mm
Weight: 16.6 kg

Packaging data

Package width: 357 mm
Package depth: 646 mm
Package height: 708 mm
Package weight: 18.8 kg

Logistics data

Harmonized System (HS) code: 84733080

Other features

Volume: 77.6 L
