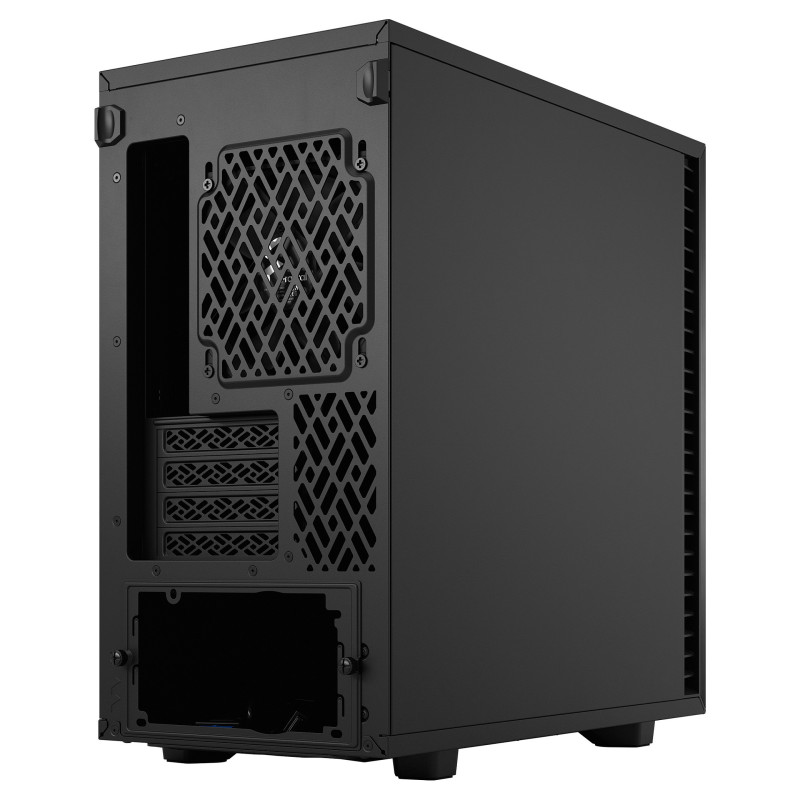

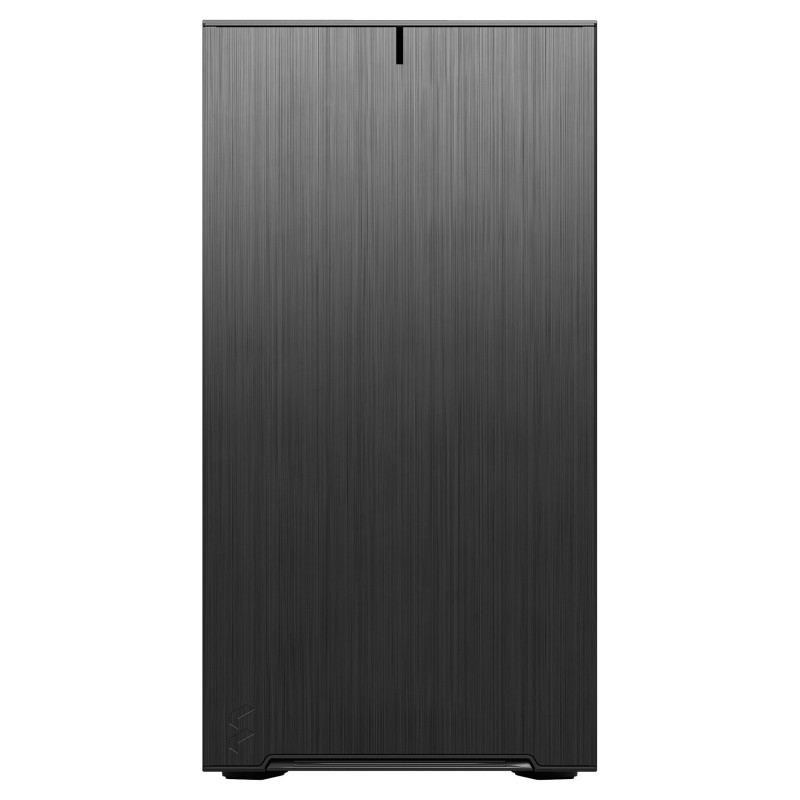

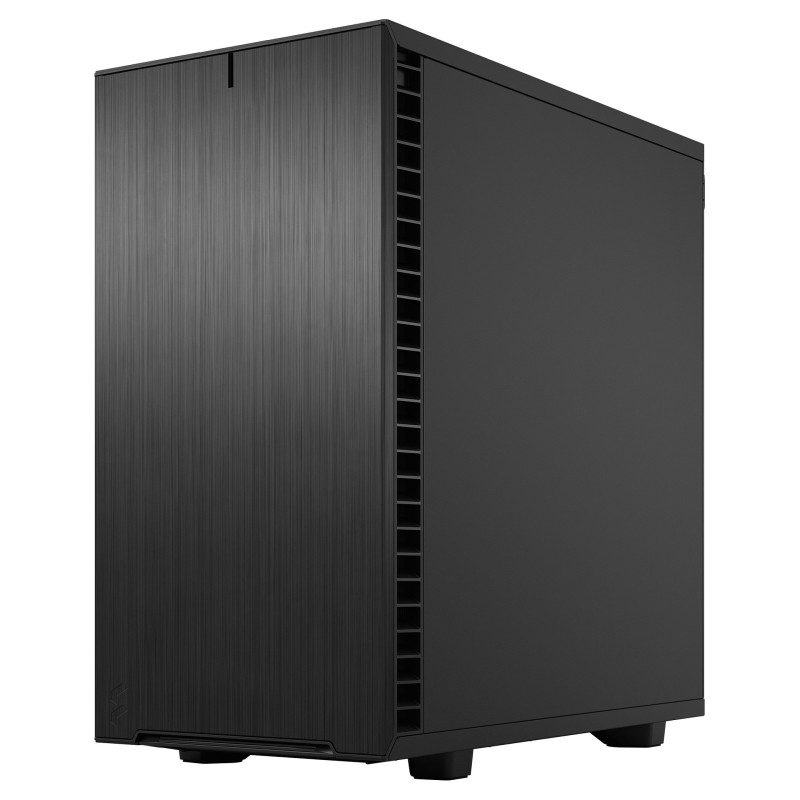

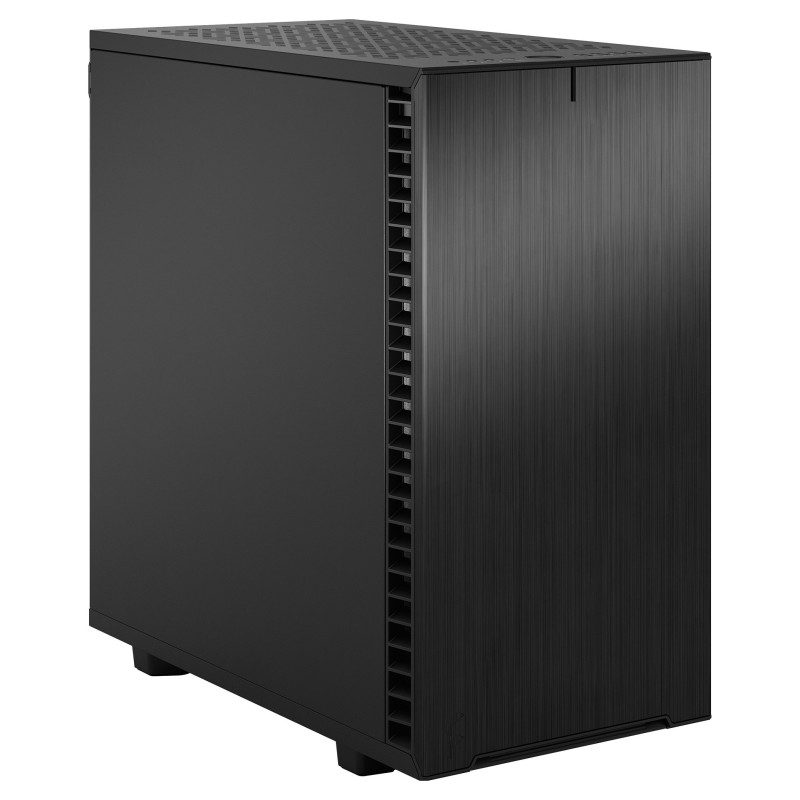

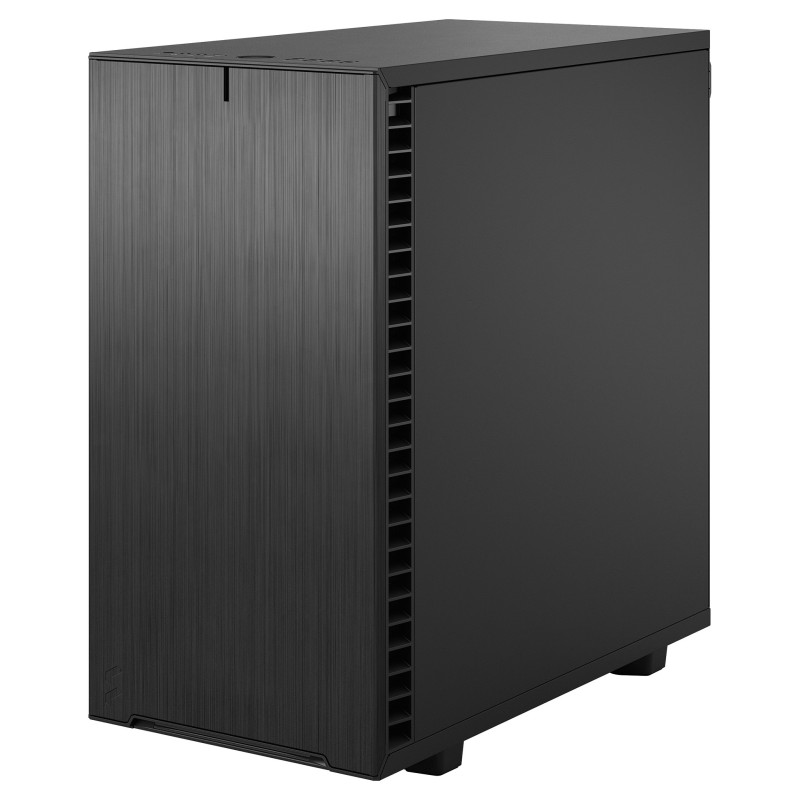

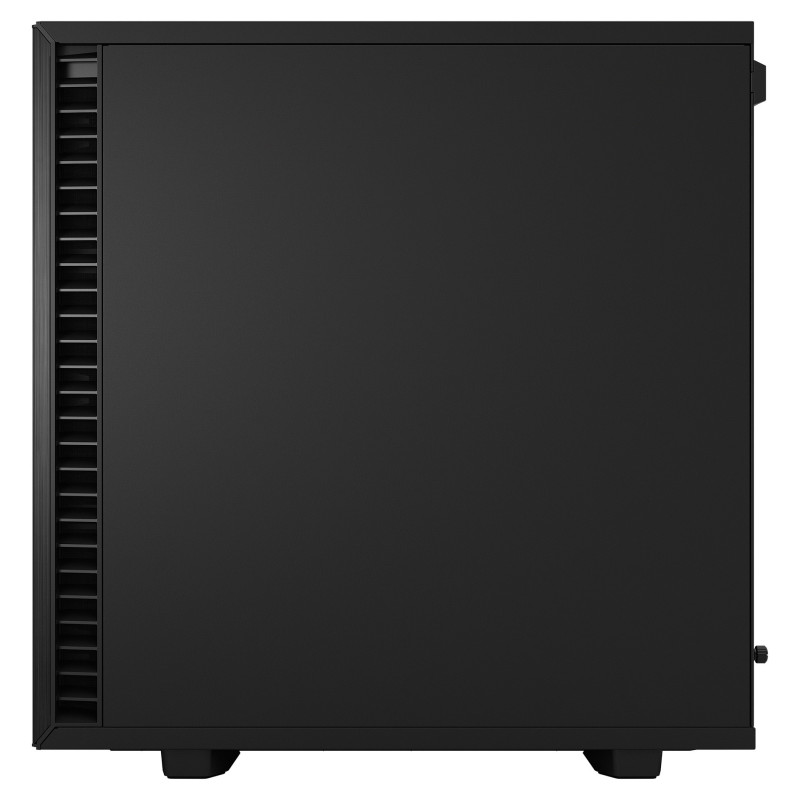

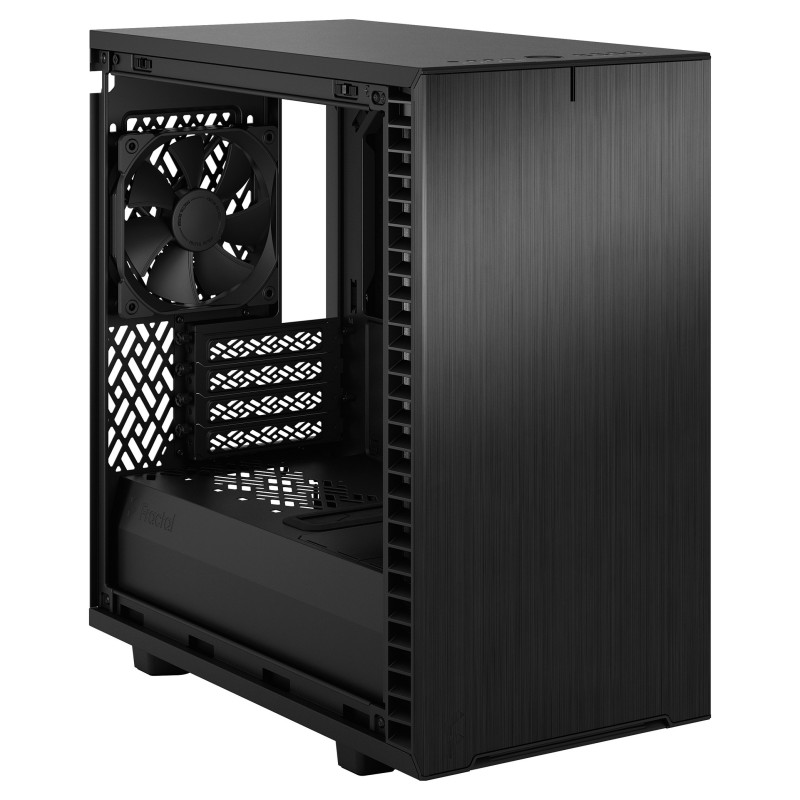

Fractal Design Define 7 Mini

Fractal Design Define 7 Mini. Type: PC, Product colour: Black, Supported motherboard form factors: micro ATX, Mini-DTX, Mini-ITX. Supported power supply form factors: ATX. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5", SSD form factor: 2.5". Width: 205 mm, Depth: 399 mm, Height: 406 mm

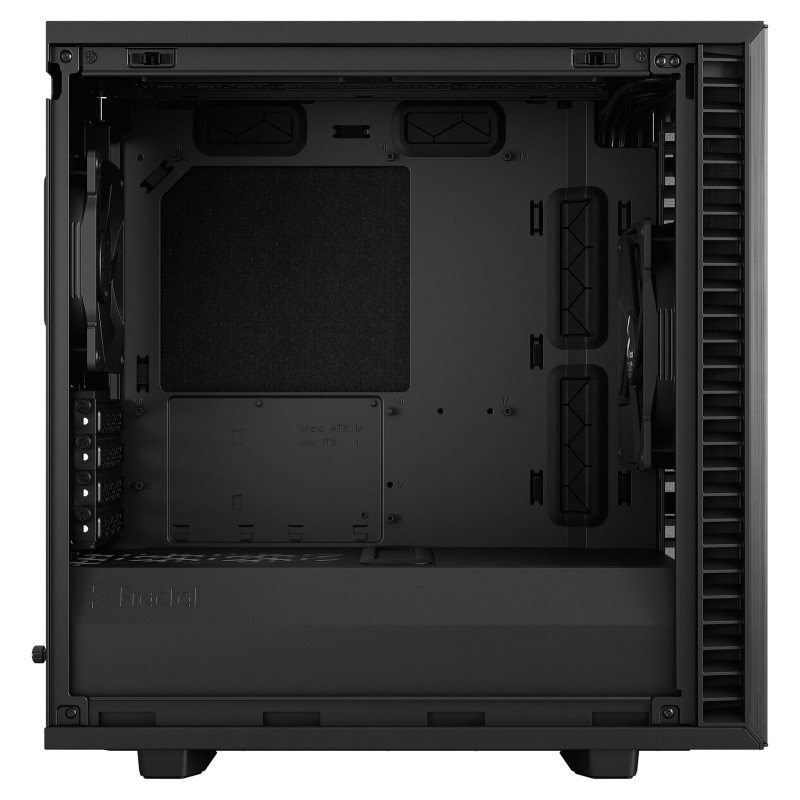

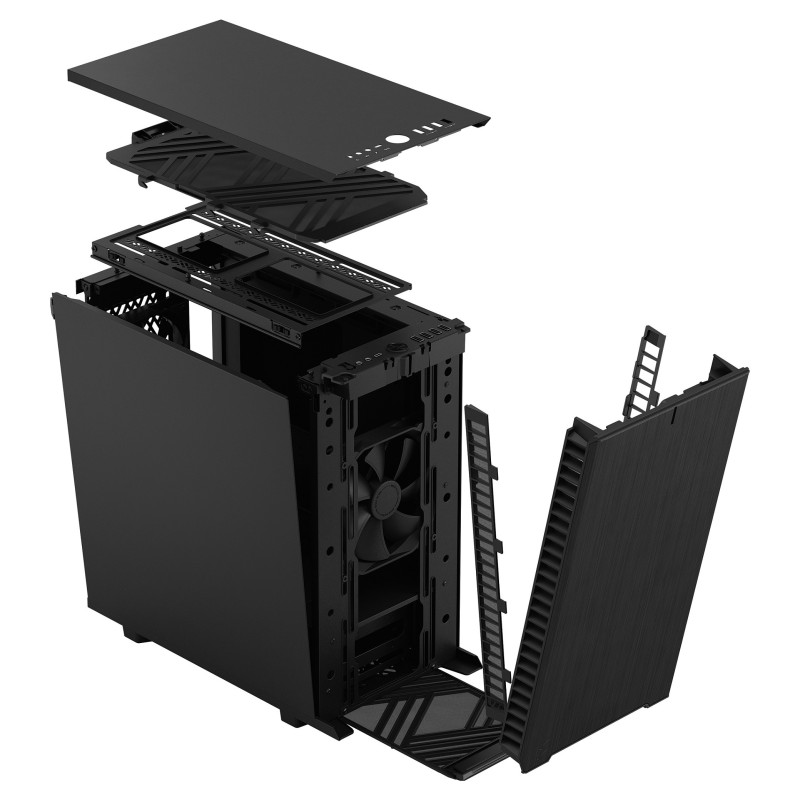

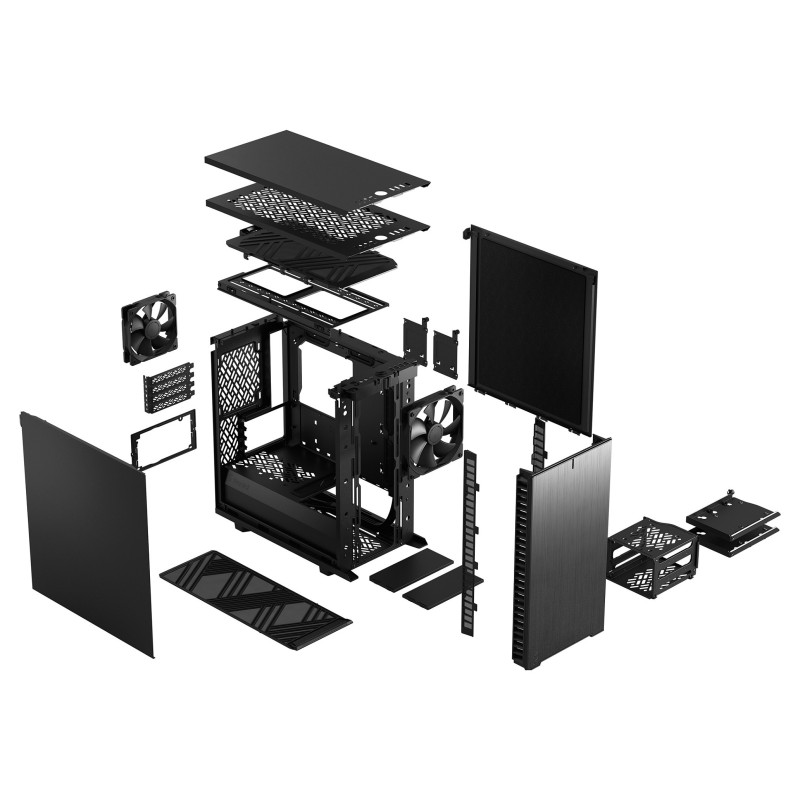

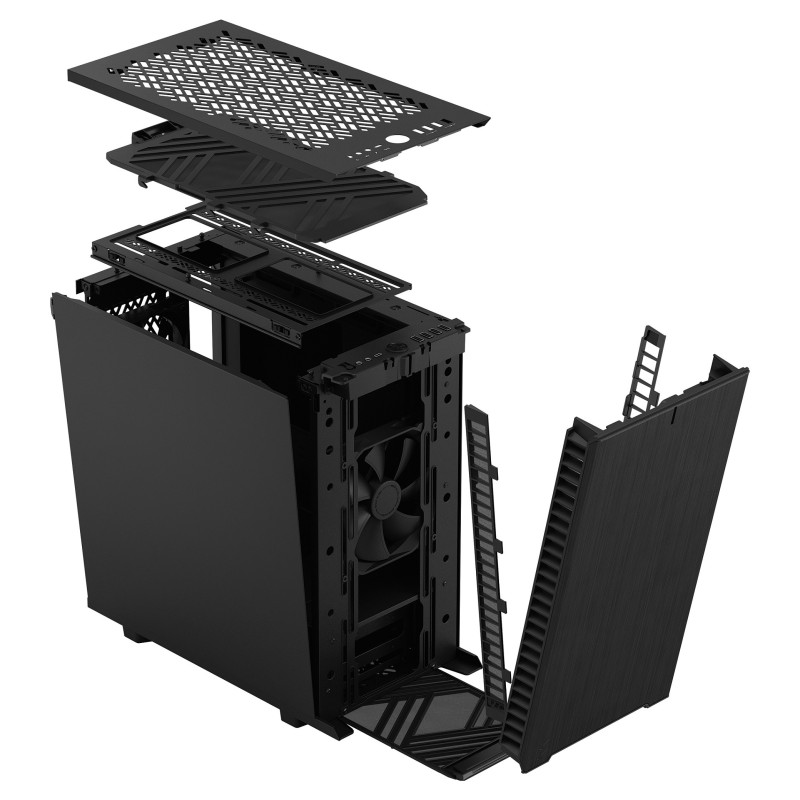

Removable top bracket
Our new removable top bracket fully exposes case interior for effortless installation and cable routing

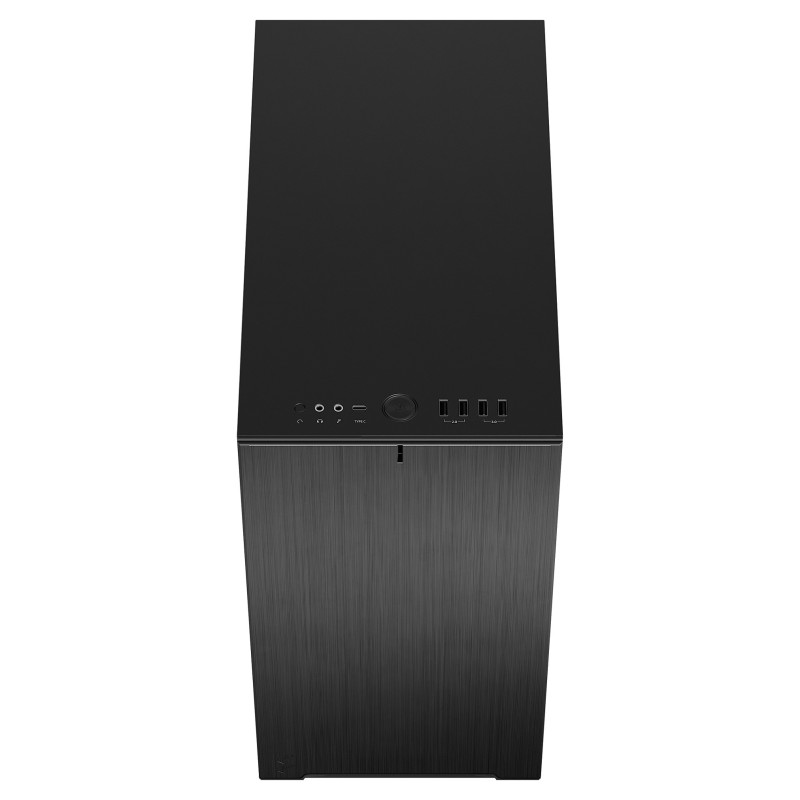

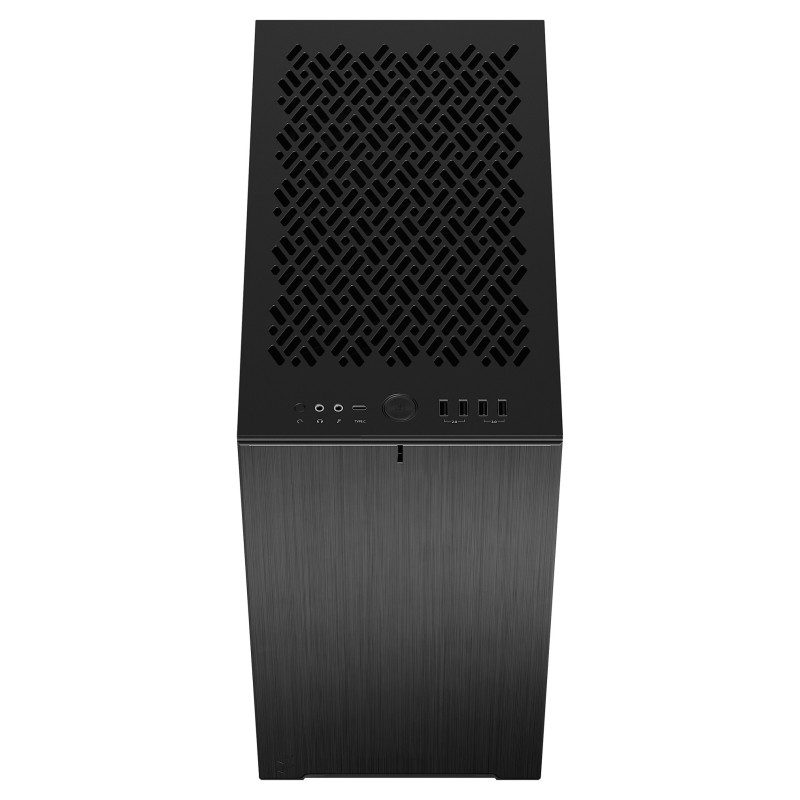

Type-C interface
Five front USB ports including one USB-C with fast-charging support and speeds up to 10Gbps

Design

Material: Steel
Type: PC
Product colour: Black
Supported motherboard form factors: micro ATX, Mini-DTX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 4
Number of expansion slots: 4
Feature: Anti-dust filter

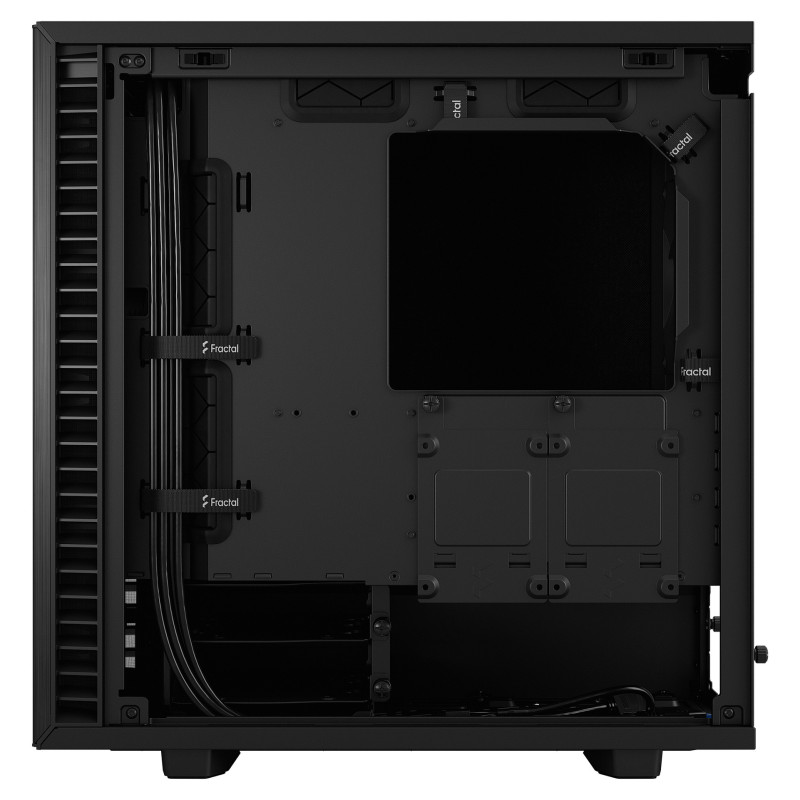

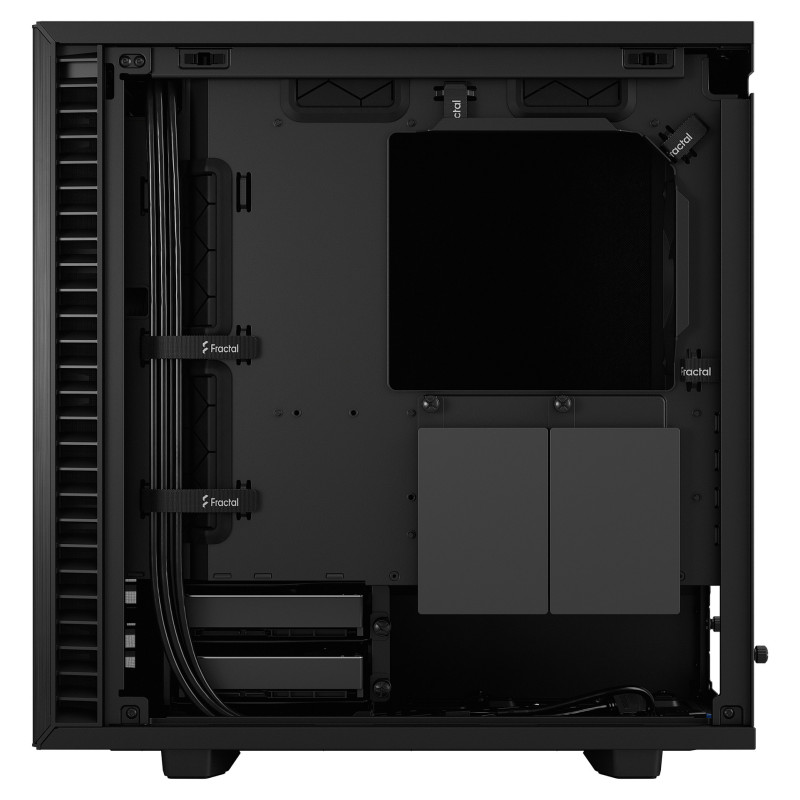

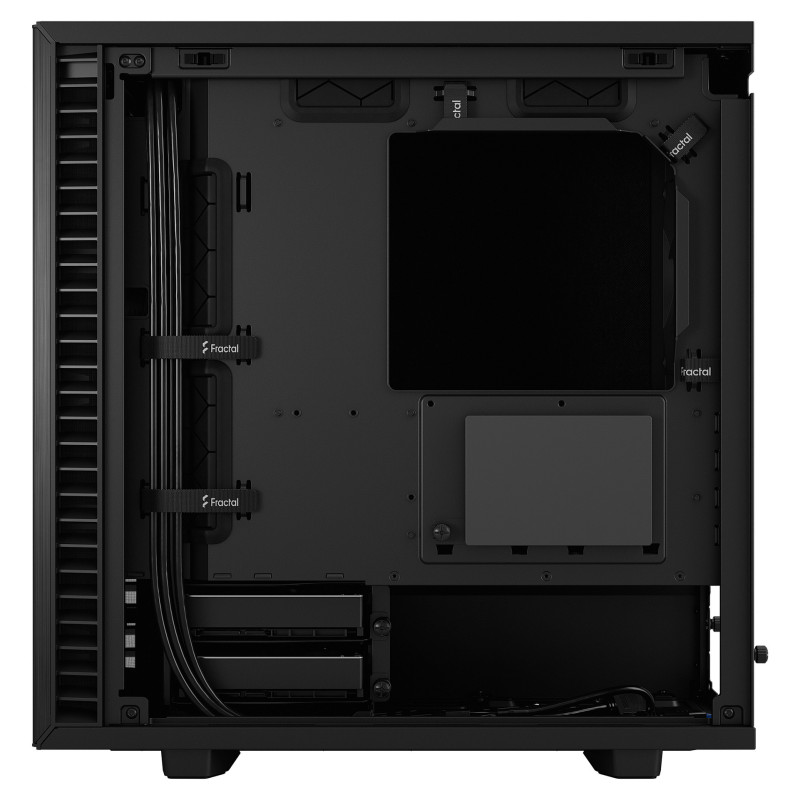

Feature: Cable management
Feature: Reset button
Feature: On/off button
Maximum CPU cooler height: 16.7 cm
Maximum graphics card length: 33.1 cm
Maximum PSU length: 20 cm

Power supply

Supported power supply form factors: ATX

Ports & interfaces

Audio input: Yes
Audio output: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

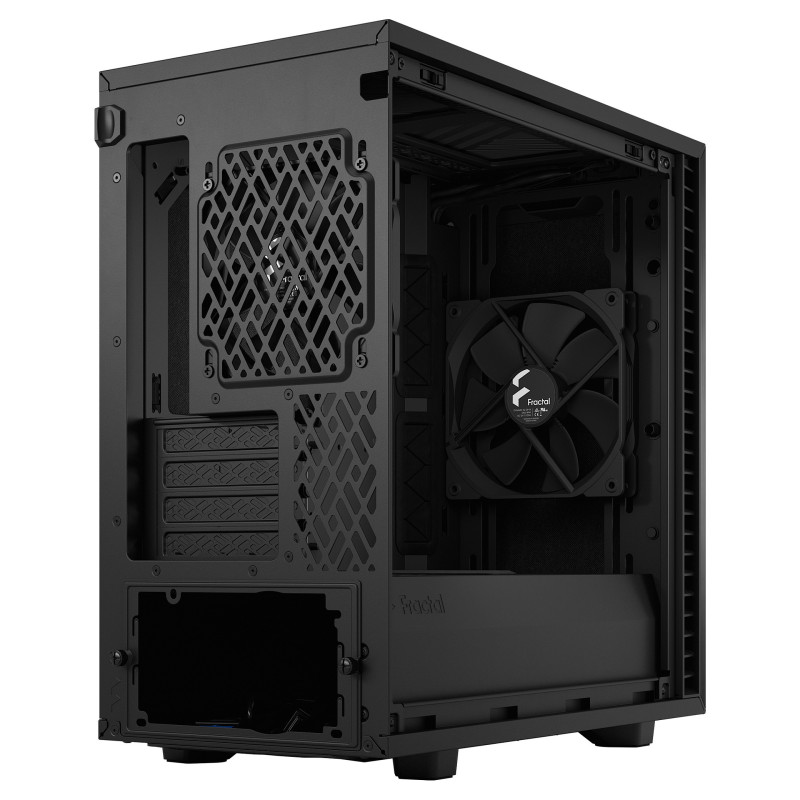

Cooling

Front fans installed: 1x 140 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 1
Bottom fans diameters supported: 120 mm
Front radiator sizes supported: 120,140,240,280 mm
Bottom radiator sizes supported: 120 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 120,140 mm

Storage

Supported HDD sizes: 2.5,3.5"
SSD form factor: 2.5"

Packaging content

Feature: Manual

Weight & dimensions

Width: 205 mm
Depth: 399 mm
Height: 406 mm
Weight: 7.49 kg

Packaging data

Package width: 277 mm
Package depth: 462 mm
Package height: 471 mm
Package weight: 9.05 kg
