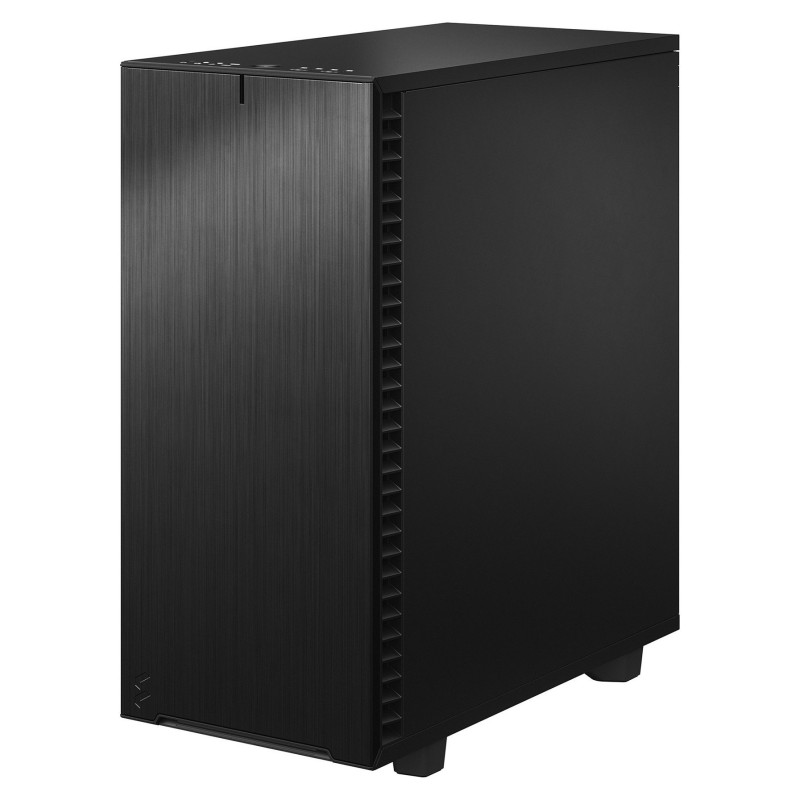

Fractal Design Define 7 Compact

Fractal Design Define 7 Compact. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom, Supported power supply form factors: ATX. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 210 mm, Depth: 427 mm, Height: 474 mm
The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.

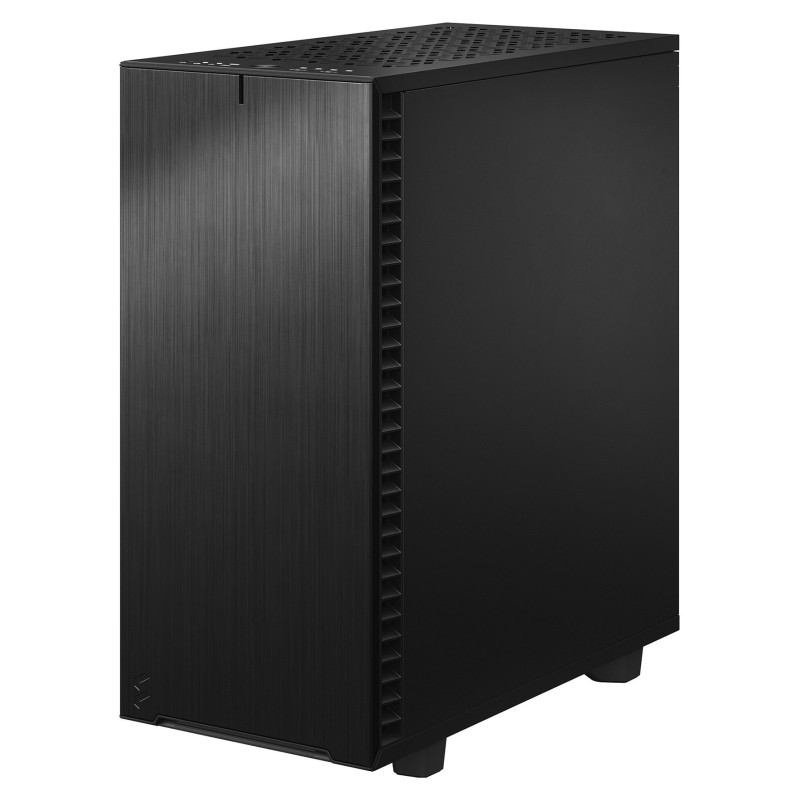

A cleaner look

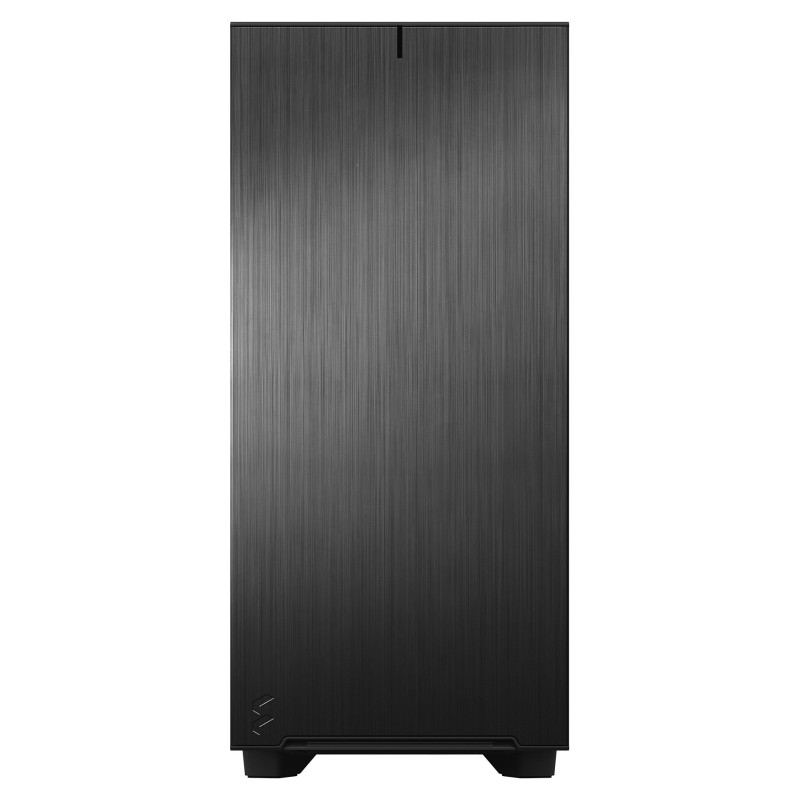

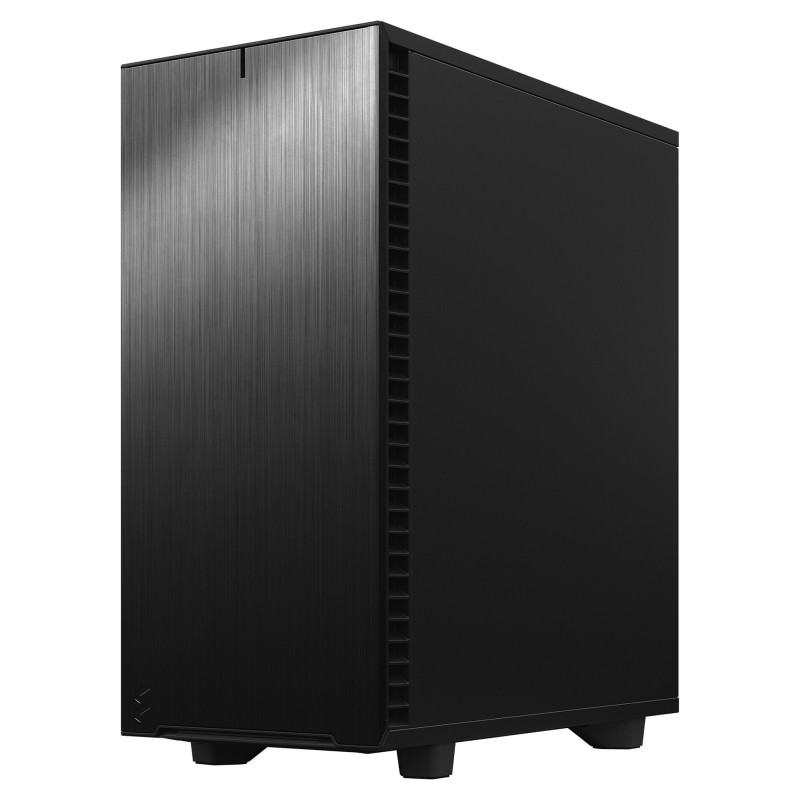

Brushed aluminum front and interchangeable side panels give a very clean look

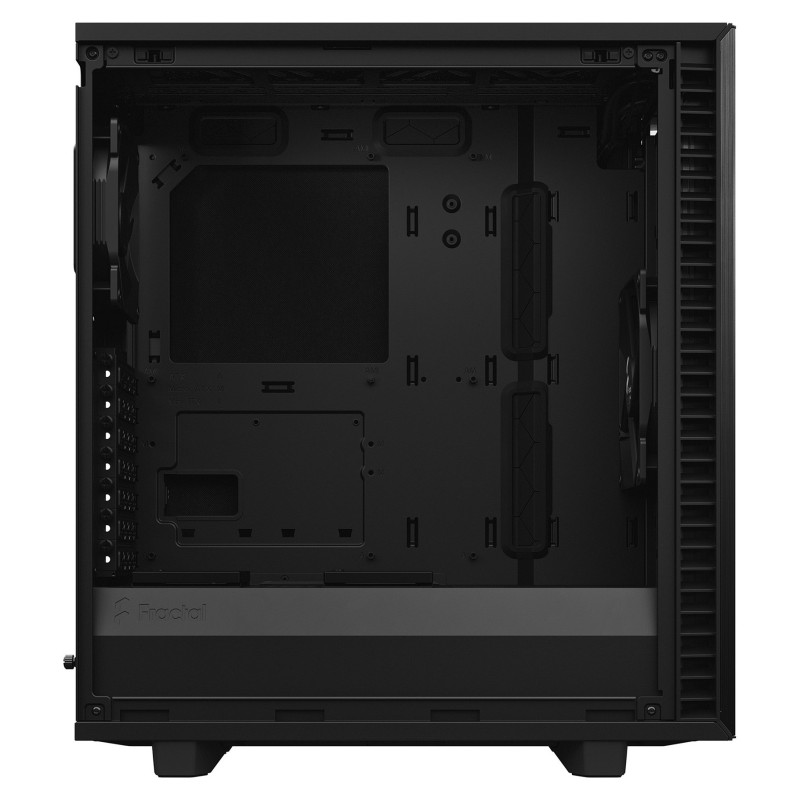

Compact yet spacious
The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top - or up to 360/280 mm front radiators with GPUs under 305 mm.
Remarkably quiet
- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation

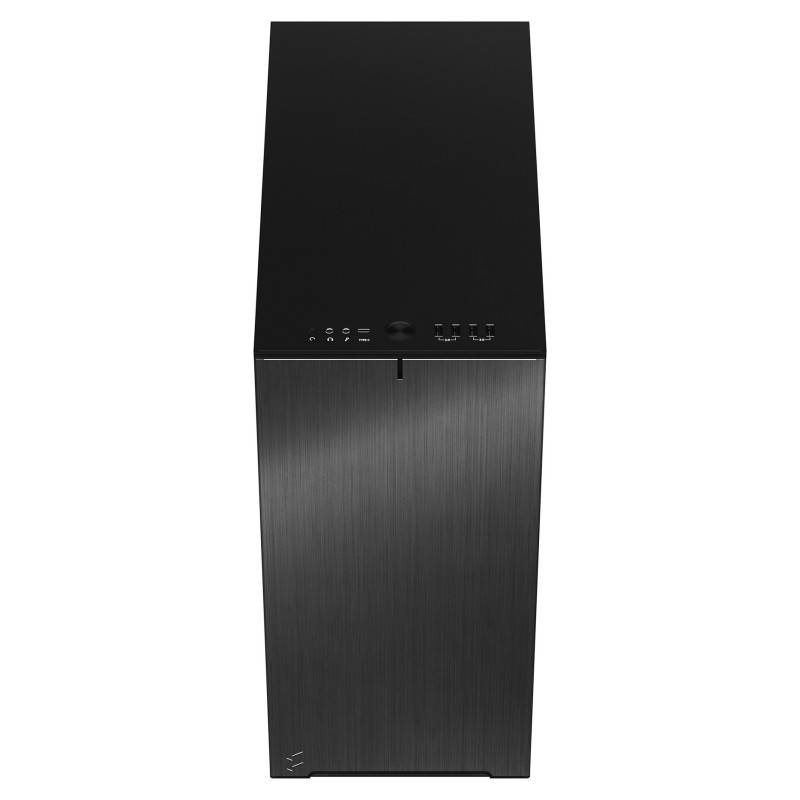

- Brushed aluminum front and top-latching side panels offer a clean sophisticated look

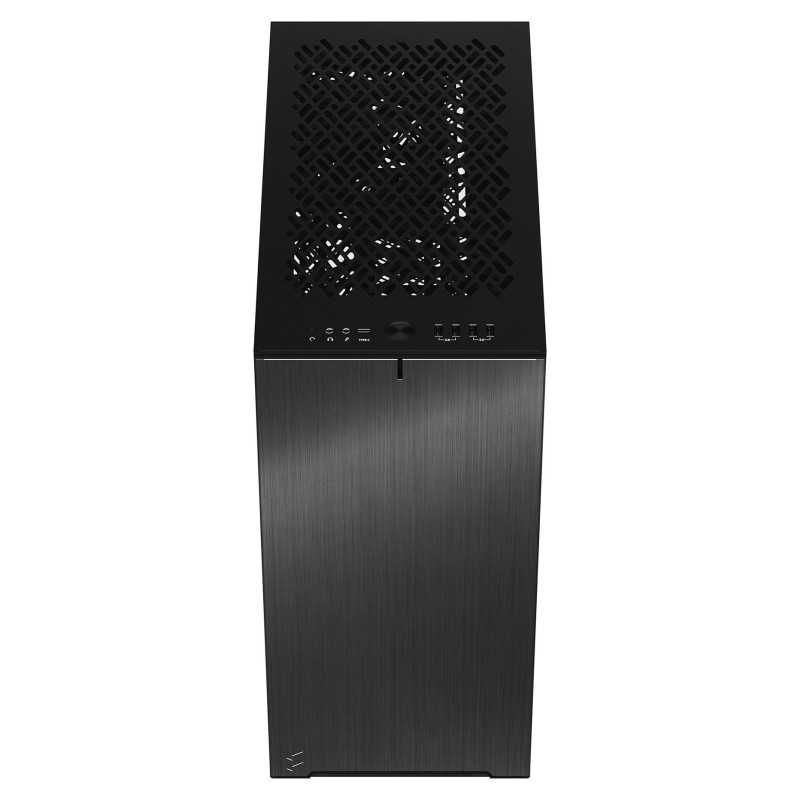

- Top panel effortlessly swaps from solid steel to filtered ventilation
Substantial cooling
- Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm
- 1x 120 mm and 1x 140 mm Dynamic X2 fans included
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
Robust Front I/O
Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps.
Concealed storage

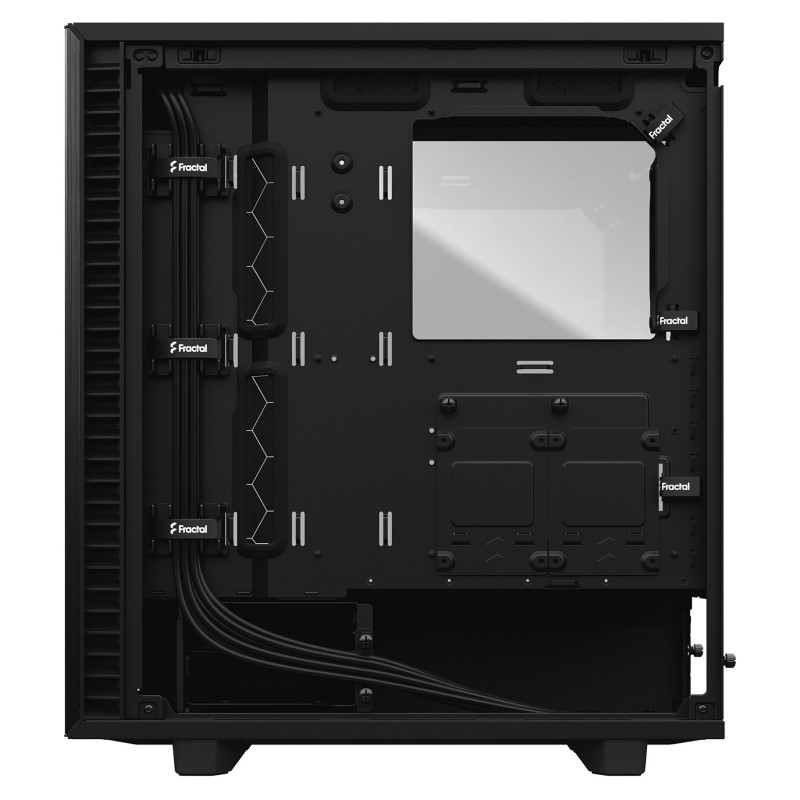

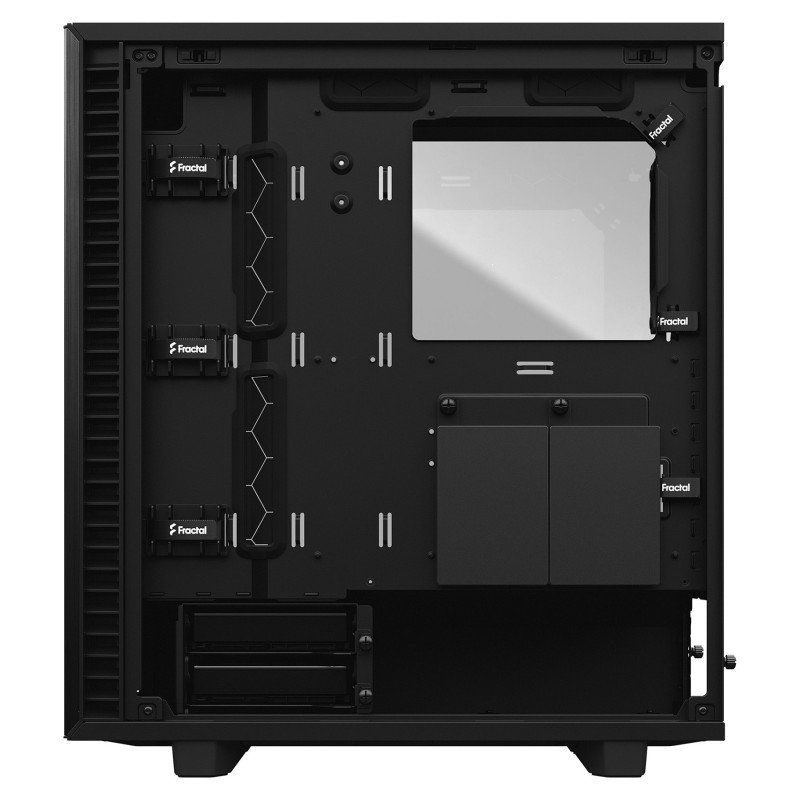

You can fit two 2.5"/3.5" drives beneath the shroud and two SSDs behind the backplate.
More in store
A pair of SSDs are easily mounted straight on the PSU shroud.
Front, top and base
Easy-to-clean high airflow nylon filters.

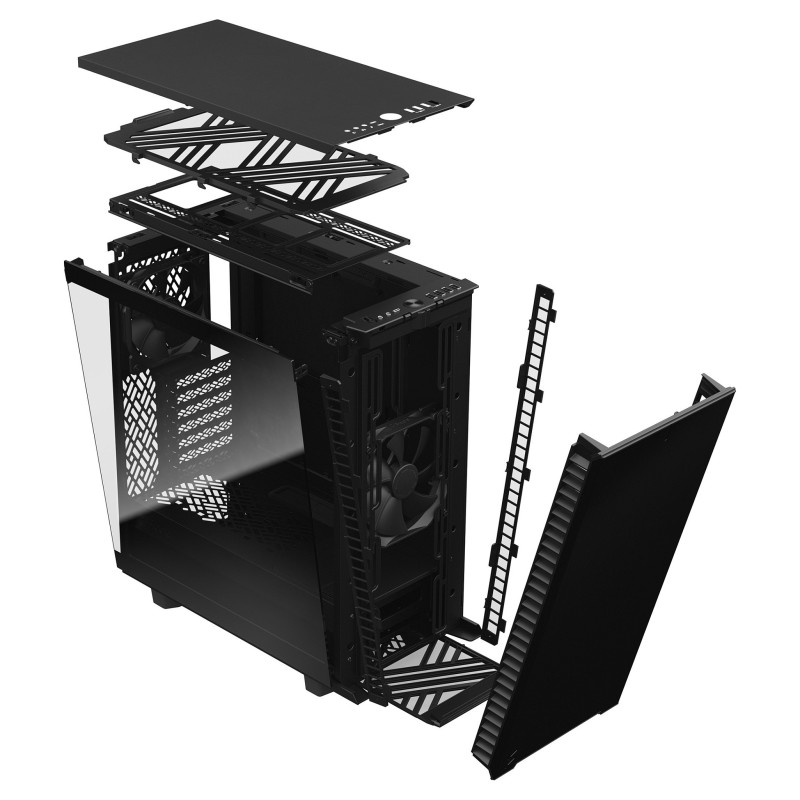

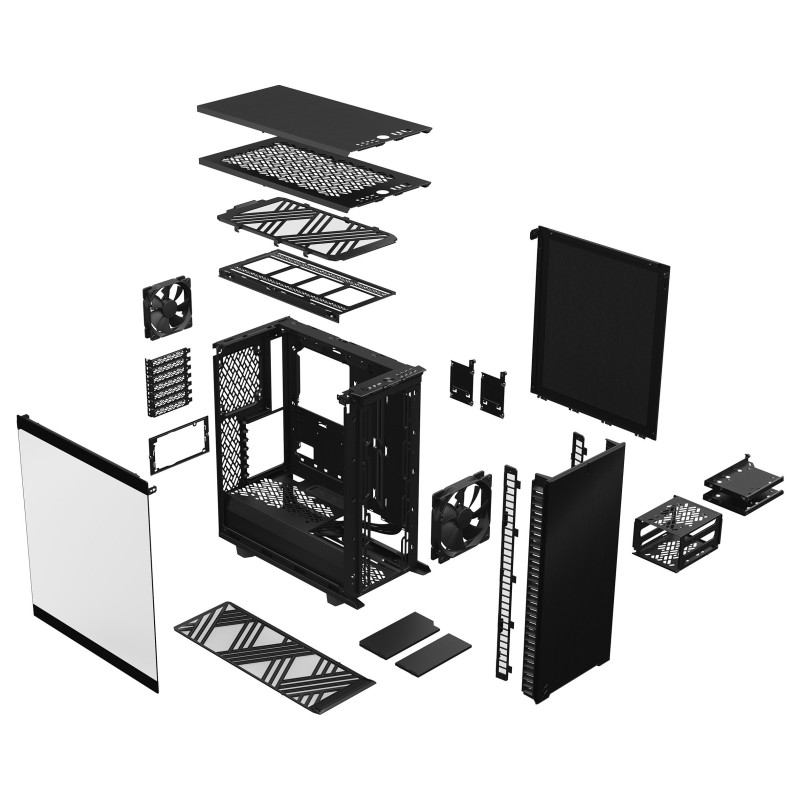

Open access
Remove the entire top to build and route with zero hindrance

Design

Material: Aluminium, Steel
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Micro-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 2
Number of internal 3.5" bays: 2
Number of expansion slots: 7
Rack mounting: No
Side window: No
Suitable for: Home/Office
Illumination: No
Anti-dust filter: Yes
Reset button: Yes
On/off button: Yes
LED indicators: Yes
Maximum CPU cooler height: 16.9 cm
Maximum graphics card length: 34.1 cm
Maximum PSU length: 20 cm

Power supply

Power supply included: No
Power supply location: Bottom
Number of power supply units: 1
Supported power supply form factors: ATX

Ports interfaces

Audio input: Yes
Audio output: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Cooling

Front fans installed: 1x 140 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 1
Bottom fans diameters supported: 120 mm
Liquid cooling capability: Yes
Front radiator installed: No
Front radiator sizes supported: 280,360 mm
Rear radiator installed: No
Rear radiator sizes supported: 120 mm
Top radiator installed: No
Top radiator sizes supported: 240 mm

Storage

Supported HDD sizes: 2.5,3.5"

Weight dimensions

Width: 210 mm
Depth: 427 mm
Height: 474 mm
Weight: 8.61 kg

Packaging data

Package width: 310 mm
Package depth: 536 mm
Package height: 521 mm
Package weight: 10.9 kg

Logistics data

Harmonized System (HS) code: 84733080

Other features

Volume: 39.3 L
