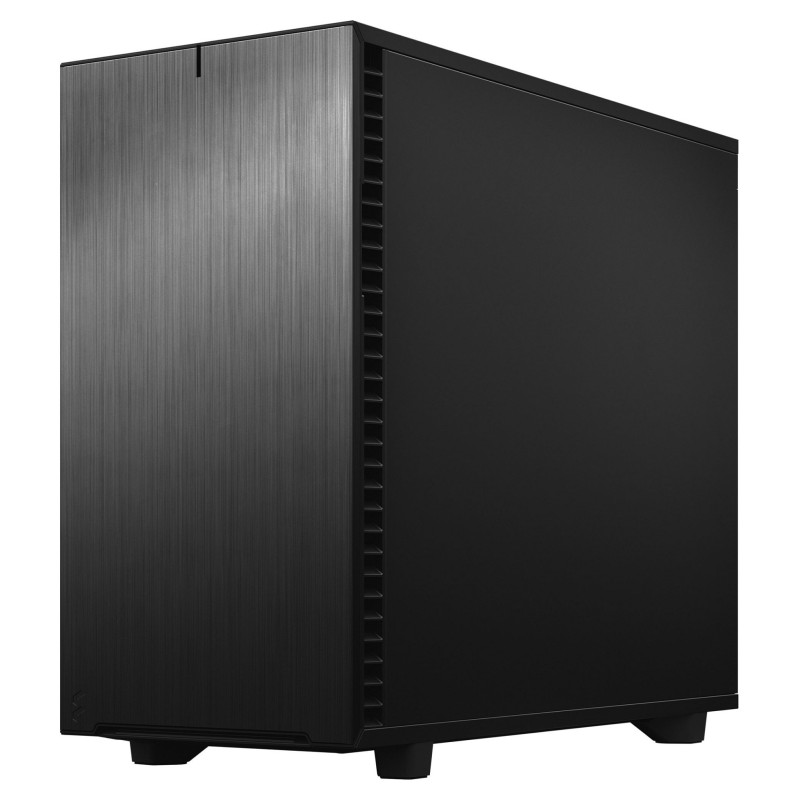

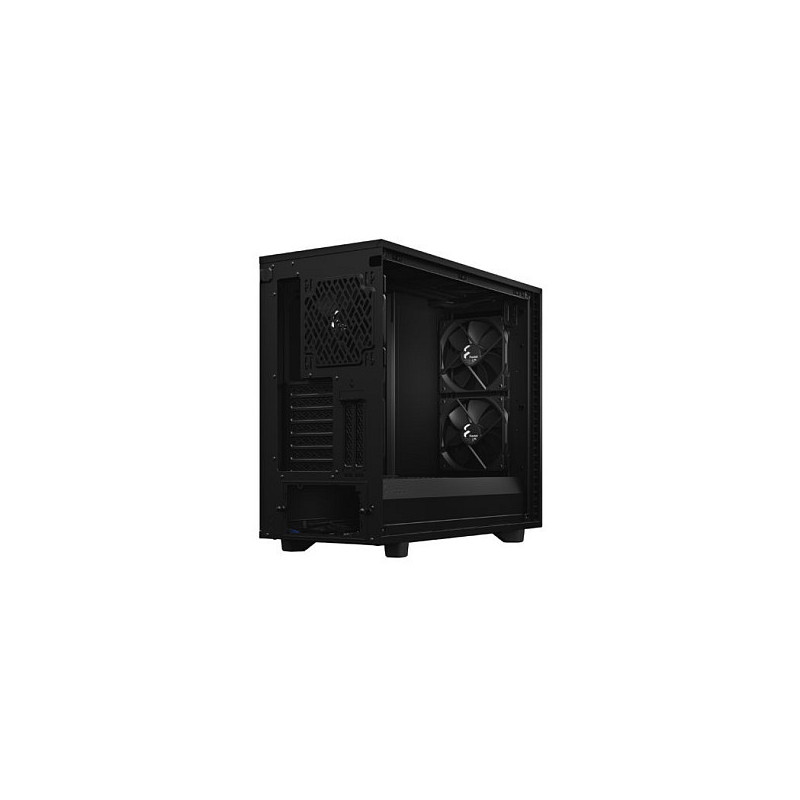

Fractal Design Define 7

Fractal Design Define 7. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom, Supported power supply form factors: ATX. Front fans installed: 2x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5". Width: 240 mm, Depth: 547 mm, Height: 475 mm

The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.

Introducing the Define 7 series

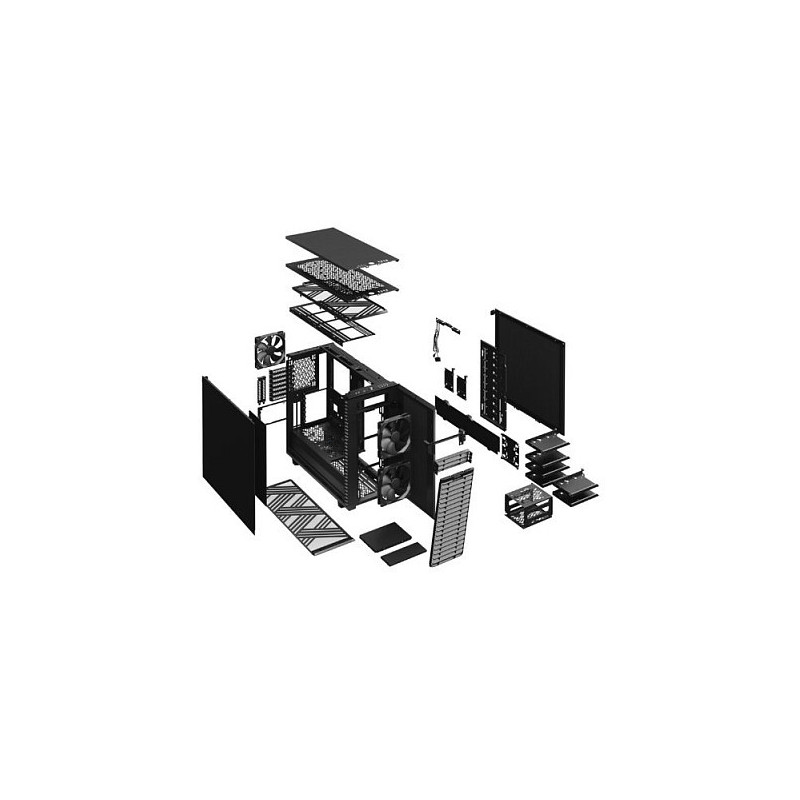

Re-defining versatility

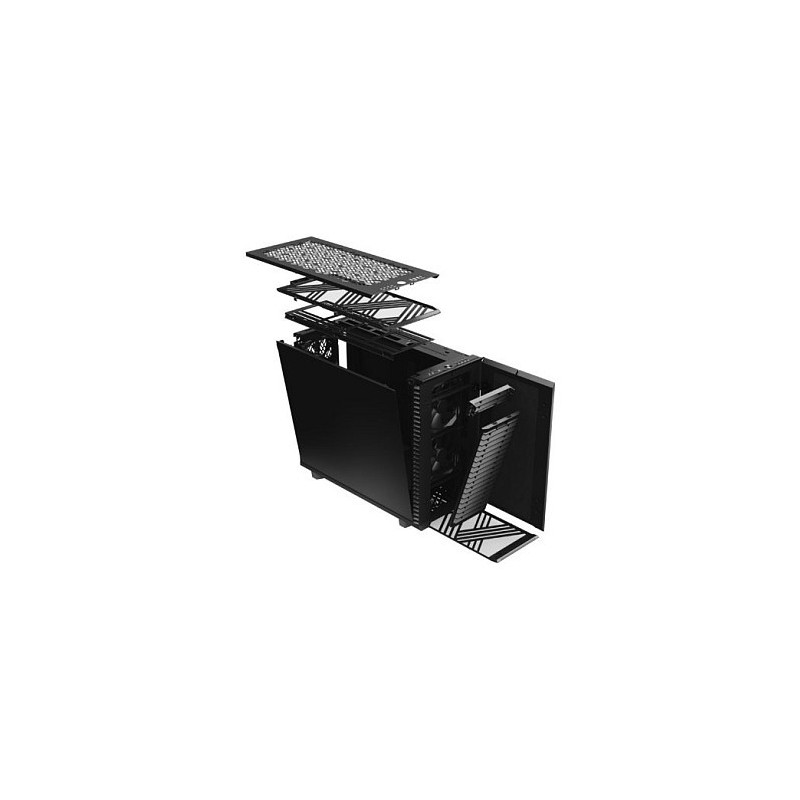

Open and interchangeable

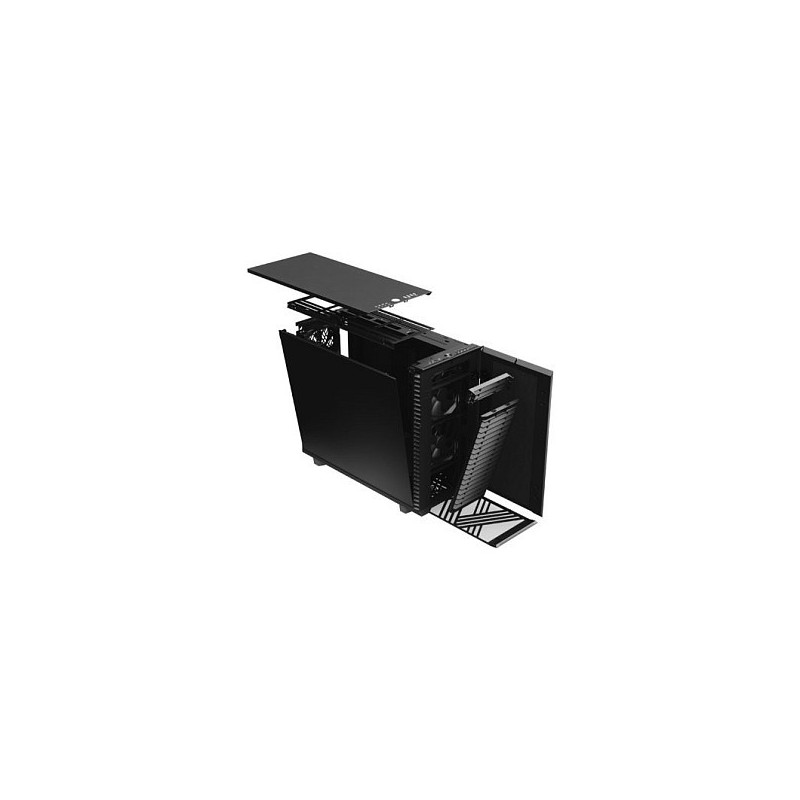

Swap in the ventilated panel to add three filtered fan positions; remove the entire top to build and route with zero hindrance.

Superior airflow by design

Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.

- Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions
- Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
- The single 5.25" ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering.

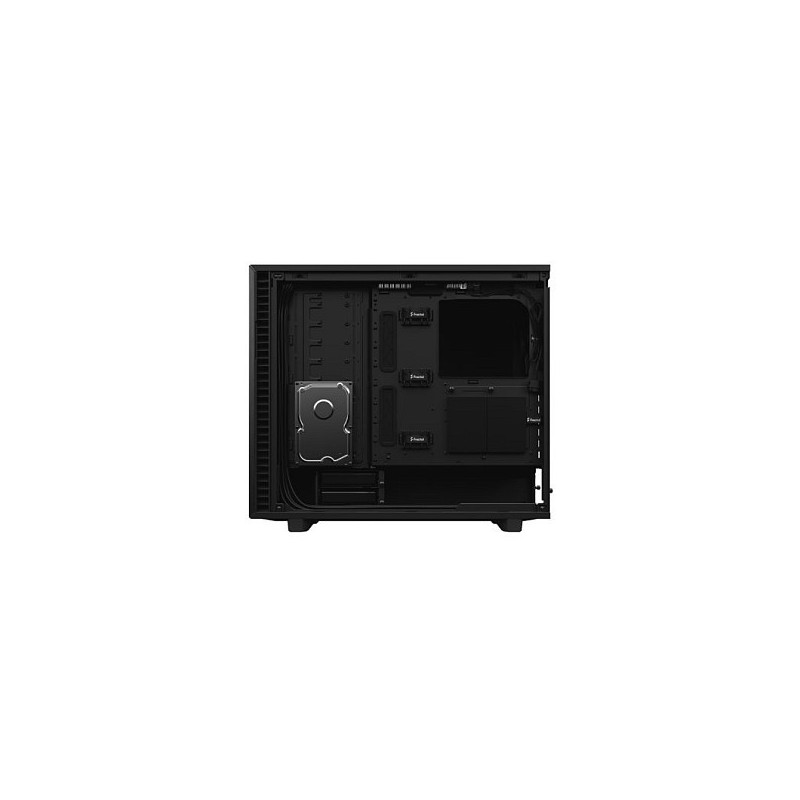

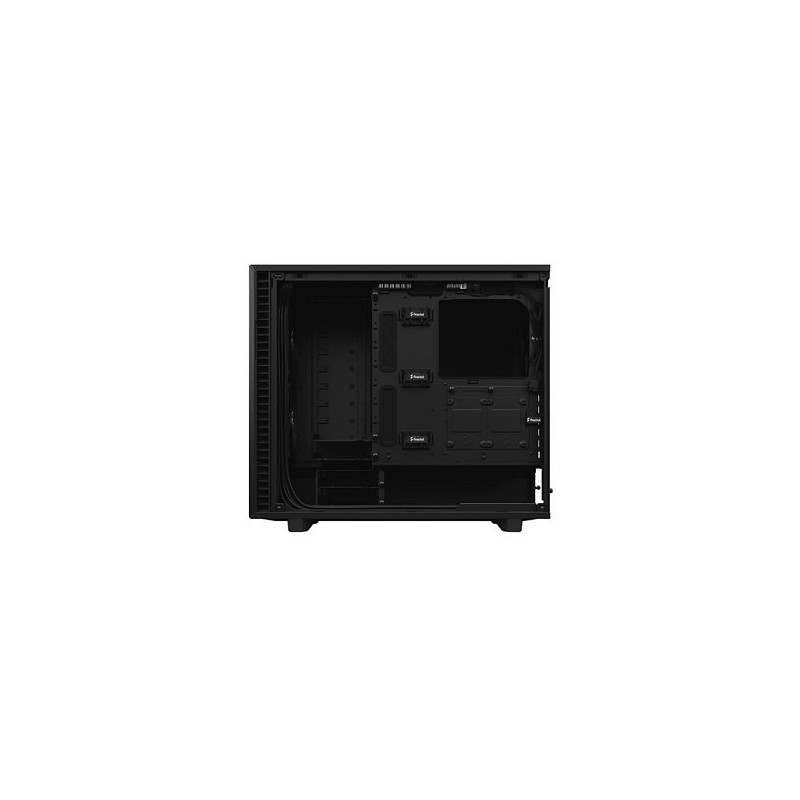

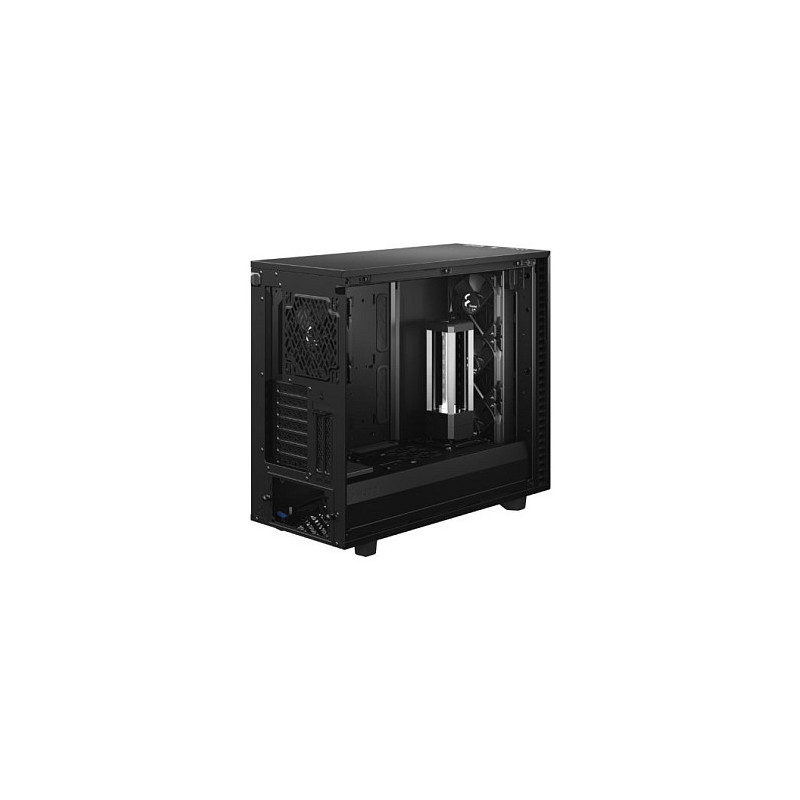

Open layout for massive headroom

You'll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.

- Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX
- Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base

6 SSD/HDD trays + 2 SSD brackets + 1 Multibracket included

Superlative storage

Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts

- 6 universal HDD/SSD brackets included with 14 positions total in Storage Layout
- 2 dedicated SSD brackets included with 4 positions total
- Versatile Multibracket converts any unused fan position to an HDD, SSD or pump mount
- Sturdy new HDD cage design with vibration damped trays

Exceptionally silent

Silence-optimized construction with industrial sound-damped front, top, and side panels

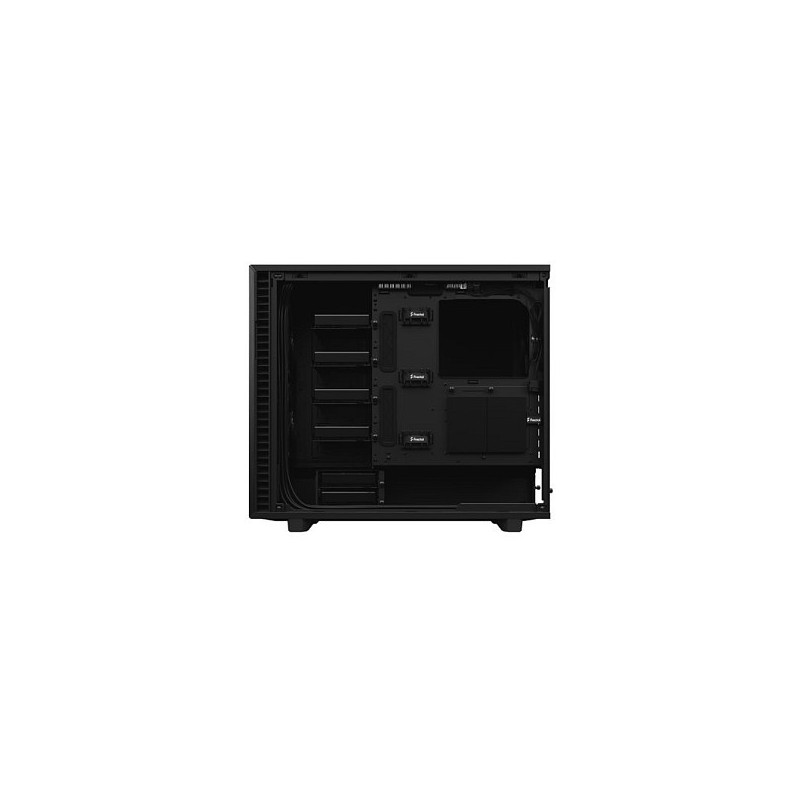

Cable management

Integrated cable guides with Velcro ties simplifies cable management behind the board.

Nexus+ 2 fan hub

Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans.

Type-C interface

Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps.

Versatile new Multibracket

The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount.

Design

Material: Aluminium, Steel
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Micro-ITX
Number of 3.5" bays: 6
Number of 5.25" bays: 1
Number of 2.5" bays: 2
Number of internal 3.5" bays: 6
Number of external 5.25" bays: 1
Number of expansion slots: 9
Suitable for: Gaming
Feature: Anti-dust filter
Feature: Cable management
Feature: Reset button
Feature: On/off button
LED indicators: Yes
Maximum CPU cooler height: 18.5 cm
Maximum graphics card length: 49.1 cm
Maximum PSU length: 25 cm

Power supply

Power supply location: Bottom
Number of power supply units: 1
Supported power supply form factors: ATX

Ports & interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Cooling

Front fans installed: 2x 140 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 2
Bottom fans diameters supported: 120,140 mm
Feature: Liquid cooling capability
Front radiator sizes supported: 280,360 mm
Feature: Rear radiator installed
Bottom radiator sizes supported: 240,280 mm
Rear radiator fan size installed: 120
Top radiator sizes supported: 360,420 mm

Storage

Supported HDD sizes: 2.5,3.5"

Packaging content

Feature: Manual

Weight & dimensions

Width: 240 mm
Depth: 547 mm
Height: 475 mm
Weight: 13.5 kg

Logistics data

Harmonized System (HS) code: 84733080

Other features

Volume: 57.7 L
