Fractal Design Core 1000

Fractal Design Core 1000. Form factor: Micro Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX. Front fans installed: 1x 120 mm, Front fans diameters supported: 120 mm, Side fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 175 mm, Depth: 420 mm, Height: 355 mm

The Fractal Design Core Series offers a unique combination of design, cooling performance and value.
The Core 1000 USB 3.0 brings forth many features usually only seen in more expensive and larger cases. It supports long graphics cards up to 350mm in length as a result of the innovative, vertical HDD mounting bracket. The front panel is easily removable and pre-fitted with fan filters to ensure a dust free interior.
The sleek black interior is contrasted with white expansion slots while all HDD mountings are fitted with anti-vibration silicone grommets for optimal silence.

Key Features
- Simple yet elegant mesh front panel allowing for increased airflow through the case
- Optimized for performance in a compact, micro-ATX form factor with multiple cooling options

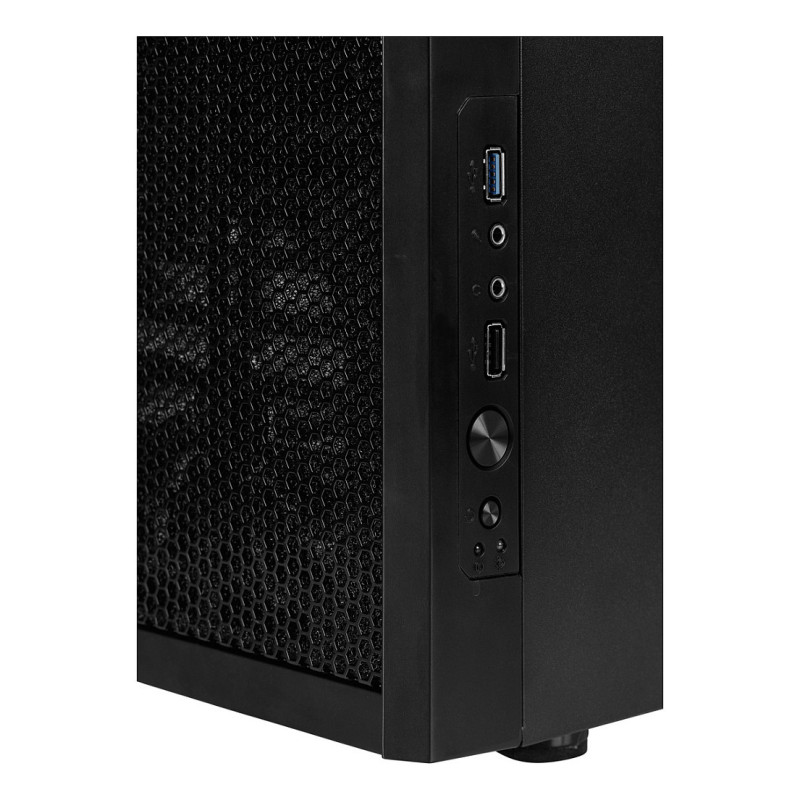

- NEW: 1 x USB 3.0 with internal connector, 1 x USB 2.0
- One Silent Series R2 fan included: 1 x 120mm in front
- A total of 3 fan slots (1 x 120mm in front, 1 x 92mm in rear, 1 x 120mm in side panel)
- Innovative HDD positioning which mounts the HDD or SSDs vertically on the mounting bracket with anti-vibration silicone grommets
- Supports long graphics cards up to 350mm in length
- Supports various combinations of drive sets ups: 3 x 2.5" SSD, 2 x 3.5" HDD or 1 x 2.5" SSD + 1 x 3.5" HDD
- Dust filter for front fan position

Design

Form factor: Micro Tower
Type: PC
Product colour: Black
Supported motherboard form factors: DTX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 5.25" bays: 2
Number of 2.5" bays: 3
Number of expansion slots: 4
Suitable for: Home/Office
Feature: Reset button
LED indicators: Yes
Maximum CPU cooler height: 14.8 cm
Maximum graphics card length: 35 cm

Power supply

Supported power supply form factors: ATX

Ports & interfaces

Audio input: Yes
Audio output: Yes
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Cooling

Front fans installed: 1x 120 mm
Number of front fans supported (max): 1
Front fans diameters supported: 120 mm
Number of side fans supported (max): 1
Side fans diameters supported: 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 92 mm

Storage

Supported HDD sizes: 2.5,3.5"

Packaging content

Feature: Manual

Weight & dimensions

Width: 175 mm
Depth: 420 mm
Height: 355 mm
Weight: 4.1 kg

Packaging data

Package width: 230 mm
Package depth: 473 mm
Package height: 415 mm
Package weight: 5 kg

Logistics data

Harmonized System (HS) code: 84733080
