DeLOCK 42633 storage drive enclosure

DeLOCK External USB Type-C Combo Enclosure for M.2 NVMe PCIe or SATA SSD. Product type: SSD enclosure. Number of storage drives supported: 1, Storage drive size: M.2, Supported storage drive interfaces: PCI Express, Serial ATA. Data transfer rate: 10 Gbit/s. Product colour: Black. USB connector type: USB Type-C

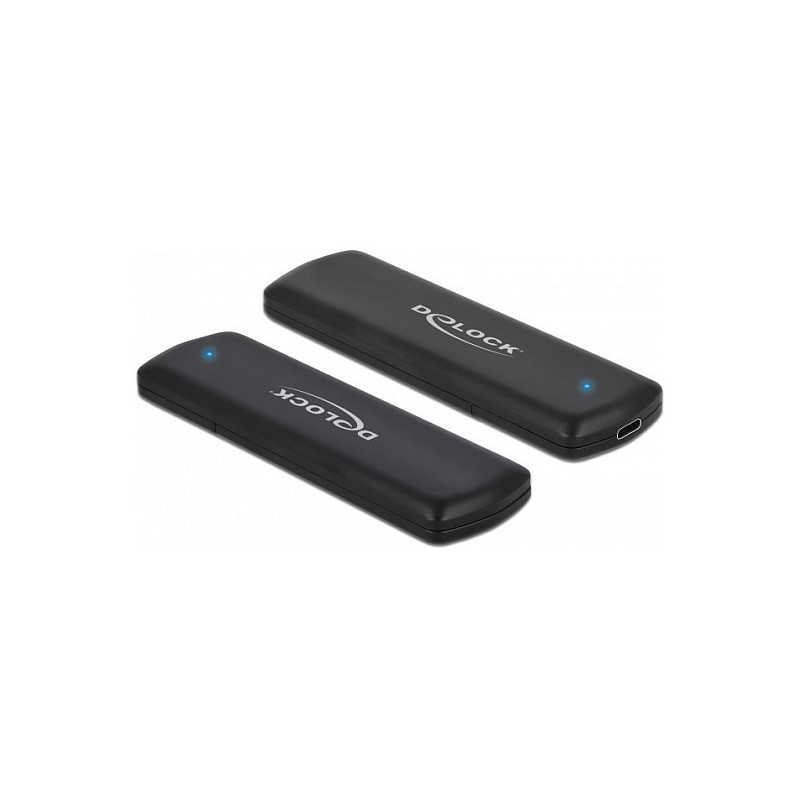

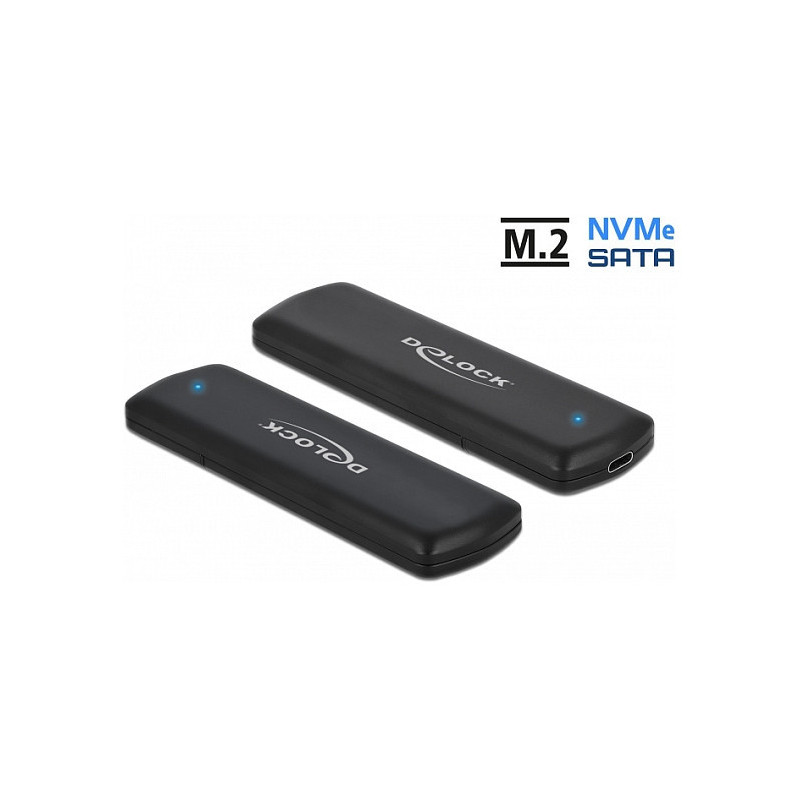

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD or SATA M.2 SSD in 2280, 2260, 2242 and 2230 format. It can be connected via USB to the PC or laptop. The robust metal housing ensures an optimum temperature of the memory.
Combo enclosure
The big advantage of this Delock M.2 enclosure is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the enclosure. The memory is automatically recognized by the chipset and can then be used.
SSD installation without tools

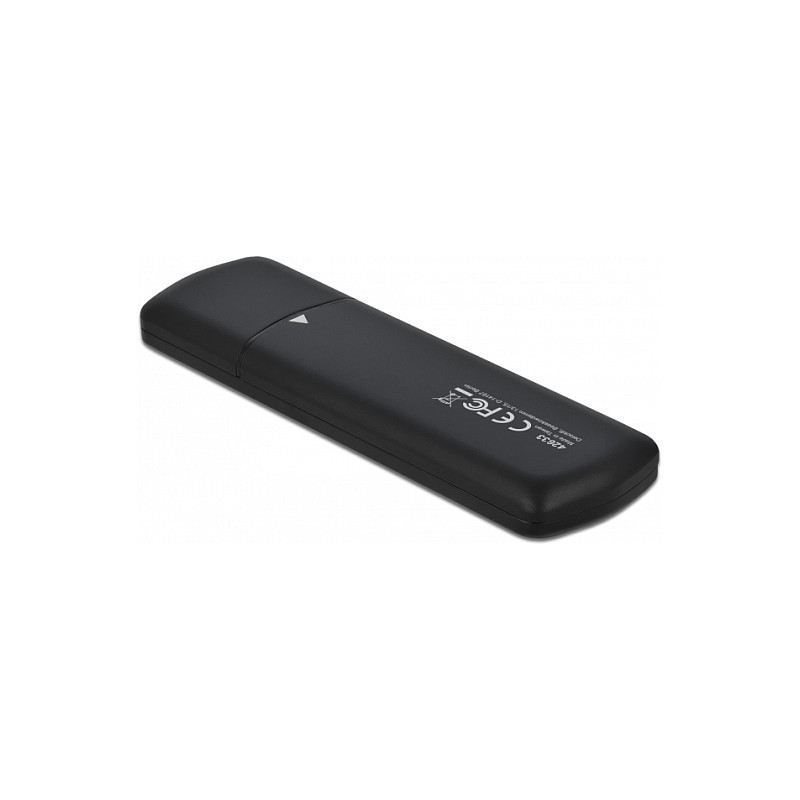

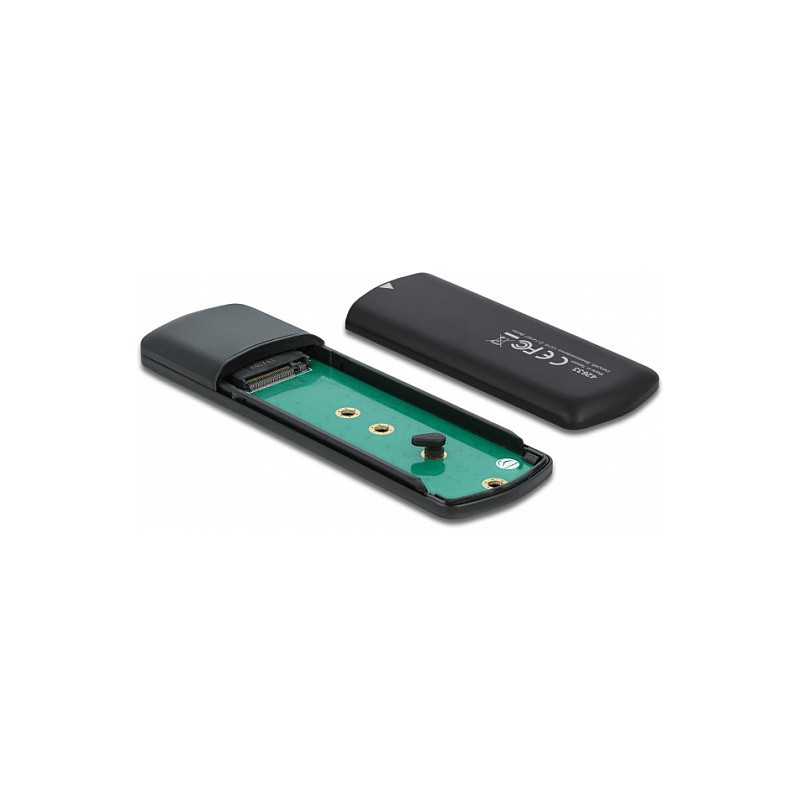

The special feature of this enclosure is that no tools are required to install the M.2 SSD. The lid can be pushed backwards by a little pressure, the SSD will be attached to the PCB with a rubber nipple and then the lid is reattached until it locks.

Storage

Number of storage drives supported: 1
Storage drive size: M.2
Supported storage drive interfaces: PCI Express, Serial ATA
Supported storage drive heights: 1.5 mm

Ports interfaces

USB connectivity: Yes
USB version: 3.2 Gen 2 (3.1 Gen 2)
USB connector type: USB Type-C
USB connector gender: Female
USB ports quantity: 1

Design

Product type: SSD enclosure
Product colour: Black
Material: Aluminium
LED indicators: Access, Power

Performance

Data transfer rate: 10 Gbit/s
Chipset: Realtek RTL9210B
Plug and Play: Yes

Power

Power source type: USB

System requirements

Mobile operating systems supported: Yes
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Weight dimensions

Width: 36 mm
Depth: 122 mm
Height: 12 mm

Packaging content

Package type: Hanging box

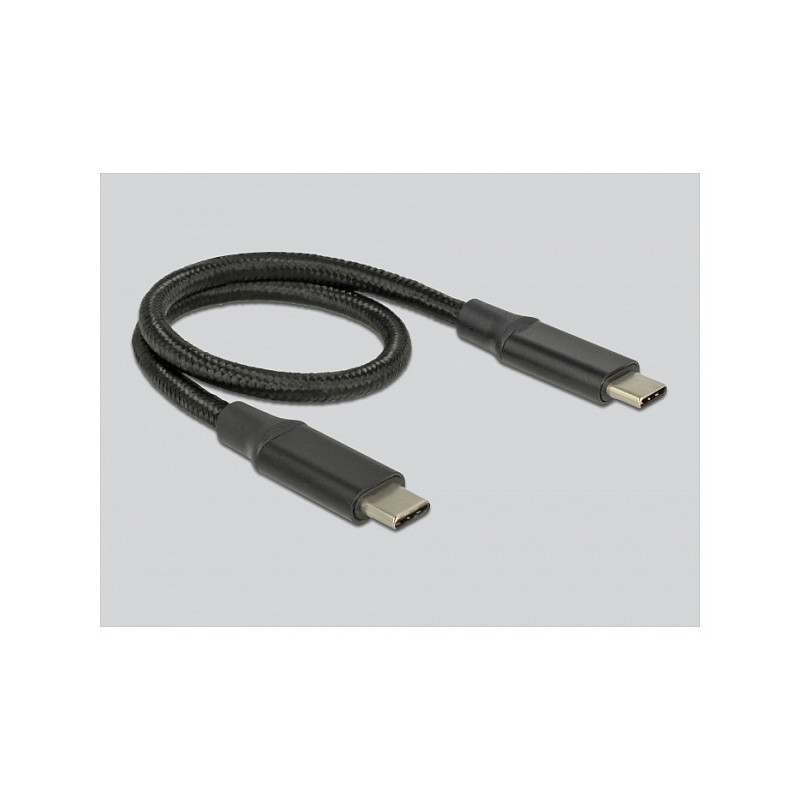

Cables included: USB Type-C to USB Type-C
Manual: Yes

Logistics data

Harmonized System (HS) code: 84733080
