DeepCool CH560 DIGITAL

DeepCool CH560 DIGITAL. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom, Supported power supply form factors: ATX, PS2. Front fans installed: 3x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 230 mm, Depth: 458 mm, Height: 471 mm
CH560 DIGITAL

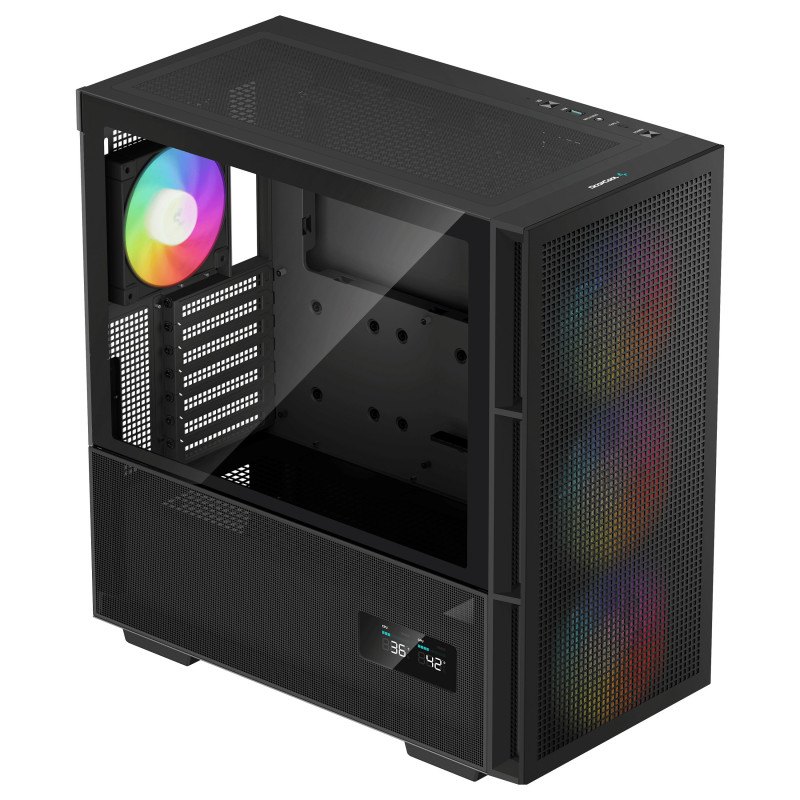

The next generation of airflow cases from DeepCool has arrived, and they are indeed glorious. The CH560 DIGITAL is a newly designed mid-tower case with a concentrated focus on increased airflow throughout the entire chassis. Three bright PWM enabled 140mm ARGB fans are mounted in front of the main compartment, a hybrid side panel, and a dual status digital screen sets the CH560 DIGITAL apart from the competition.
CH560 DIGITAL
HIGH AIRFLOW CASES REIMAGINED
A BREATH OF FRESH AIR
The CH560 DIGITAL provides exceptional airflow from all sides of the case, from the high airflow front to the hybrid tempered glass side panel, cool air is always available for the modern power-hungry components.

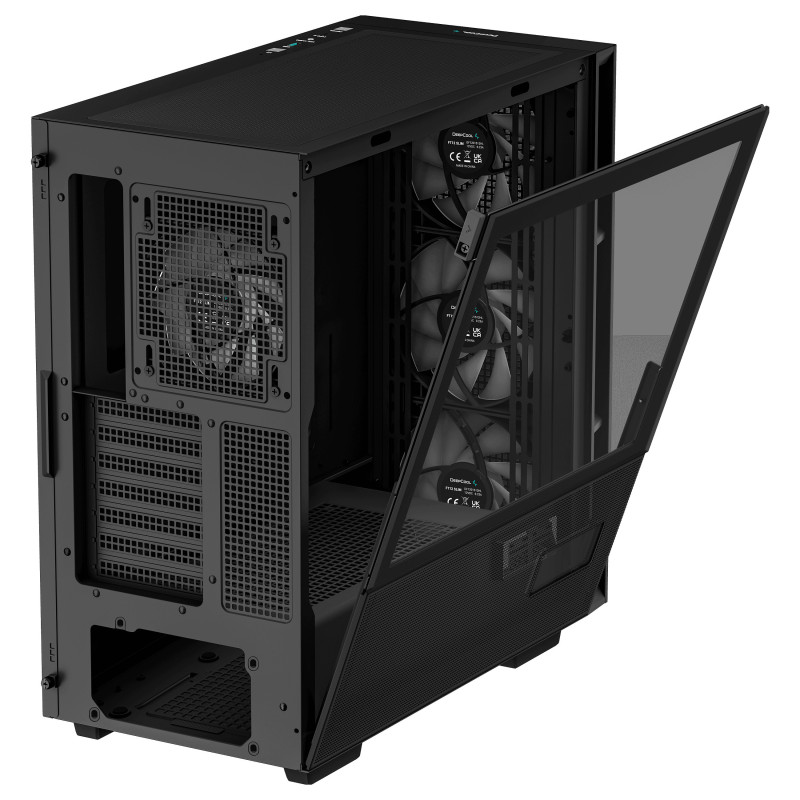

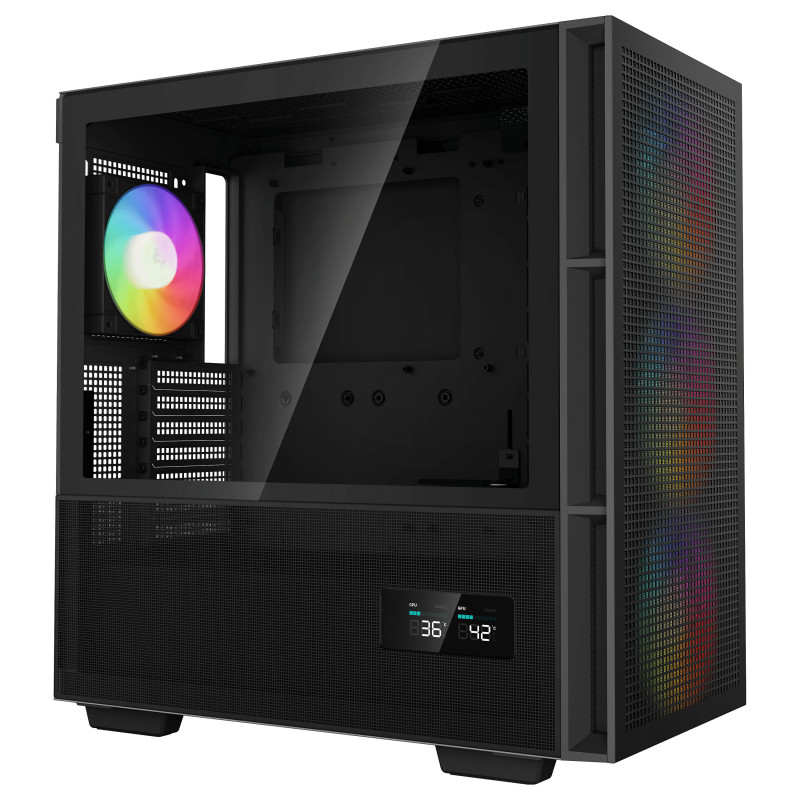

HYBRID AIRFLOW GLASS SIDE PANEL
A unique tempered glass and mesh hybrid side panel provides a crystal-clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.

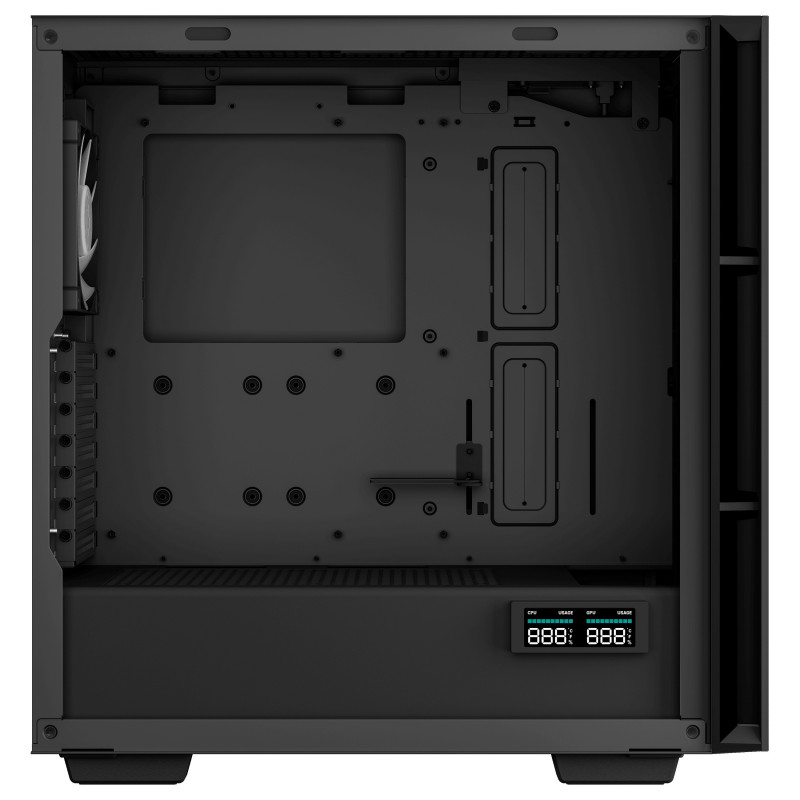

REAL-TIME DUAL-STATUS DIGITAL DISPLAY
Monitor vital CPU and GPU information from the cockpit of your gaming station with the integrated double-status digital screen. Choose between CPU and GPU temperatures, utilization, or both (switches between temperature and utilization in 5-second intervals). A simple to use application will give you control of the display statuses.
MAXIMUM COOLING CAPACITY

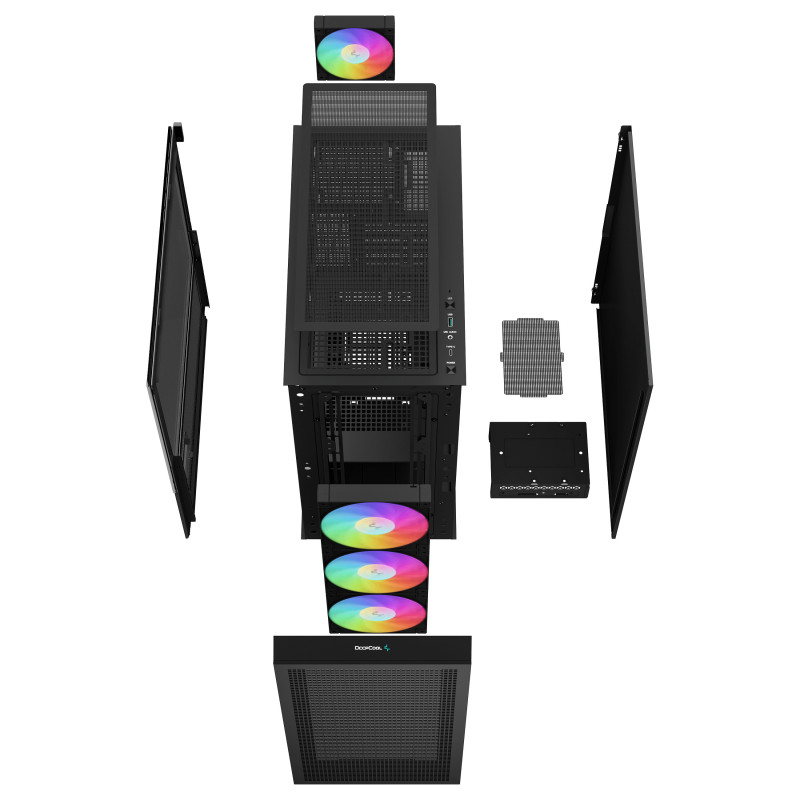

The CH560 DIGITAL has a plethora of cooling configurations, from the ability to mount 360mm radiators on the top and front to the three included 140mm ARGB fans up front and a 120mm ARGB at the rear—the cooling configurations are endless.
YES, IT FITS!
With the ability to support up to E-ATX motherboards, 175mm tall CPU coolers, 380mm GPUs, and 170mm PSUs, the CH560 DIGITAL can be configured with a wide range of modern components.
BIGGER, BRIGHTER, BETTER

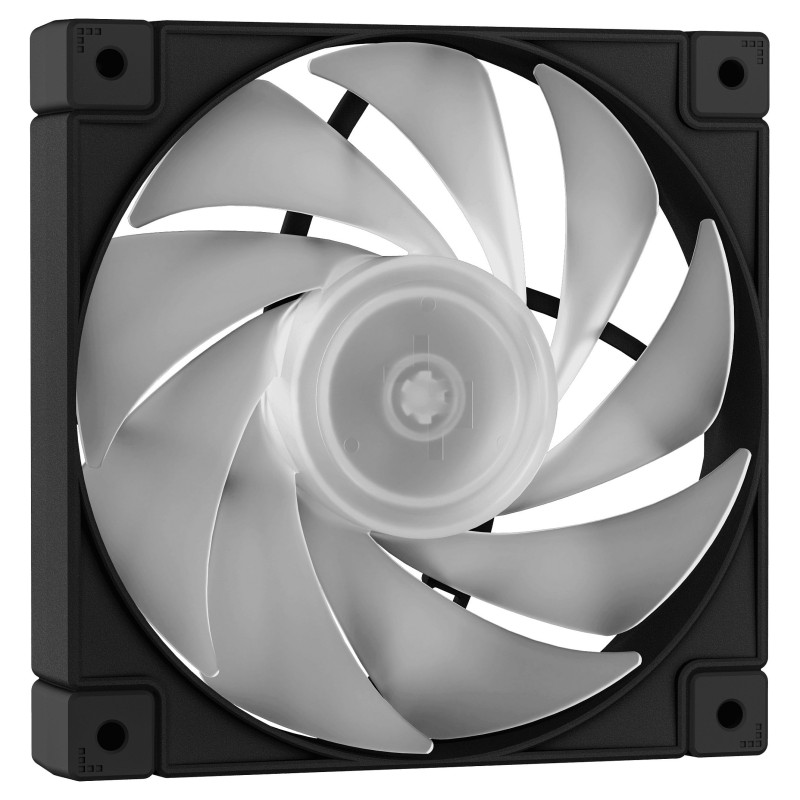

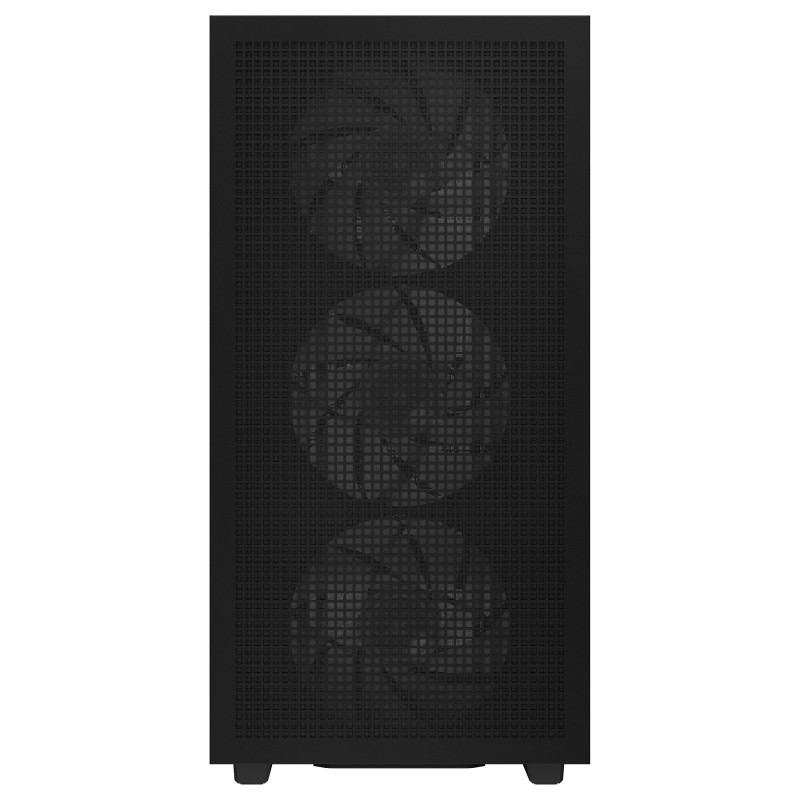

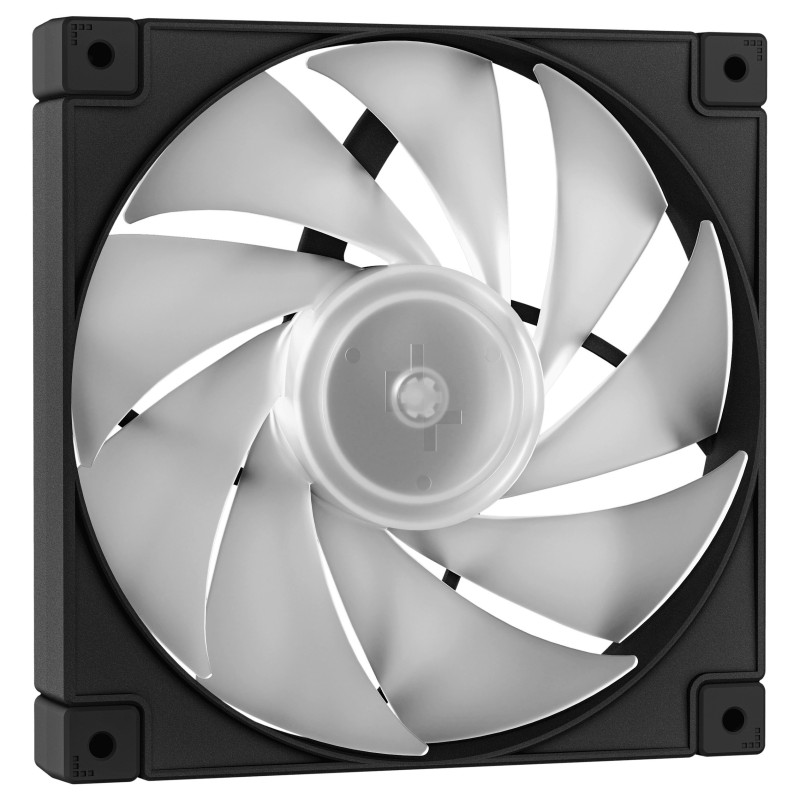

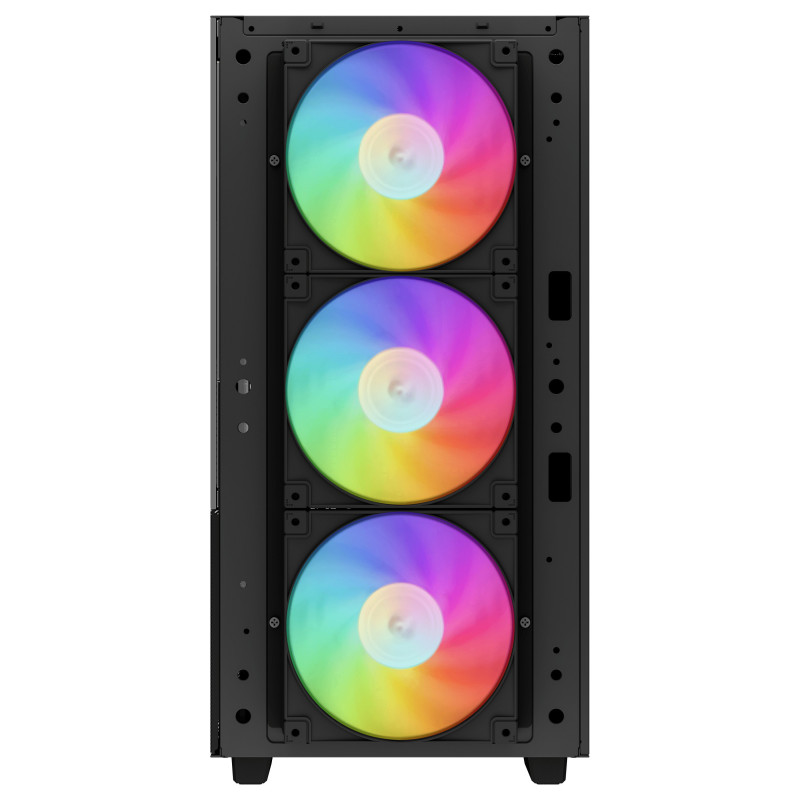

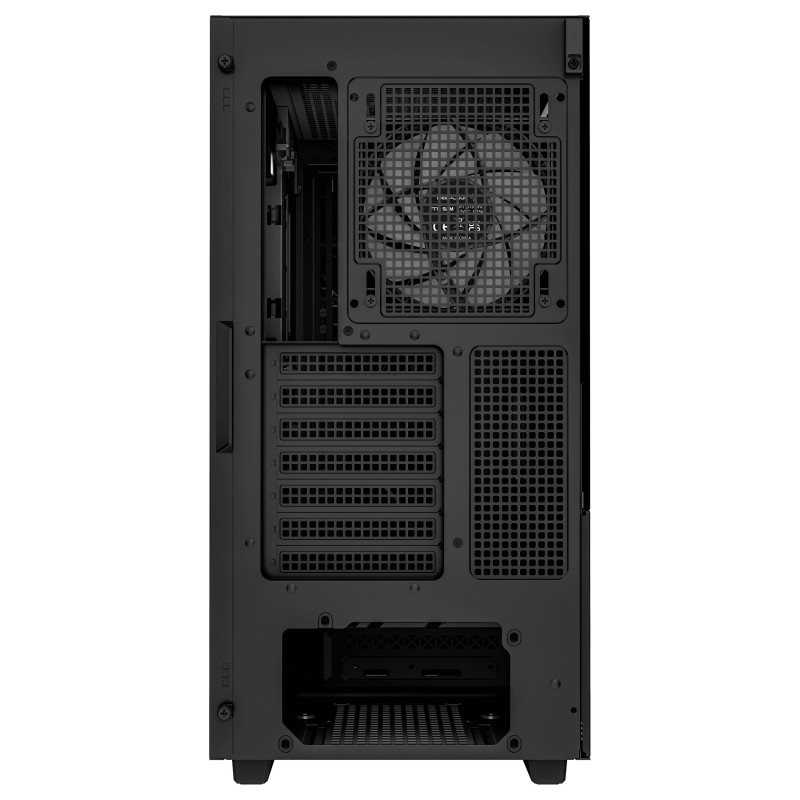

Three luminous PWM enabled 140mm ARGB fans come pre-installed on the front of the CH560 DIGITAL and introduce an abundant amount of fresh air into the chassis, these fans are mounted outside of the main compartment to provide maximum clearance for the largest of GPUs while maintaining a smaller footprint. The rear 120mm ARGB fan is also PWM enabled and will exhaust the warm air out of the chassis.

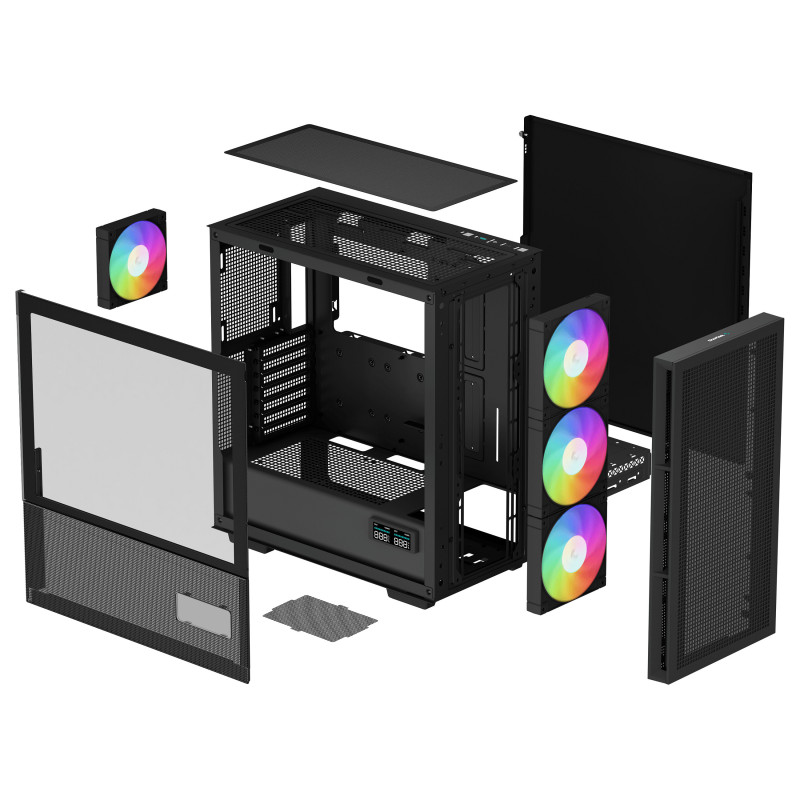

STRESS-FREE BUILDING

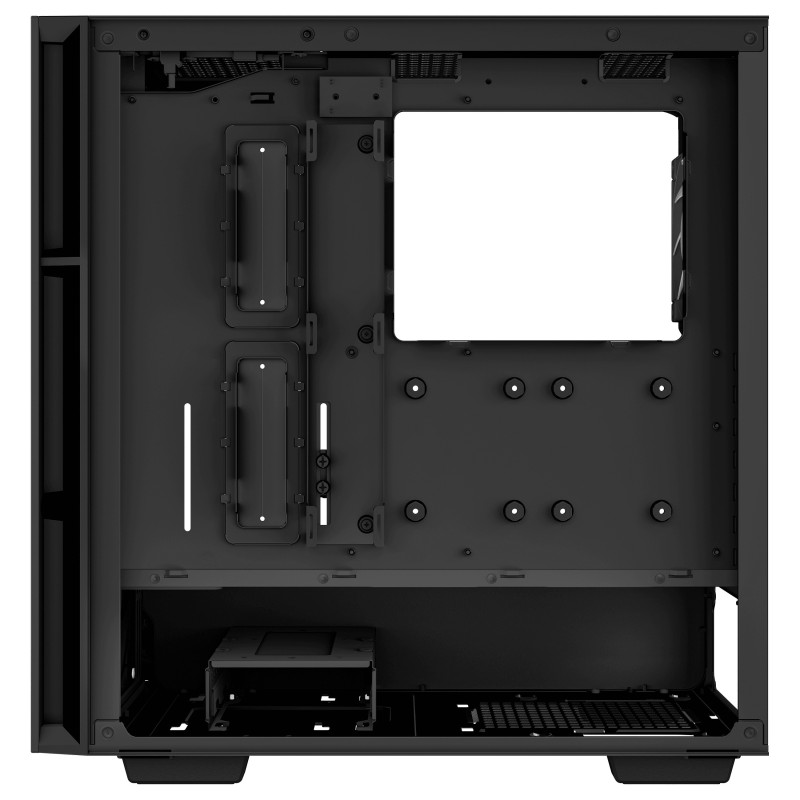

Building and maintaining the CH560 DIGITAL is a breeze: the magnetic hybrid panel with an optional security screw, magnetic air filters, integrated GPU support arm, and 26mm of cable management space behind the motherboard tray make life with a computer a little bit easier.
CONVENIENCE AT ARM'S REACH

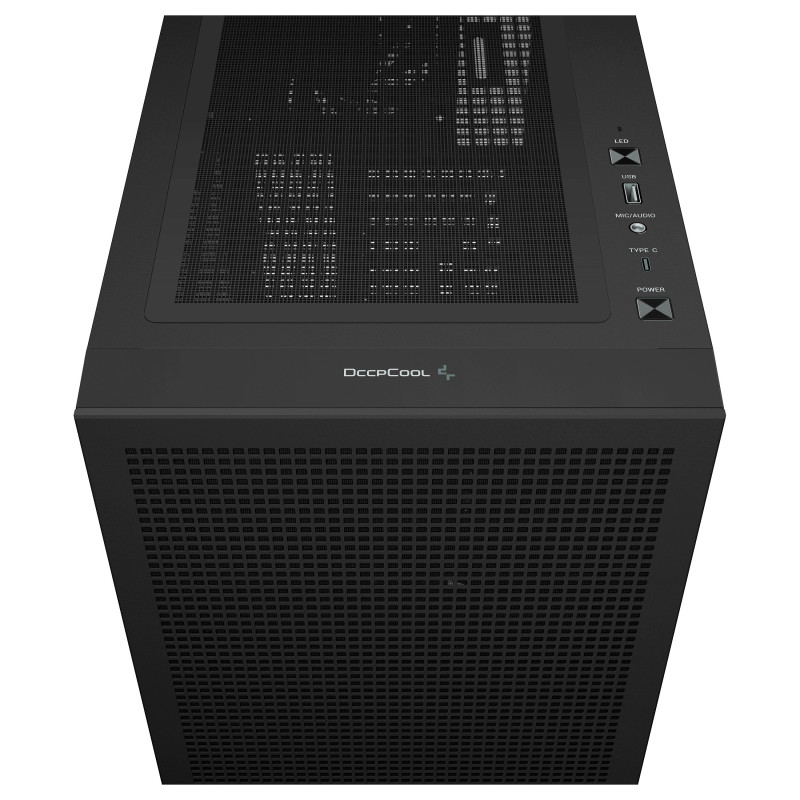

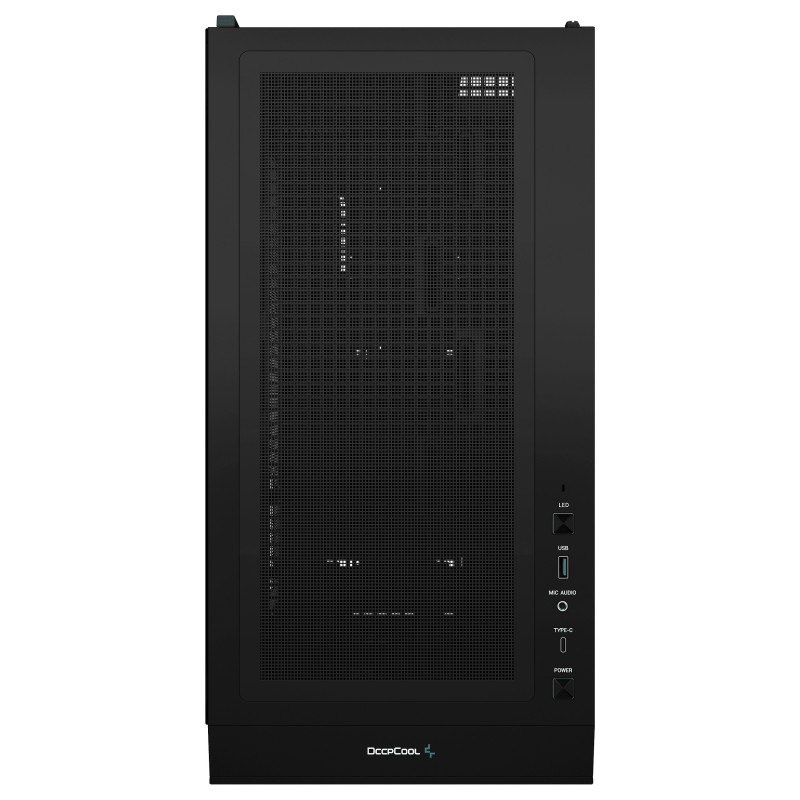

Everything necessary for daily routines is within reach with a Type-C, two USB 3.0 ports, and a hybrid audio port, all conveniently located on the case I/O panel.

Design

Material: ABS, Steel, Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 3
Number of expansion slots: 7
Feature: Side window
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: On/off button
LED indicators: Yes
Maximum CPU cooler height: 17.5 cm
Maximum graphics card length: 38 cm
Maximum PSU length: 17 cm

Power supply

Power supply location: Bottom
Supported power supply form factors: ATX, PS2

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: Combo headphone/mic port

Cooling

Front fans installed: 3x 140 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Front radiator sizes supported: 120,140,240,280,360 mm
Rear radiator sizes supported: 120,140 mm
Top radiator sizes supported: 120,140,240,280,360 mm

Storage

Supported HDD sizes: 2.5,3.5"
Feature: HDD/SSD combo cage

Packaging content

Feature: Manual

Weight dimensions

Width: 230 mm
Depth: 458 mm
Height: 471 mm
Weight: 7.5 kg
