DeepCool CH360

DeepCool CH360. Type: PC, Product colour: Black, Supported motherboard form factors: micro ATX, Mini-ITX. Power supply location: Bottom, Supported power supply form factors: ATX, PS2. Front fans installed: 2x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 215 mm, Depth: 428 mm, Height: 431 mm

The next generation of airflow cases from DeepCool has arrived, and they are indeed glorious. The CH360 is a newly designed mATX case with a concentrated focus on increased airflow throughout the entire chassis. Two bright PWM-enabled 140mm ARGB fans are mounted in front of the main compartment, and a hybrid side panel sets the CH360 apart from the competition.

A BREATH OF FRESH AIR
The CH360 provides exceptional airflow from all sides of the case; from the high airflow front to the hybrid tempered glass side panel; cool air is always available for the modern power-hungry components.

HYBRID AIRFLOW GLASS SIDE PANEL

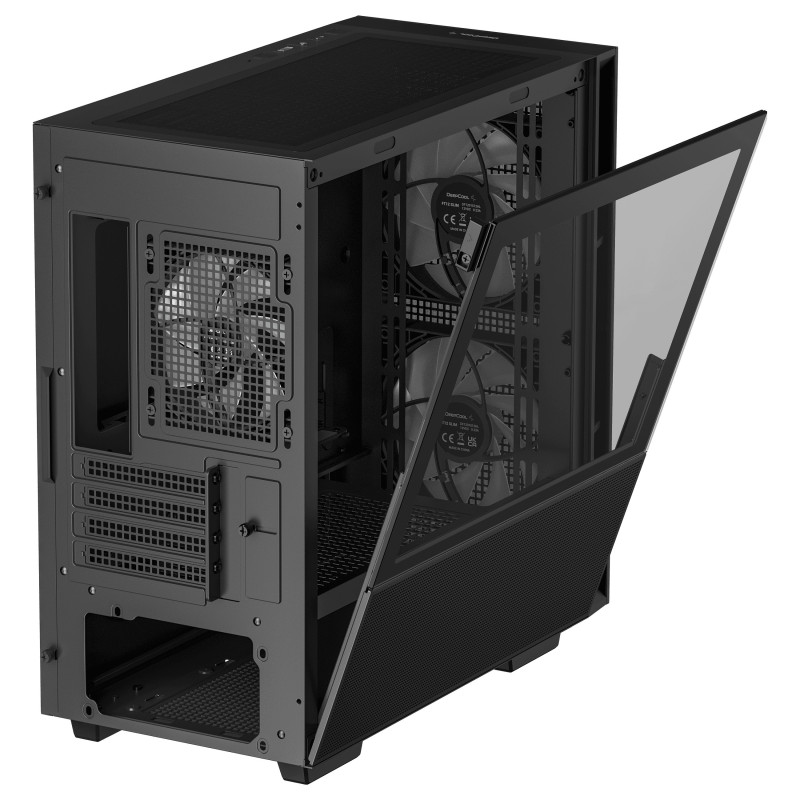

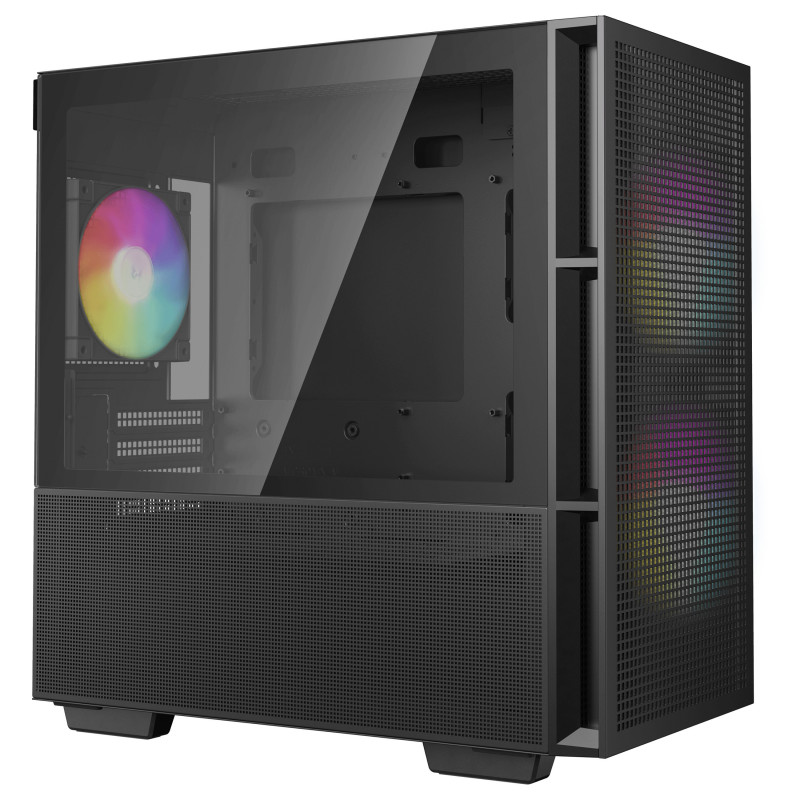

A unique tempered glass and mesh hybrid side panel provides a crystal-clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.

MAXIMUM COOLING CAPACITY
The CH360 has a plethora of cooling configurations, from the ability to mount a 360mm radiator in front to the two included 140mm ARGB fans up front—the cooling configurations are endless.

LARGE RANGE OF COMPATIBLE COMPONENTS
With the ability to support 165mm tall CPU coolers, 320mm GPUs, and 160mm PSUs; the CH360 can be configured with a wide range of modern components.

BIGGER, BRIGHTER, BETTER

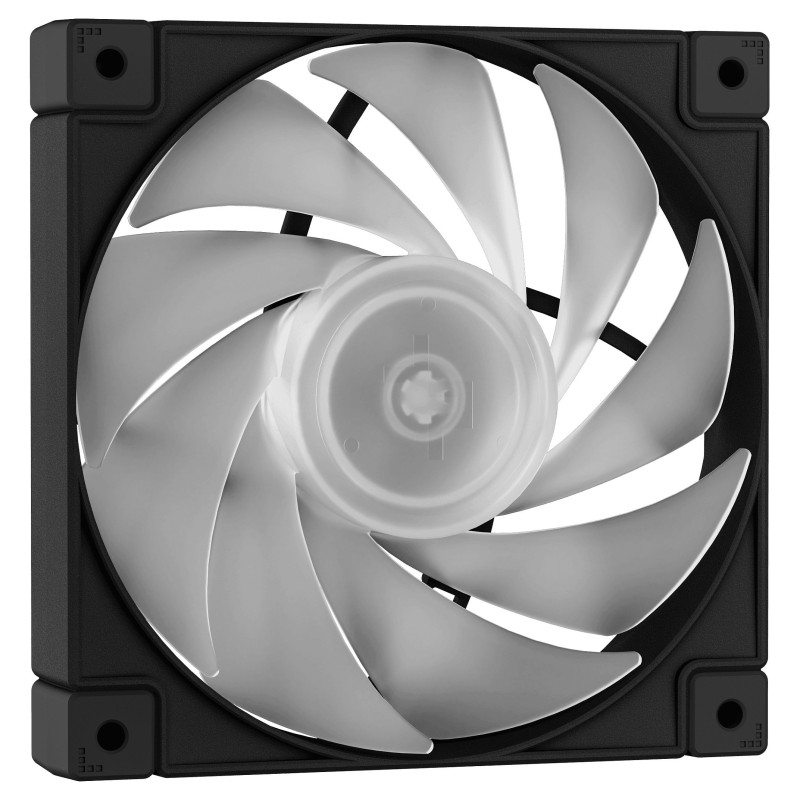

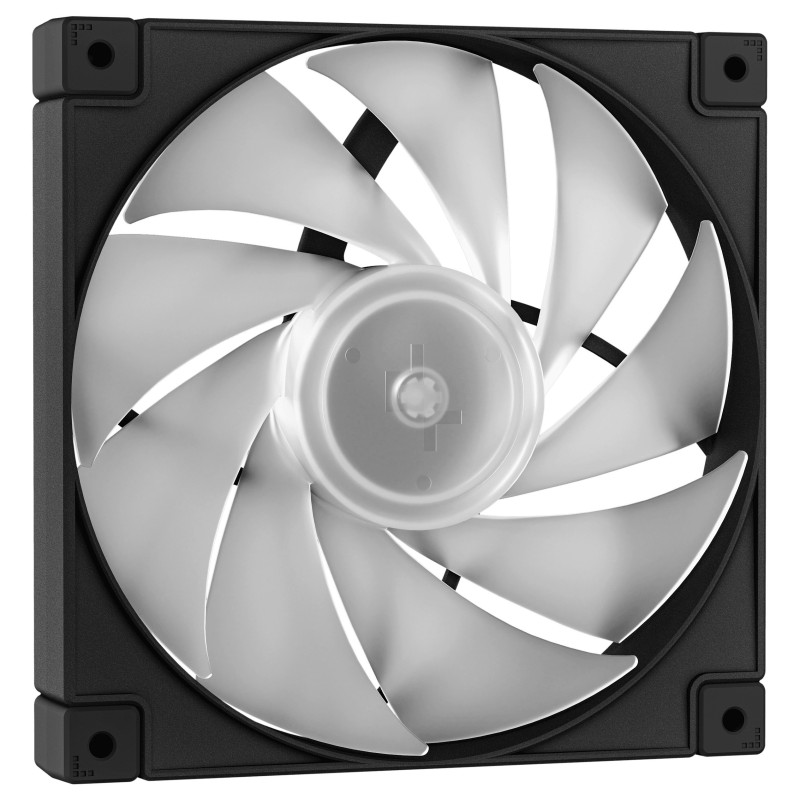

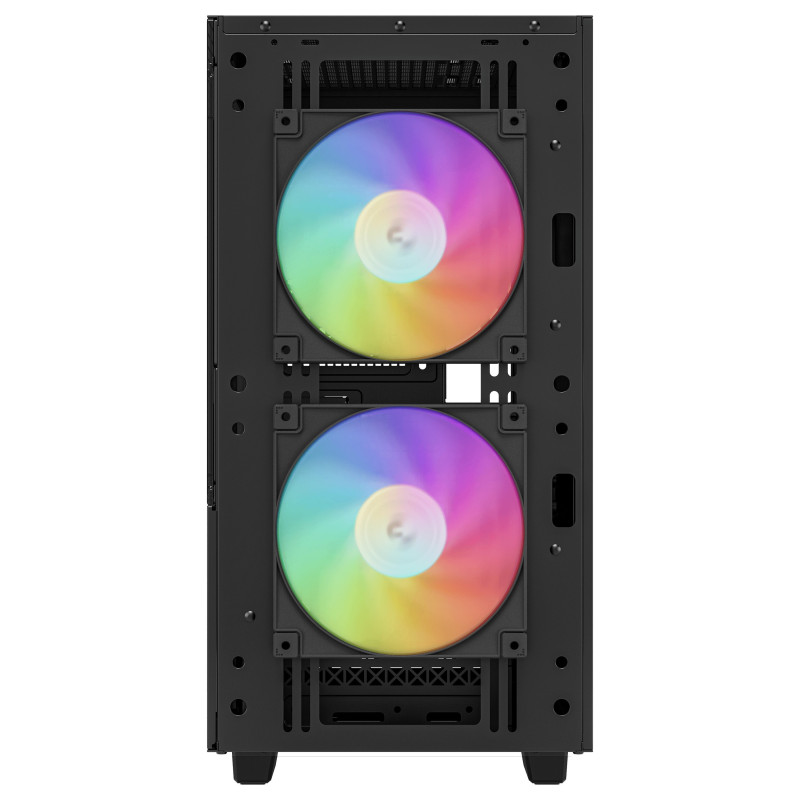

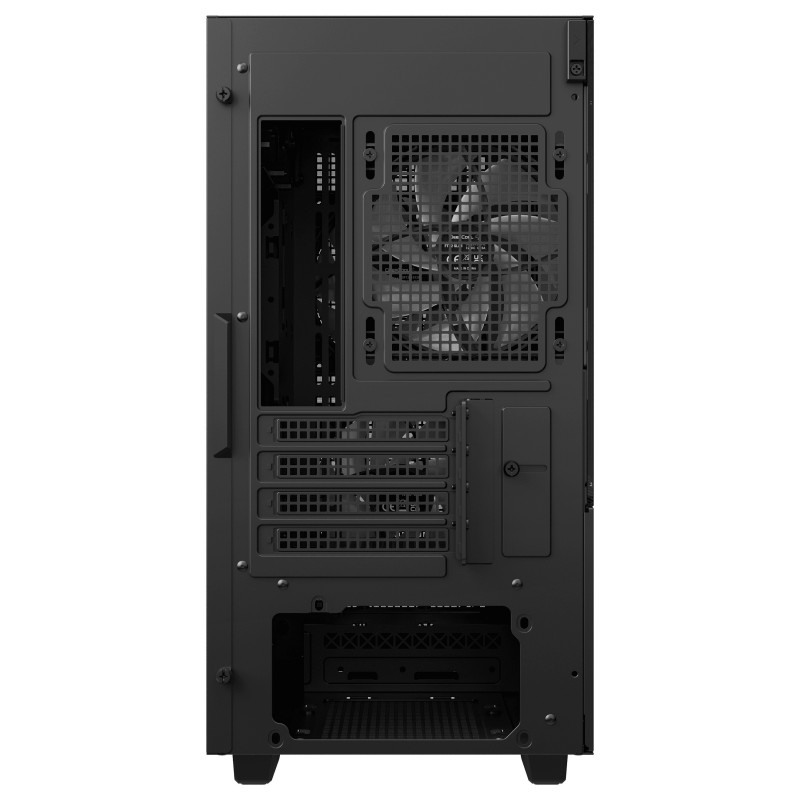

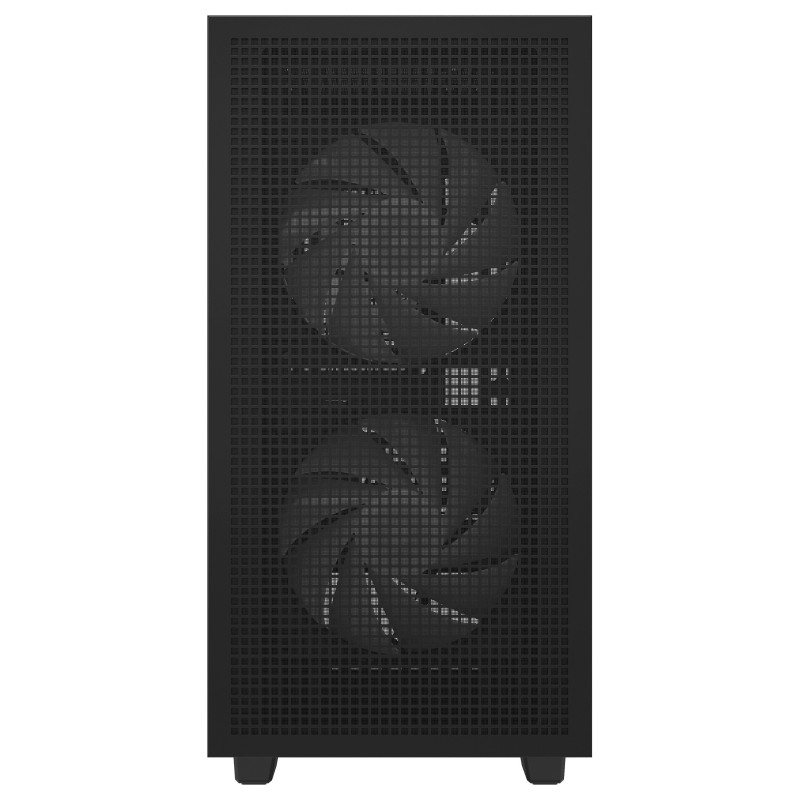

Two luminous PWM-enabled 140mm ARGB fans come pre-installed on the front of the CH360 and introduce an abundant amount of fresh air into the chassis. These fans are mounted outside of the main compartment to provide extra clearance for modern GPUs while maintaining a smaller footprint. A 120mm ARGB fan is included in the rear of the case to help exhaust internal case heat.

STRESS-FREE BUILDING

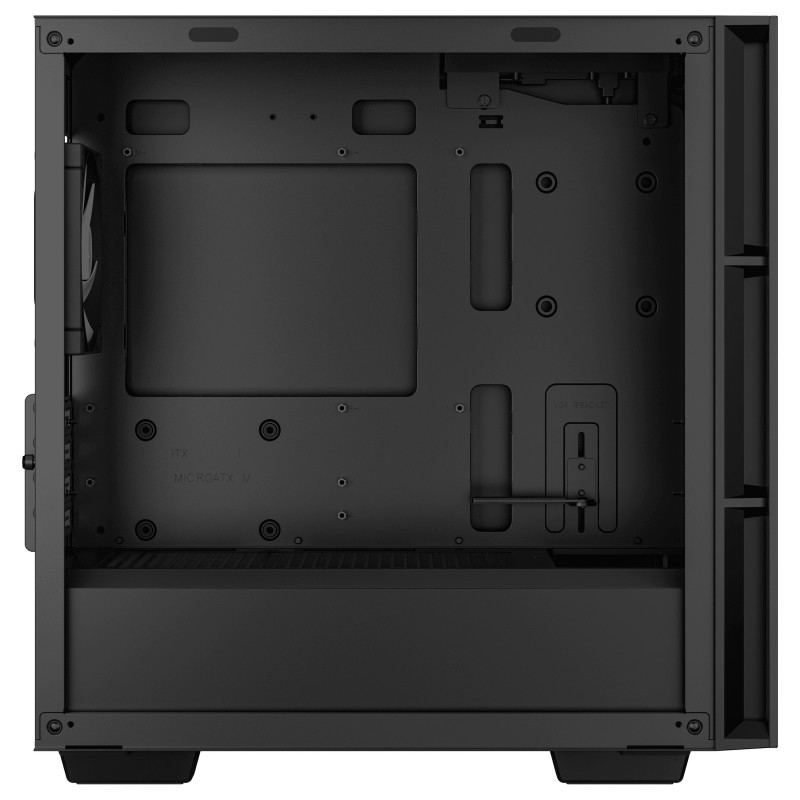

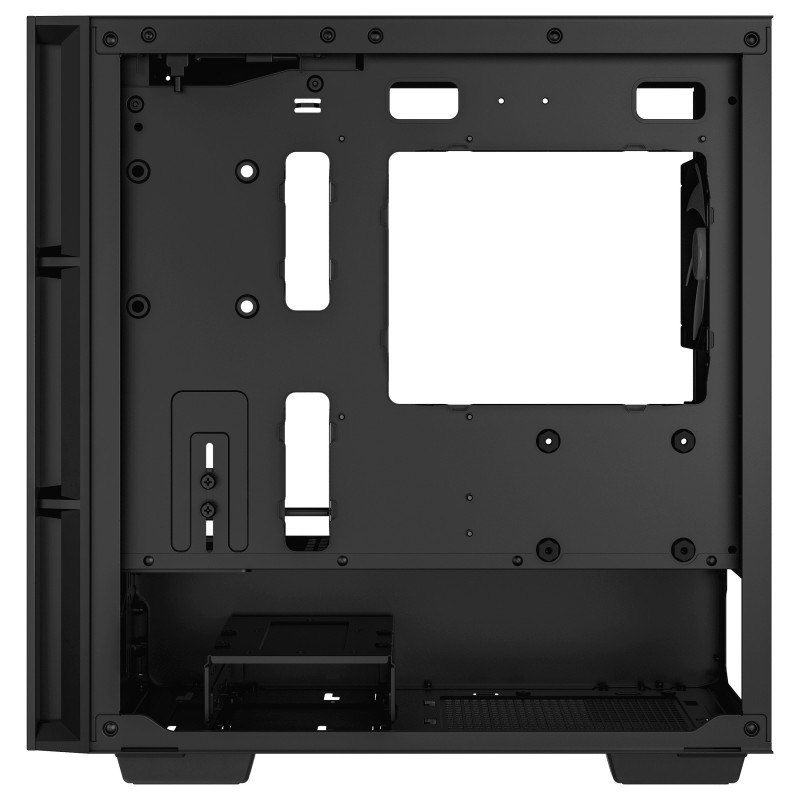

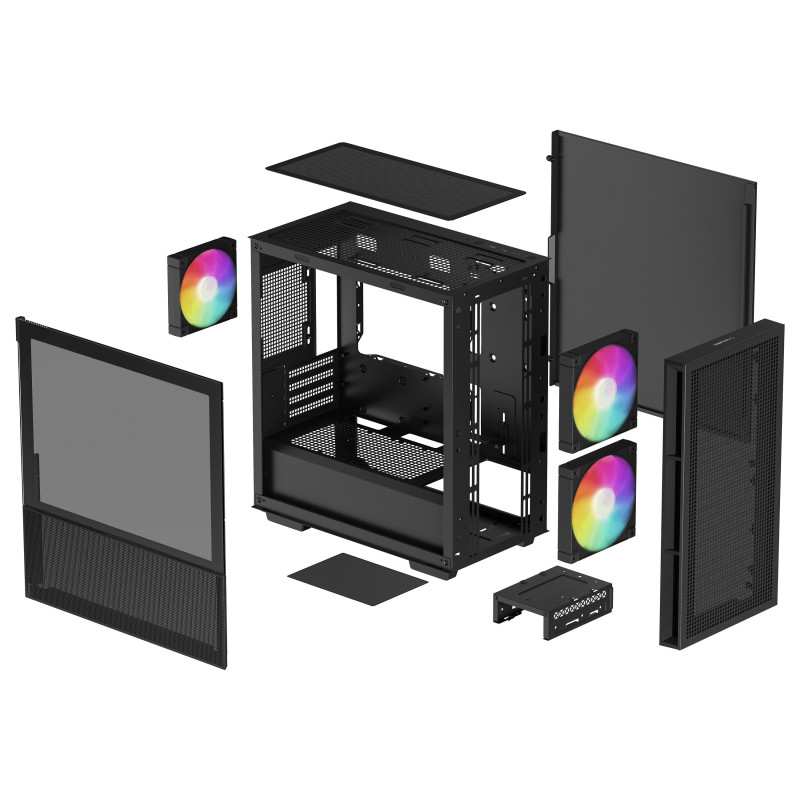

Building and maintaining the CH360 is a breeze: the magnetic hybrid panel with an optional security screw, magnetic air filters, integrated GPU support arm, a removeable hard drive cage, and 26mm of cable management space behind the motherboard tray make life with a computer a little bit easier.

CONVENIENCE AT ARM'S REACH

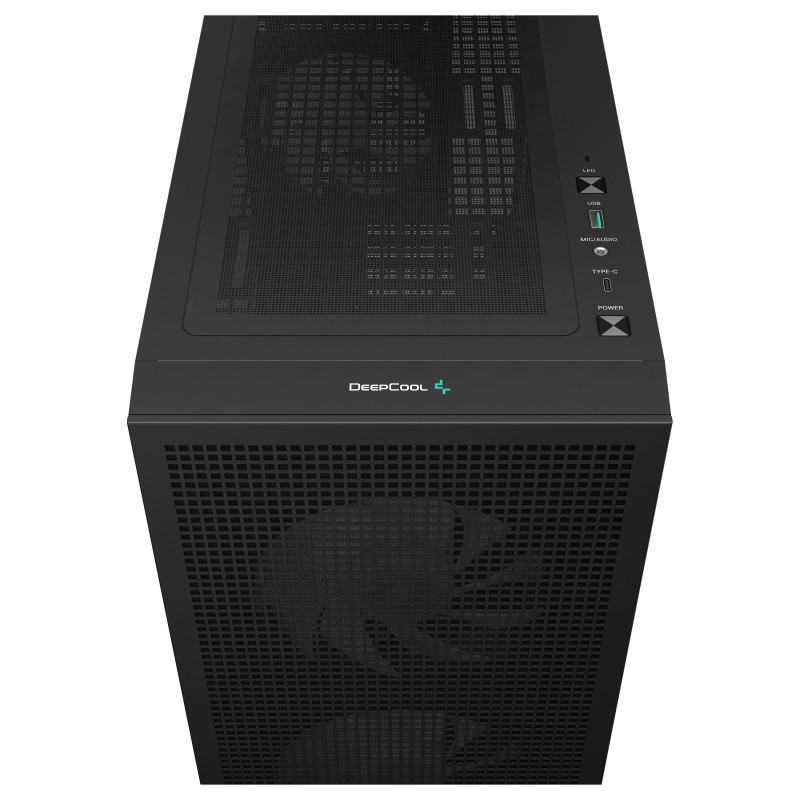

Everything necessary for daily routines is within reach with a Type-C, a USB 3.0 port, and a hybrid audio port, all conveniently located on the case I/O panel.

Design

Material: ABS, SPCC
Type: PC
Product colour: Black
Supported motherboard form factors: micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 3
Number of expansion slots: 4
Feature: Side window
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Tempered glass panel(s)
Maximum CPU cooler height: 16.5 cm
Maximum graphics card length: 32 cm
Maximum PSU length: 16 cm

Power supply

Power supply location: Bottom
Supported power supply form factors: ATX, PS2

Ports & interfaces

Audio input: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB Type-C ports quantity: 1

Cooling

Front fans installed: 2x 140 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Front radiator sizes supported: 120,140,240,280,360 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 120,140,240 mm

Storage

Supported HDD sizes: 2.5,3.5"

Weight & dimensions

Width: 215 mm
Depth: 428 mm
Height: 431 mm
Weight: 6 kg
