Cooler Master Elite 502

Cooler Master Elite 502. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom, Supported power supply form factors: ATX. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 230 mm, Depth: 474 mm, Height: 481 mm
Effortless Efficiency
Elite 502
The Elite 502 delivers exceptional cooling and performance with its advanced mesh front panel for enhanced airflow. Designed for mid-to-entry-level builders, it supports up to a 420mm radiator, 410mm GPUs, and modern back-connector motherboards, offering a streamlined and efficient building experience at an accessible price.
BACK-CONNECTED MOTHERBOARD SUPPORT
Supports back-connected motherboard design, freeing up space at the front of the case and providing 33-35mm of space behind the motherboard tray for easier cable management.

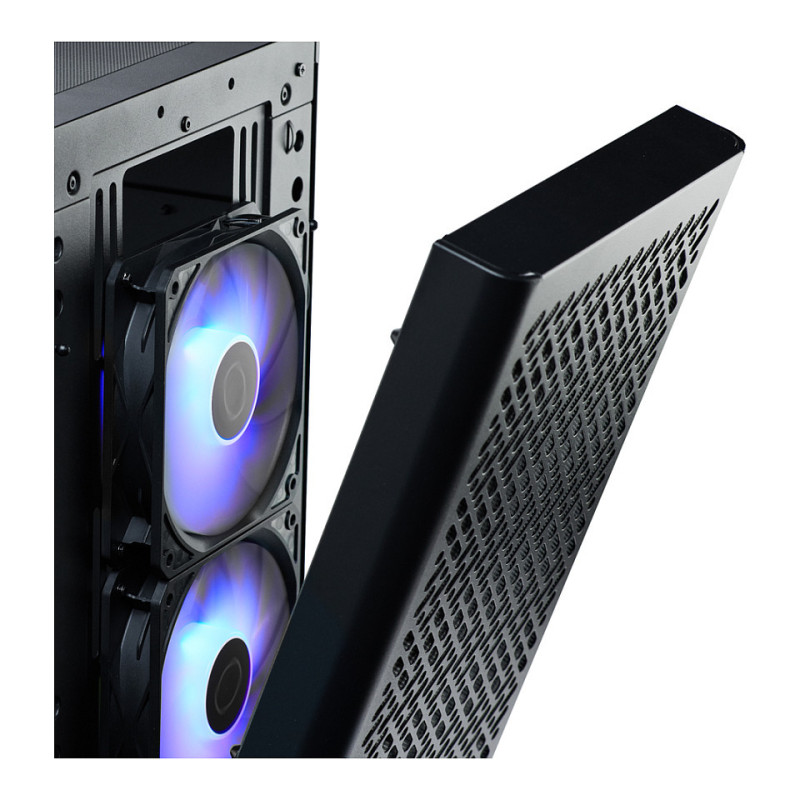

OPTIMIZED AIRFLOW
Equipped with three 120mm ARGB fans, it offers stable cooling performance while adding stunning lighting effects to your build.
ROOM FOR UPDATES
Supports a 410mm GPU, a 170mm CPU cooler, and ample space for future hardware upgrades.
USB TYPE-C SUPPOR
USB Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
VERSATILE THERMAL OPTIONS
Supports up to seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted 420mm radiator, offering hyper-effective CPU thermal performance.
REMOVABLE HDD CAGE
The HDD cage is completely removable, providing better access during assembly and system upgrades.

Design

Material: Steel
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, EATX, ITX, micro ATX
Number of 3.5" bays: 2
Number of 2.5" bays: 2
Number of internal 3.5" bays: 2
Number of expansion slots: 7
Side window: Yes
Suitable for: Gaming
Illumination: Yes
Illumination colour: Multi
Illumination location: Case fans
Tempered glass panel(s): Yes
Anti-dust filter: Yes
Cable management: Yes
On/off button: Yes
LED indicators: Yes
Maximum CPU cooler height: 17 cm
Maximum graphics card length: 36 cm

Power supply

Power supply included: No
Power supply location: Bottom
Supported power supply form factors: ATX

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB Type-C ports quantity: 1
Combo headphone/mic port: Yes

Cooling

Front fans installed: 3x 120 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Liquid cooling capability: Yes
Front radiator sizes supported: 120,140,240,280,360,420 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 120,140,240,280,360 mm

Storage

Supported HDD sizes: 2.5,3.5"

Weight dimensions

Width: 230 mm
Depth: 474 mm
Height: 481 mm
