Chieftec HT-01B-OP computer case

Chieftec HT-01B-OP. Form factor: Mini Tower, Type: PC, Product colour: Black. Rear fans diameters supported: 80,90,120 mm. Supported HDD sizes: 2.5,3.5". Width: 180 mm, Depth: 408 mm, Height: 352 mm

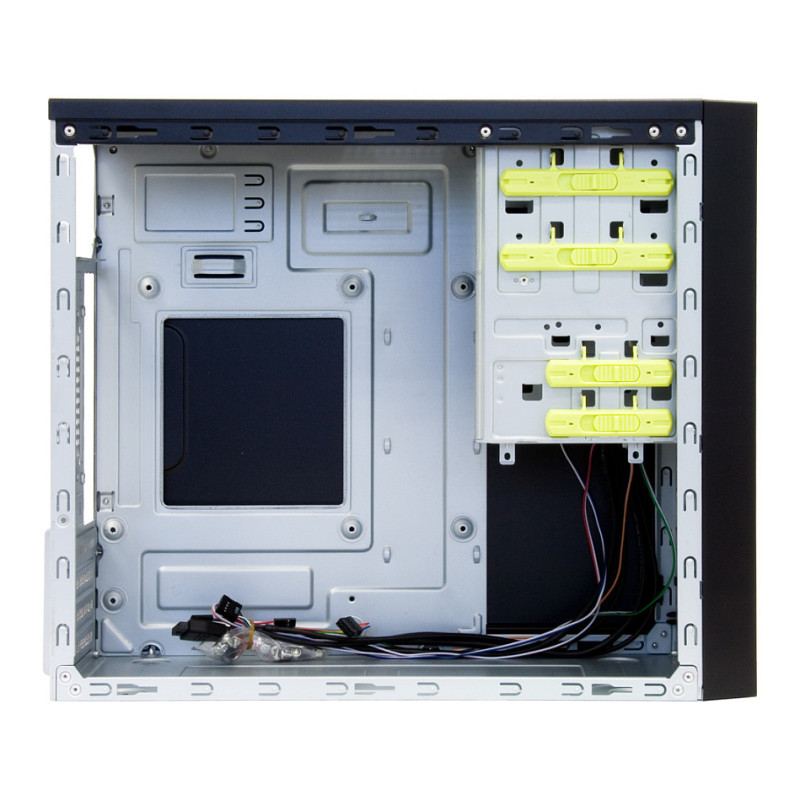

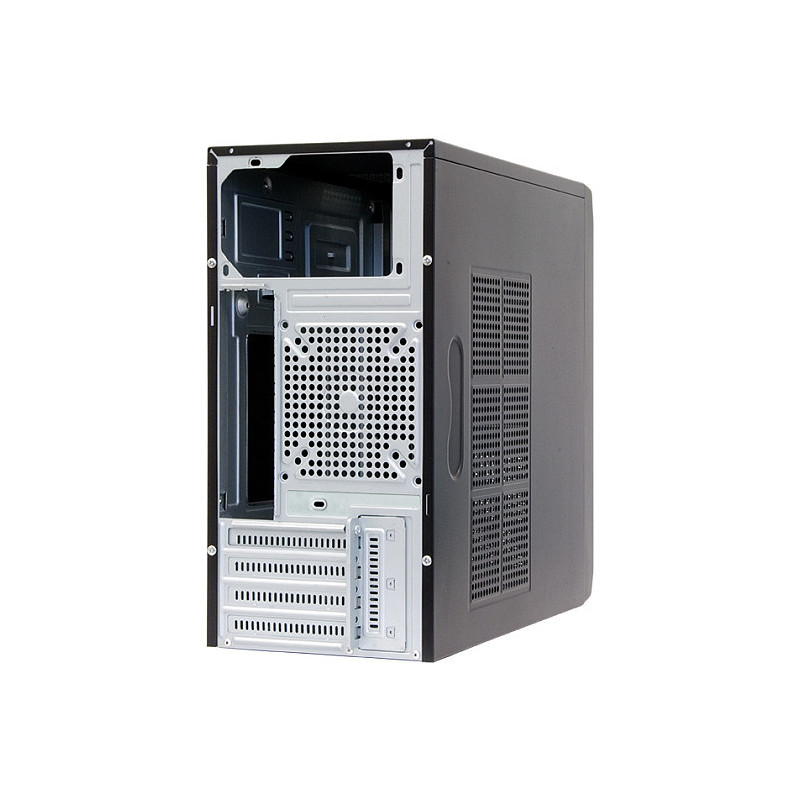

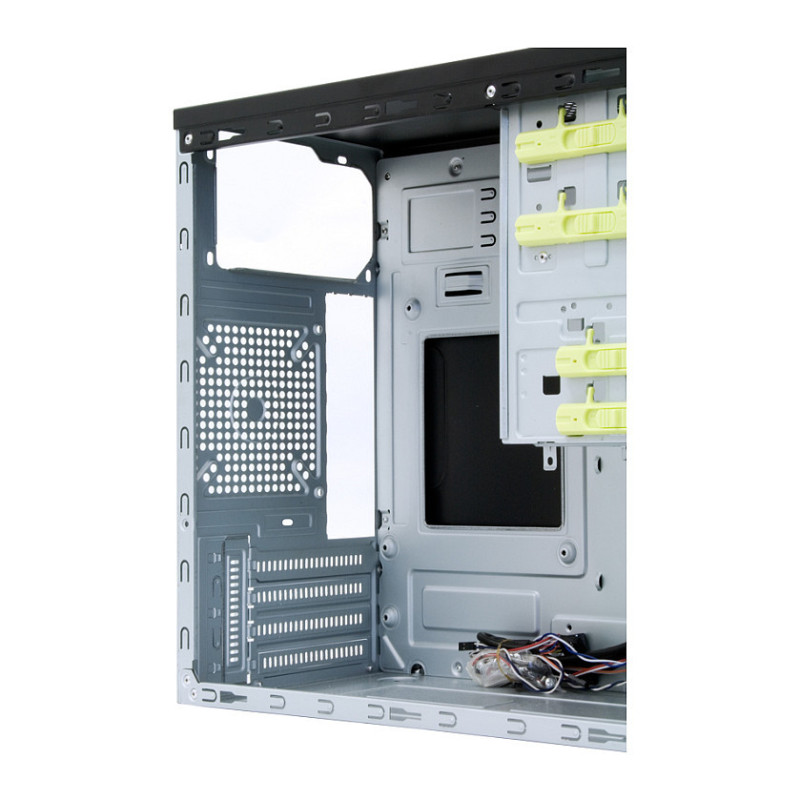

HT-01B - the outstanding and eye-catching hair-line design of the front panel of this brand new mATX chassis, transports a brushed aluminum feeling thereby blending perfectly into both Home and Office environments. Equipped with two USB 3.0 front ports, which allow data transfers of up to 5 GBit/s (USB 3.0 Super-Speed), the tool-free layout makes the integration of components a "Childs play". Optionally, you can install either a 80, 90 or 120 mm fan on the rear side of the chassis.

Design

Material: Aluminium
Form factor: Mini Tower
Type: PC
Product colour: Black
Supported motherboard form factors: micro ATX
Number of 3.5" bays: 3
Number of 5.25" bays: 2
Number of 2.5" bays: 1
Number of internal 3.5" bays: 2
Number of external 5.25" bays: 2
Number of expansion slots: 4
Suitable for: Home/Office
Maximum CPU cooler height: 14 cm
Maximum graphics card length: 34 cm

Ports & interfaces

Audio input: Yes
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Cooling

Number of rear fans supported (max): 1
Rear fans diameters supported: 80,90,120 mm

Storage

Supported HDD sizes: 2.5,3.5"

Weight & dimensions

Width: 180 mm
Depth: 408 mm
Height: 352 mm
Material thickness: 0.6 mm

Logistics data

Harmonized System (HS) code: 84733080
