Chieftec HC-10B-OP computer case

Chieftec HC-10B-OP. Form factor: Mini Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX. Front fans diameters supported: 80,90,120 mm, Rear fans diameters supported: 80,90,120 mm. Supported HDD sizes: 2.5,3.5". Width: 185 mm, Depth: 450 mm, Height: 412 mm

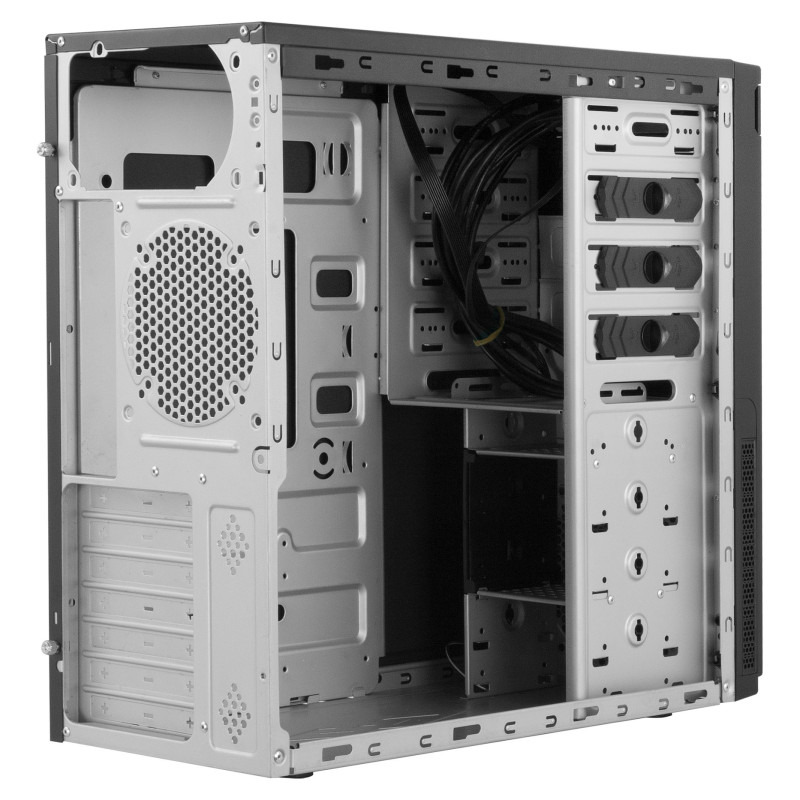

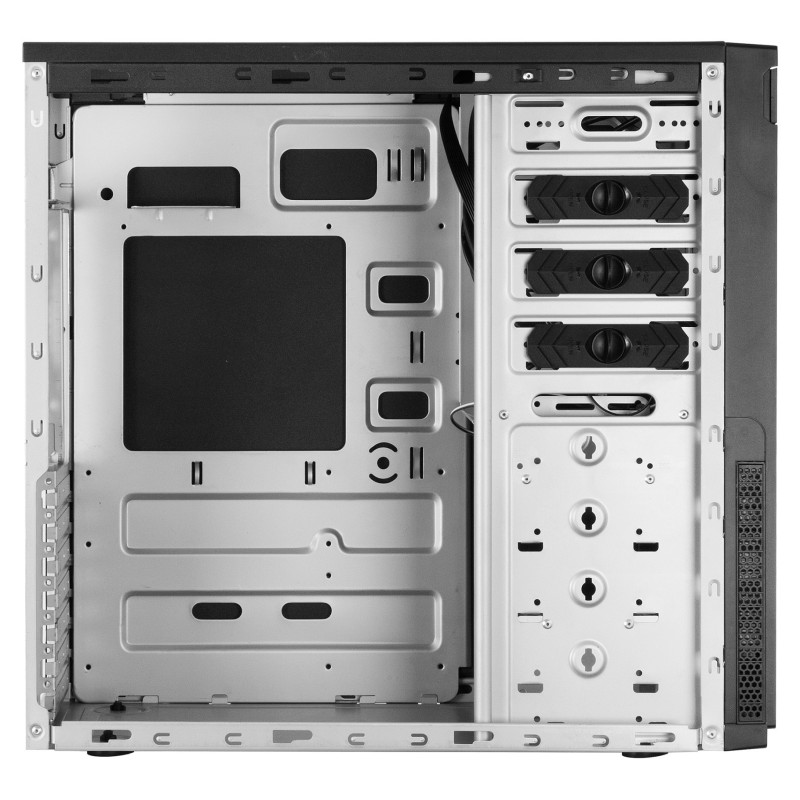

The sleek, clean and modern design of this ATX uni-color chassis encourages both OFFICE and HOME applications. A vast amount of internal drive-bays allow random memory expansion while the spacious and innovative internal layout allows quick easy installation of components.

Design

Material: SECC
Form factor: Mini Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5" bays: 6
Number of 5.25" bays: 3
Number of 2.5" bays: 1
Number of internal 3.5" bays: 5
Number of external 5.25" bays: 3
Side window: No
On/off button: Yes
Maximum CPU cooler height: 15.5 cm

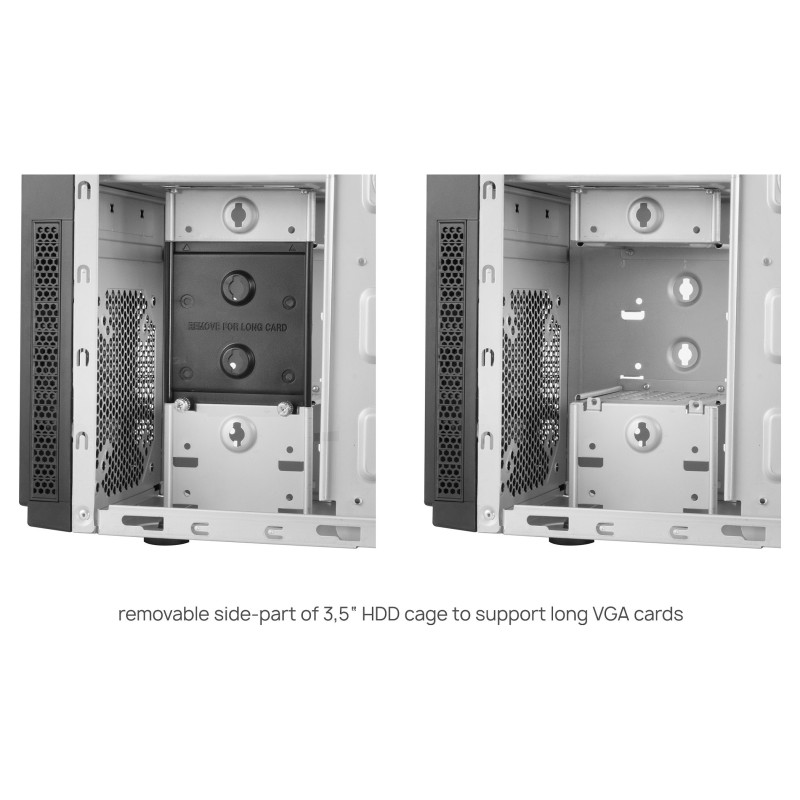

Maximum graphics card length: 38 cm

Power supply

Power supply included: No
Supported power supply form factors: ATX

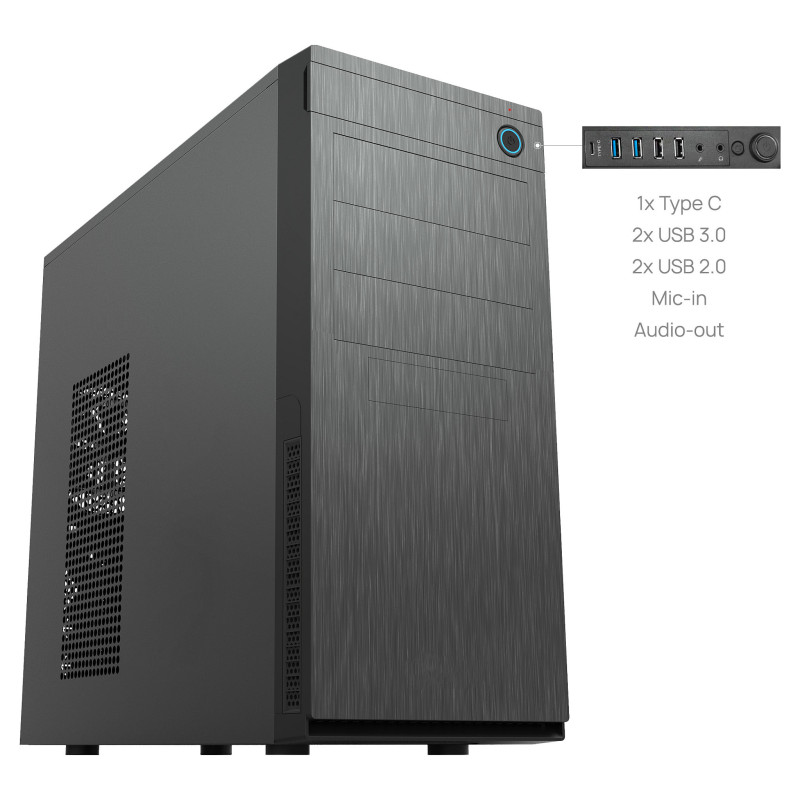

Ports interfaces

Audio input: Yes
Audio output: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB Type-C ports quantity: 1

Cooling

Number of front fans supported (max): 1
Front fans diameters supported: 80,90,120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 80,90,120 mm

Storage

Supported HDD sizes: 2.5,3.5"

Weight dimensions

Width: 185 mm
Depth: 450 mm
Height: 412 mm
Weight: 4 kg
Material thickness: 0.6 mm

Packaging data

Package weight: 5 kg

Logistics data

Harmonized System (HS) code: 84733080

Other features

Expansion slots: 7
