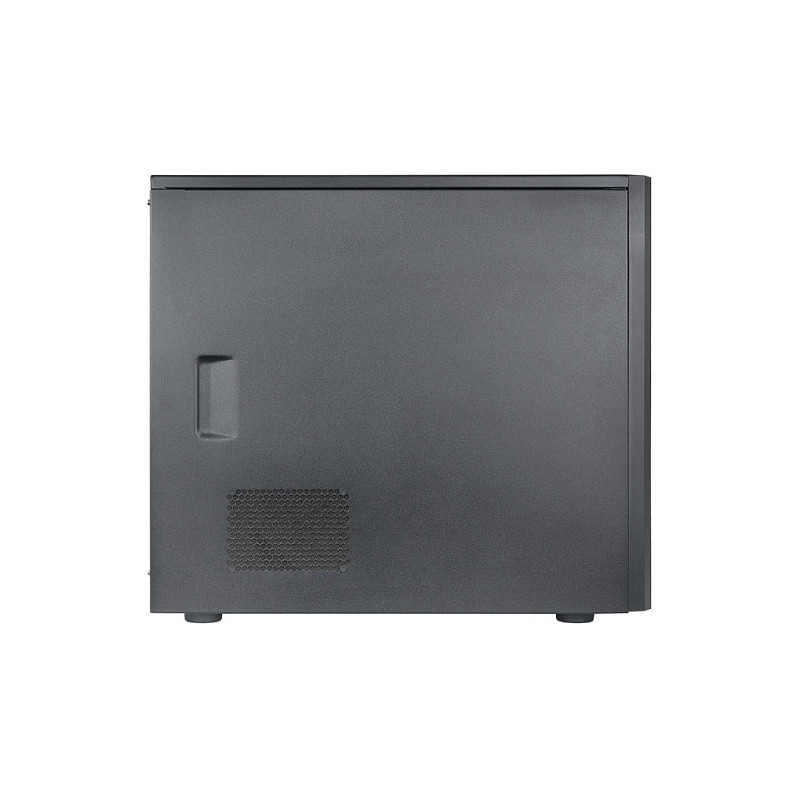

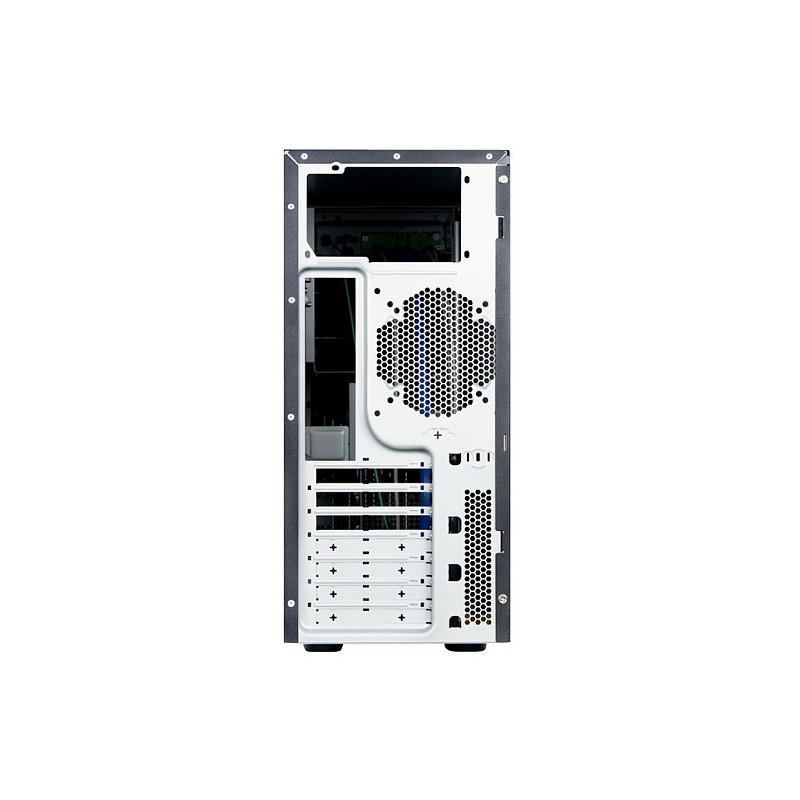

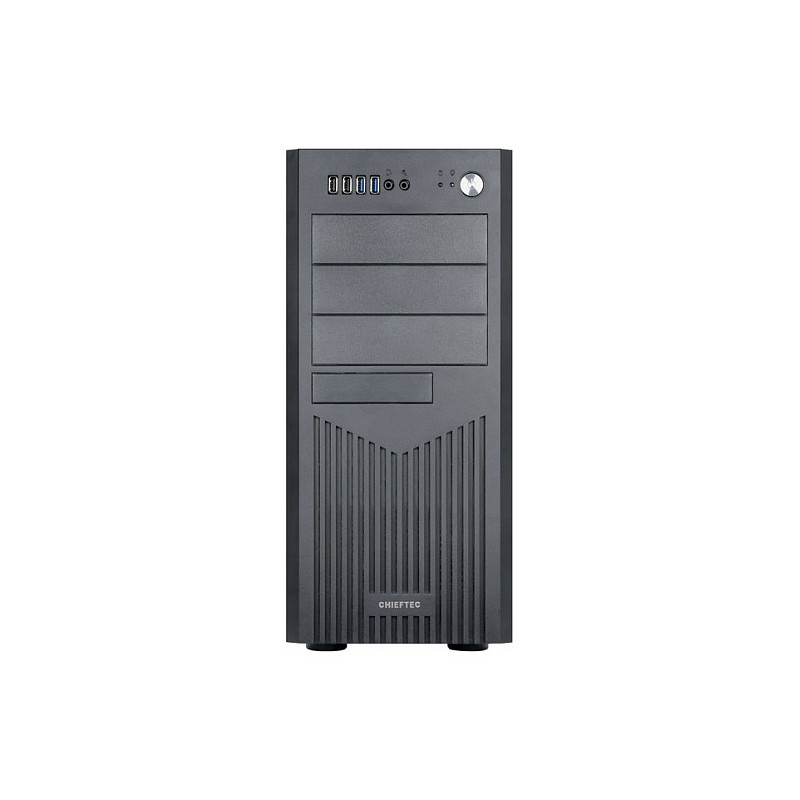

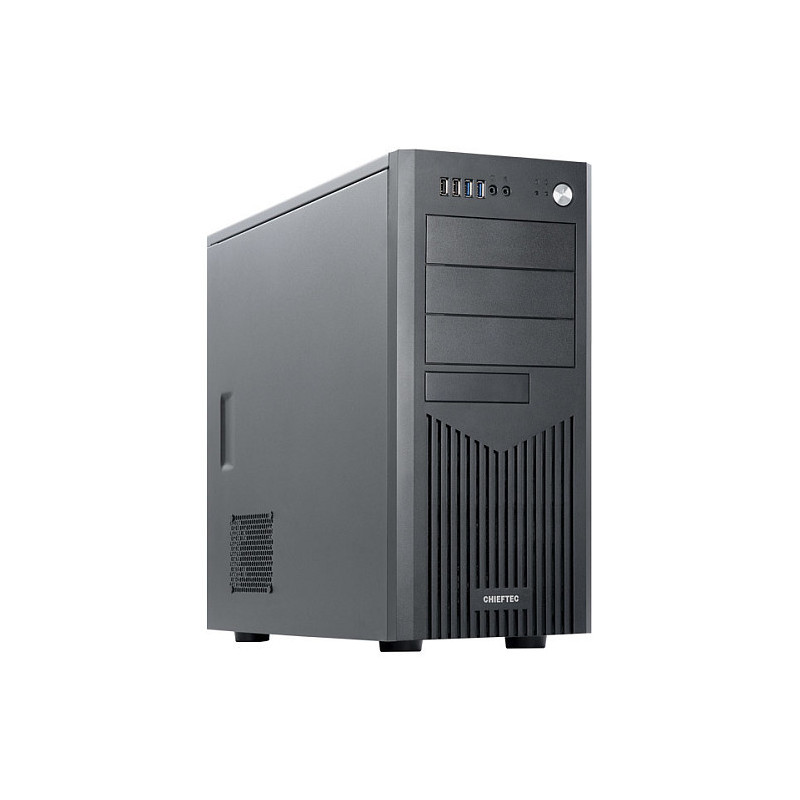

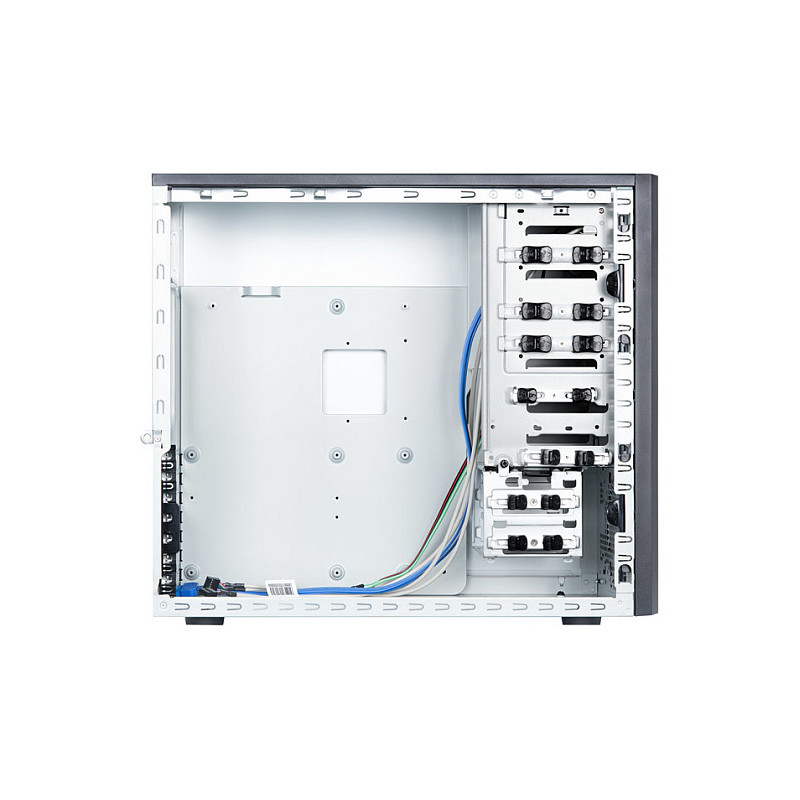

Chieftec BM-25B-OP computer case

Chieftec BM-25B-OP. Type: PC, Product colour: Black, Supported motherboard form factors: ATX, Mini-ATX, Mini-ITX. Supported power supply form factors: ATX. Front fans diameters supported: 90,120 mm, Rear fans diameters supported: 80,90,120 mm. Supported HDD sizes: 2.5,3.5,5.25". Width: 198 mm, Depth: 465 mm, Height: 425 mm

BM-25B-OP

The Chieftec CLASSIC Series brings new life to the proven quality and the decade-old success of the UNI Series with a refreshed front panel design on the outside, while upgrading the quality and features on the inside. Built from 0.7 mm sturdy SECC and including toolless drive installation kits, the CLASSIC series is perfect for system builders who value true quality and timeless design.

Design

Material: SECC
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, Mini-ATX, Mini-ITX
Number of 3.5" bays: 4
Number of 5.25" bays: 3
Number of 2.5" bays: 1
Number of internal 3.5" bays: 3
Number of external 5.25" bays: 3
Number of expansion slots: 7
Feature: On/off button
Maximum CPU cooler height: 14 cm
Maximum graphics card length: 25 cm

Power supply

Supported power supply form factors: ATX

Ports & interfaces

Audio input: Yes
Audio output: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Cooling

Number of front fans supported (max): 1
Front fans diameters supported: 90,120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 80,90,120 mm

Storage

Supported HDD sizes: 2.5,3.5,5.25"

Weight & dimensions

Width: 198 mm
Depth: 465 mm
Height: 425 mm
Weight: 8.2 kg
Material thickness: 0.7 mm

Packaging data

Package weight: 9.4 kg

Logistics data

Harmonized System (HS) code: 84733080

Other features

Feature: Screws included
