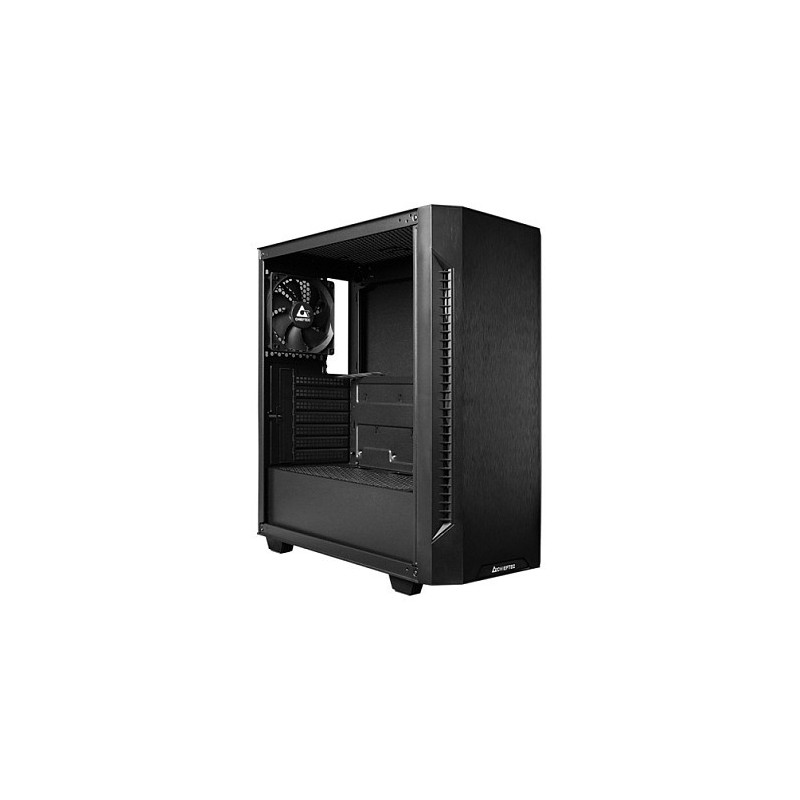

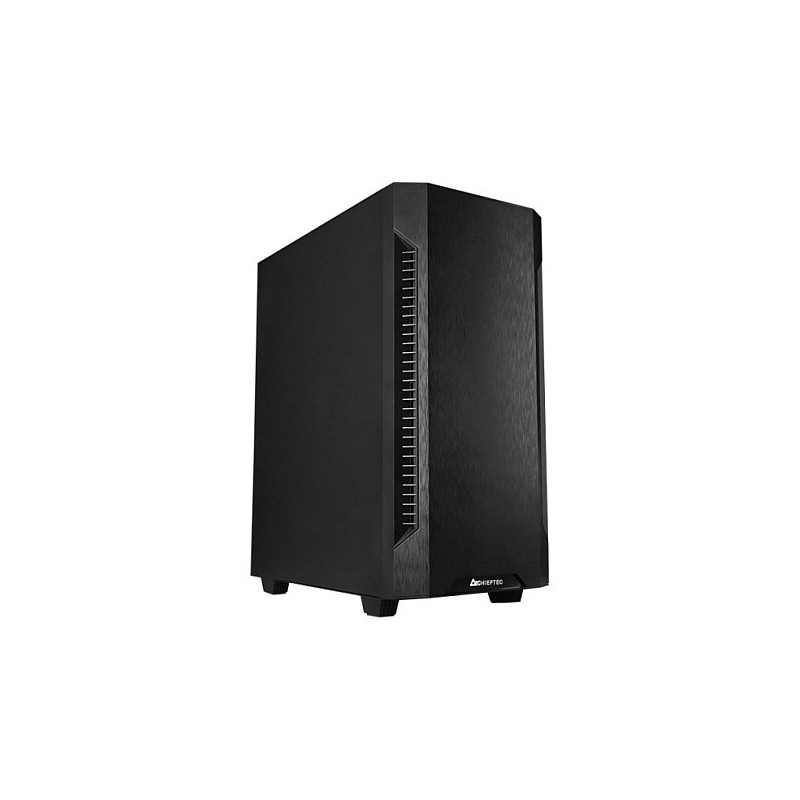

Chieftec AS-01B-OP computer case

Chieftec AS-01B-OP. Form factor: Full Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX. Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 212 mm, Depth: 405 mm, Height: 462 mm

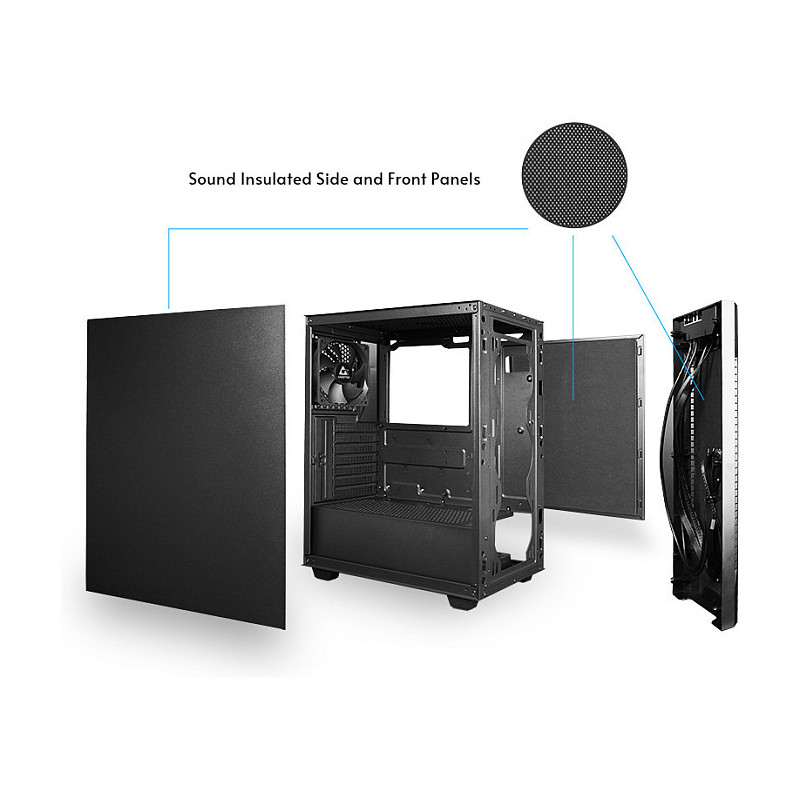

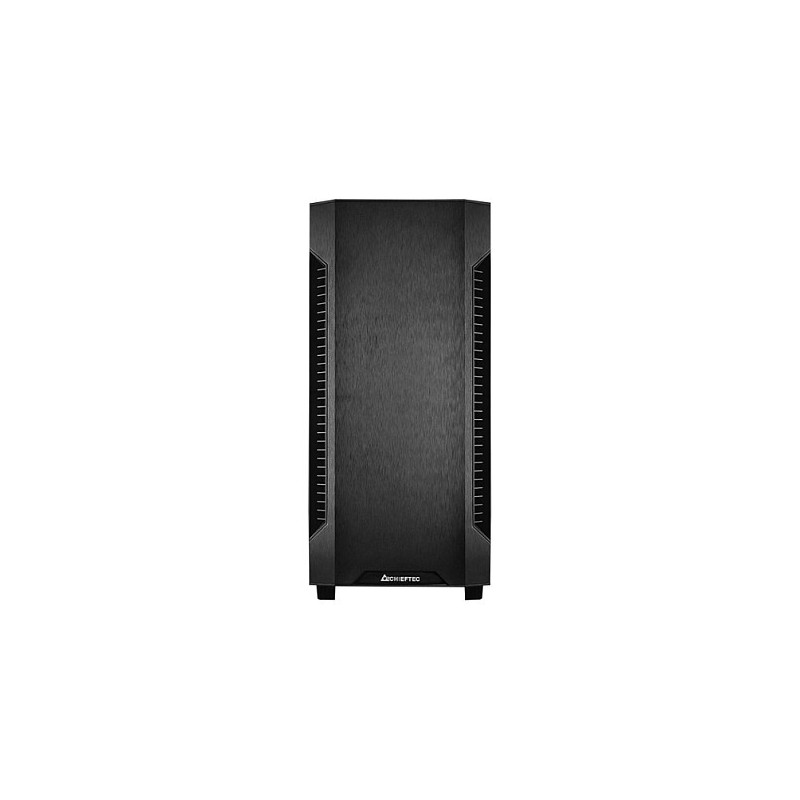

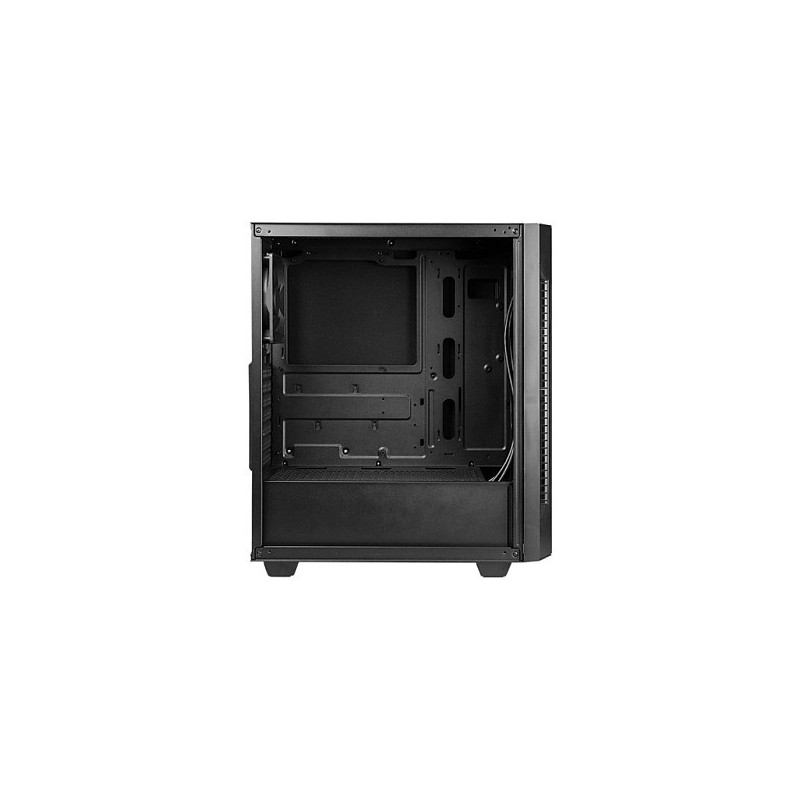

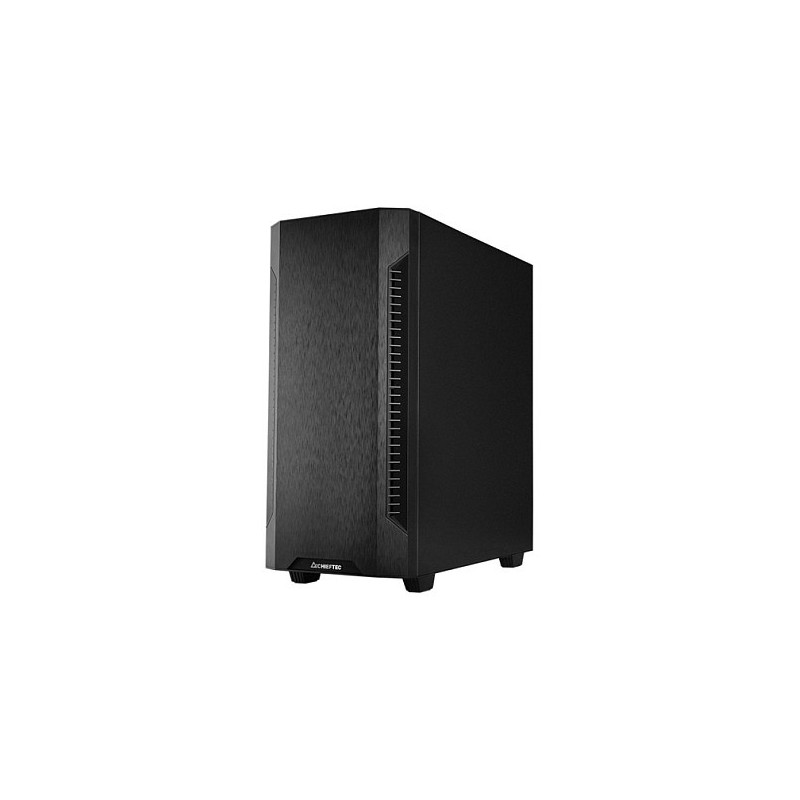

The AS-01B-OP comes with an elegant and subtle brushed front panel design, while on the inside it is equipped with a modern layout with optimal cooling compatibility, supporting up to six fans in total.

Design

Form factor: Full Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 2
Number of internal 3.5" bays: 2
Number of expansion slots: 7
Feature: Anti-dust filter
Feature: Reset button
Feature: On/off button
Maximum CPU cooler height: 17 cm
Maximum graphics card length: 32 cm
Certification: CE, EAC, RoHS

Power supply

Supported power supply form factors: ATX

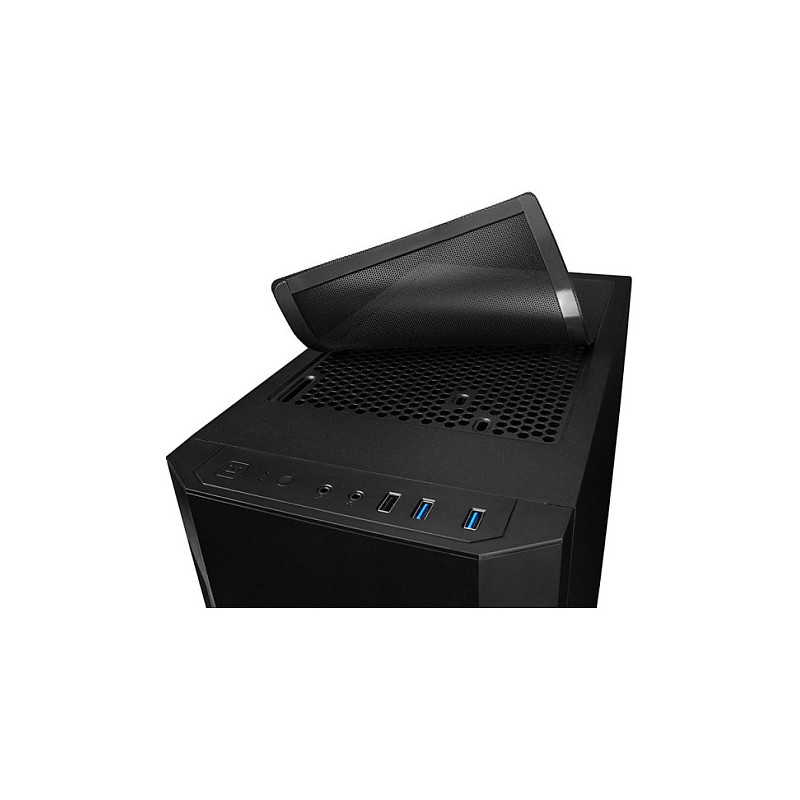

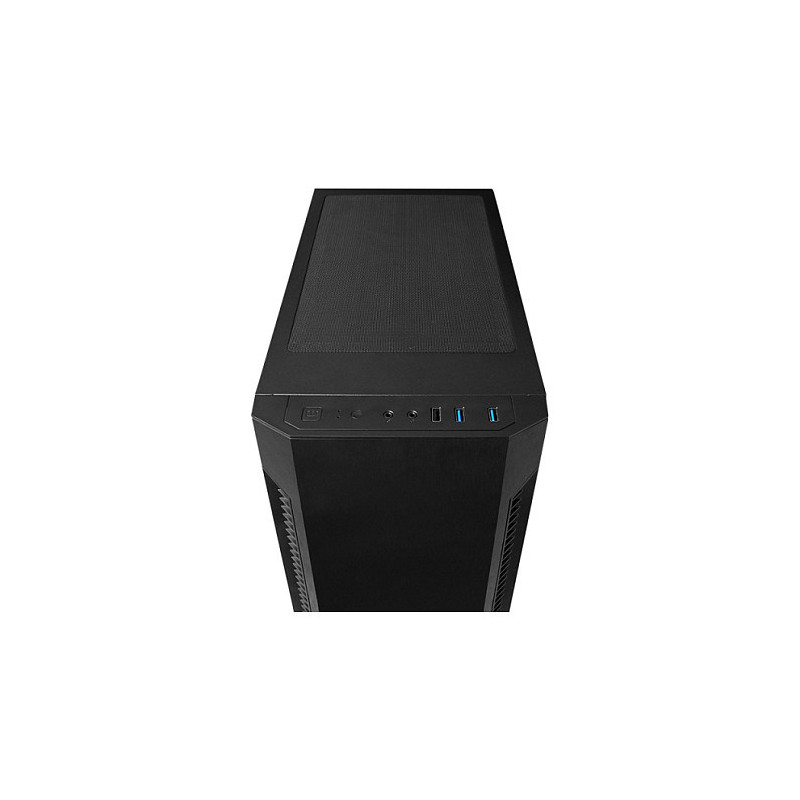

Ports & interfaces

Audio output: Yes
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Cooling

Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Front radiator sizes supported: 280 mm

Storage

Supported HDD sizes: 2.5,3.5"

Technical details

Compliance certificates: CE, RoHS

Weight & dimensions

Width: 212 mm
Depth: 405 mm
Height: 462 mm
Weight: 4.29 kg

Packaging data

Package weight: 5.1 kg
