Case, CHIEFTEC, APEX AIR, MidiTower, Not included, ATX, MicroATX, MiniITX, Colour Black, GA-01B-M-OP
Product reference:
2-0753263078537
Case, CHIEFTEC, APEX AIR, MidiTower, Not included, ATX, MicroATX, MiniITX, Colour Black, GA-01B-M-OP
Product reference:
2-0753263078537
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days

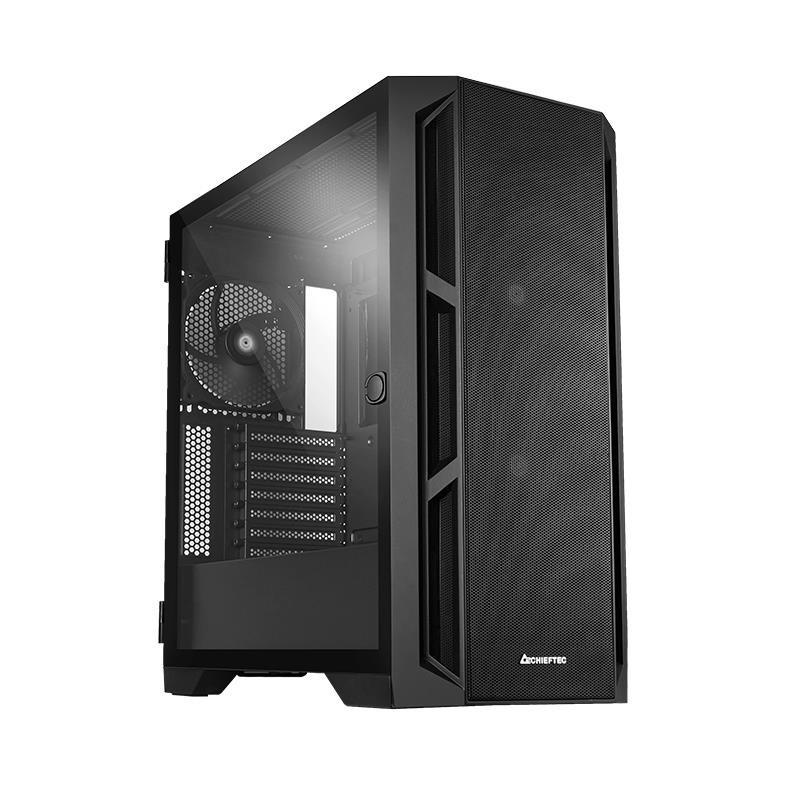

The CHIEFTEC APEX AIR presents an E-ATX chassis with a large mesh front panel and three pre-installed 140mm PWM fans that, in combination, are designed to enable high-airflow systems while maintaining low noise.

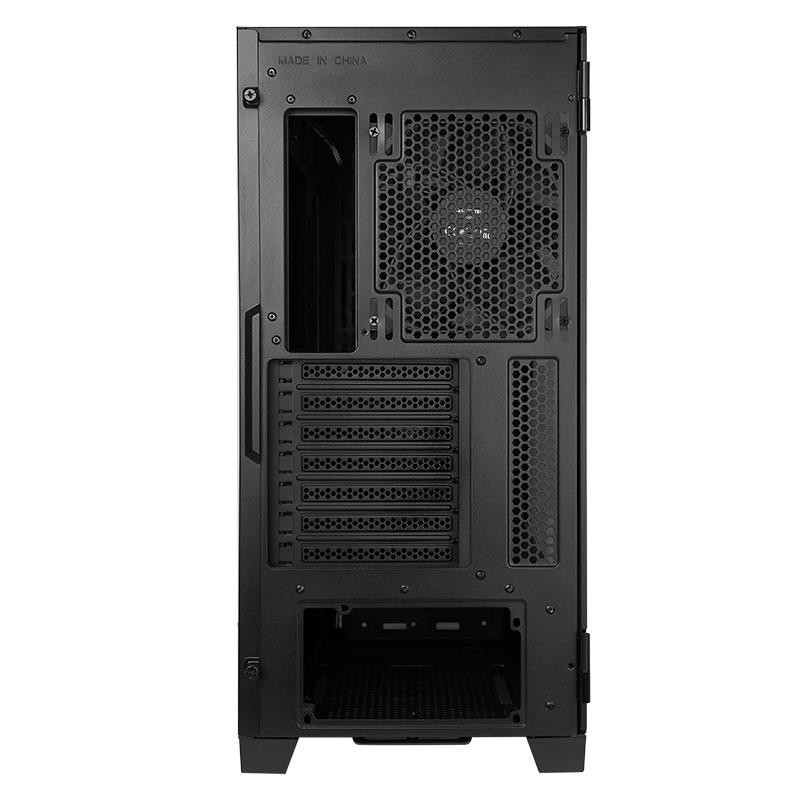

APEX AIR's 3x 140mm PWM fans are configured with 2 pre-installed in the front and 1 pre-installed in the rear, which creates a smooth airflow path from the front intake to rear exhaust.

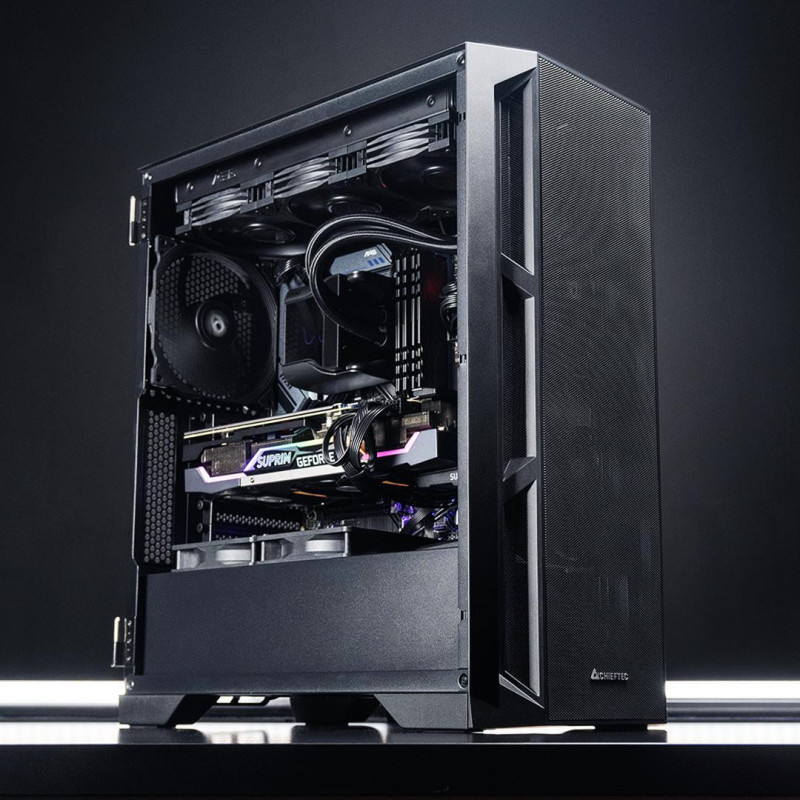

The case is generous with space, offering support for GPU's up to 400 mm in length, CPU coolers up to 175mm in height and radiator support up to 360mm on the top, as well as up to 420mm in the front.
CHIEFTEC APEX AIR is ready to bring more airflow and better cooling to modern gaming systems.

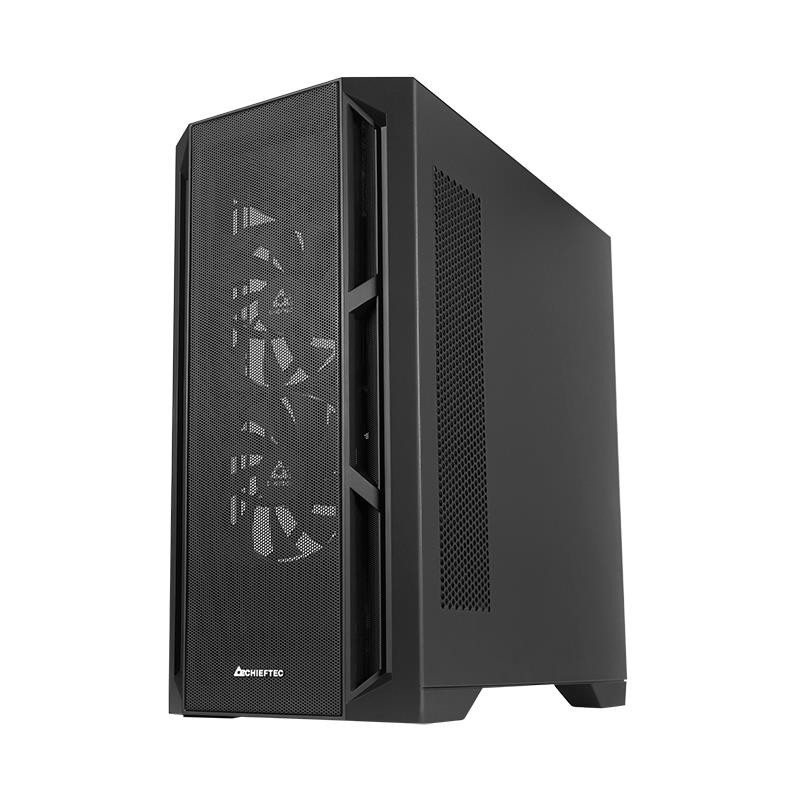

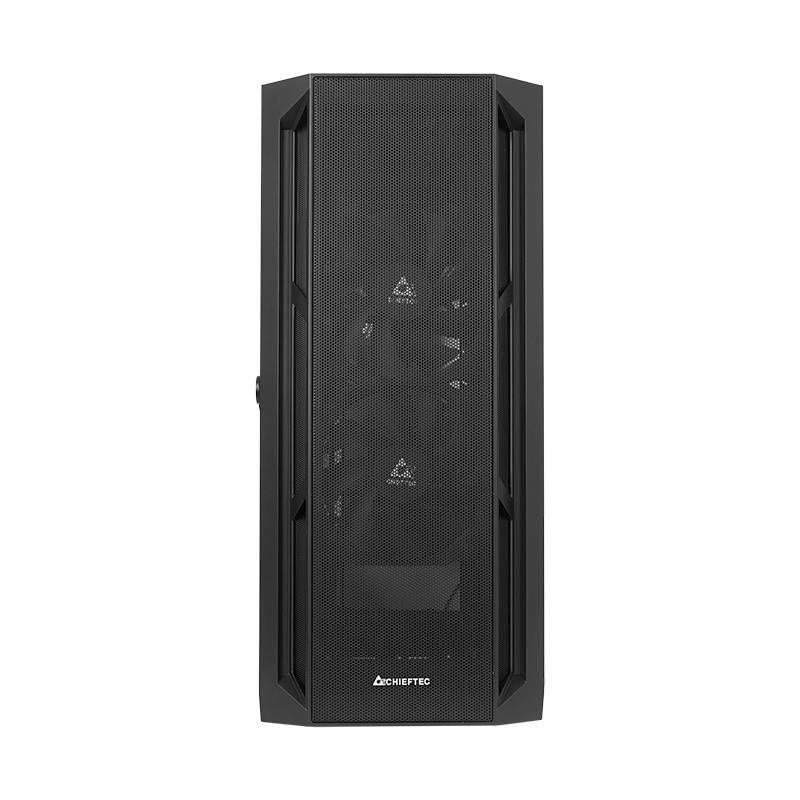

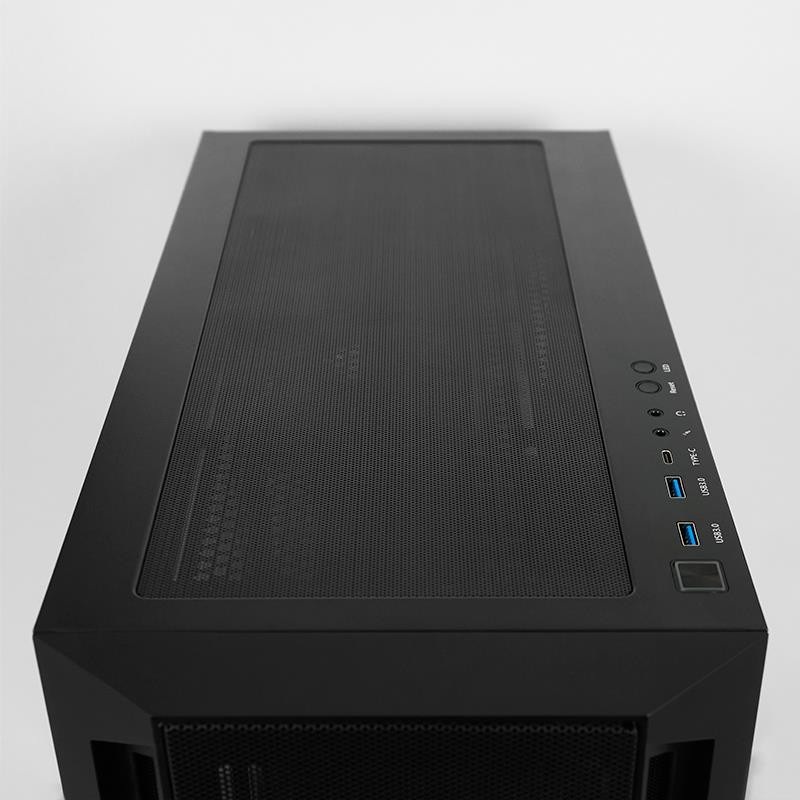

- High-airflow optimized front mesh panel
- Side panel made of TEMPERED GLASS
- 3x 140mm PWM fans pre-installed

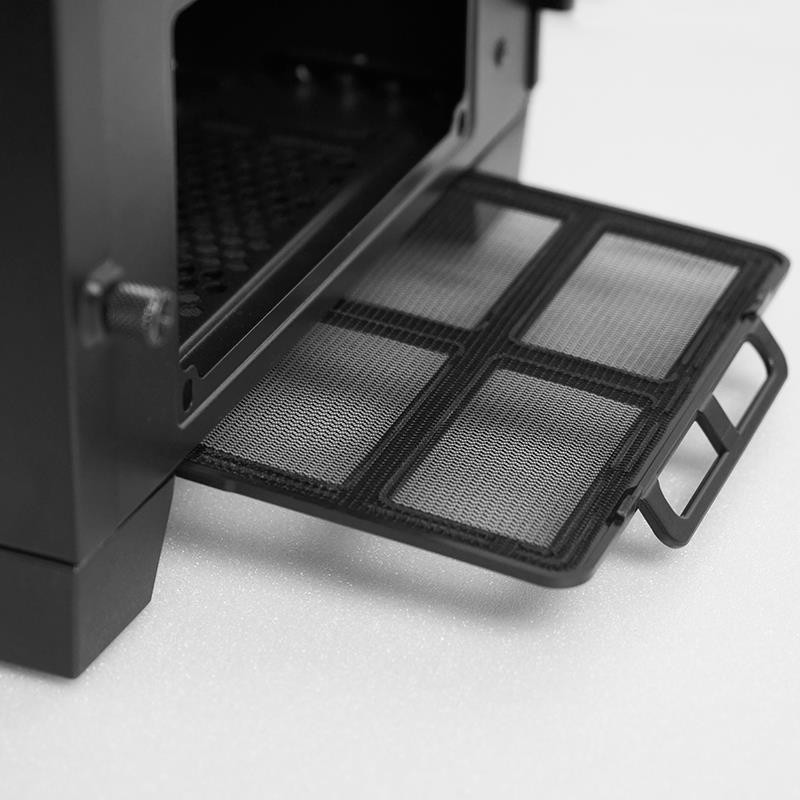

| Anti-dust filter | Yes |
| Audio input | Yes |
| Audio output | Yes |
| Bottom fans diameters supported | 120 mm |

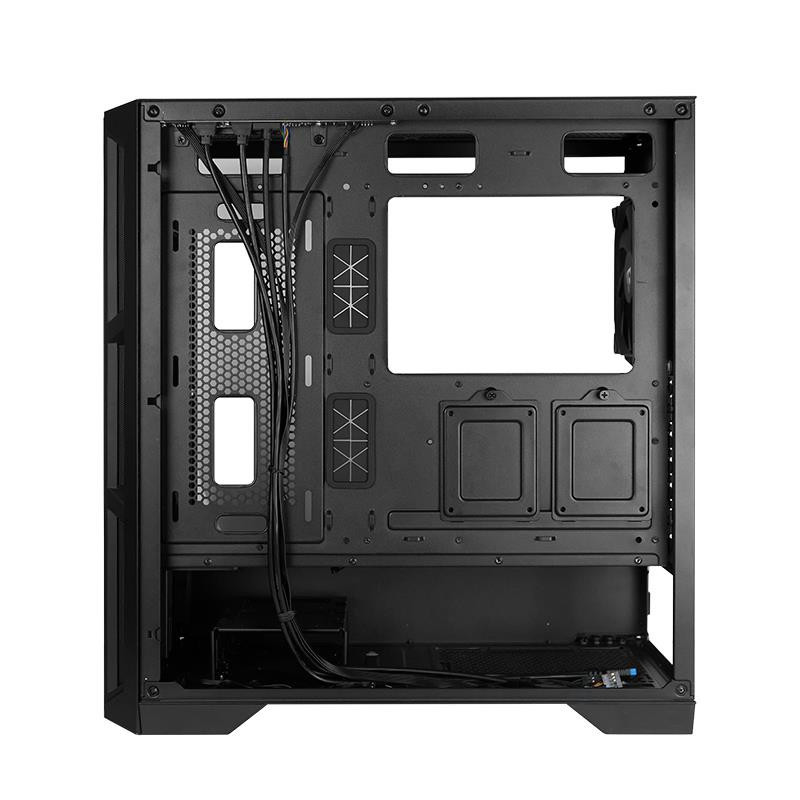

| Cable management | Yes |
| Depth | 465 mm |
| Form factor | Midi Tower |
| Front fans diameters supported | 120/140 mm |
| Front fans installed | 2x 140 mm |
| Front radiator sizes supported | 240/280/360/420 mm |
| Full-Height expansion slots | 7 |
| Height | 495 mm |
| Illumination | No |
| Liquid cooling capability | Yes |
| Material | SPCC |
| Material thickness | 0.6 mm |
| Maximum CPU cooler height | 175 mm |
| Maximum graphics card length | 400 mm |
| Maximum PSU length | 220 mm |
| Model | GA-01B-M-OP |
| Model name | APEX AIR |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Number of bottom fans supported (max) | 2 |
| Number of expansion slots | 7 |
| Number of front fans supported (max) | 3 |
| Number of internal 3.5" bays | 2 |
| Number of rear fans supported (max) | 1 |
| Number of side fans supported (max) | 2 |
| Number of storage drives supported | 5 |
| Number of top fans supported (max) | 3 |
| On/off button | Yes |
| Package weight | 8750 g |
| Power supply included | No |
| Power supply location | Bottom |
| Power supply shroud | Yes |
| Product colour | Black |
| Product Net Weight | 7.3 kg |
| Pulse-width modulation (PWM) support | Yes |
| Rear fans diameters supported | 120/140 mm |
| Rear fans installed | 1x 140 mm |
| Reset button | Yes |
| RGB control button | Yes |
| Shipping Box Depth | 55.5 cm |
| Shipping Box Height | 53.5 cm |
| Shipping Box Weight | 8.6 kg |
| Shipping Box Width | 29.5 cm |
| Side fans diameters supported | 120 mm |
| Side radiator sizes supported | 240 mm |
| Side window | Yes |
| Suitable for | Gaming |
| Summary | Chieftec APEX AIR GA-01B-M-OP ATX. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom. Front fans installed: 2x 140 mm, Front fans diameters supported: 120,140 mm, Side fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 230 mm, Depth: 465 mm, Height: 495 mm |
| Supported HDD sizes | 2.5/3.5 " |
| Supported motherboard form factors | ATX/EATX/micro ATX/Mini-ITX |
| Tempered glass panel(s) | Yes |
| Top fans installed | 3x 120 mm, 2x 140 mm |
| Top radiator sizes supported | 240/280/360 mm |
| Type | PC |
| Unit Box Height | 0.535 |
| Unit Box Length | 0.555 |
| Unit Box Width | 0.295 |
| Unit Calculated Volume | 0.08759 cubm |
| Unit Calculated Weight | 8.6 kg |
| Units per Shipping Box | 1 |
| USB 3.0 | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Vendor Homepage | https://www.chieftec.eu/products-detail/570/GA-01B-M-OP |
| Weight | 7300 g |
| Width | 230 mm |
