be quiet! Pure Base 501 LX Black

be quiet! Pure Base 501 LX Black. Form factor: Midi Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX, PS2. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5". Width: 231 mm, Depth: 450 mm, Height: 463 mm

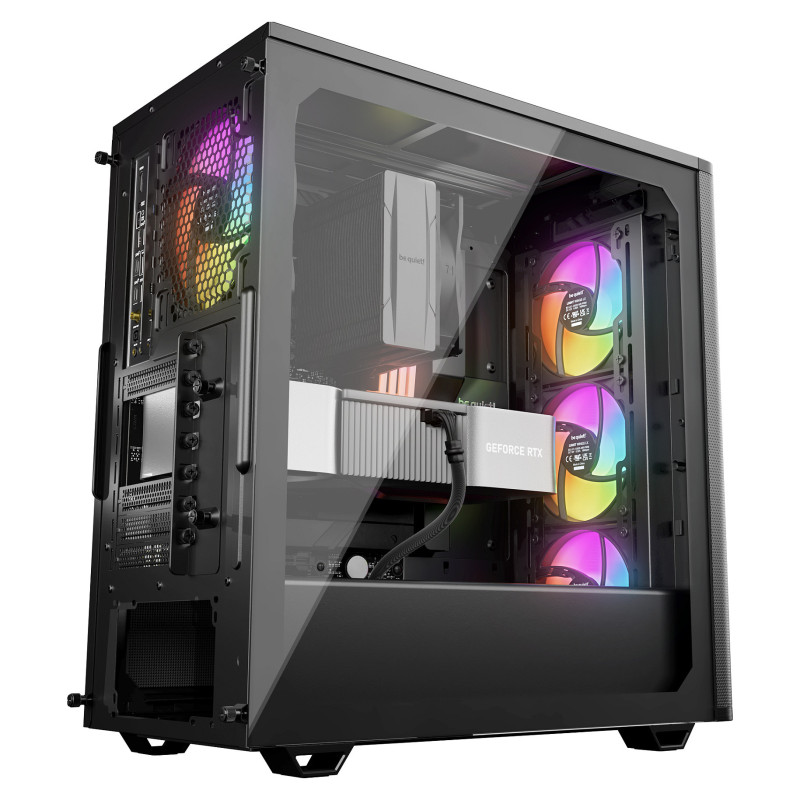

Impressive lighting and airflow
Pure Base 501 LX Black is an impressively versatile be quiet! ATX case with ARGB fans, compact dimensions and high airflow for any application. Upgrade your gaming room with the multiple colors and modes of Pure Base 501 LX Black and make your family and friends gaze in awe.

Design

Material: Acrylonitrile butadiene styrene (ABS), Glass, Steel
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Mini-ATX
Number of 3.5" bays: 2
Number of 2.5" bays: 5
Number of expansion slots: 7
Feature: Side window
Suitable for: Gaming
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Anti-dust filter
Maximum CPU cooler height: 17.8 cm
Maximum graphics card length: 36.8 cm
Maximum PSU length: 20 cm

Power supply

Supported power supply form factors: ATX, PS2

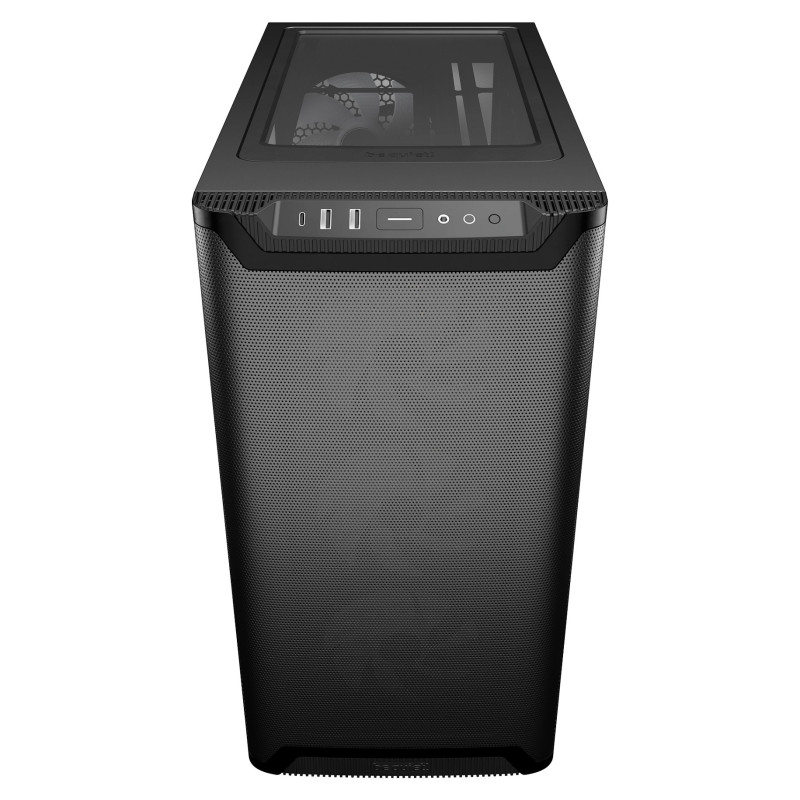

Ports interfaces

Audio input: Yes
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

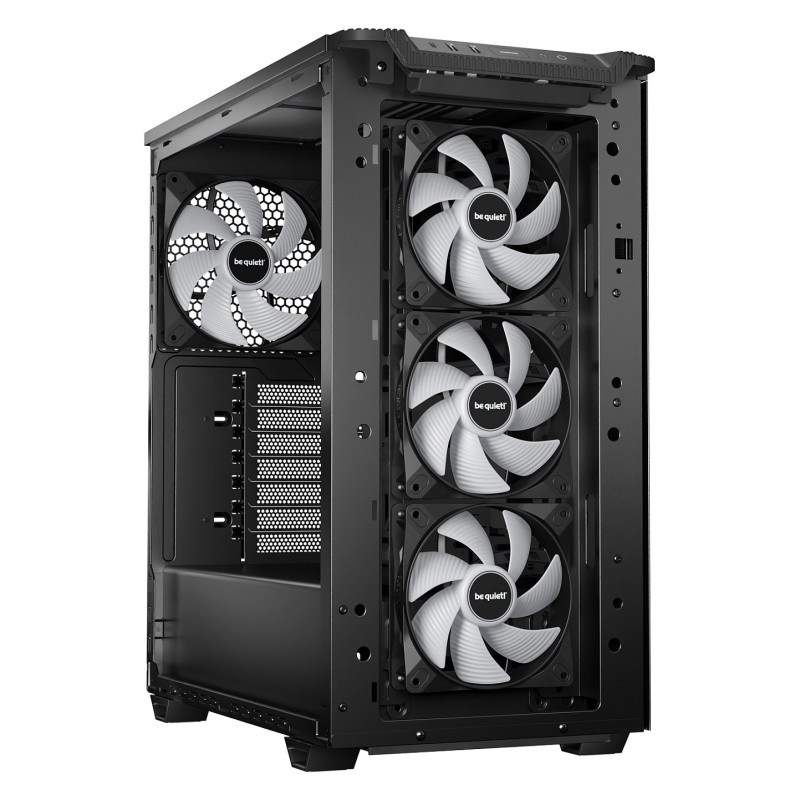

Cooling

Front fans installed: 3x 120 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Maximum airflow: 51.5 cfm
Noise level (high speed): 21.9 dB
Fan rated voltage: 5 - 13.2 V
Fan rated current: 0.06 A
Fan power consumption: 3.8 W
Fan 2 maximum airflow: 56 cfm
Maximum air pressure: 1.34 mmH2O
Fan 2 maximum air pressure: 0.9 mmH2O
Feature: Liquid cooling capability
Front radiator sizes supported: 120,140,240,280,360 mm
Rear radiator sizes supported: 120,140 mm
Top radiator sizes supported: 120,240 mm

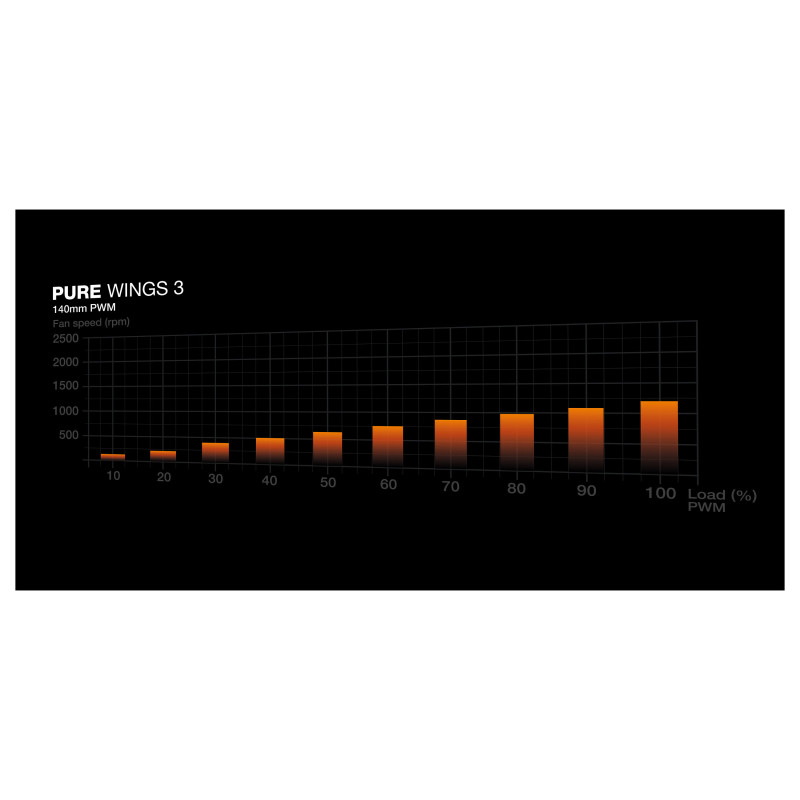

Feature: Pulse-width modulation (PWM) support

Storage

Supported HDD sizes: 2.5,3.5"

Technical details

Sustainability certificates: Triman
Warranty period: 3 year(s)
Compliance certificates: CE, RoHS, UKCA, WEEE

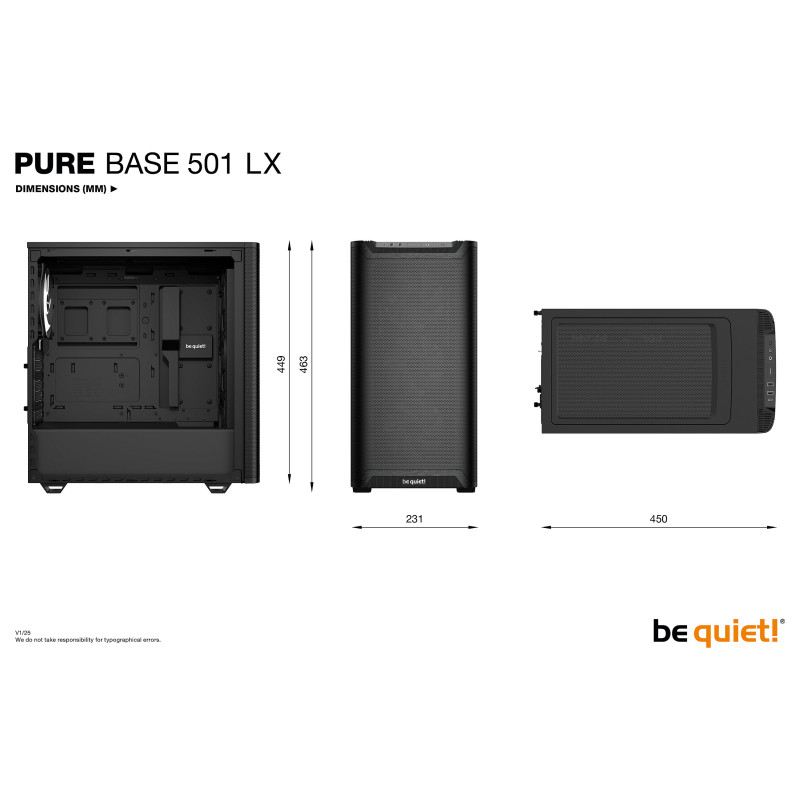

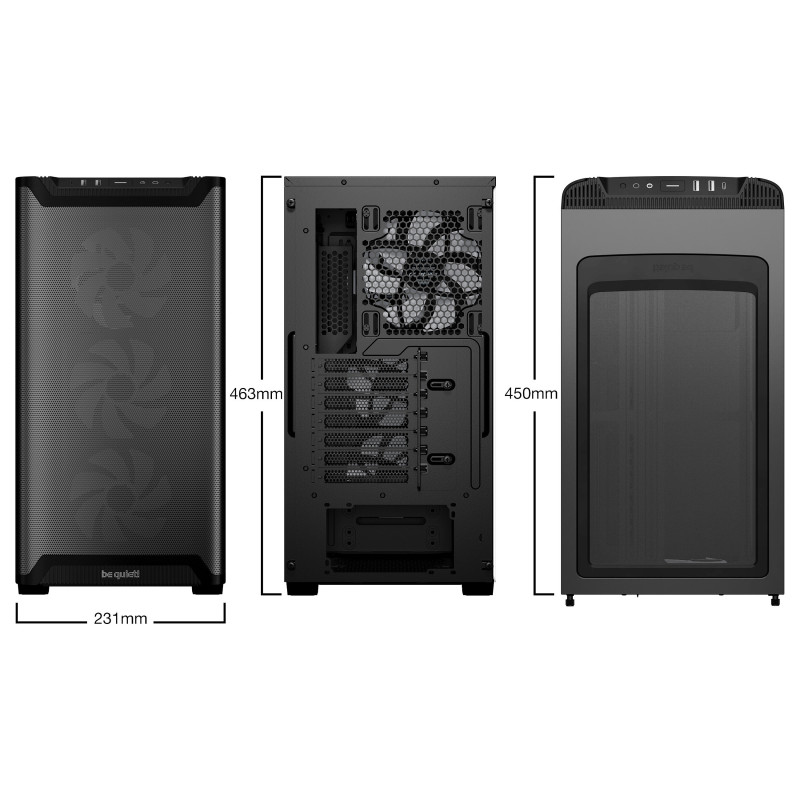

Weight dimensions

Width: 231 mm
Depth: 450 mm
Height: 463 mm
Weight: 7.8 kg

Packaging data

Package width: 292 mm
Package depth: 518 mm
Package height: 503 mm
Package weight: 9 kg

Other features

Volume: 24.4 L
Fan connector: 4-pin
