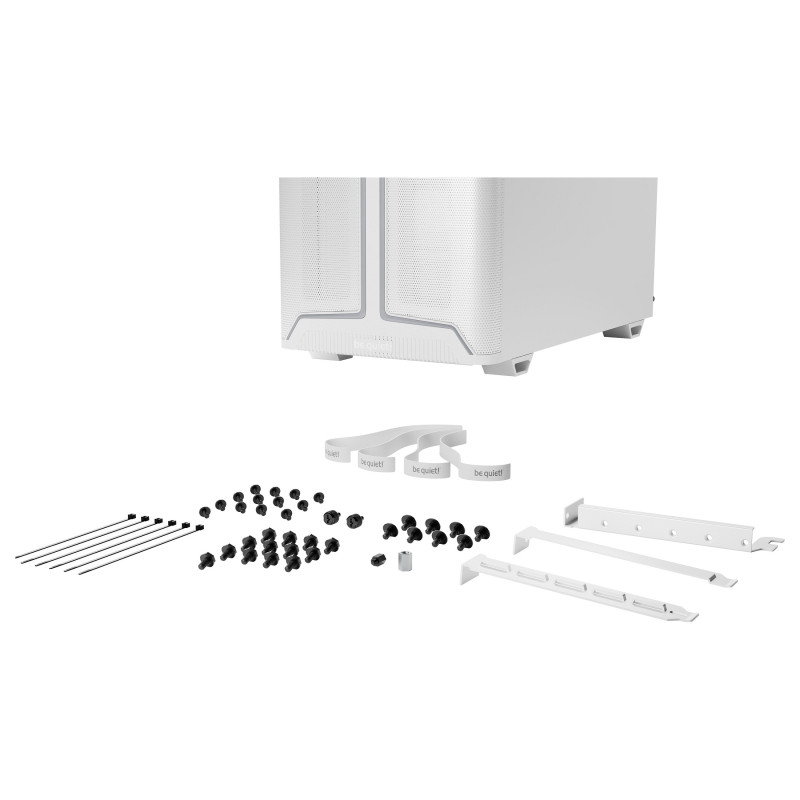

be quiet! Pure Base 501 DX White

be quiet! Pure Base 501 DX White. Form factor: Midi Tower, Type: PC, Product colour: White. Supported power supply form factors: ATX, PS2. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5". Width: 231 mm, Depth: 450 mm, Height: 463 mm

Impressive lighting and airflow

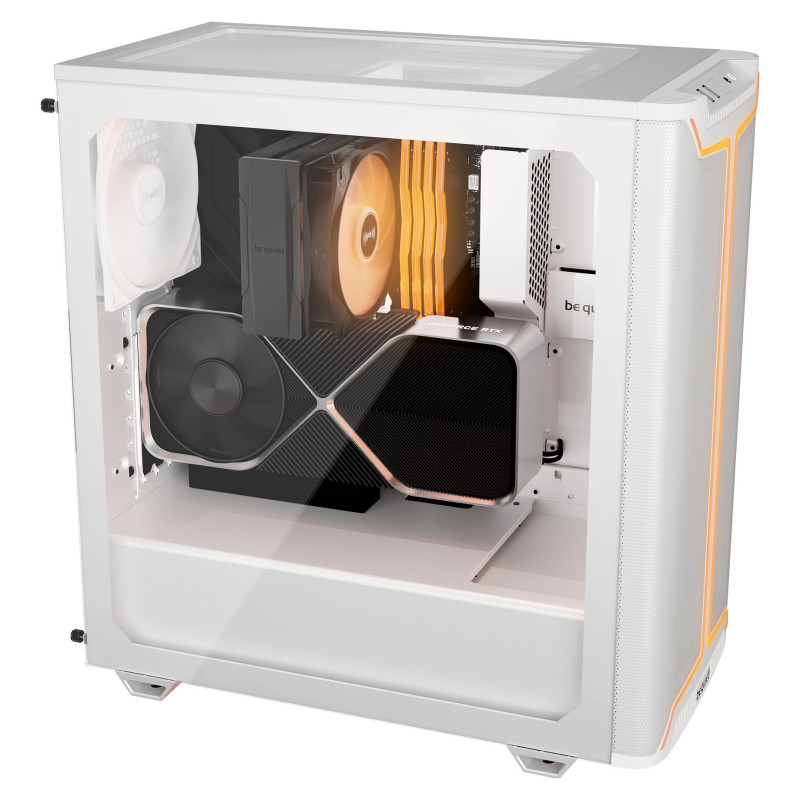

Pure Base 501 DX White is an impressively illuminated be quiet! ATX case with compact dimensions and high airflow for any application. Elevate your system with the elegant ARGB lighting and relish the show.

Design

Material: Acrylonitrile butadiene styrene (ABS), Glass, Steel
Form factor: Midi Tower
Type: PC
Product colour: White
Supported motherboard form factors: ATX, micro ATX, Mini-ATX
Number of 3.5" bays: 2
Number of 2.5" bays: 5
Number of expansion slots: 7

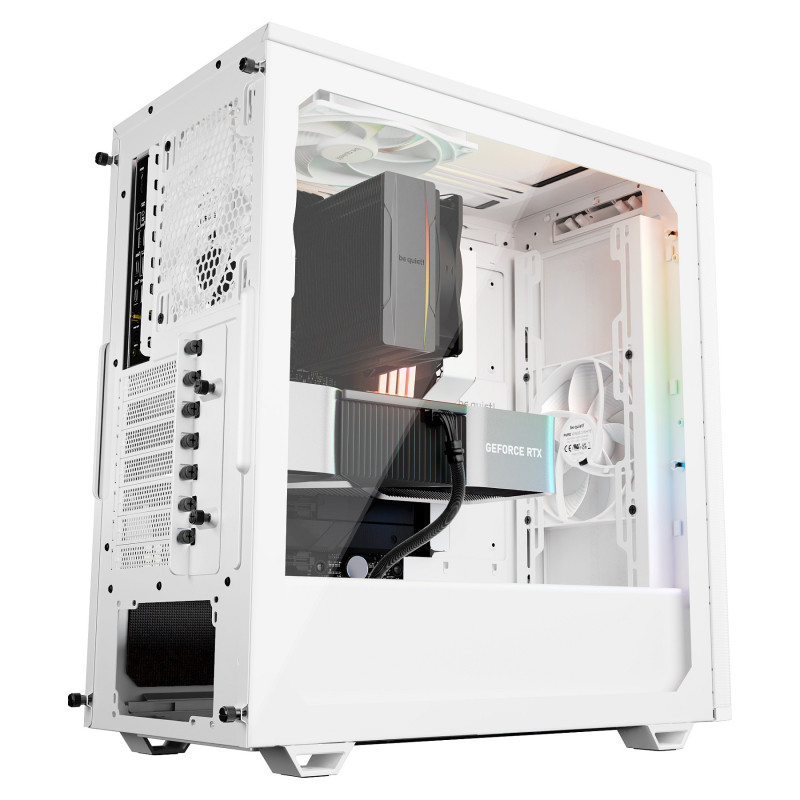

Feature: Side window
Suitable for: Gaming
Feature: Illumination
Illumination colour: Multi
Illumination location: Front
Feature: Anti-dust filter
Maximum graphics card length: 36.8 cm
Maximum PSU length: 20 cm

Power supply

Supported power supply form factors: ATX, PS2

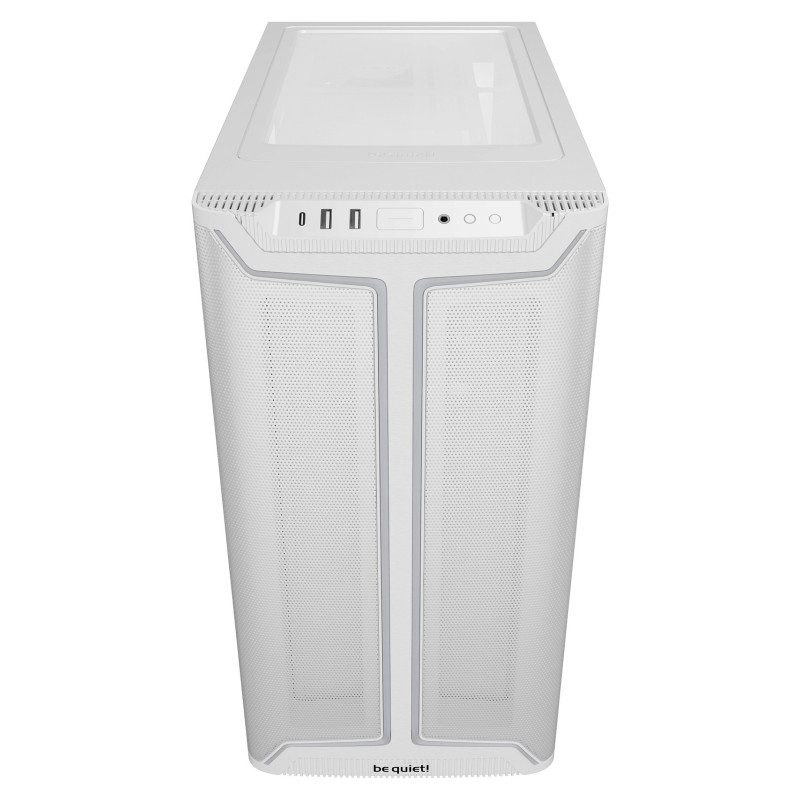

Ports & interfaces

Audio input: Yes
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

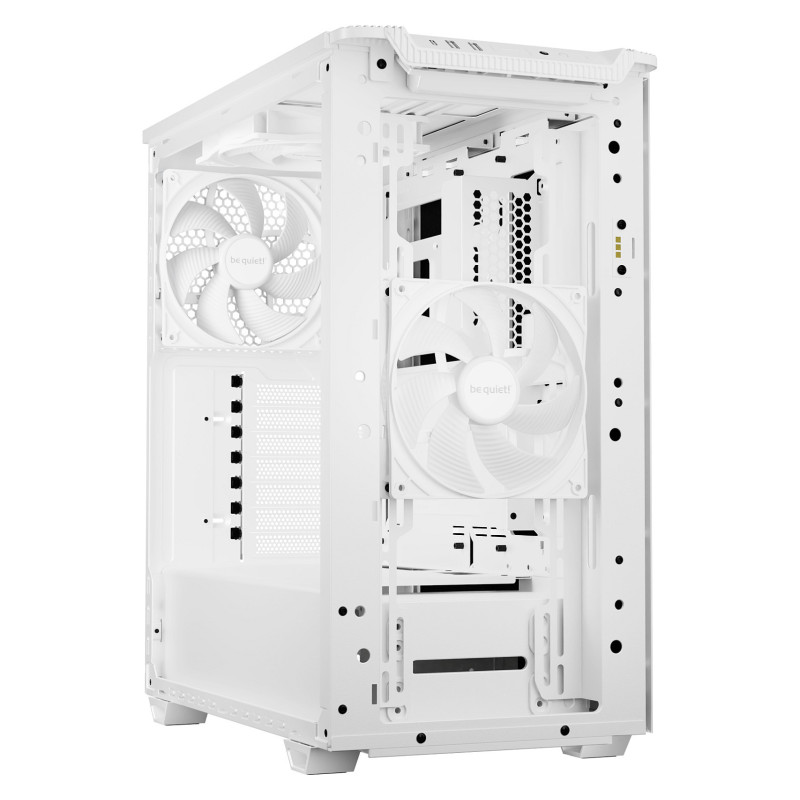

Cooling

Front fans installed: 1x 140 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Top fans installed: 1x 140 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Maximum airflow: 57.4 cfm
Noise level (high speed): 21.9 dB
Fan rated voltage: 5 - 13.2 V
Fan rated current: 0.06 A
Fan power consumption: 3.6 W
Maximum air pressure: 0.96 mmH2O
Feature: Liquid cooling capability
Front radiator sizes supported: 120,140,240,280,360 mm
Rear radiator sizes supported: 120,140 mm
Top radiator sizes supported: 120,240 mm

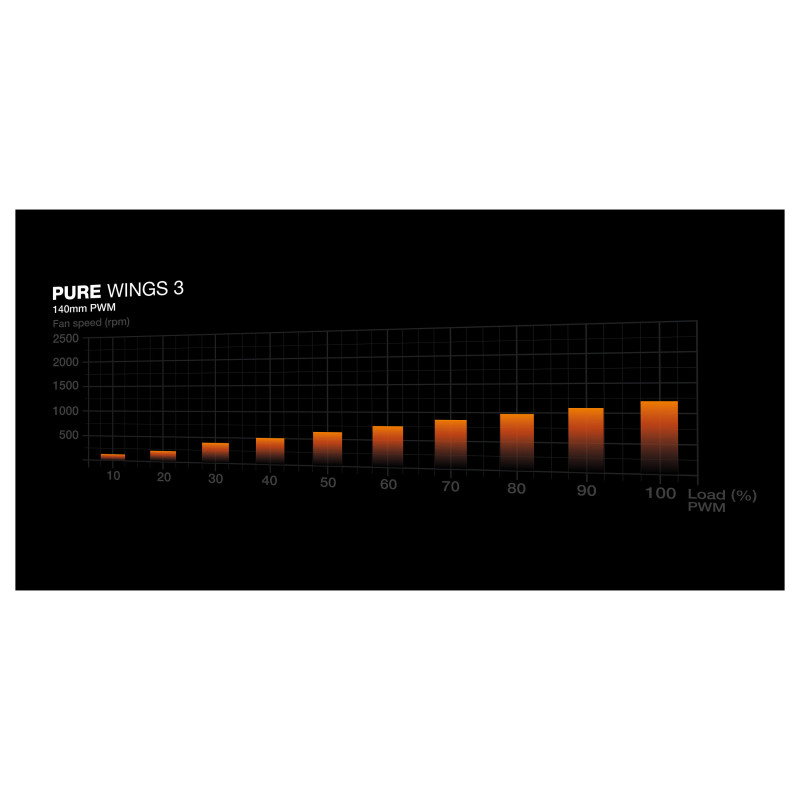

Feature: Pulse-width modulation (PWM) support

Storage

Supported HDD sizes: 2.5,3.5"

Technical details

Sustainability certificates: Triman
Warranty period: 3 year(s)
Compliance certificates: CE, RoHS, UKCA, WEEE

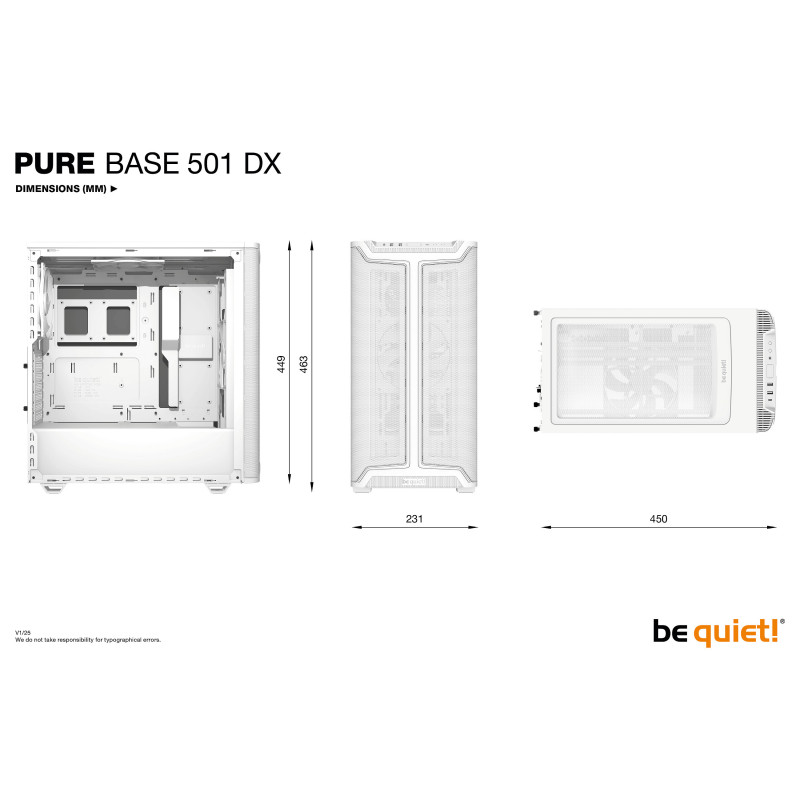

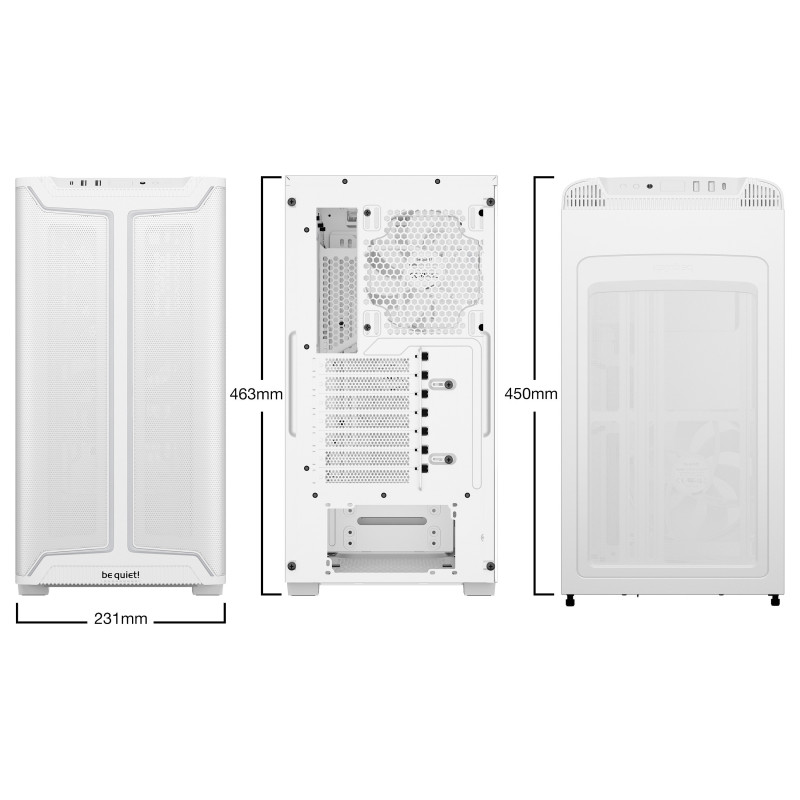

Weight & dimensions

Width: 231 mm
Depth: 450 mm
Height: 463 mm
Weight: 7.9 kg

Packaging data

Package width: 292 mm
Package depth: 518 mm
Package height: 503 mm
Package weight: 9.2 kg

Other features

Volume: 24.4 L
Fan connector: 4-pin
