be quiet! PURE BASE 501 Airflow Window Black

be quiet! PURE BASE 501 Airflow Window Black. Form factor: Midi Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX, PS2. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5". Width: 231 mm, Depth: 450 mm, Height: 463 mm
Comfortably compact
Pure Base 501 Airflow Window Black is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.
REDUCED TO THE MAX
Classic appearance
Without any distractions, Pure Base 501 Airflow Window Black is reduced to excel at its core functions and is aimed at users that appreciate an
unagitated presentation.
PERFECT CASE FAN
Fan blades optimized for high airflow

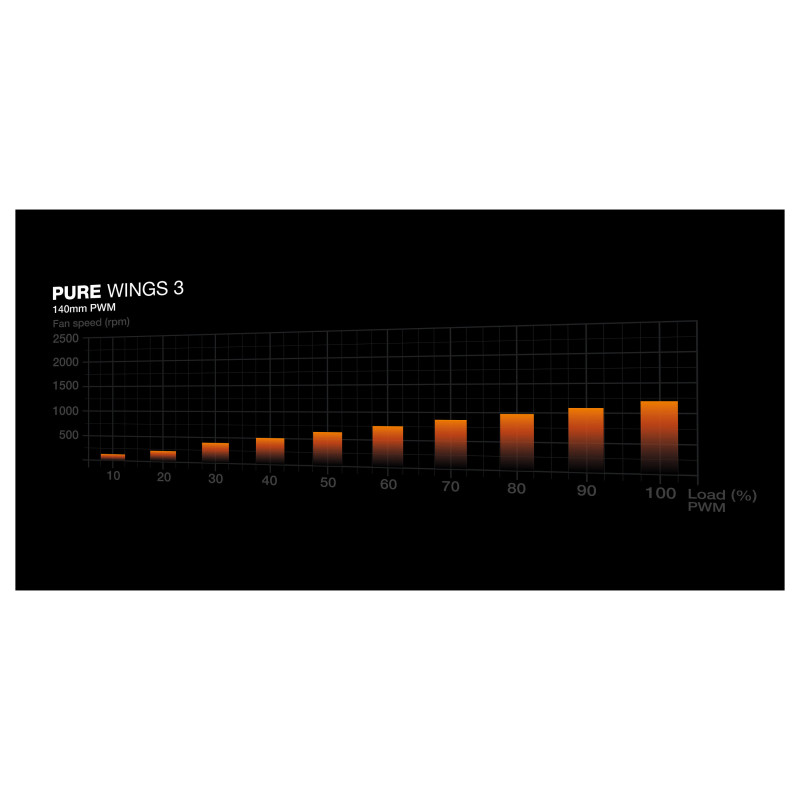

With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow Window Black. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.
MORE THAN MEETS THE EYE
Generous space for high-end hardware

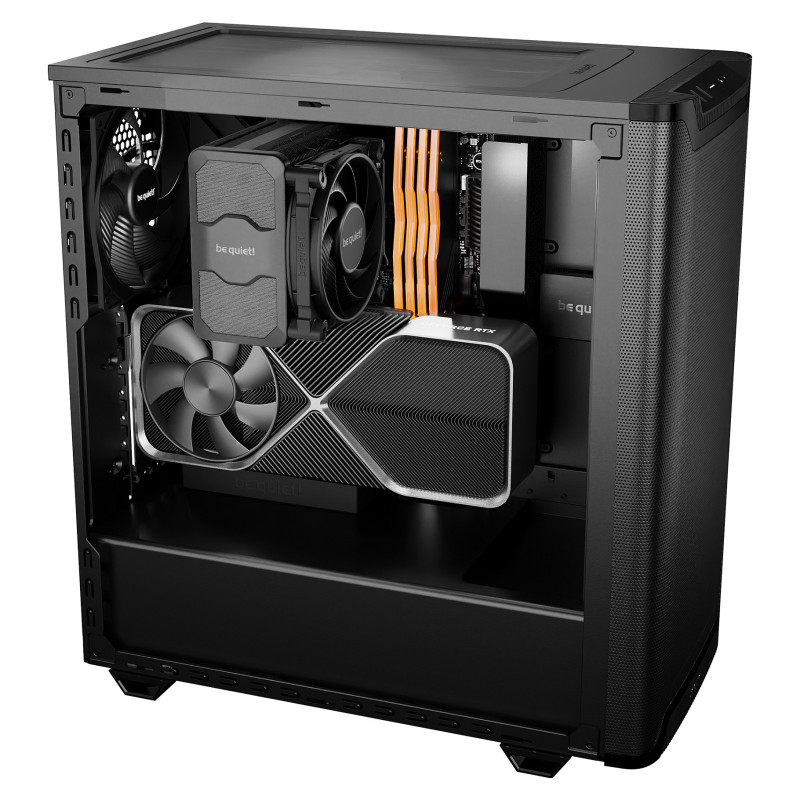

Despite its compact dimensions, Pure Base 501 Airflow Window Black offers enough space for high-end graphics cards and large coolers. 3 fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.
WAY UP!
With rotatable PCIe slots
Why not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow Window Black can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.
INVENTORY MANAGEMENT
With smart cable routing options
As a compact PC case, Pure Base 501 Airflow Window Black optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.
CONNECT WITH ME
State-of-the-art technology for your system

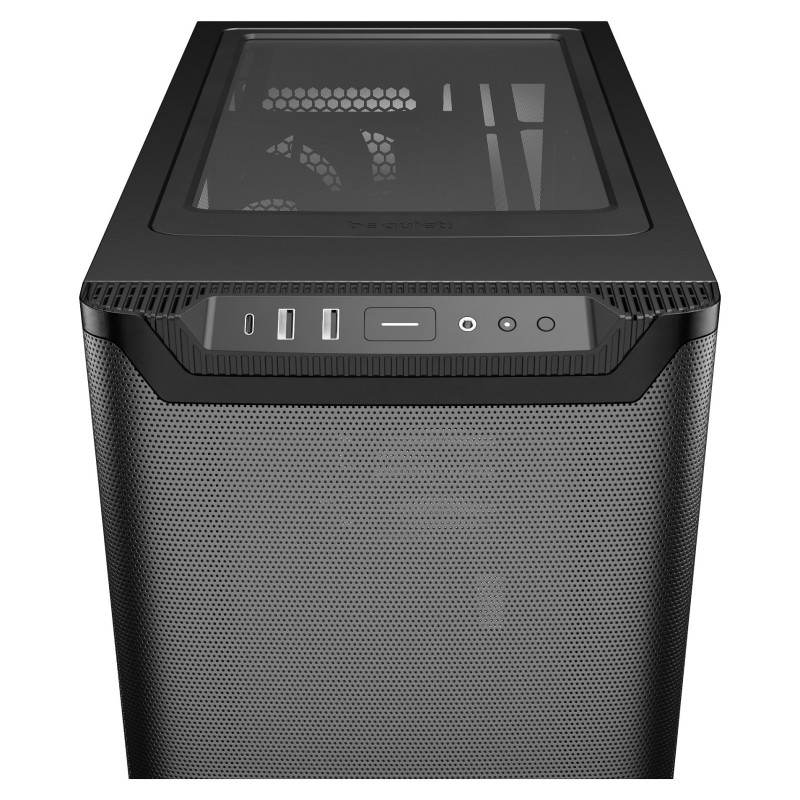

A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.
SHOW ME WHAT YOU'VE GOT
A perfect view inside your PC

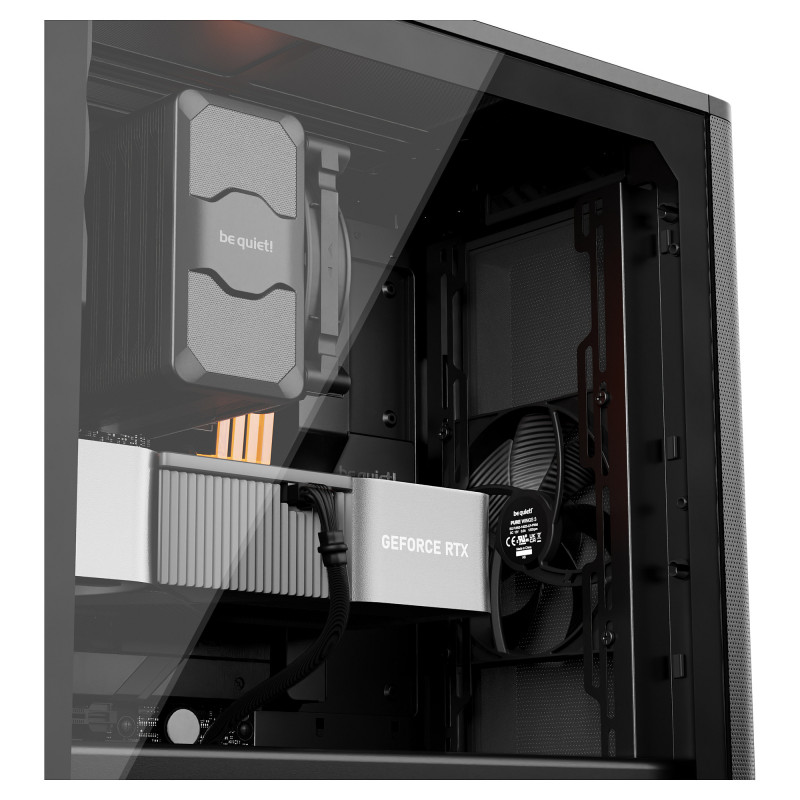

The high-quality, fully-windowed side panel offers a perfect view of the components inside your Pure Base 501 Airflow Window Black. The window is made of tinted and tempered glass with black painted side bars.

Design

Material: Acrylonitrile butadiene styrene (ABS), Steel, Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 5
Number of expansion slots: 7
Feature: Side window
Suitable for: Gaming
Feature: Anti-dust filter
Feature: Reset button
Feature: On/off button
Maximum CPU cooler height: 17.8 cm
Maximum graphics card length: 36.8 cm
Maximum PSU length: 18 cm

Power supply

Supported power supply form factors: ATX, PS2

Ports interfaces

Audio input: Yes
Audio output: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Cooling

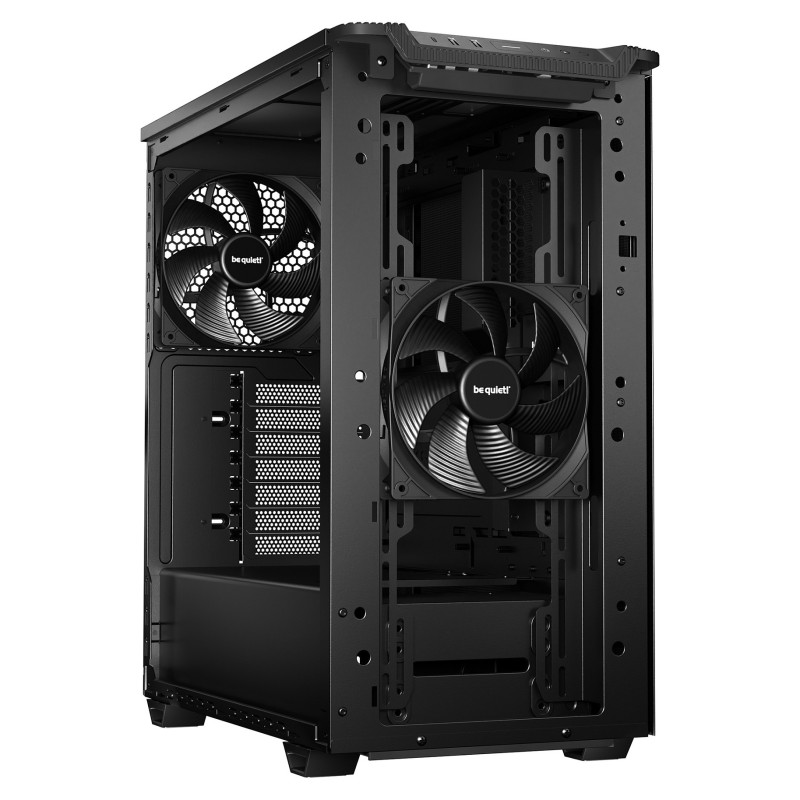

Front fans installed: 1x 140 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Maximum airflow: 57.4 cfm
Maximum air pressure: 0.96 mmH2O
Feature: Liquid cooling capability
Front radiator sizes supported: 120,140,240,280,360 mm
Rear radiator sizes supported: 120,140 mm
Top radiator sizes supported: 120,240 mm
Feature: Pulse-width modulation (PWM) support

Storage

Supported HDD sizes: 2.5,3.5"

Technical details

Compliance certificates: CE, REACH, RoHS, UKCA

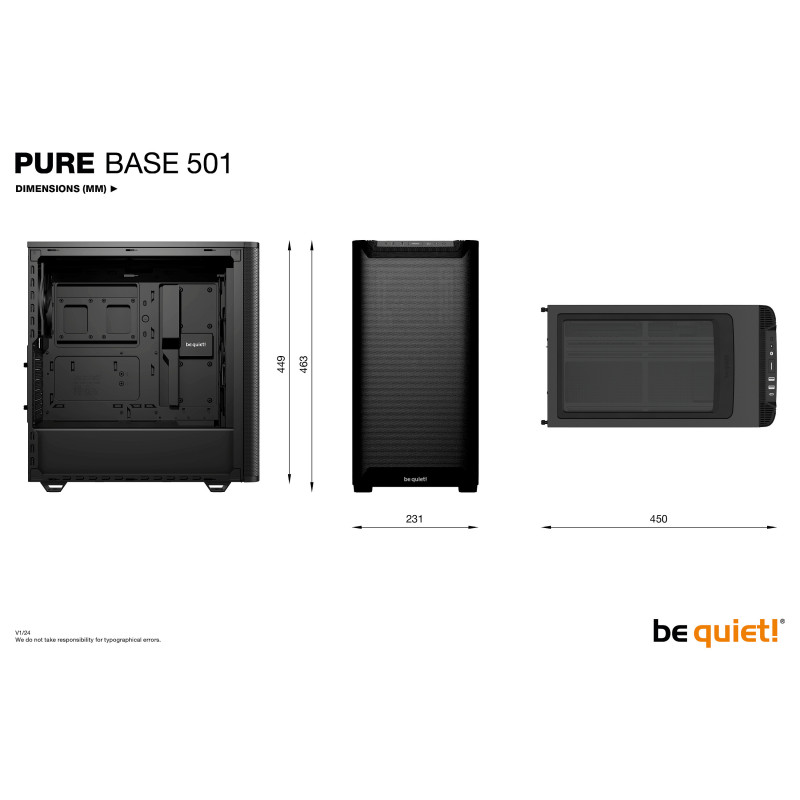

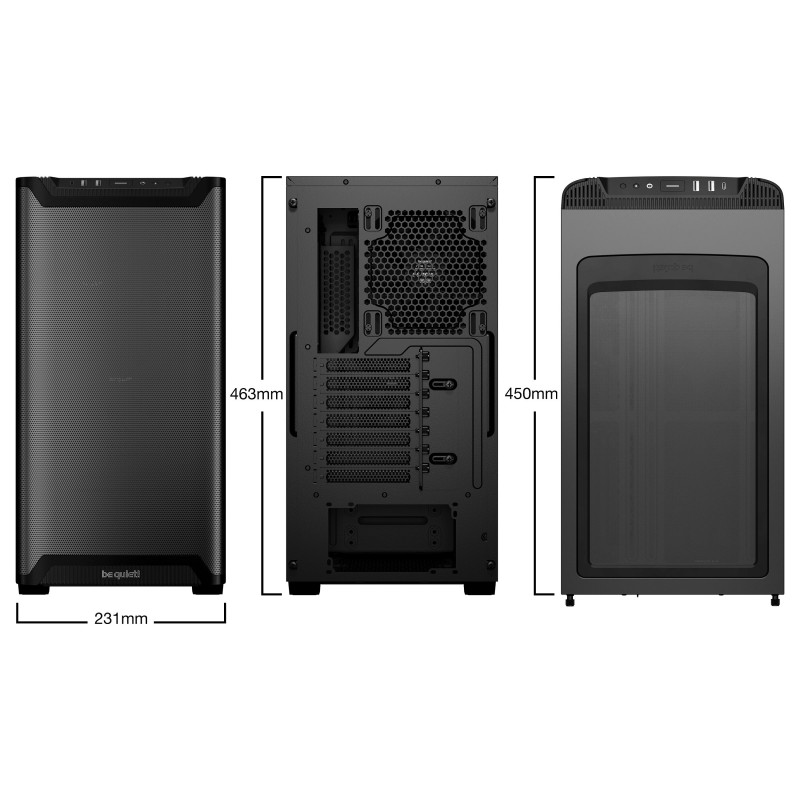

Weight dimensions

Width: 231 mm
Depth: 450 mm
Height: 463 mm
Weight: 7.2 kg

Packaging data

Package width: 292 mm
Package depth: 518 mm
Package height: 503 mm
Package weight: 8.4 kg
