ASUS ProArt PA401 Wood TG PWM (Black)

ASUS ProArt PA401 Wood TG PWM (Black). Form factor: Tower, Type: PC, Product colour: Black. Front fans installed: 2x 160 mm, Front fans diameters supported: 140,160 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 225 mm, Depth: 412 mm, Height: 503 mm. Package width: 495 mm, Package depth: 295 mm, Package height: 570 mm
Tempered Glass Panel
Natural Elegance, Optimal Airflow

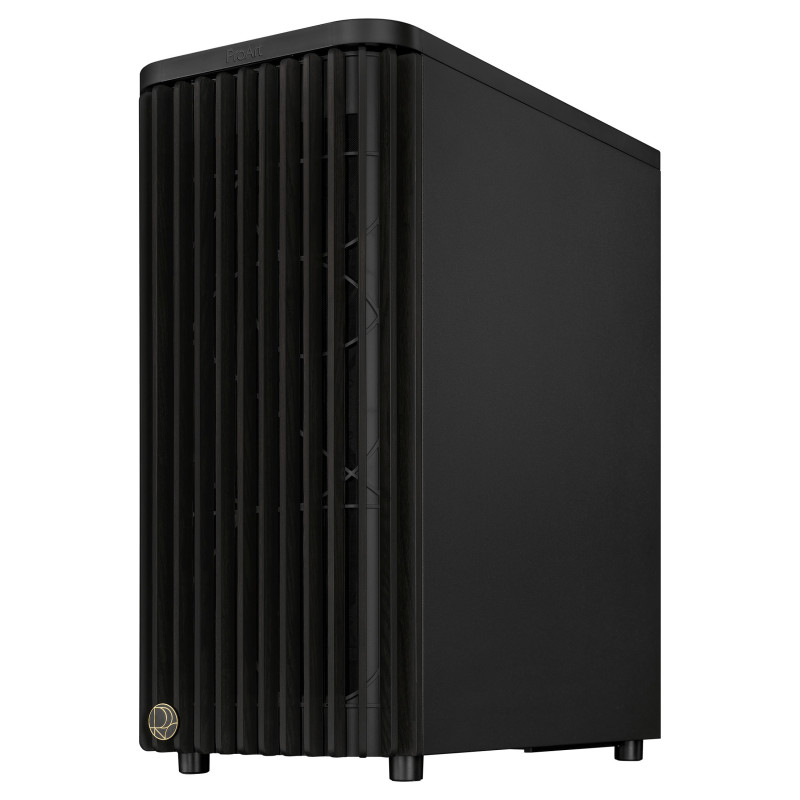

The ProArt PA401 Wood Edition showcases a wooden front panel that creates a distinctive, elegant style while promoting sustainability. The wood used is certified by the Forest Stewardship Council® (FSC®), and is finished using a six-stage process. The case also boasts optimal built-in cooling, with two 160mm front fans and one 120mm rear fan, along with an integrated fan hub, enabling optimal airflow.
COOLING
Exceptional Cooling Performance

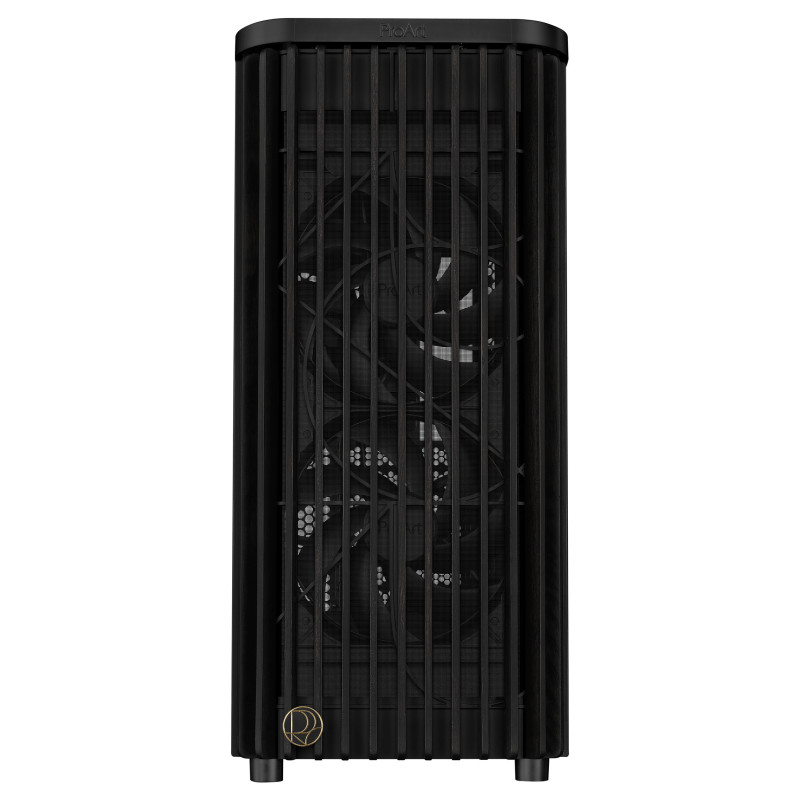

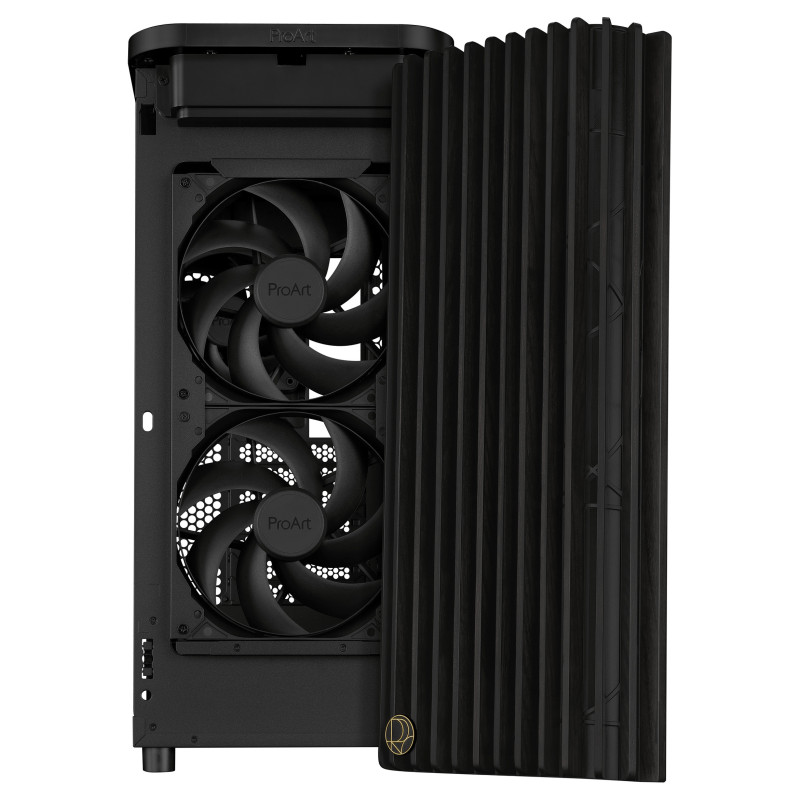

The PA401 Wood Edition features a front grille with 33% porosity to maximize airflow and ventilation. Meanwhile, built-in dual 160mm front fans efficiently deliver up to 138cfm of airflow to graphics cards and CPU coolers, and the outer ring connecting these fan blades helps reduce initial vibration. The front fans and the 120mm rear fan with PWM control yield optimal airflow, low noise, low vibration and high reliability.
Natural Elegance
Crafted Wood

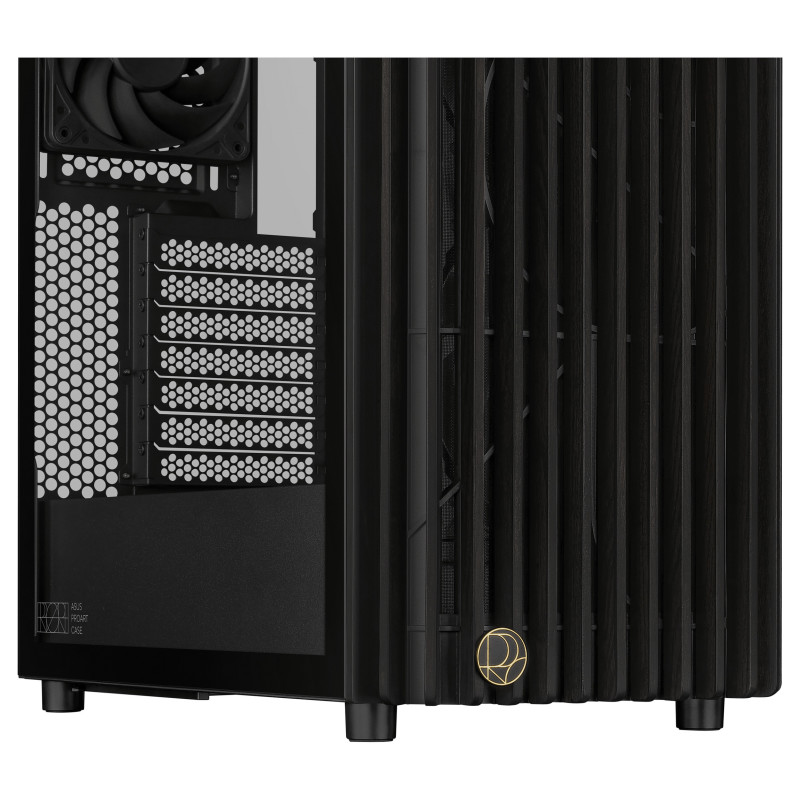

Ash wood, an uncommon choice for this style of case, has been selected for its durability. The special six-stage production process used to create the front panel begins with thermowood treatment, protecting the wood from insects, humidity and heat. The panel material is then shaped to exact specification. Finally, a two-step coating elevates the unique Ash grain with a glossy finish.
The ash wood used for ProArt PA401 Wood Edition is sustainably sourced and is certified by the FSC®.
Connectivity
Flexible, Fast I/O

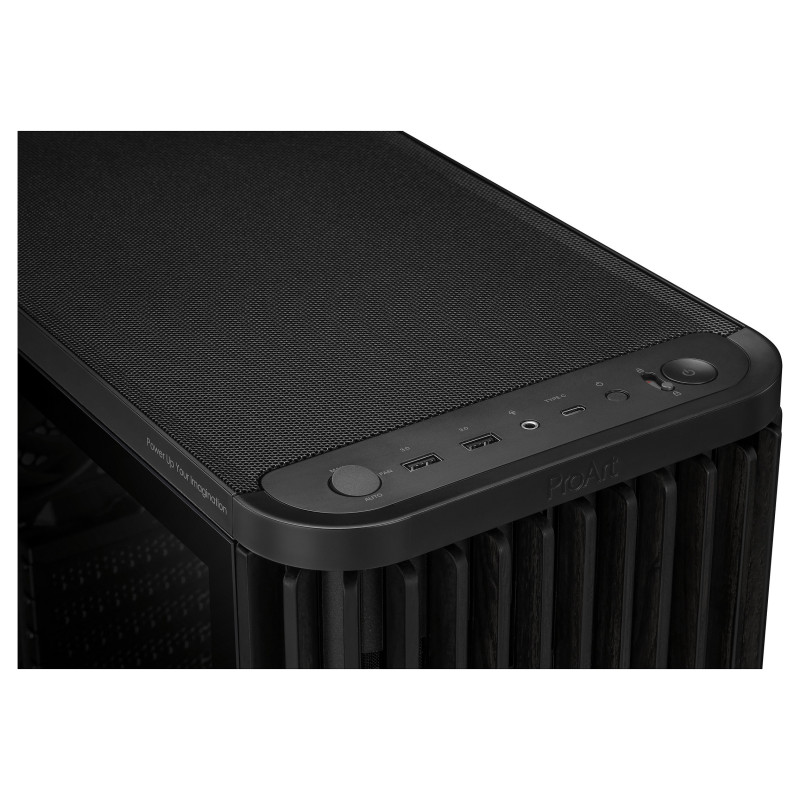

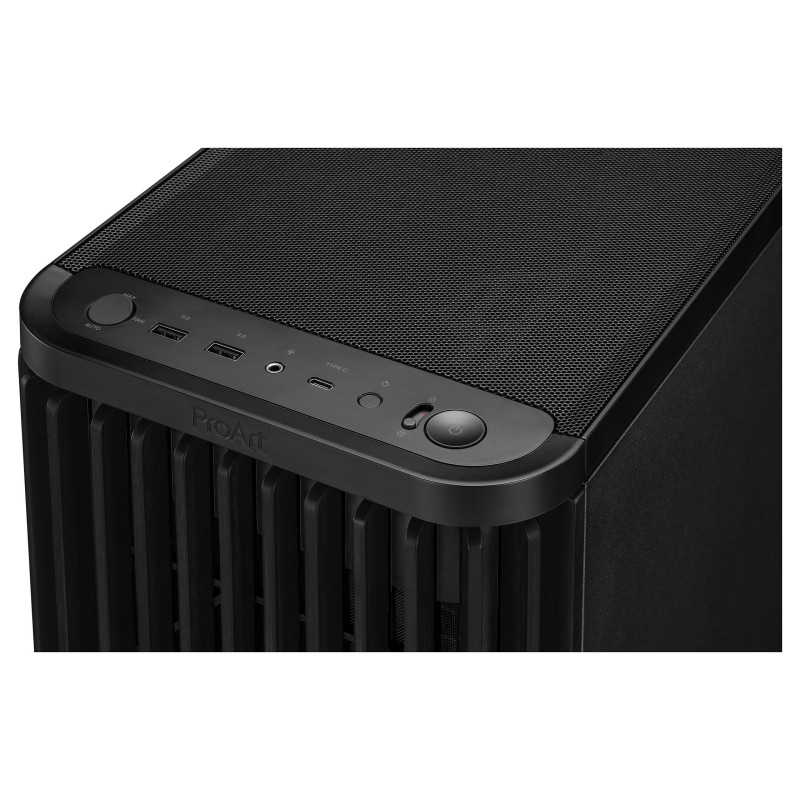

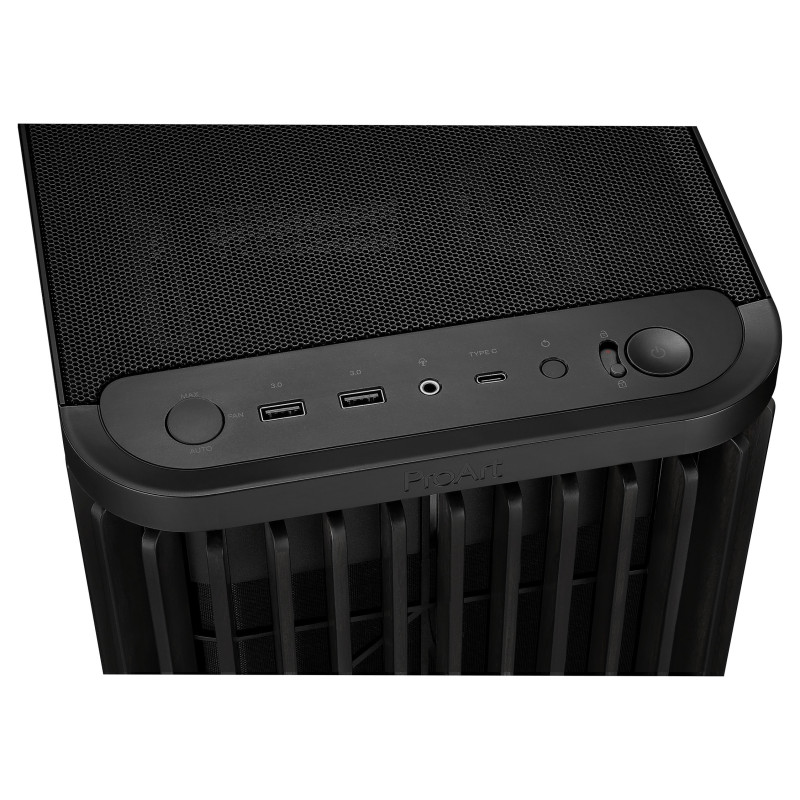

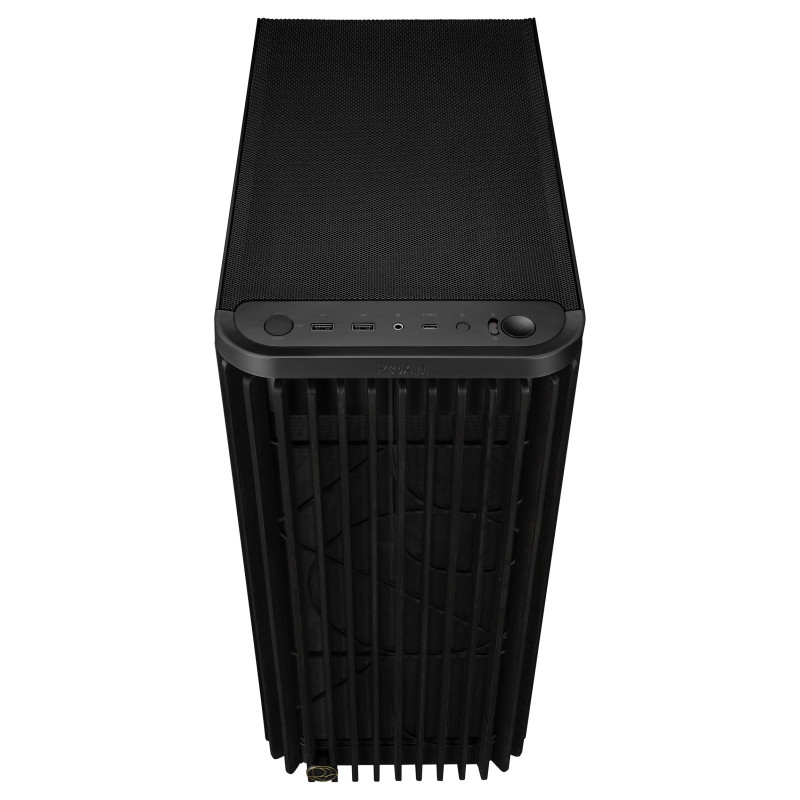

Connectivity options are easily accessible via the front I/O panel, including one two-section PWM control, one 20Gbps USB Type-C® port, two USB-A 3.0 ports, HD audio and a Power and Reset button lock.
Premium Fan Speed Control

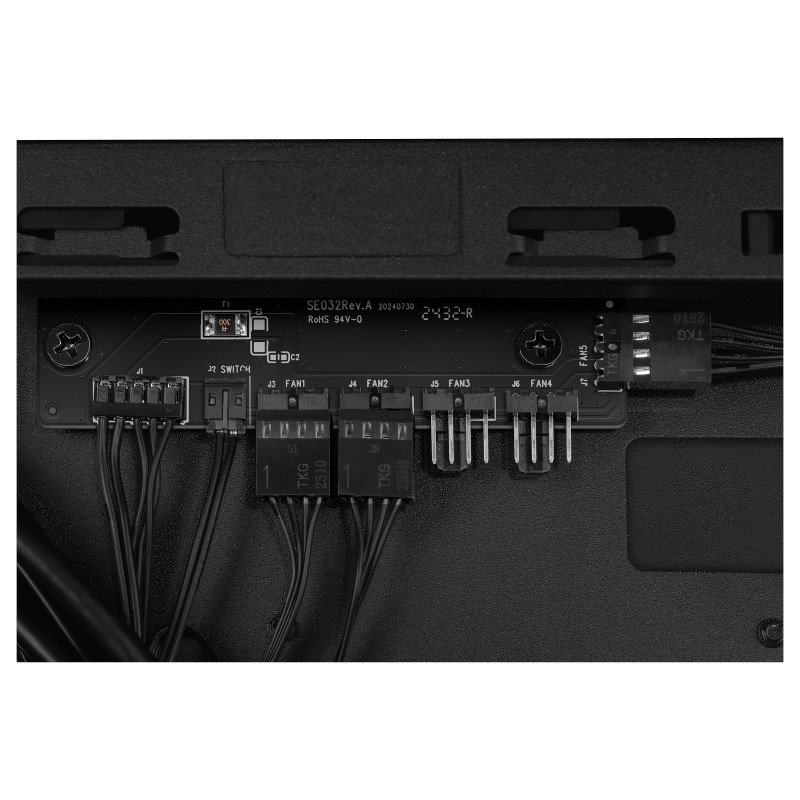

With integrated PWM control, fan speed adjusts automatically, making it easy to switch between normal and working scenarios and intensive scenarios.
20Gbps USB Type-C®
The PA401 Wood Edition incorporates one 20Gbps USB Type-C port for current and future devices and connectivity with compatible motherboards.
Power and Reset Button Lock
This lock prevents the user from accidentally pressing the Power and Reset buttons.
Design
Builder-Friendly Installation
The ProArt PA401 Wood Edition optimizes the PC building experience, offering better functionality with user-focused features.
Compatibility

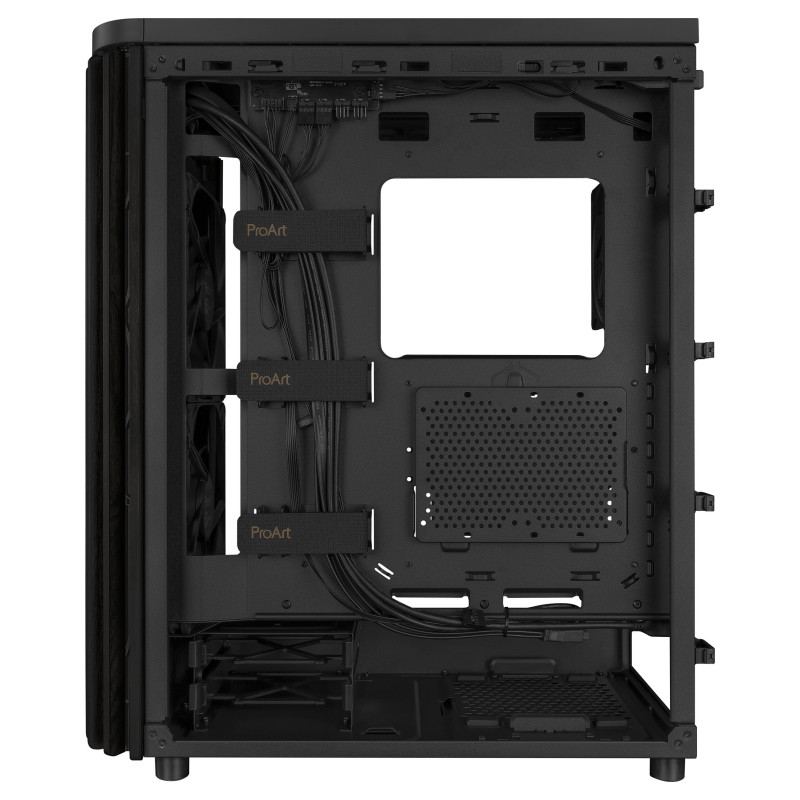

Compact Form, Ample Interior

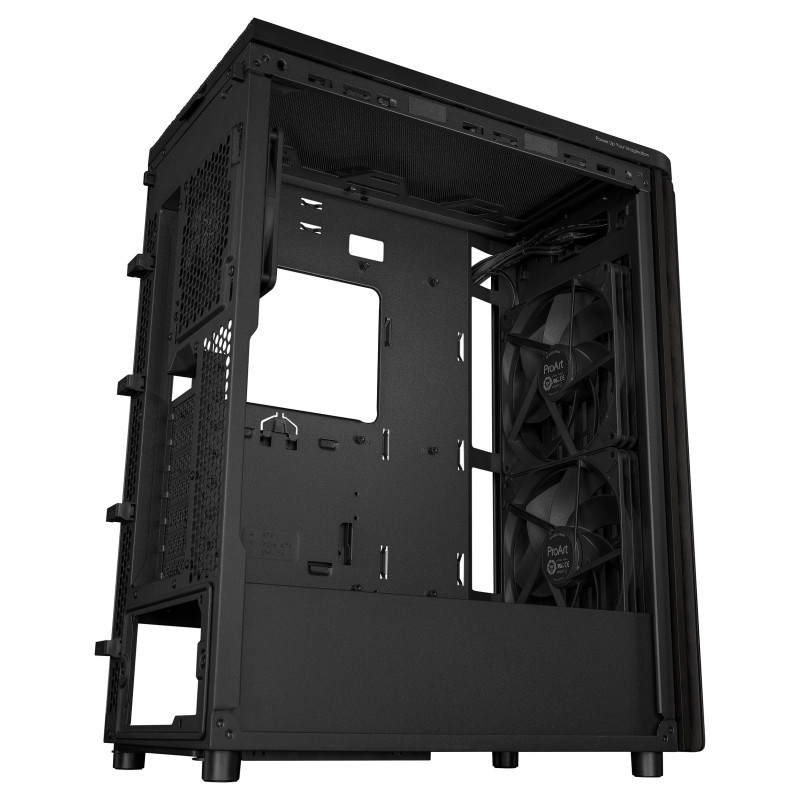

The ProArt PA401 Wood Edition features two pre-installed 160mm front fans and accommodates both horizontal and vertical graphics card mounting.
Versatile Choices

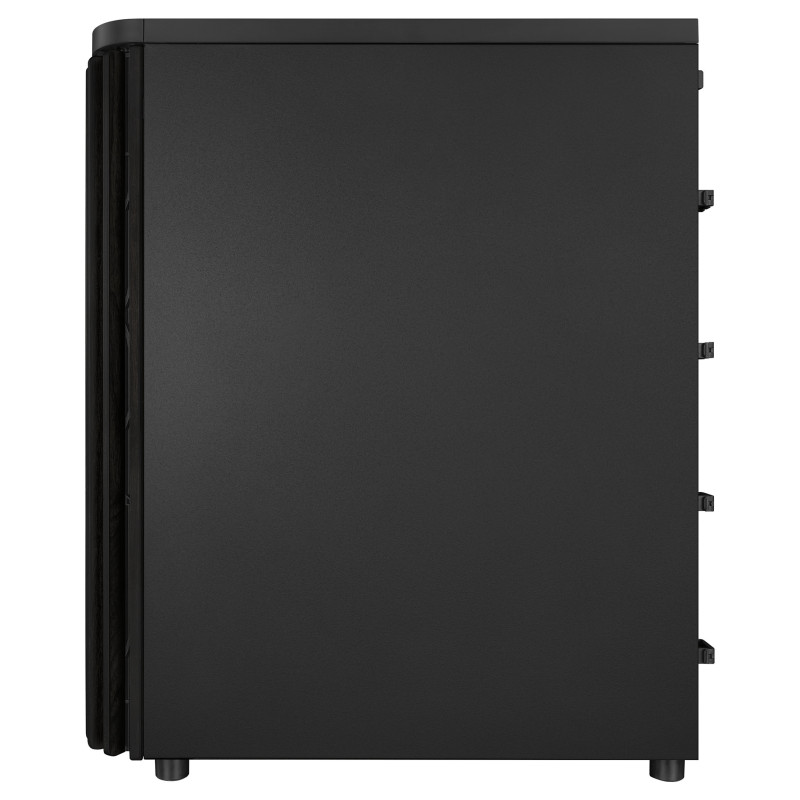

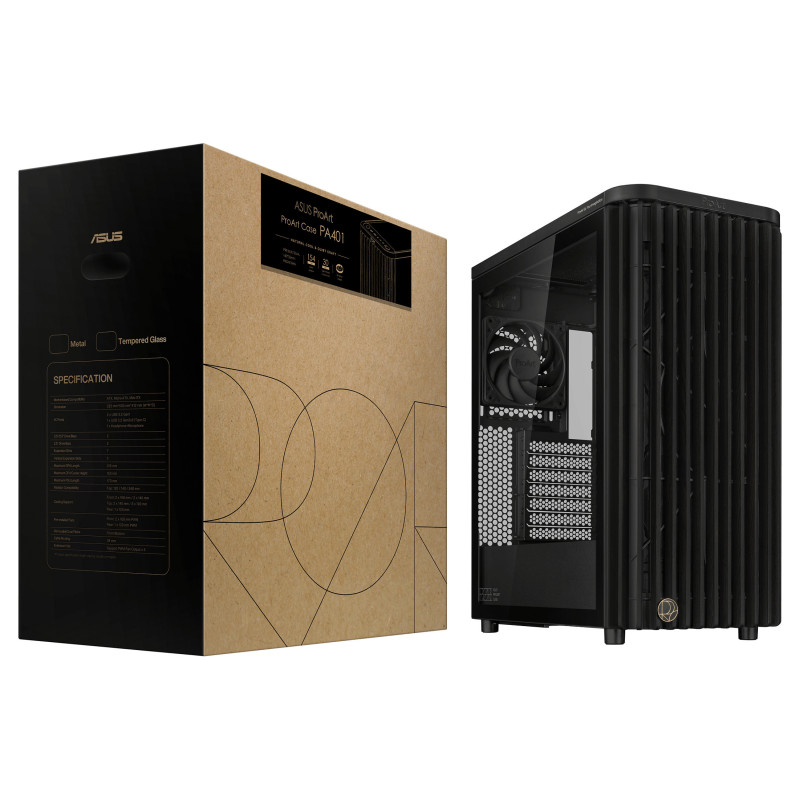

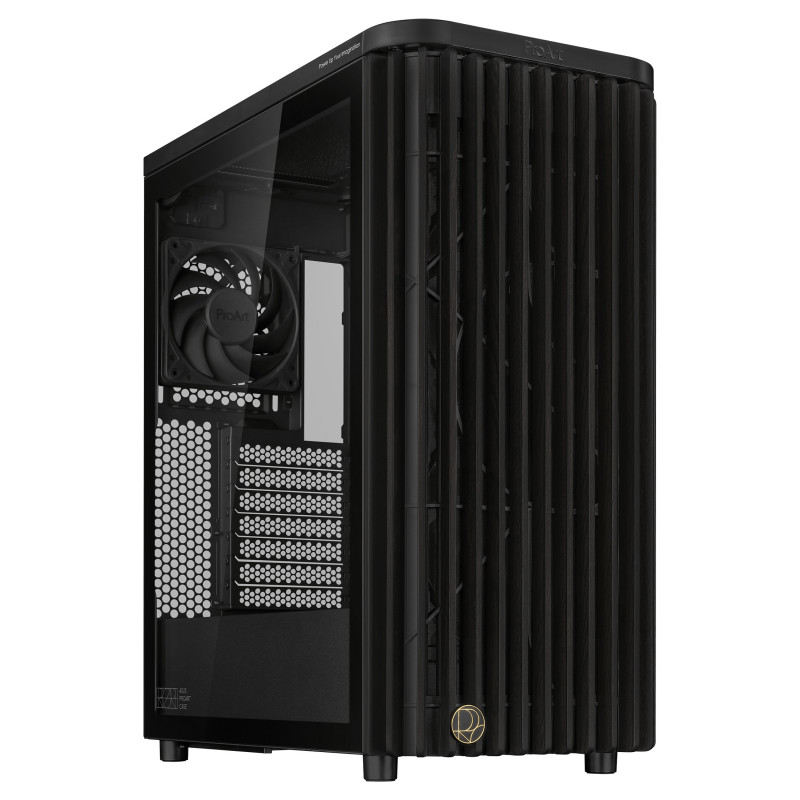

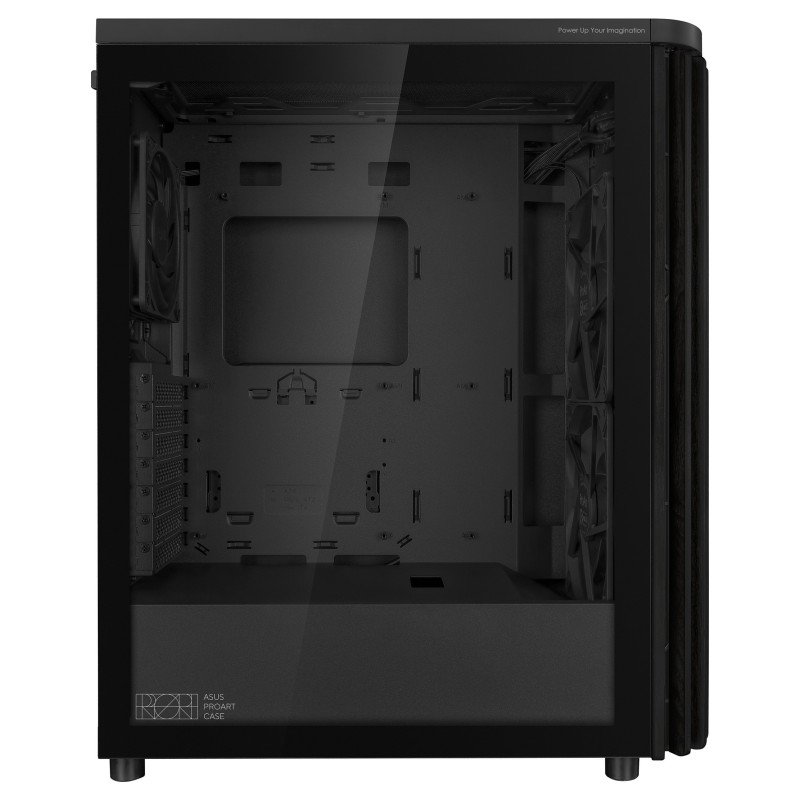

To accommodate the preferences of diverse builders, the PA401 Wood Edition comes in two versions. The metal side panel version focuses on durability, whereas the tempered-glass version offers durability while providing a window for showing off internal aesthetics.

Design

Material: Tempered glass, Wood
Form factor: Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX
Number of 3.5" bays: 2
Number of 2.5" bays: 2

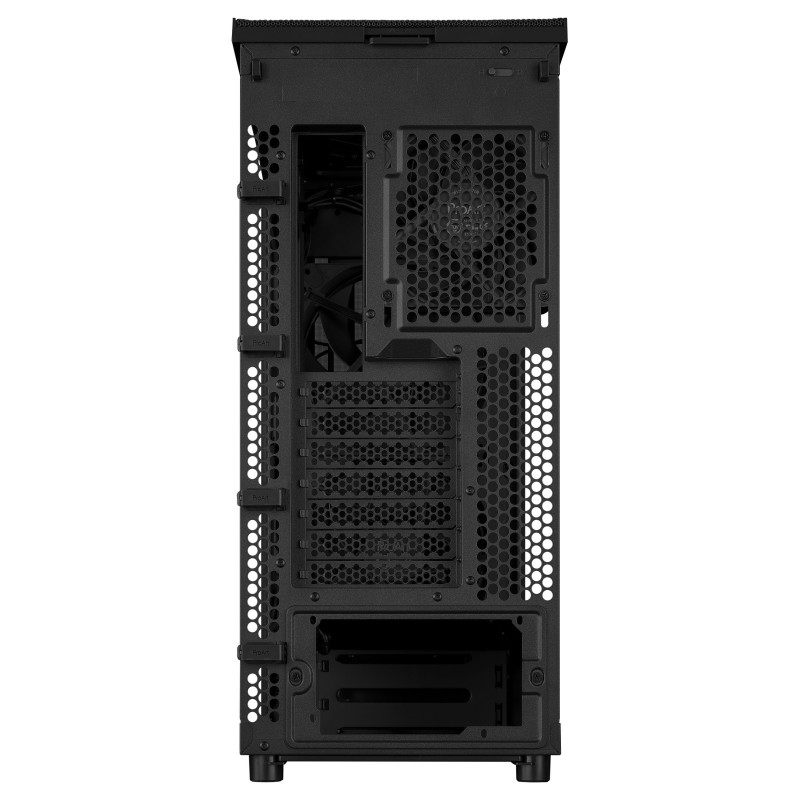

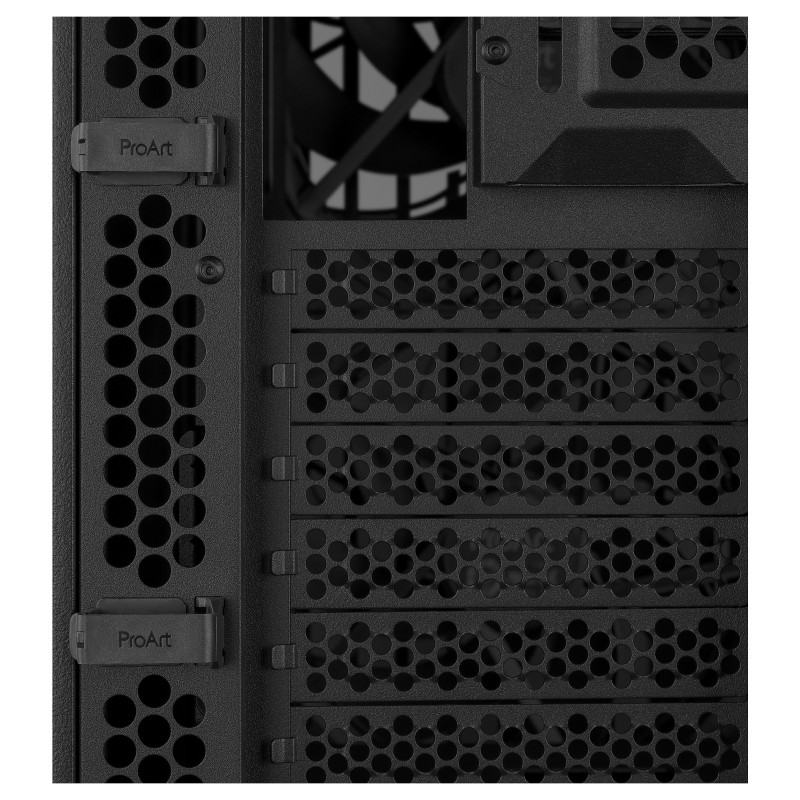

Number of expansion slots: 7
Side window: Yes
Suitable for: Gaming
Reset button: Yes
On/off button: Yes
Maximum CPU cooler height: 16 cm
Maximum graphics card length: 31.5 cm

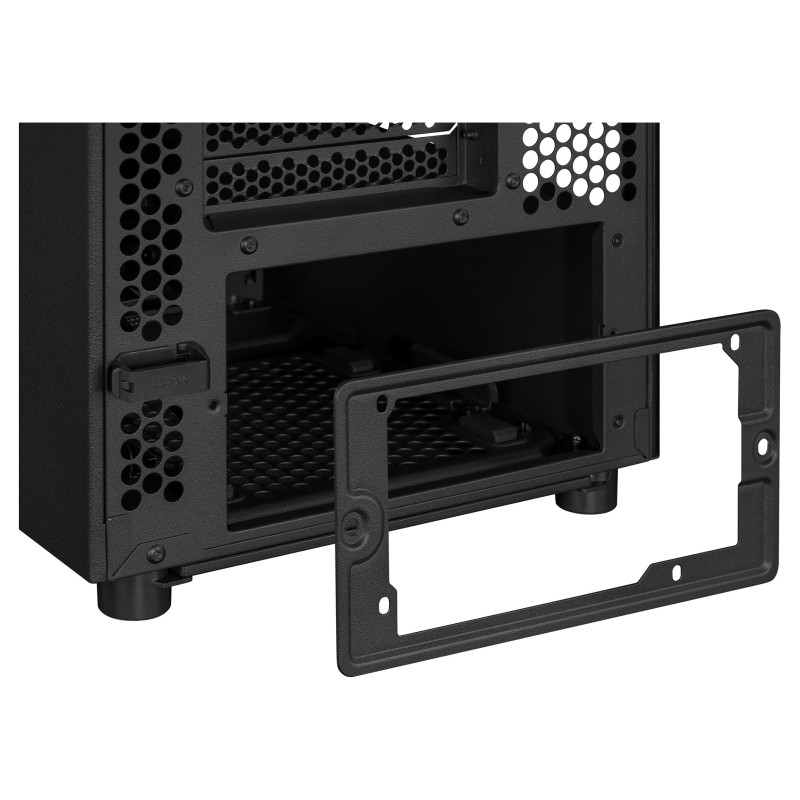

Maximum PSU length: 17 cm

Power supply

Power supply included: No

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Combo headphone/mic port: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Cooling

Fan speed control: Yes
Front fans installed: 2x 160 mm
Number of front fans supported (max): 2
Front fans diameters supported: 140,160 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm

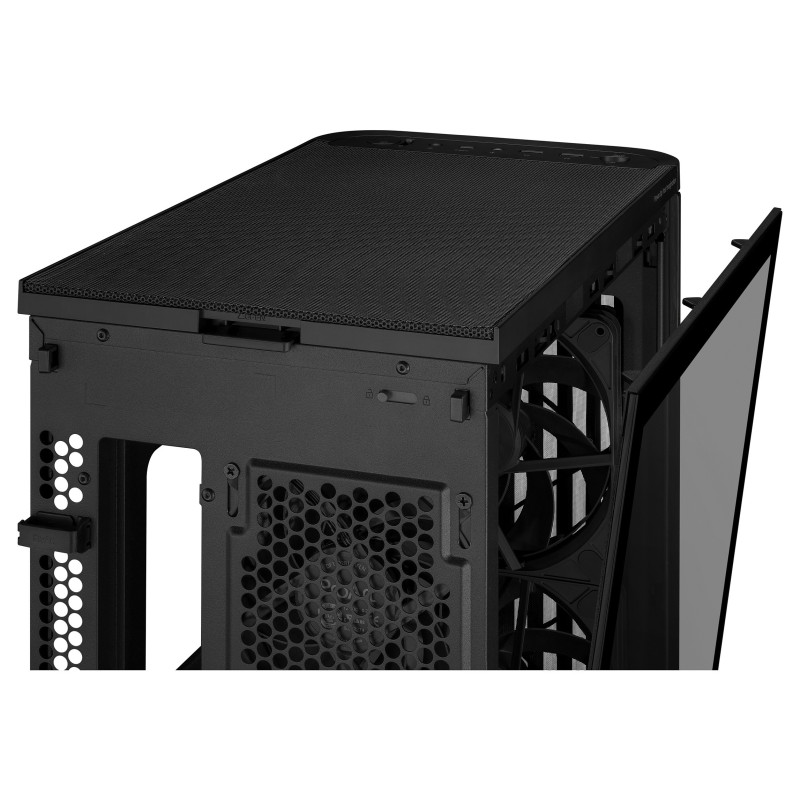

Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Liquid cooling capability: Yes
Top radiator sizes supported: 120,140,240 mm
Pulse-width modulation (PWM) support: Yes

Storage

Supported HDD sizes: 2.5,3.5"
HDD/SSD combo cage: Yes

Weight dimensions

Width: 225 mm
Depth: 412 mm
Height: 503 mm
Weight: 8.61 kg

Packaging data

Package width: 495 mm
Package depth: 295 mm
Package height: 570 mm
Package weight: 10.1 kg
