Aerocool Trinity Mini

Aerocool Trinity Mini. Form factor: Mini Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX. Front fans installed: 2x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 206.5 mm, Depth: 353.4 mm, Height: 385 mm

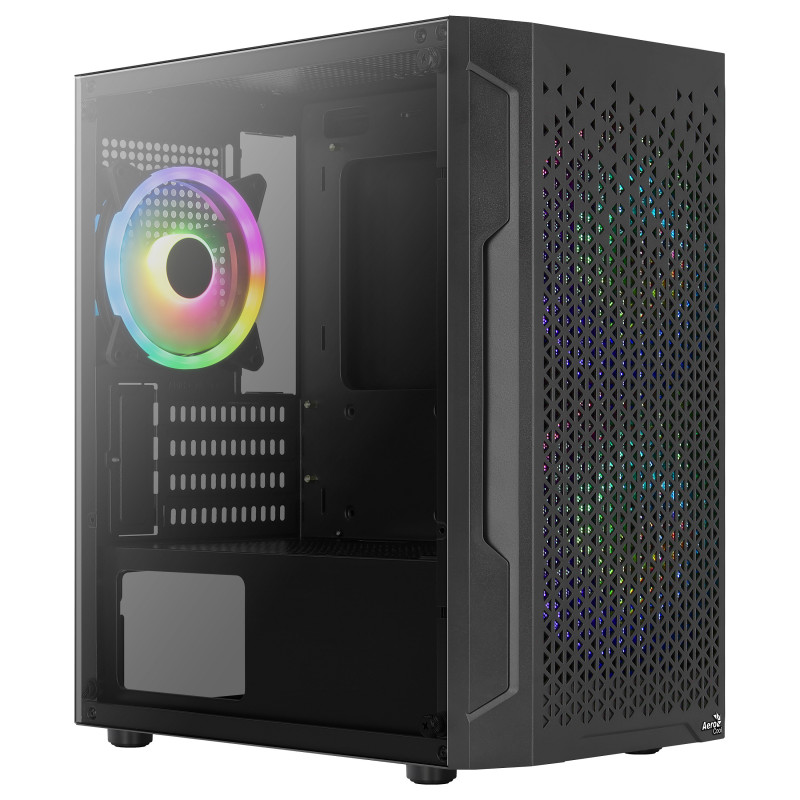

Designed with ventilation in mind, this case delivers superior air flow while allowing for viewing of your front LED fans. This high-performance mini tower case comes equipped with a full tempered glass side panel to showcase the inside of your rig. Supports liquid cooling in the front and rear of the case for maximum efficiency cooling.
IMPROVED AIR VENTILATION

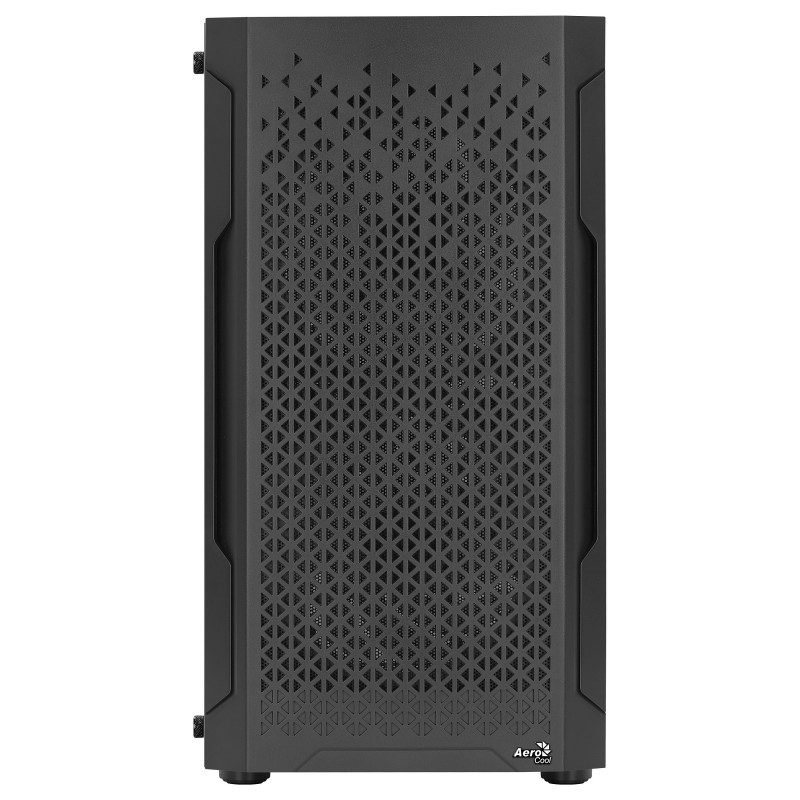

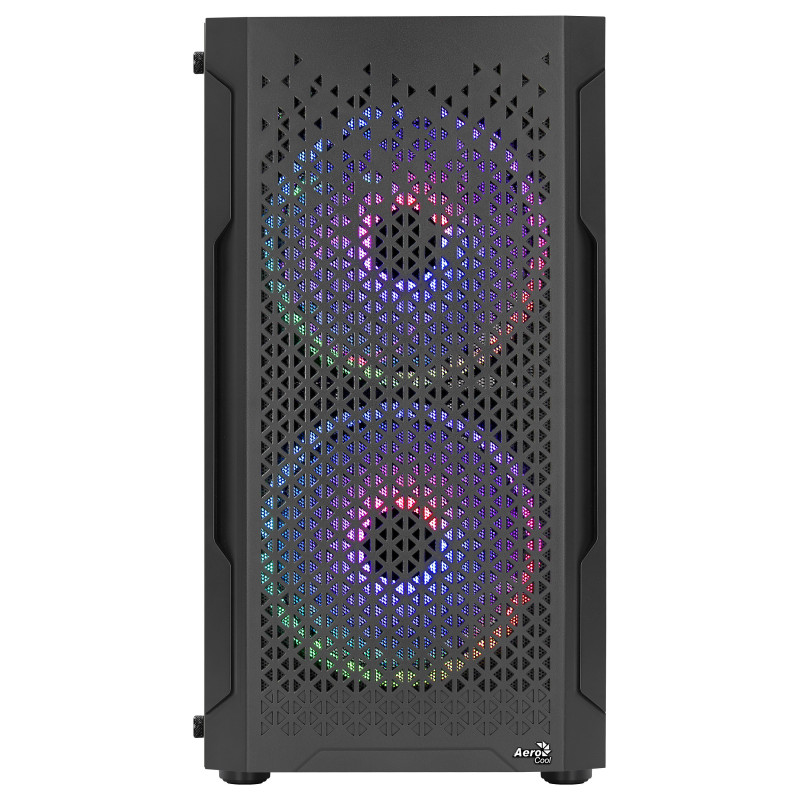

Stylish front panel design with built-in air vents delivers increased air flow and ventilation while allowing for viewing of your front LED fans.
FULL TEMPERED GLASS SIDE PANEL

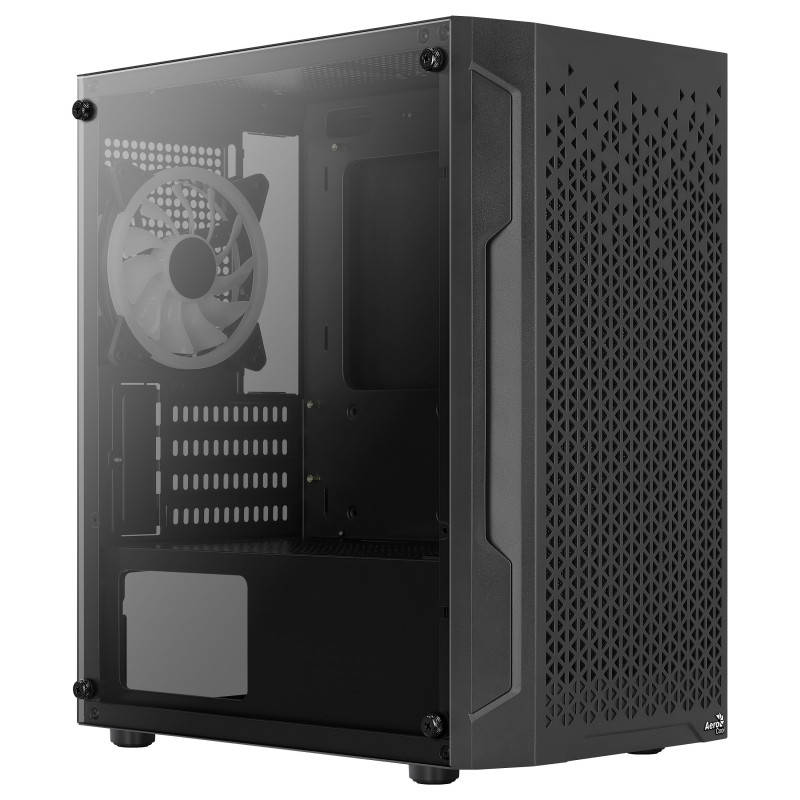

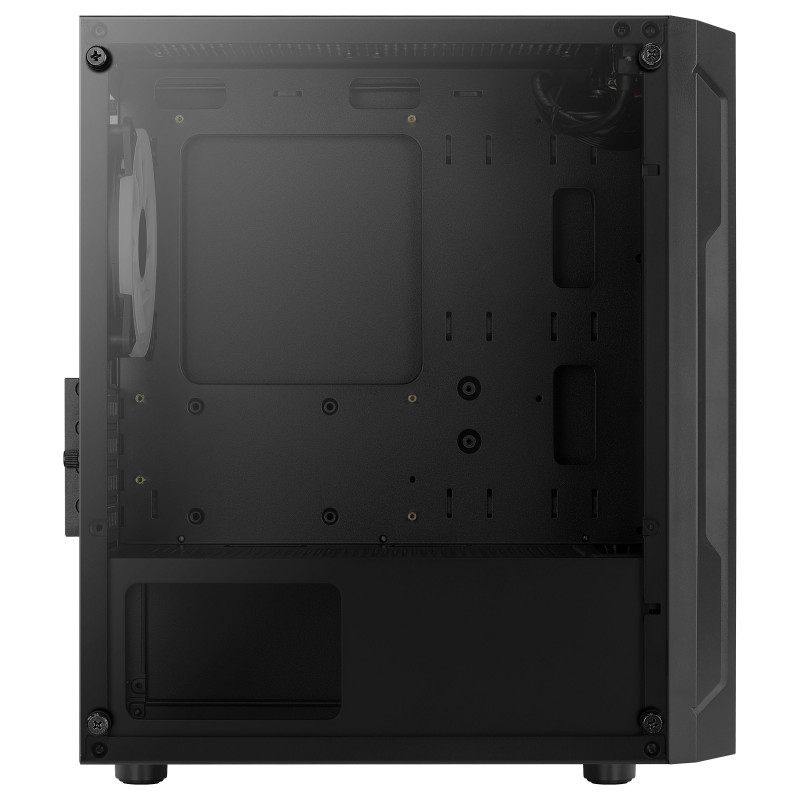

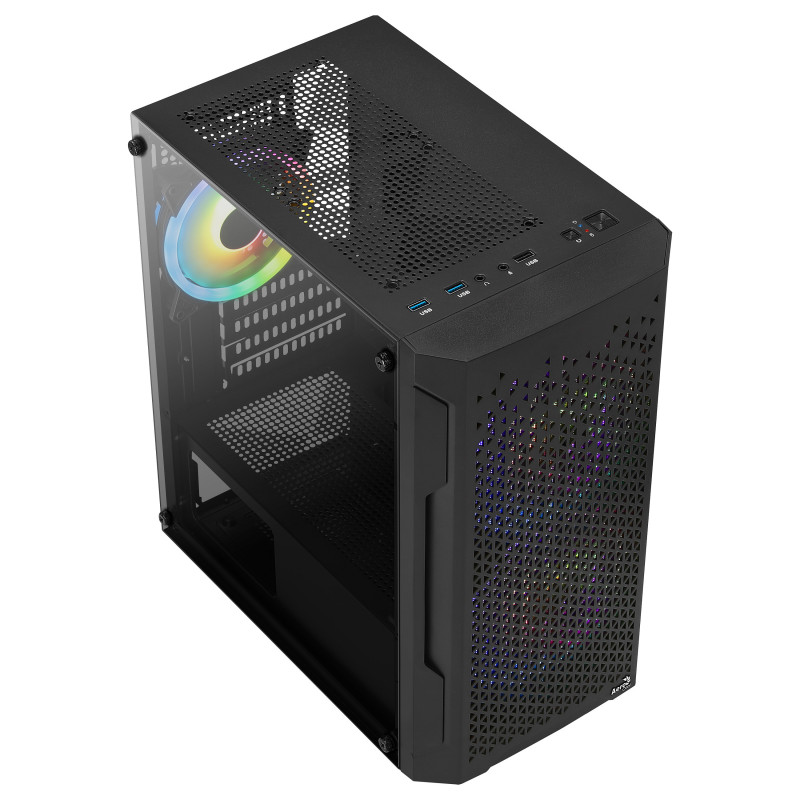

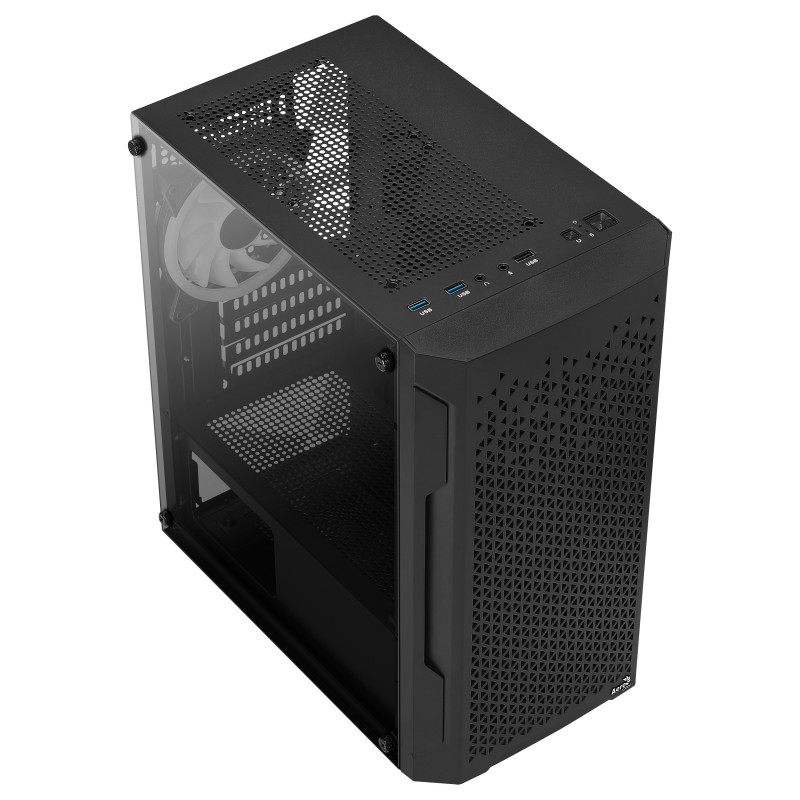

Comes equipped with a full tempered glass side panel to showcase the inside of your rig and put your components on display.
COOLING FOR YOUR GRAPHICS CARD
Fan mounts on the PSU shroud support graphics card cooling :
2 x 120mm fans for superior VGA cooling.
AIR COOLING
Supports air cooling in the front, top, and rear of the case to enhance cooling performance.
- Front: 120mm x 2 or 140mm x 2 (Max.)
- Top: 120mm x 2 (Max.)
- Rear: 120mm x 1 (Max.)
- PSU Shroud: 120mm x 2 (Max.)
LIQUID COOLING
Supports liquid cooling in the front and rear of the case for maximum efficiency cooling.
- Front: 120/240mm Radiator (Optional) (for 240mm, supports max length of 240mm and max thickness of 28mm)
- Rear: 120mm Radiator (Optional)

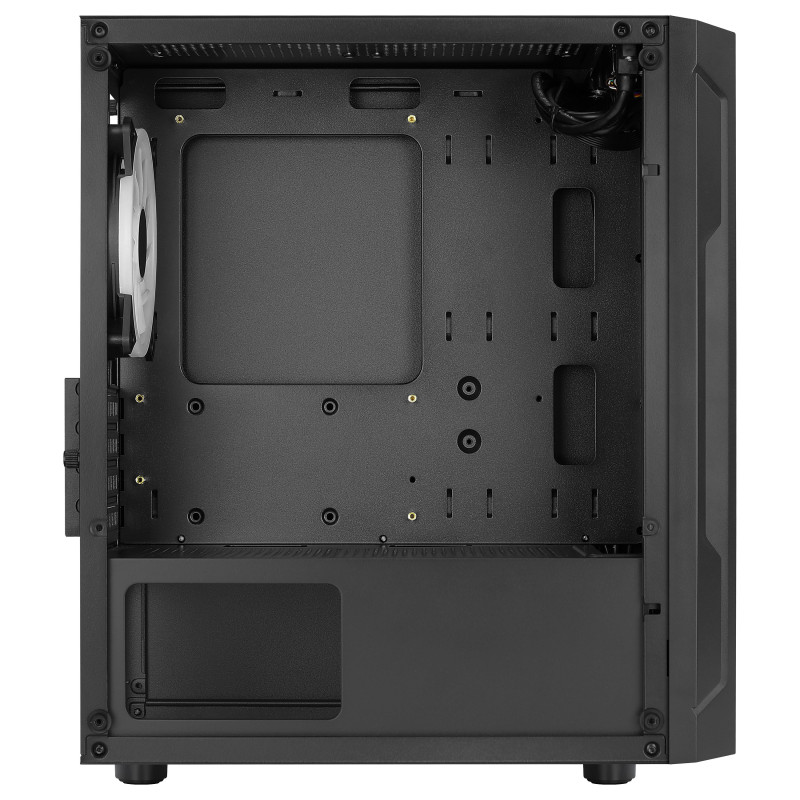

DUAL CHAMBER DESIGN
Built with a dual chamber design to direct heat away from the main chamber for more effective all-around cooling.
BUILT FOR HIGH PERFORMANCE
- Supports Micro-ATX and mini-ITX motherboards
- Supports CPU coolers up to 158mm
- Supports high-end graphics cards up to 297mm (without front radiator)
CONVENIENT ACCESS TO YOUR MEDIA

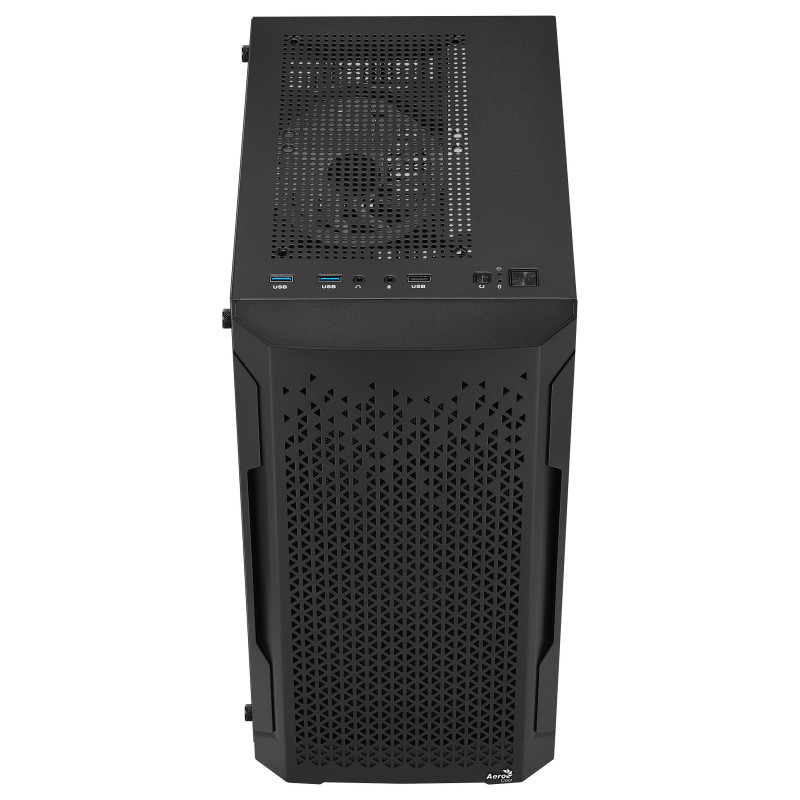

Quick and easy access to USB 3.0 x 2, USB 2.0 x 1, HD audio and mic ports, and power reset button.
STORAGE CAPABILITY
Supports up to 2 x 3.5" HDDs (2 x 3.5"/2.5″) and 3 x 2.5" SSDs (1 x 2.5" and 2 x 2.5"/3.5").

Design

Material: ABS, SPCC
Form factor: Mini Tower
Type: PC
Product colour: Black
Supported motherboard form factors: micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 3
Number of expansion slots: 4
Feature: Illumination
Feature: Cable management
Maximum CPU cooler height: 15.8 cm
Maximum graphics card length: 29.7 cm

Power supply

Supported power supply form factors: ATX

Ports interfaces

Audio input: Yes
Audio output: Yes
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Cooling

Front fans installed: 2x 140 mm
Number of front fans supported (max): 2
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120 mm
Front radiator sizes supported: 120,240 mm
Rear radiator sizes supported: 120 mm

Storage

Supported HDD sizes: 2.5,3.5"

Weight dimensions

Width: 206.5 mm
Depth: 353.4 mm
Height: 385 mm
Material thickness: 0.5 mm
