Aerocool Quantum

Aerocool Quantum. Form factor: Midi Tower, Type: PC, Product colour: Black. Front fans installed: 2x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 206 mm, Depth: 360 mm, Height: 450 mm
MID TOWER CASE
Featuring space grey metallic paint finishing with an acrylic front panel design, this case allows for clear viewing of your front LED fans while delivering a premium and futuristic look and feel. This high performance mid tower case comes equipped with a tempered glass side panel to showcase the inside of your rig.

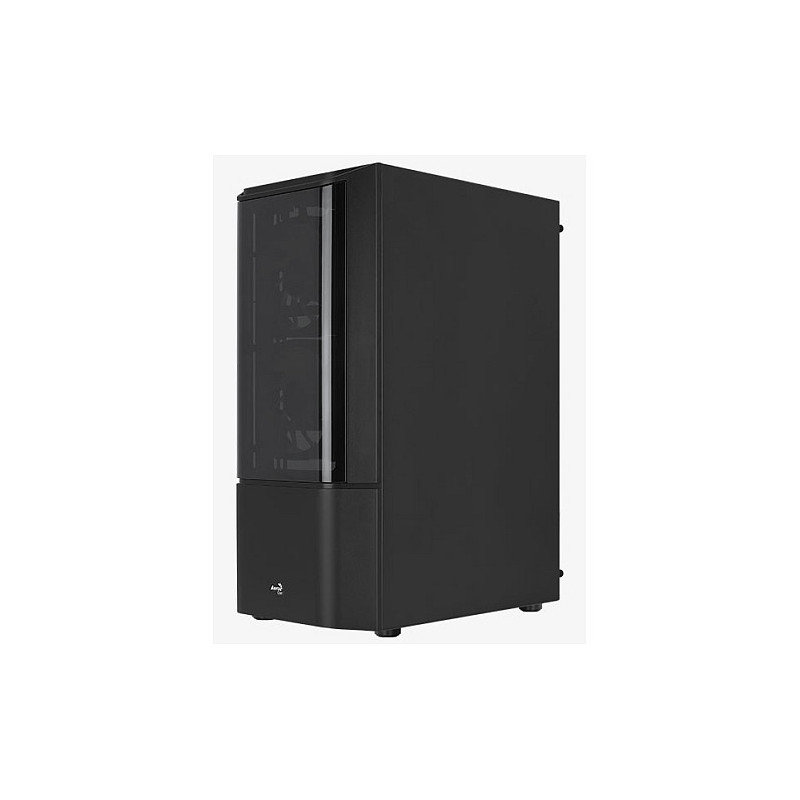

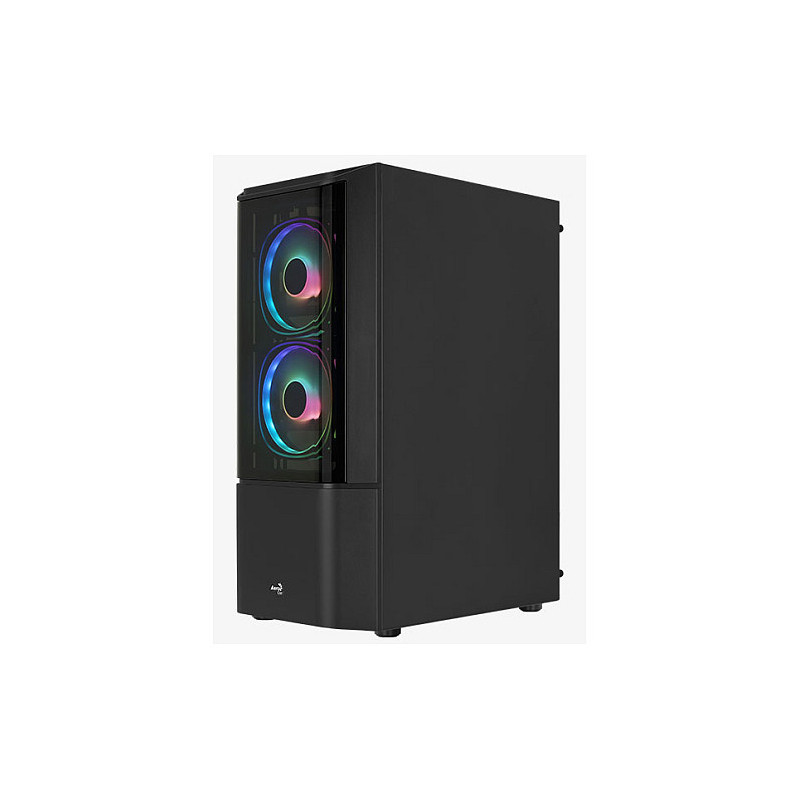

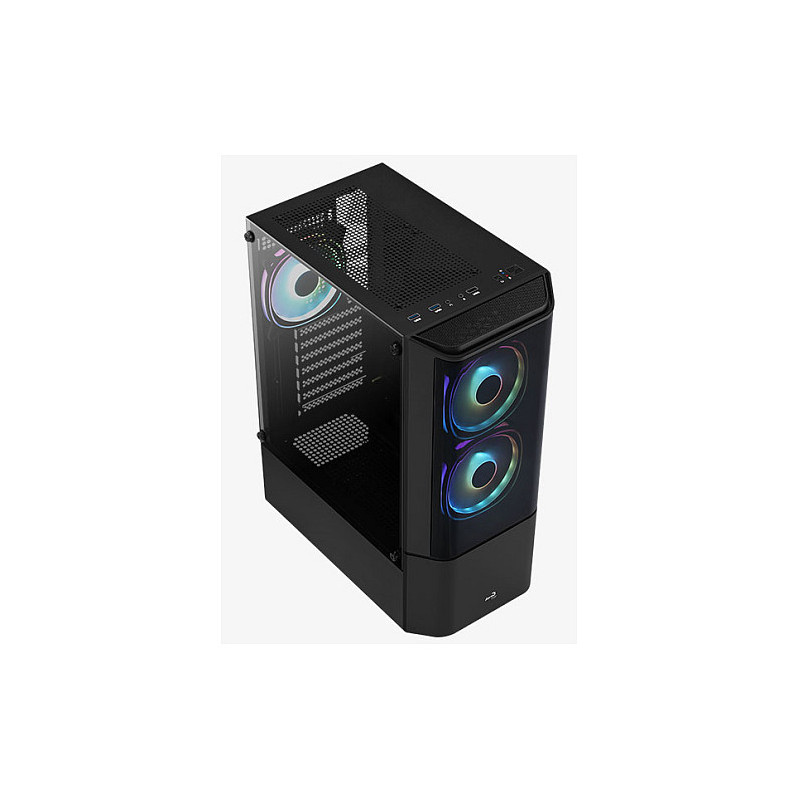

ACRYLIC FRONT PANEL DESIGN
Featuring an acrylic front panel design, this case allows for clear viewing of your front LED fans.
With a space grey metallic paint finishing, this case delivers a premium and futuristic look and feel to your gaming setup.

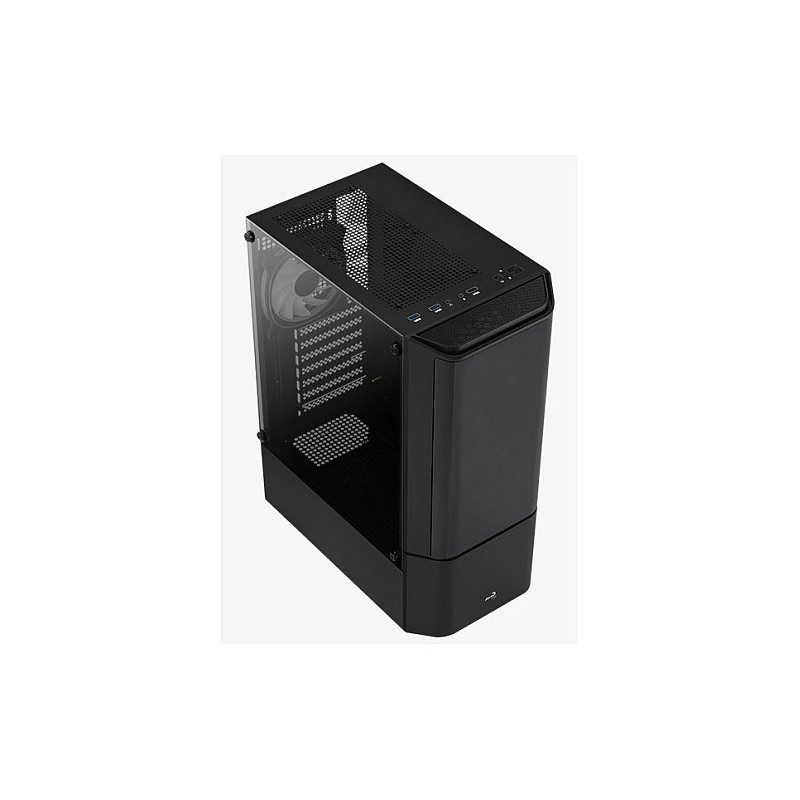

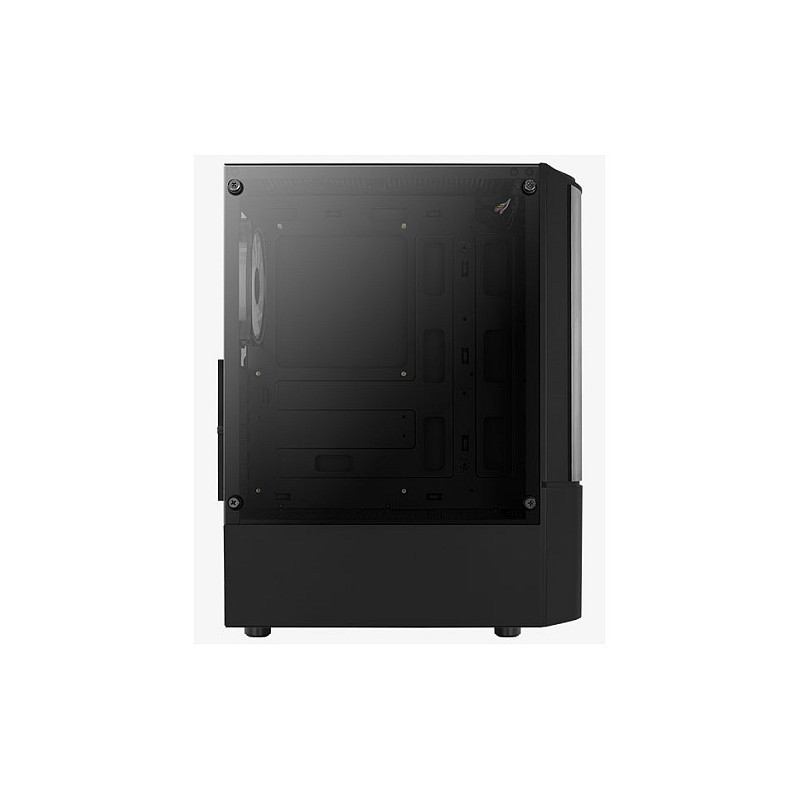

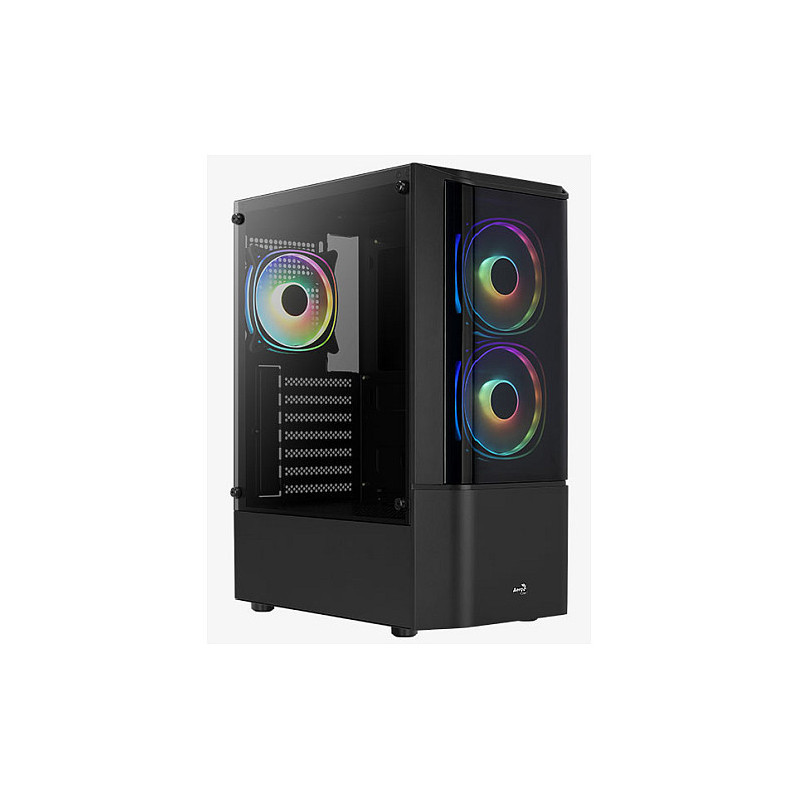

TEMPERED GLASS SIDE PANEL
Comes equipped with a tempered glass side panel to showcase the inside of your rig and put your components on display.
COOLING FOR YOUR GRAPHICS CARD
Fan mounts on the PSU shroud support graphics card cooling :
2 x 120mm fans for superior VGA cooling.
AIR COOLING
Supports air cooling in the front, top, and rear of the case to enhance cooling performance.
- Front: 120mm x 3 or 140mm x 2 (Max.)
- Top: 120mm x 2 (Max.)

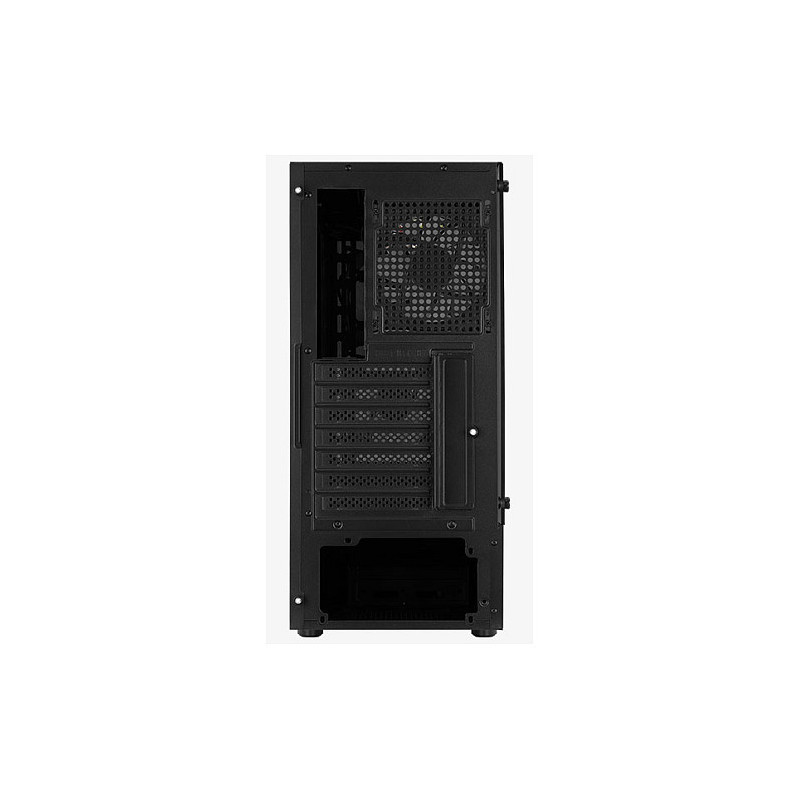

- Rear: 120mm x 1 (Max.)
- PSU Shroud: 120mm x 2 (Max.)
LIQUID COOLING
- Supports liquid cooling in the front and rear of the case for maximum cooling efficiency.
- Front: 120/240/280mm Radiator (Optional)
- (for 280mm, supports max length of 323mm and max thickness of 28mm)
- Rear: 120mm Radiator (Optional)

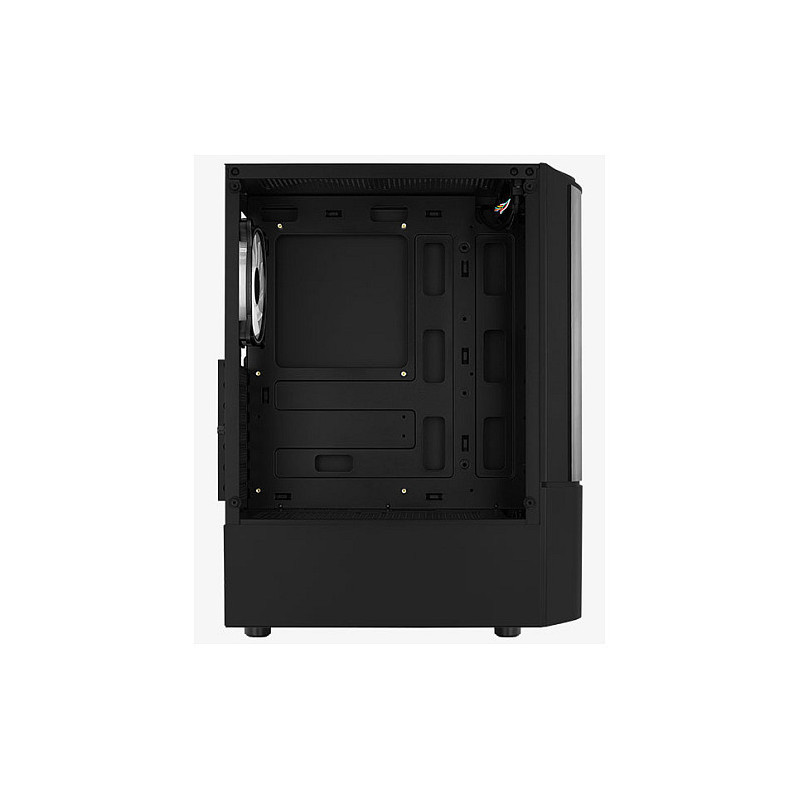

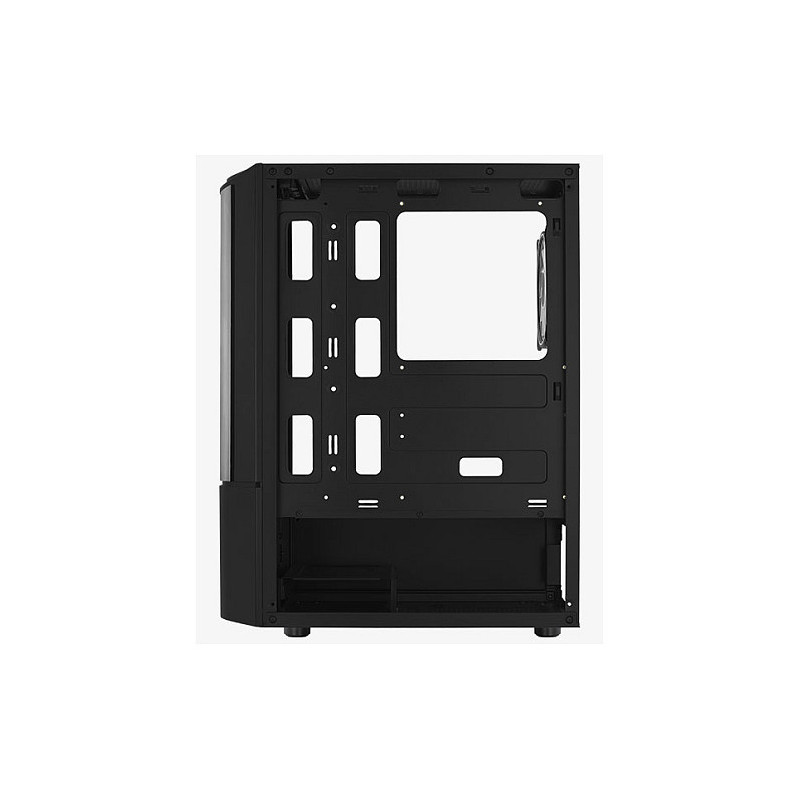

DUAL CHAMBER DESIGN
Built with a dual chamber design to direct heat away from the main chamber for more effective all-around cooling.
BUILT FOR HIGH PERFORMANCE
- Supports ATX, Micro-ATX, and Mini-ITX motherboards
- Supports CPU coolers up to 158mm
- Supports high-end graphics cards up to 297mm (without front radiator)

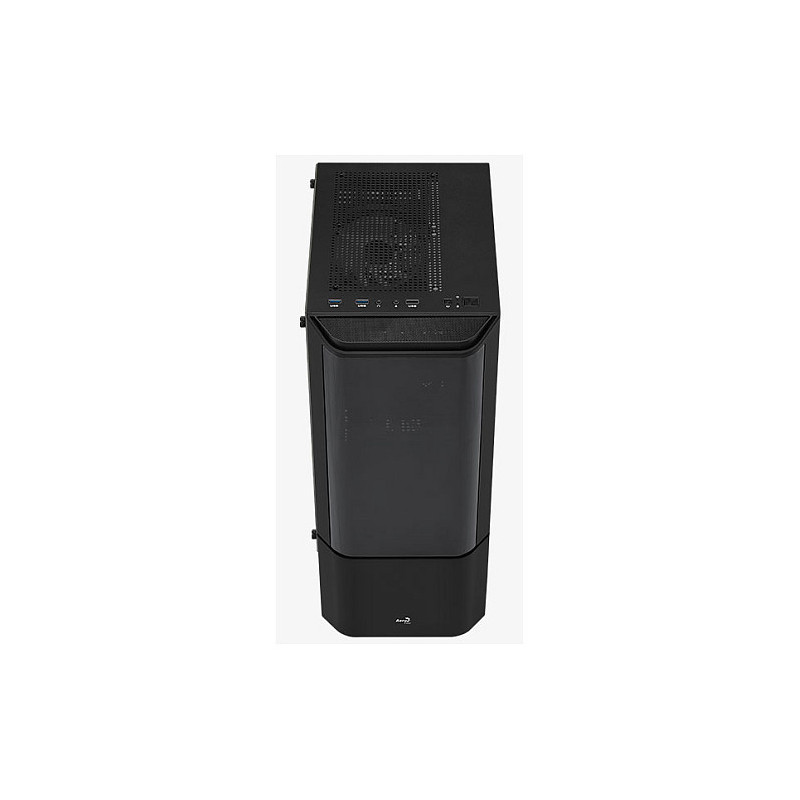

CONVENIENT ACCESS TO YOUR MEDIA
Quick and easy access to 1 x USB 2.0, 2 x USB 3.0, HD audio and mic ports, and power button.
STORAGE CAPABILITY
Supports up to 2 x 3.5" HDDs (2 x 3.5"/2.5″) and 2 x 2.5 SSDs (2 x 2.5"/3.5" for Micro-ATX ATX M/B) or 4 x 2.5 SSDs (2 x 2.5"/3.5" and 2 x 2.5" for Mini-ITX M/B).

Design

Material: Acrylonitrile butadiene styrene (ABS), SPCC
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 2
Number of expansion slots: 7
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Tempered glass panel(s)
Feature: Cable management
Feature: Reset button
Feature: On/off button
LED indicators: Yes
Maximum CPU cooler height: 15.8 cm
Maximum graphics card length: 29.7 cm

Ports interfaces

Audio input: Yes
Audio output: Yes
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Cooling

Front fans installed: 2x 120 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120 mm
Number of bottom fans supported (max): 2
Bottom fans diameters supported: 120 mm
Feature: Liquid cooling capability
Front radiator sizes supported: 120,240,280 mm
Rear radiator sizes supported: 120 mm

Storage

Supported HDD sizes: 2.5,3.5"

Weight dimensions

Width: 206 mm
Depth: 360 mm
Height: 450 mm
Material thickness: 0.5 mm
