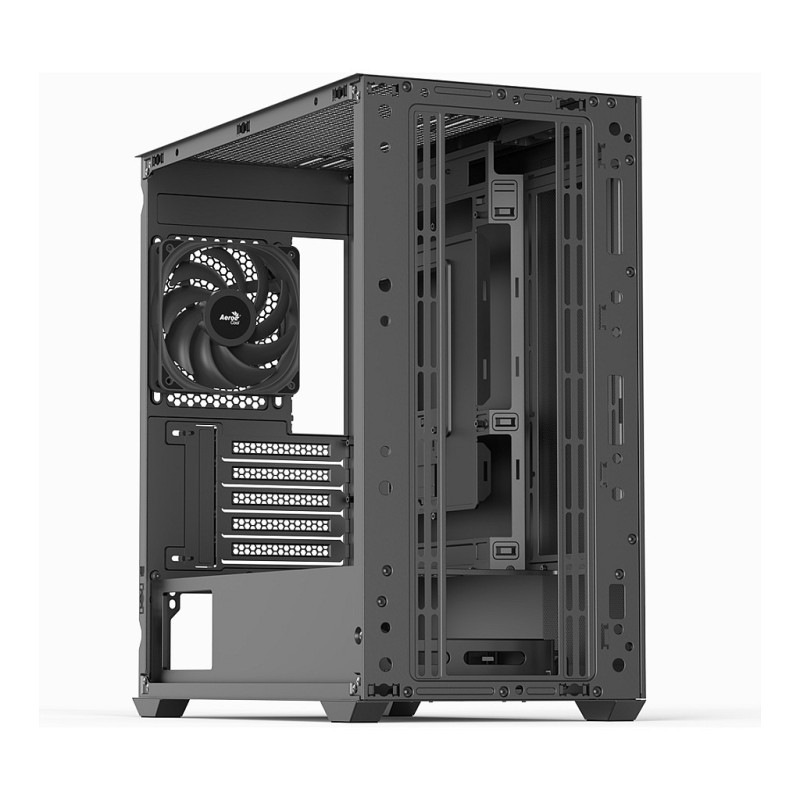

Aerocool D301A

Aerocool D301A. Form factor: Mini Tower, Type: PC, Product colour: Black, Wood. Power supply location: Bottom, Supported power supply form factors: ATX. Front fans diameters supported: 120,140 mm, Side fans diameters supported: 120,140 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 225 mm, Depth: 463.8 mm, Height: 444 mm

The AeroCool D301A mini tower case combines trendy wood-accented mesh front panel design with robust SPCC construction for longevity. It supports ASUS and MSI m-ATX motherboards with backward-facing connectors, liquid coolers up to 360mm, and GPUs up to 410mm, offering powerful PC build potential in a compact form. With 11 fan slots for optimal cooling, versatile storage options, and convenient I/O ports including USB Type C and USB3.0, this case is designed for high-performance and ease of use.

Modern Design Meets Performance

Experience a blend of style and functionality with the AeroCool D301A, featuring a trendy wood-accented mesh front panel and robust SPCC construction. Ideal for powerful builds, it supports liquid coolers up to 360mm and GPUs up to 410mm.

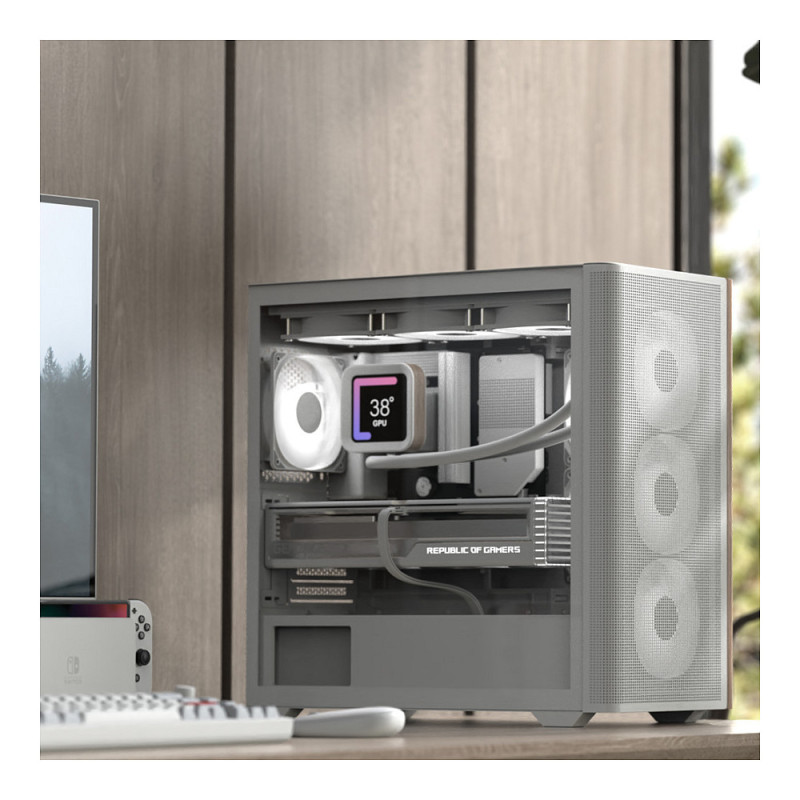

Sleek & Powerful

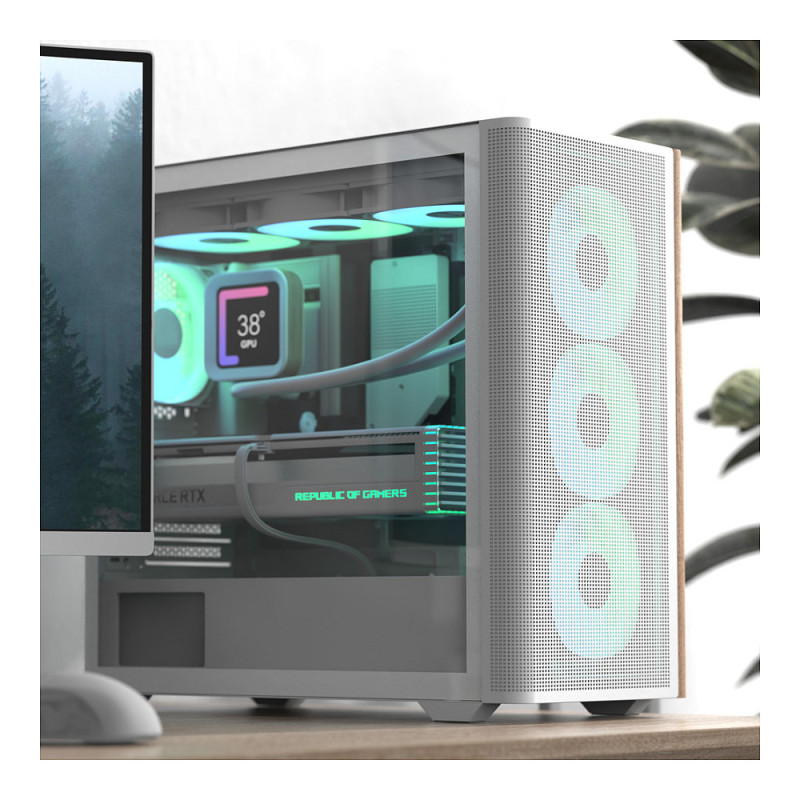

The sleek design can be seen from inside and out while accommodating your high-end components for gaming or other needs.

Trendy & Breezy Design

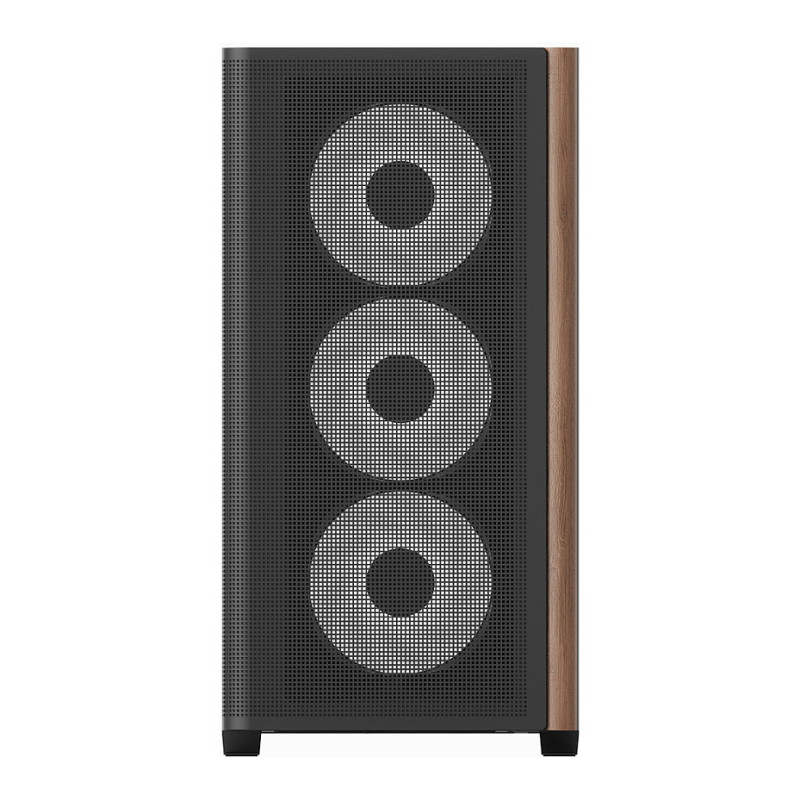

The mesh front panel not only adds a stylish touch but also ensures optimal air ventilation for better cooling efficiency.

Elegantly Crafted

Curved edges and the full mesh front panel accentuate the airflow-oriented structure of the D301A.

Natural Design

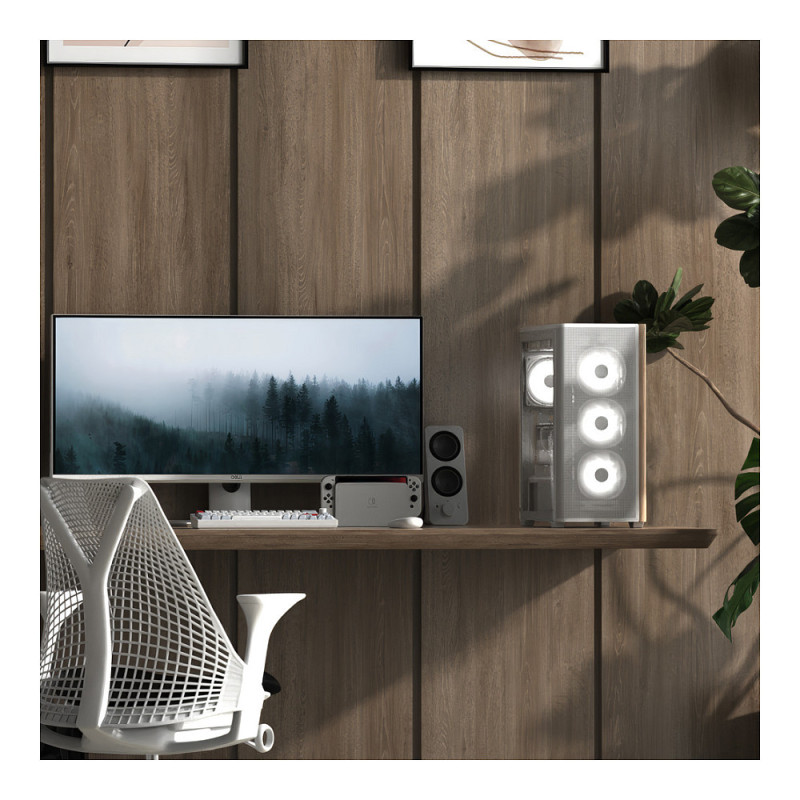

Sit back and enjoy one of our first-ever wood-accented PC cases, with a refined look designed to inspire a natural vibe within your desk space.

Large Area Air Intake

The air intake has been specially designed with large ventilation holes to keep your components cool.

Keep Cables Out of Sight

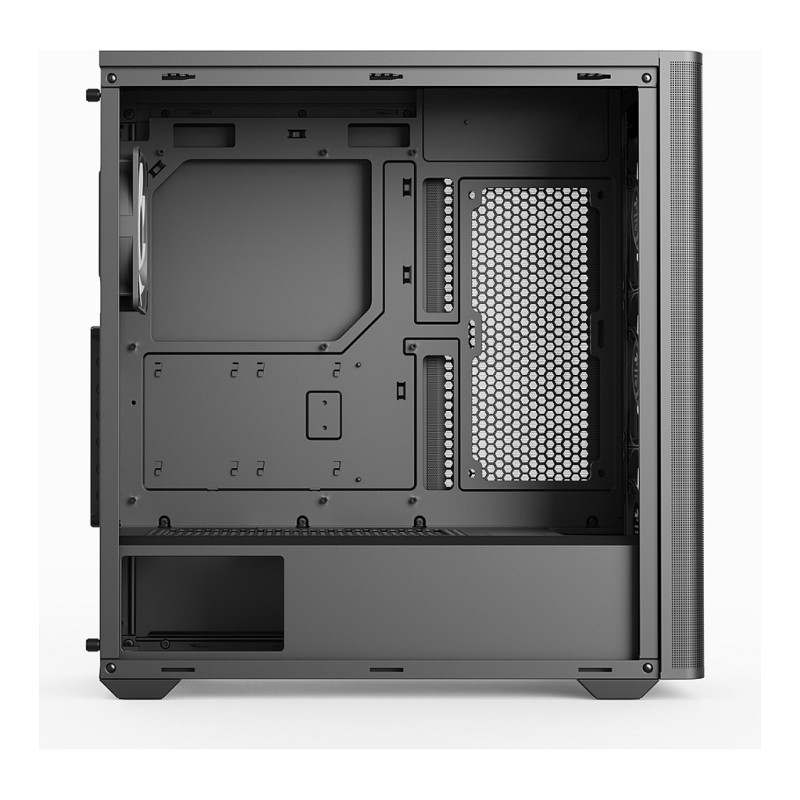

Supports ASUS & MSI m-ATX motherboards with backward-facing connectors to keep your cables hidden and your build looking sleek.

Out-of-the-Box Performance

Easily manage your four pre-installed ARGB fans with the 5-port PWM ARGB control hub, giving you full control over your system's visual aesthetics. (D301A-G-WT-v2 and D301A-G-BK-v2 only)

Type-C Ready

I/O Ports: USB Type C, USB3.0, HD Audio & Mic: Easy access to essential connections.

Superior Cooling Support

With 11 total fan slots and 360mm liquid cooling support on the top and front, the D301A gives you the freedom to push your cooling setup to its full potential for optimal performance.

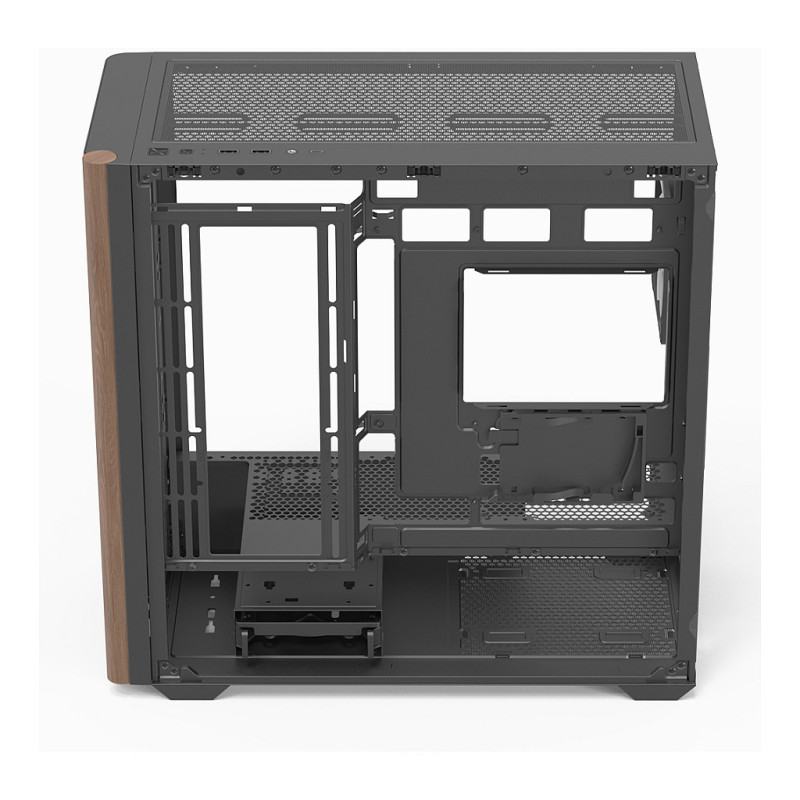

Spacious and Expandable Support

Accommodating GPUs up to 410mm and CPU coolers up to 166mm, the D301A provides ample space for your high-performance components.

Easy Maintenance Filters

Keep your system clean and efficient with the magnetic top filter and removable bottom filter, designed for effortless cleaning and effective dust prevention.

Find Your Vibe

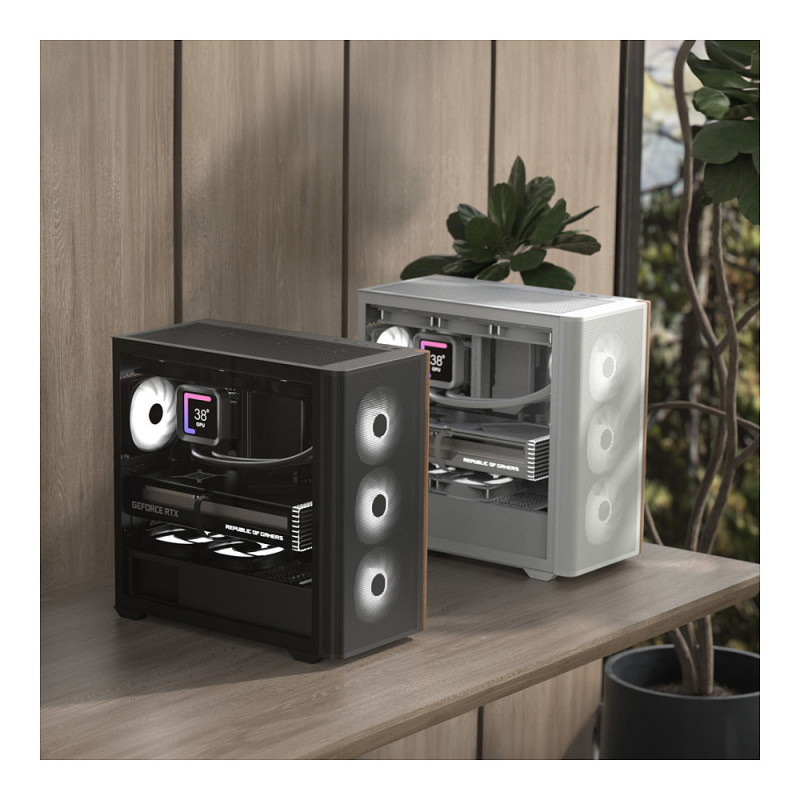

Black and white are available according to your style choice, and you can look forward to more color combinations in the future.

Design

Material: Acrylonitrile butadiene styrene (ABS), SPCC
Form factor: Mini Tower
Type: PC
Product colour: Black, Wood
Supported motherboard form factors: micro ATX, Mini-ITX
Number of 3.5" bays: 1
Number of 2.5" bays: 2
Number of internal 3.5" bays: 1
Number of expansion slots: 5
Feature: Side window
Suitable for: Gaming
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: Reset button
Feature: On/off button
LED indicators: Yes
Maximum CPU cooler height: 16.6 cm
Maximum graphics card length: 41 cm

Power supply

Power supply location: Bottom
Supported power supply form factors: ATX

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: Combo headphone/mic port

Cooling

Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Number of side fans supported (max): 2
Side fans diameters supported: 120,140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 2
Bottom fans diameters supported: 120 mm
Feature: Liquid cooling capability
Front radiator sizes supported: 120,140,240,280,360 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 120,140,240,280,360 mm

Storage

Supported HDD sizes: 2.5,3.5"

Weight & dimensions

Width: 225 mm
Depth: 463.8 mm
Height: 444 mm
Material thickness: 0.5 mm
