Aerocool D502A

Aerocool D502A. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom, Supported power supply form factors: ATX. Front fans diameters supported: 120,140 mm, Side fans diameters supported: 120 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 213 mm, Depth: 461 mm, Height: 476.5 mm

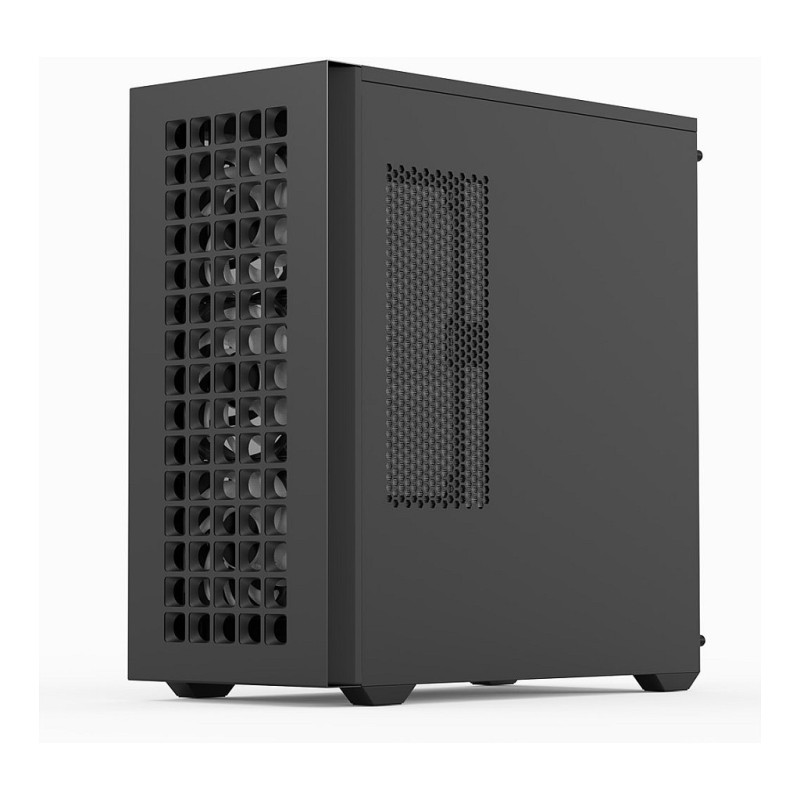

The AeroCool D502A features a stylish mesh front panel design, making it an appealing choice for a trendy mid-tower PC build. It supports liquid coolers up to 360mm and offers 11 fan slots, ensuring excellent cooling potential. With durable SPCC body material, magnetic dust filters, and compatibility with ATX, Micro ATX, and mini-ITX motherboards, the D502A provides robust construction, easy maintenance, and versatile storage options.

Elevate Your Life Experience

Experience superior airflow with our stylish mesh front panel design. This mid tower case supports powerful builds, accommodating liquid coolers up to 360mm and offering 11 fan slots for maximum cooling potential.

Sleek & Powerful

The sleek design can be seen from inside and out while accommodating your high-end components for gaming or other needs.

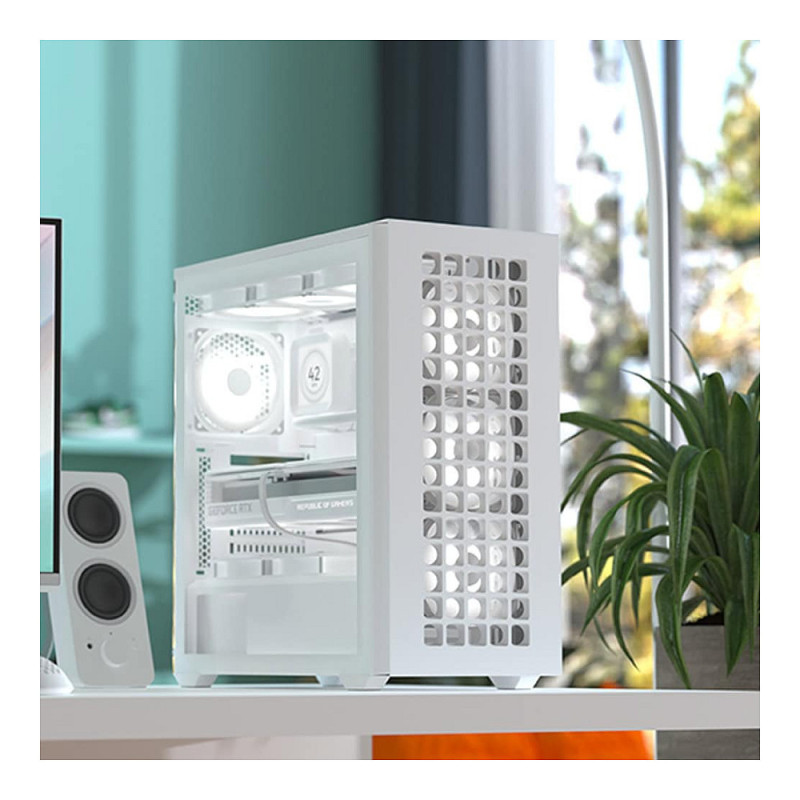

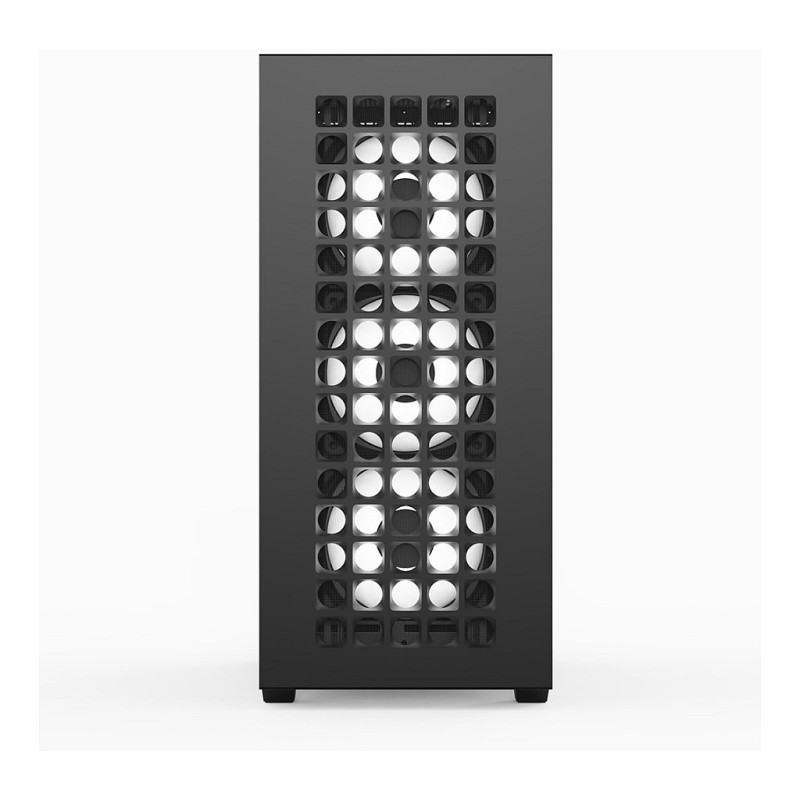

Trendy & Breezy Design

The mesh front panel not only adds a stylish touch but also ensures optimal air ventilation for better cooling efficiency.

Large Area Air Intake

The air intake has been specially designed with large ventilation holes to keep your components cool.

Superior Cooling Support

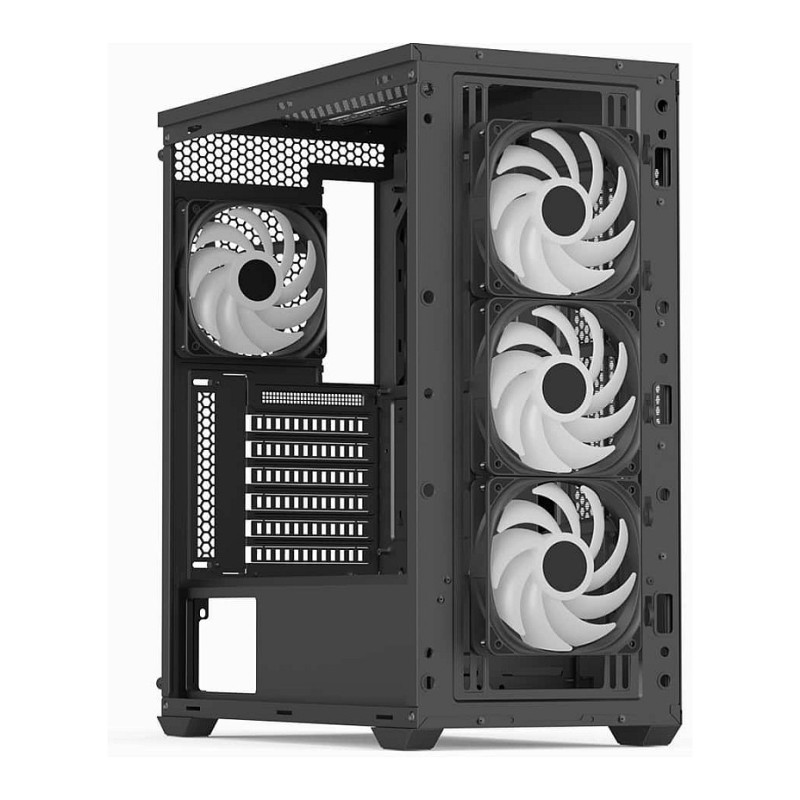

With 11 total fan slots and 360mm liquid cooling support on the top and front, the D502A gives you the freedom to push your cooling setup to its full potential for optimal performance.

Spacious and Expandable Support

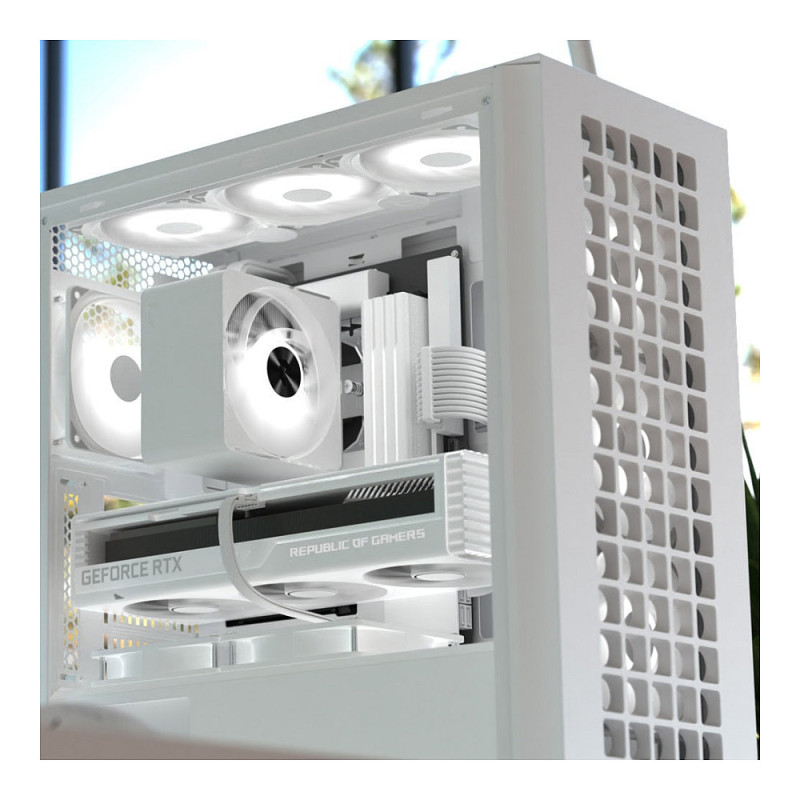

Accommodating GPUs up to 400mm and CPU coolers up to 171mm, the D502A provides ample space for your high-performance components.

Out-of-the-Box Performance

Easily manage your four pre-installed ARGB fans with the 5-port PWM ARGB control hub, giving you full control over your system's visual aesthetics.

Hassle-Free Maintenance

Keep your system clean with magnetic dust filters on the top and side, and a removable filter on the bottom for easy maintenance.

Type-C Ready

I/O Ports: USB Type C, USB3.0, HD Audio & Mic: Easy access to essential connections.

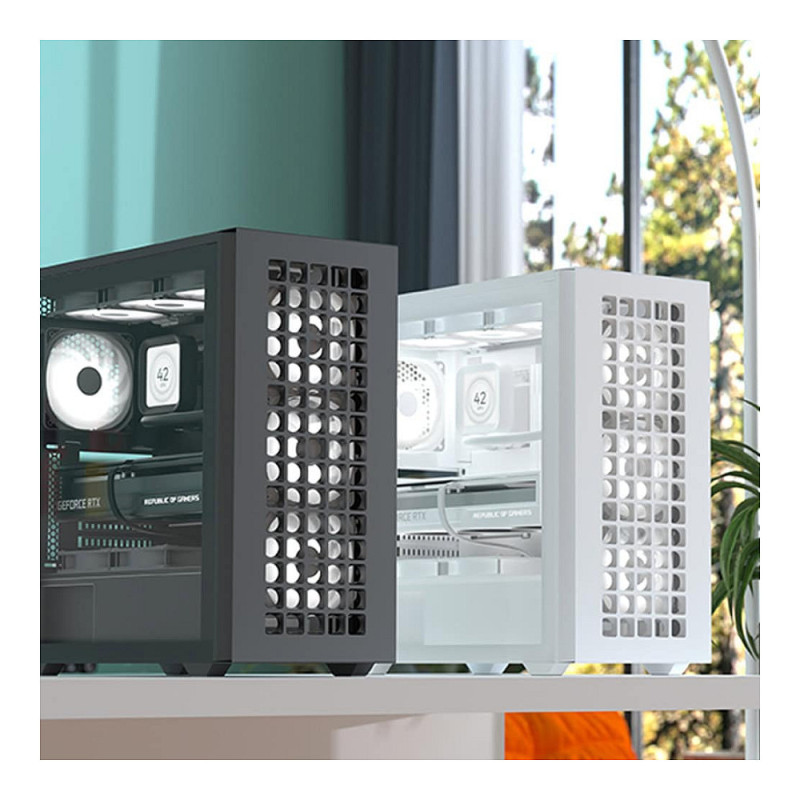

Find Your Vibe

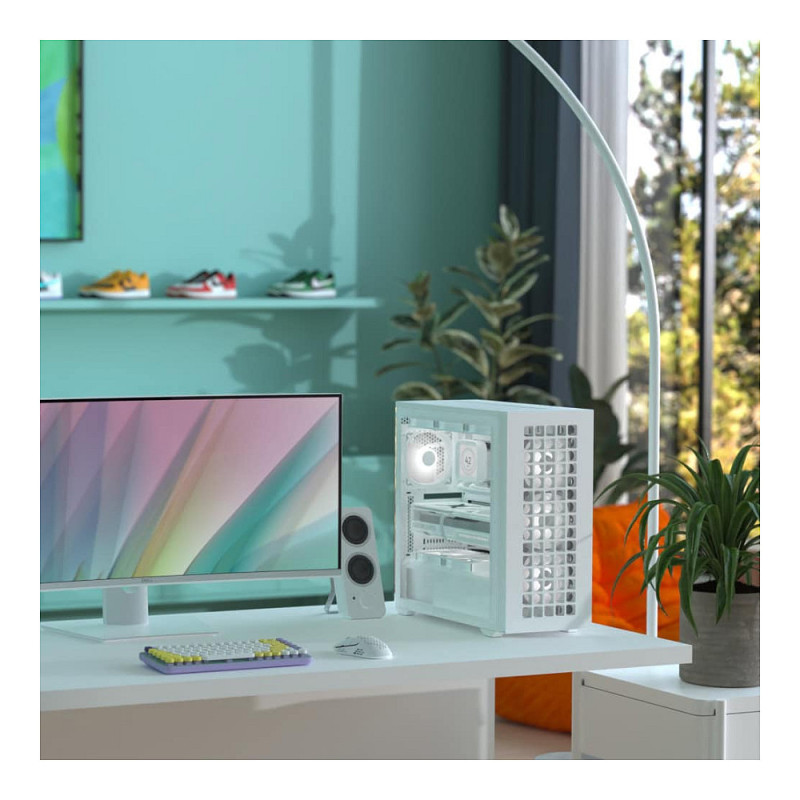

Black and white are available according to your style choice, and you can look forward to more color combinations in the future.

Design

Material: Acrylonitrile butadiene styrene (ABS), SPCC
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5" bays: 3
Number of 2.5" bays: 1
Number of internal 3.5" bays: 3
Number of expansion slots: 7
Feature: Side window
Suitable for: Gaming
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: Reset button
Feature: On/off button
LED indicators: Yes
Maximum CPU cooler height: 17.1 cm
Maximum graphics card length: 40 cm

Power supply

Power supply location: Bottom
Supported power supply form factors: ATX

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: Combo headphone/mic port

Cooling

Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Number of side fans supported (max): 2
Side fans diameters supported: 120 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 2
Bottom fans diameters supported: 120 mm
Feature: Liquid cooling capability
Front radiator sizes supported: 120,140,240,280,360 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 120,140,240,280,360 mm
Feature: Pulse-width modulation (PWM) support

Storage

Supported HDD sizes: 2.5,3.5"
Feature: HDD/SSD combo cage

Weight & dimensions

Width: 213 mm
Depth: 461 mm
Height: 476.5 mm
Material thickness: 0.5 mm
