Access point ZyXEL Zyxel NWA90BE Pro 802.11.be Wifi 7 NebulaFlex access point

NWA90BE PRO BE6500 4-Stream WiFi 7 Dual-Radio NebulaFlex Access Point
Functions

WiFi 7 - new generation

* Support for bands 2.4 GHz, 5 GHz and 6 GHz with speeds up to 6.5 Gbps for the latest digital applications.

Multiple Link Operation (MLO)

* Enables simultaneous transmission and reception across the band, increases bandwidth, reduces latency and ensures connection stability.

Advanced RF design

* The filter eliminates interference between bands and enables seamless coexistence with mobile 4G/5G networks.

NebulaFlex

* Flexible management in a separate mode or through the cloud centrum Nebula Control Center without additional costs.

Specification

IEEE 802.11 be/ax/ac/n/g/b/a
MIMO: MU-MIMO
Speeds:
* 2.4 GHz: 688 Mbps
* 5 GHz: 4324 Mbps
* 6 GHz: 5764 Mbps
Belt:
* 2.4 GHz: 2.412-2.472 GHz (ETSI), 2.412-2.462 GHz (FCC)
* 5 GHz: 5.15-5.35 GHz; 5.470-5.725 GHz (ETSI), 5.15-5.35 GHz; 5.470-5.850 GHz (FCC)
* 6 GHz: 5.925-6.425 GHz (ETSI), 5.925-6.425 GHz; 6.525-7.125 GHz (FCC)
Channel widths: 20/40/80/160/240/320 MHz
Output power:
* US: 26 dBm (2.4 GHz) / 25 dBm (5 GHz) / 22 dBm (6 GHz)
* EU: 20 dBm (2.4 GHz) / 25 dBm (5 GHz) / 22 dBm (6 GHz)
Antennas: Vstavané
Antenna gain:
* 2.4 GHz: 2 dBi, 2×2:2 SS
* 5 GHz: 3 dBi, 2×2:2 SS
* 6 GHz: 3 dBi, 2×2:2 SS
Reception sensitivity: up to -99 dBm
FUNCTION WLAN
Support: Band Steering, Mesh (WDS), DCS, fast roaming (PMK caching, 802.11r/k/v)
Advanced coexistence: Yes
Load balancing: Nie
SAFETY
Encryption: WEP, WPA, WPA2, WPA3
Authentication: IEEE 802.1X / RADIUS
Access management: L2 isolation, filtering MAC, detection Rogue AP
NETWORK
IPv6: Áno
VLANs: Áno
QoS: WMM, U-APSD
REPORT
Modes: Cloud-managed / Standalone
Utility: Zyxel ZON (objavovanie, configuration, restart, update FW)
Interface: Web GUI, CLI
SNMP: Nie
HARDWARE

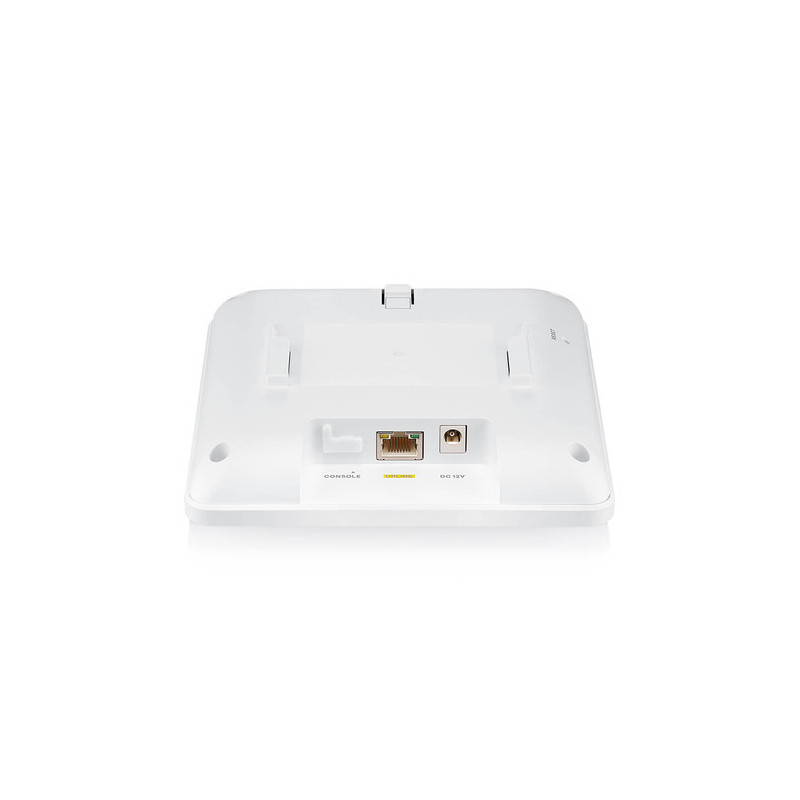

Interface: 1× 1/2.5GbE LAN port
Power supply:
* Adapter: AC 100-240 V, DC +12V/1.5A
* PoE: IEEE 802.3at / 802.3bt (full support), consumption 16 W
* IEEE 802.3af: nepodporované
PHYSICAL
Device dimensions: 150 × 150 × 35 mm
Weight: 412 g
Package dimensions: 244 × 168 × 60 mm
Package weight: 785 g
MTBF: 870.551 h
Accessories: power adapter, assembly set
PROSTREDIE
Operating temperature: 0-50 °C
Operating humidity: 10-95 % (non-condensing)
Storage temperature: -40-70 °C
Storage humidity: 10-90 % (non-condensing)
CERTIFICATION
Radio: FCC Part 15C/15E, ETSI EN 300 328, EN 301 893, Draft EN 303 687
EMC: FCC Part 15B, EN 301 489-1/17, EN55032, EN55035
Safety: EN 62368-1, IEC 62368-1, BSMI CNS15598-1
