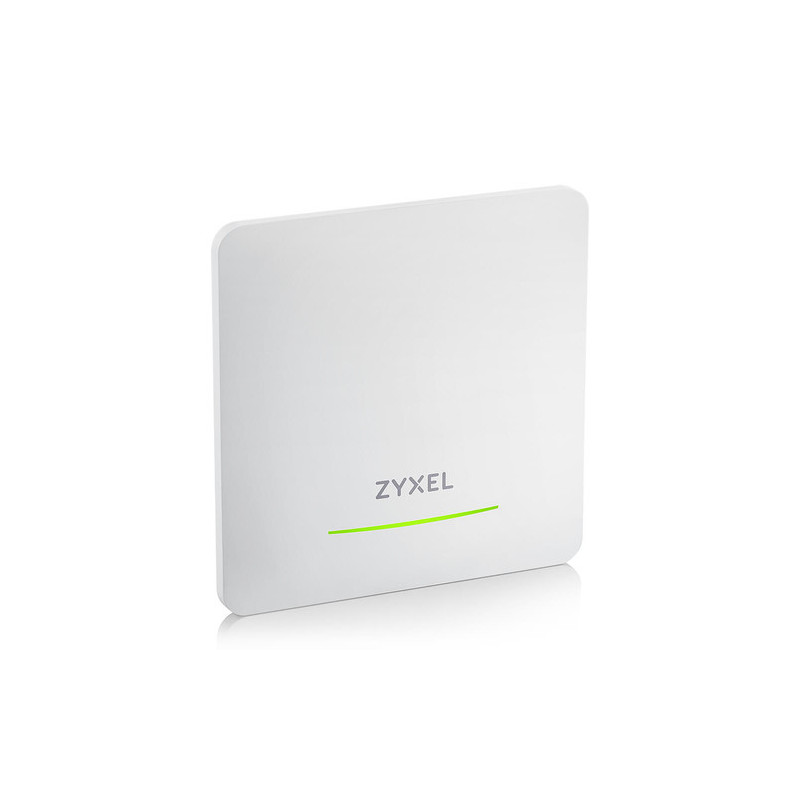

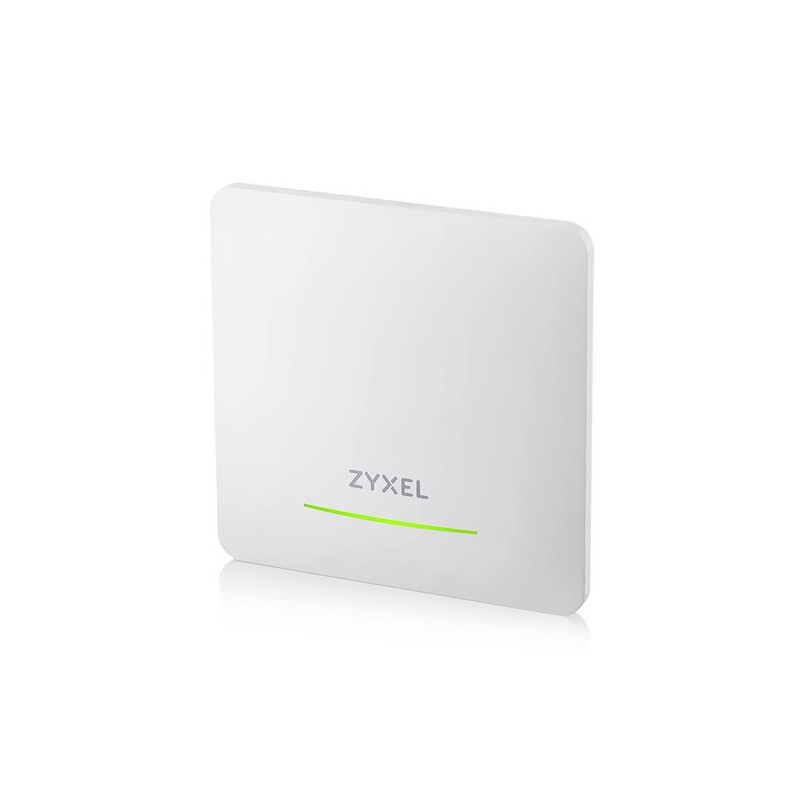

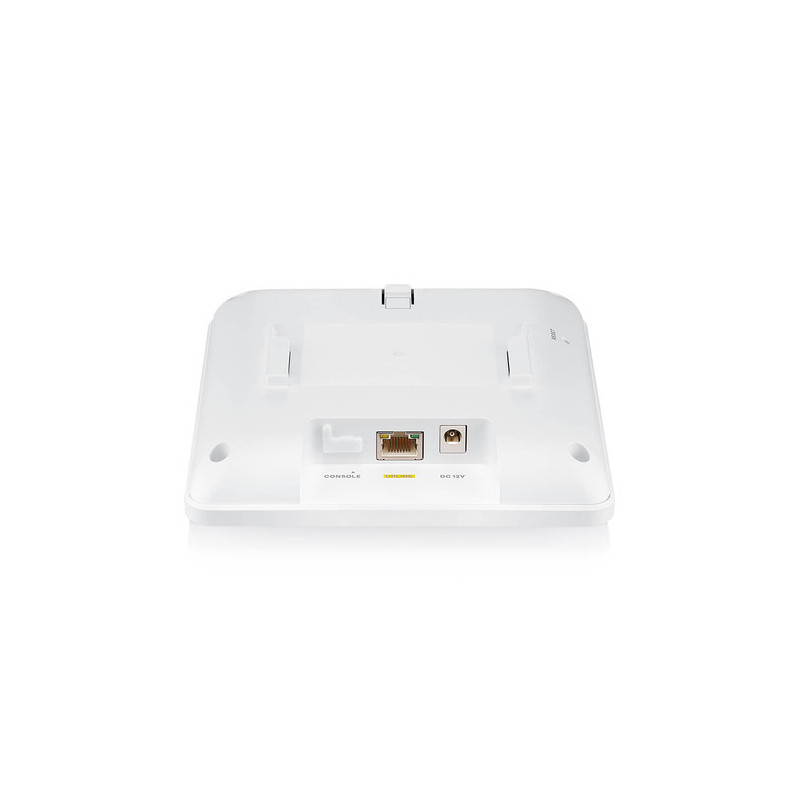

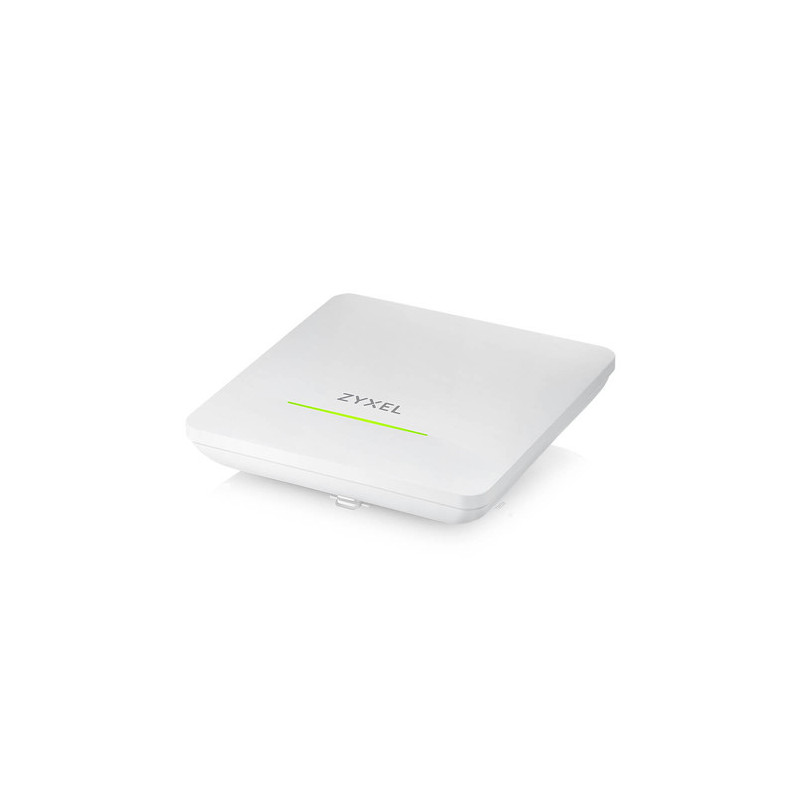

Zyxel NWA50BE access point
Zyxel NWA50BE access point





Zyxel NWA50BE access point
Guarantee
24 month
Delivery from Europe in
10 - 19
business days
Zyxel NWA50BE is a modern access point with WiFi 7 support, which brings high speeds, low latency and flexible management options. Thanks to the NebulaFlex technology, the device can be easily operated independently or within a cloud solution.
Features
* WiFi speed: up to 5.1 Gbps (2.4 GHz: 2x2:2, 5 GHz: 2x2:2)
* Smart Mesh MLO: dual radio backhaul for higher bandwidth, lower latency and interference resistance
* 2,5GbE port: ensures higher performance than gigabit compatibility with WiFi 7
* NebulaFlex: option prepinať medzi standalone a cloudovou správou
Wireless connection
* Standard: IEEE 802.11 be/ax/ac/n/g/b/a
* MIMO: MU-MIMO
* 2.4 GHz speed: 688 Mbps
* 5 GHz speed: 4324 Mbps
* 2.4 GHz band: 2.412 - 2.472 GHz (USA/EU)
* 5 GHz band: 5.150 - 5.850 GHz (USA/EU)
* Channel width: 20/40/80/160/240 MHz
* Output power (USA): 26/25 dBm (2.4/5 GHz)
* Output power (EU): 20/25 dBm (2.4/5 GHz)
RF design
* Antenna: interná
* Antenna gain 2.4 GHz: 2 dBi, 2x2:2SS
* Antenna gain 5 GHz: 3 dBi, 2x2:2SS
* Receiver sensitivity: up to -99 dBm
WLAN functions
* Band Steering: Áno
* WDS/Mesh: Áno
* Fast roaming: Áno (802.11r/k/v, PMK caching)
* DCS: Áno
* Load balancing: Nie
* Advanced Cellular Coexistence: Áno
Secured
* Encryption: WPA/WPA2/WPA3 personal
* Access management: L2 isolation, MAC filtering, detection rogue AP
* Authentication: Nie
Network functions
* IPv6: Áno
* VLANs: Áno
* WMM: Áno
* U-APSD: Áno
Report
* Operating mode: standalone / cloud
* ZON Utility: áno (IP configuration, obnova, reboot, upgrade FW, správa hesiel, lokalizácia záměstíka)
* Web UI/CLI: Áno
* SNMP: Nie
Physical parameters
* Unit dimensions: 150 × 150 × 35 mm / 5.91 × 5.91 × 1.38 in
* Unit weight: 412 g / 0.91 lb
* Package dimensions: 244 × 168 × 60 mm / 9.61 × 6.61 × 2.36 in
* Package weight: 785g / 1.73lb
* MTBF: 870 551 h
Package contents
* Accessories: power adapter, mounting plate, screws
Storage
* Ethernet: 1 × 2,5GbE LAN
* Power supply: adapter AC100-240 V, 50/60 Hz, output DC +12V 1,5A
* PoE: IEEE 802.3at (spotreba 16 W), IEEE 802.3af nie je podorované
Manufacturer's website: https://www.zyxel.com/cz/cs/support/download?model=nwa50be
| Model design | |
|---|---|
| Wifi Mesh Support | Yes |
| Device type | Acces point/Bridge |
| Connection | |
| PoE in standard version | 802.3bt (max. 90W) - PoE++ |
| Standard output PoE | Not supported |
| Entry point | In (input) |
| PoE power budget (W) | It doesn't matter. |
| Wi-Fi 2.4 GHz | Yes |
| Wi-Fi 4 (802.11n) | Yes |
| Wi-Fi 5 (802.11ac) | Yes |
| Wi-Fi 5 GHz | Yes |
| Wi-Fi 6 (802.11ax) | Yes |
| Wi-Fi 7 (802.11be) | Yes |
| WiFi 1 (802.11b) | Yes |
| WiFi 2 (802.11a) | Yes |
| WiFi 3 (802.11g) | Yes |
| Speed | |
| Maximum LAN speed | 2.5Gbps |
| Maximum Wi-Fi speed | 4.2 Gbps |
| Outdoor accessories | |
| Number of LAN ports | 1 |
