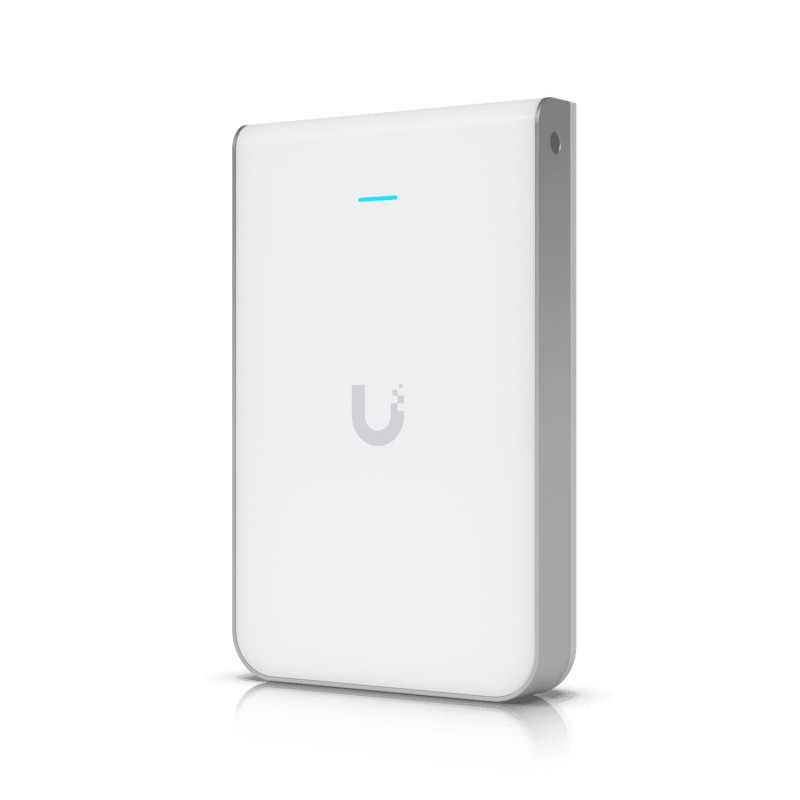

Wireless LAN transmission Ubiquiti UniFi UAP-IW-HD
Product reference: 26-UBIQUITIUAPIWHD
  • Type: Wireless LAN device
  • Model: UBIQUITI UAP-IW-HD
  • Network interface: (5) GbE RJ45 connectors
  • PoE interface: (1) PoE input
  • Power supply: UniFi PoE switch
  • Voltage: 44-57V DC
  • Maximum power consumption: 23W
  • Data rate (2.4 GHz): 300 Mbps
  • Data rate (5 GHz): 1.7 Gbps
  • Operating temperature: -10 to 60° C
  • MIMO (2.4 GHz): 2 x 2
  • MIMO (5GHz): 4x4
Wireless LAN transmission Ubiquiti UniFi UAP-IW-HD

Wireless LAN transmission Ubiquiti UniFi UAP-IW-HD

Product reference: 26-UBIQUITIUAPIWHD
  • Type: Wireless LAN device
  • Model: UBIQUITI UAP-IW-HD
  • Network interface: (5) GbE RJ45 connectors
  • PoE interface: (1) PoE input
  • Power supply: UniFi PoE switch
  • Voltage: 44-57V DC
  • Maximum power consumption: 23W
  • Data rate (2.4 GHz): 300 Mbps
  • Data rate (5 GHz): 1.7 Gbps
  • Operating temperature: -10 to 60° C
  • MIMO (2.4 GHz): 2 x 2
  • MIMO (5GHz): 4x4
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
15487 €
Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Size 139.7 x 86.7 x 25.8 mm (5.5 x 3.4 x 1")
  • Weight 210g (7.4oz)
  • Network interface (5) GbE RJ45 ports
  • Control interface Network
  • PoE interface (1) PoE/PoE+ in, (1) PoE out
  • Power method PoE, PoE+ (Required for PoE passthrough)
  • Power supply UniFi PoE switch
  • PoE out 48V pass-through (Pins 1, 2+; 3, 6-)
  • Supported voltage range 44—57V DC
  • Maximum power consumption 11W (Excluding PoE output)
  • Maximum PoE power per port according to PSE 23W* (*Requires PoE switch.)
  • Max TX power 2.4 GHz: 23 dBm, 5 GHz: 26 dBm, 6 GHz: -
  • MIMO 2.4 GHz: 2 x 2 (DL MU-MIMO), 5 GHz: 4 x 4 (DL MU-MIMO), 6 GHz: -
  • Maximum data rate 2.4 GHz: 300 Mbps (BW40), 5 GHz: 1.7 Gbps (BW80), 6 GHz: -
  • Antenna amplification 2.4 GHz: 1.8 dBi, 5 GHz: 6 dBi, 6 GHz: -
  • Button Factory reset
  • Installation 1-Gang electrical wall box (Optional)
  • Operating ambient temperature -10 to 60°C (14 to 140°F)
  • Ambient humidity 5 to 95% non-condensing
  • Certificates CE, FCC, IC, cULus
  • WiFi standards 802.11 a/b/g/n/ac
  • Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
  • BSSID Up to 8 on the radio
  • VLANs 802.1Q
  • Advanced QoS Per-user rate limiting
  • Guest traffic isolation Supported
  • Energy saving Supported
  • Beam forming Supported
  • WMM Voice, video, best effort, and background
  • Concurrently logged in clients 200+
  • Supported Data Rates (Mbps) 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11b: 1, 2, 5.5, 11 Mbps, 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11n: 6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40), 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS

Manufacturer codeUBIQUITIUAPIWHD
ManufacturerUbiquiti
Weight0 kg
