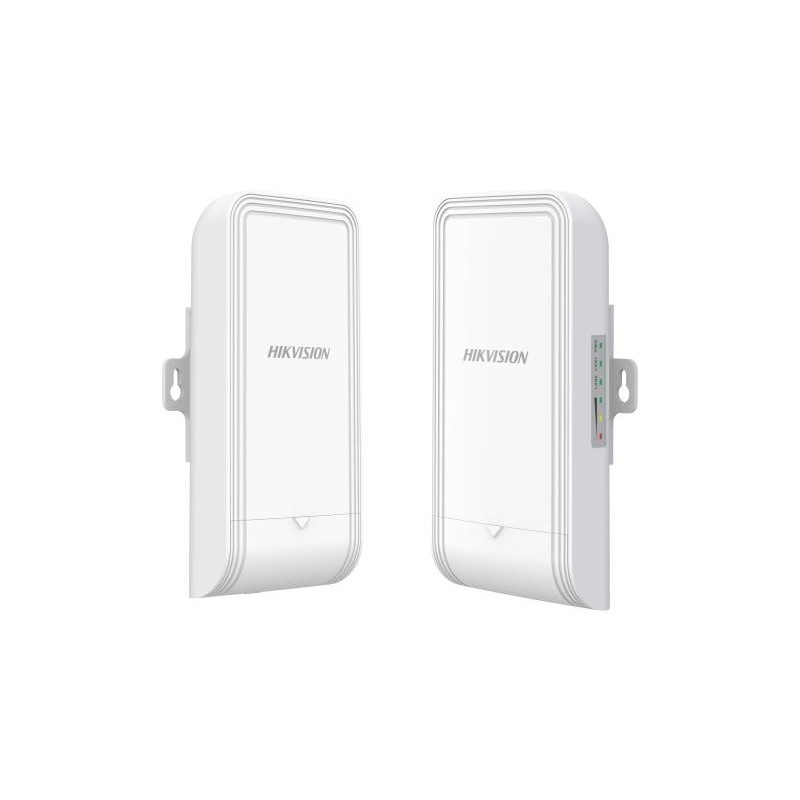

Wireless LAN transmission Hikvision DS-3WF1000-EI-2N (2 pcs. set, outdoor)
Product reference:
26-6936422121327
- Wireless transmission distance up to 1 km
- 300Mbps 802.11n Wireless Bridge
- Integrated 7 dBi 2 x 2 MIMO antenna
- Visualized topology management
- Real-time alarm notification technology
- This product is sold in a set (2 pcs. per package).
Wireless LAN transmission Hikvision DS-3WF1000-EI-2N (2 pcs. set, outdoor)
Product reference:
26-6936422121327
- Wireless transmission distance up to 1 km
- 300Mbps 802.11n Wireless Bridge
- Integrated 7 dBi 2 x 2 MIMO antenna
- Visualized topology management
- Real-time alarm notification technology
- This product is sold in a set (2 pcs. per package).
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- Approvals
- Certification of chemical components CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
- EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- Radio EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
- Security CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
- General data
- Total weight 0.9 kg (1.98 lb)
- Intrusion protection IP55
- Installation Mode Pole Mounting
- Net weight 0.26 kg (0.57 lb) per device
- Packaging Dimensions (W × H × D) 256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
- In the package Wireless Bridge × 2, Power Adapter (12 VDC, 1 A) × 2, 10/100 Mbps PoE Injector × 2, Binding Tape × 4, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
- Packing Method Packing in pairs
- Energy consumption 1.8 W for typical (1-ch 2MP IPC), Max. 4.5 W
- Product dimensions (W × H × D) 90.8mm × 187.87mm × 57.87mm (3.57'' × 7.39'' × 2.27'')
- Storage humidity 5% to 95% (no condensation)
- Storage temperature -40 °C to 80 °C (-40 °F to 176 °F)
- Operating humidity 5% to 95% (no condensation)
- Operating temperature -30 °C to 60 °C (-22 °F to 140 °F)
- Hardware Parameters
- LED indicator Power indicator, LAN indicator, Signal intensity indicator
- Network interface 2 × 10/100 Mbps RJ45 ports
- Energy source 12-24 VDC Passive PoE
- Reloading Hardware reset button
- Software features
- Application Function IFM, IPM
- Channel Selection Auto/manual selection
- Channel width 10/20/40MHz
- HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Reboot device2. Restore device3. Display the topology information4. Display the connection status between AP and CPEs, including signal intensity, background noise, sending receiving rate5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power6. Bridge alignment7. Spectrum scanning
- Management Method HCP,Web,iVMS-4200,HPP
- Protocols NTP (network time synchronization), SADP (auto search for IP address), HTTPS/HTTP (web management), SSH (debugging)
- Security Mechanism Wireless network name hidden
- Security Mode WPA2-PSK
- System log Syslog, Control center information
- Upgrade Web,iVMS-4200,HCP,HPP
- Wireless settings
- Antenna Angle (H) Beamwidth [3 dB] 60° (V) Beamwidth [3 dB] 50°
- Antenna amplification 7 dBi
- Max. Transmission Rate of Air Interface ≤ 300Mbps
- Receiving Sensitivity -87±2 dBm @HT40 MCS0
- Throughput Rate PTP:,90 Mbps/0.2 KM(HT40),90 Mbps/0.5 KM(HT40),70 Mbps/1 KM(HT40),PTMP(1 to 4):,40 Mbps/1 KM(HT40)
- Transmission power 22 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.)
- Wireless communication standard IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)
- Working Frequency Band 2400MHz ~ 2483.5MHz
| Weight | 0.734 kg |
