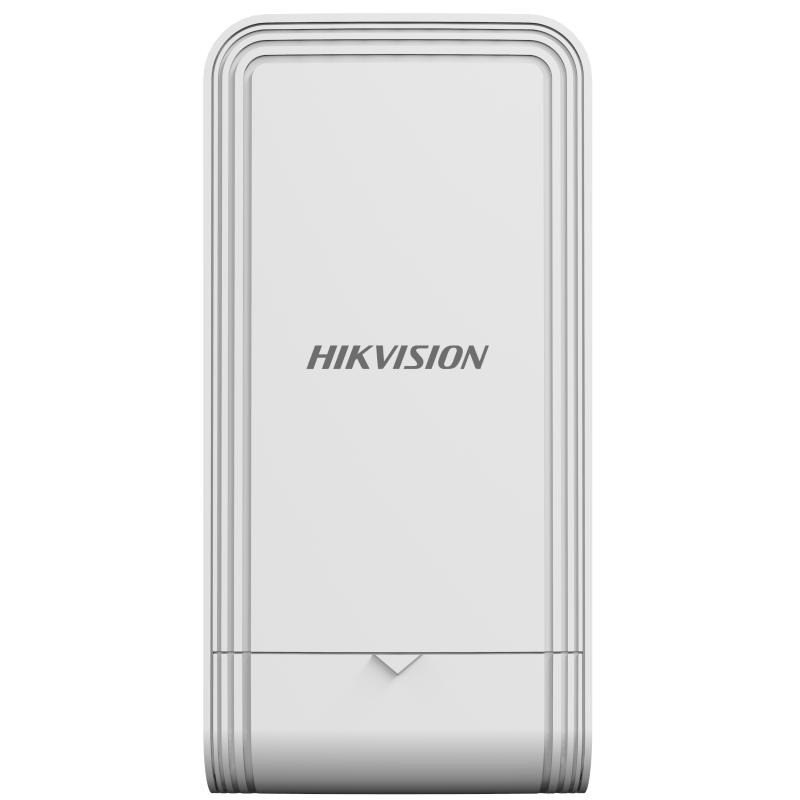

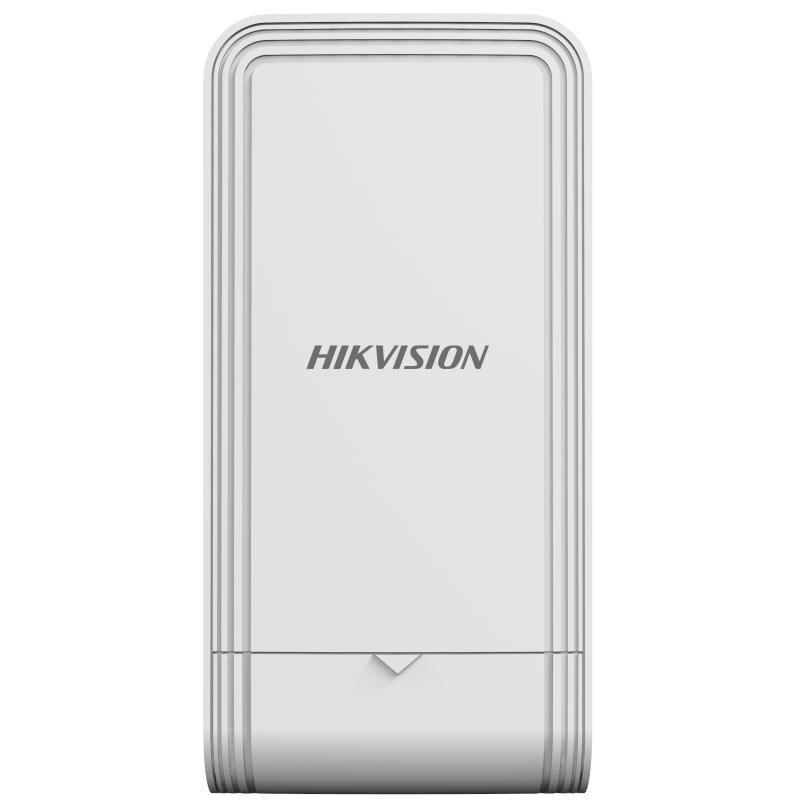

Wireless LAN transmission Hikvision DS-3WF03C-5AC / O(V3) (5GHz, 867Mbps, 15km)

Product reference: 26-6942160495729

You have 3 products in compare list, please remove someone and try again

Add to compare

10910 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Approvals
Certification of chemical components CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020); IC (ICES-003: Issue 7:2020); RCM (AS/NZS CISPR 32: 2015)
Radio EN 301 893; EN 300 440; EN 62311; EN 301 489-3; EN 301 489-17; FCC Part 15.247
Security UL (UL 60950-1); CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 62368-1: 2014+A11: 2017)

General data
Total weight 0.807 kg (1.779 lb)
Installation Mode Pole mounting
Net weight 0.307 kg (0.677 lb)
Packaging Dimensions (W × H × D) 132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
In the package Wireless bridge × 1, power adapter (12 VDC, 1 A) × 1, 1000 MB PoE injector × 1, binding tape × 2, quick start guide × 1
Packing Method Single unit packing
Energy consumption 3 W for typical (1-ch 2MP IPC), Max. 7.5 W
Product dimensions (W × H × D) 92 mm × 187 mm × 58 mm (3.62" × 7.36" × 2.28")
Storage humidity 5% to 95% (no condensation)
Storage temperature -40°C to 85°C (-40°F to 185°F)
Operating humidity 5% to 95% (no condensation)
Operating temperature -30°C to 70°C (-22°F to 158°F)

Network settings
Networking Mode Point to point: Support up to 4-ch IPC (2MP) in Max. 15 KM distance and Max. 20 Mbps bandwidth, Point to point: Support up to 40-ch IPC (2MP) in Max. 5 KM distance and Max. 200 Mbps bandwidth, Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 5 KM distance and Max. 80 Mbps bandwidth within 30°, Max. 1 to 8 PTMP connection

Software features
Application Function TDMA, DFS, TPC, IFM, IPM
Channel Selection Auto/manual selection
Channel width 20/40/80MHz
Management Method Web, HCP
Protocols NTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management), SSH (debugging)
Security Mechanism Wireless network name hidden
Security Mode WPA2-PSK
System log Syslog, control center information
Upgrade Web, iVMS-4200

Wireless settings
Antenna Angle Beamwidth [3dB] (35°± 5°)
Antenna amplification 12 dBi
Max. Transmission Rate of Air Interface ≤ 867Mbps
Receiving Sensitivity -60 ± 2 dBm@AC80 -MCS9; -86 ± 2 dBm@AC80 -MCS0
Transmission power 27 dBm (Note: Transmitting power may vary with local regulations.)
Wireless communication standard IEEE 802.11/a/n/ac
Working Frequency Band 5150 to 5250 MHz5250 to 5350 MHz (DFS)5470 to 5725 MHz (DFS)5725 to 5850 MHz (Note: Available channel may vary with local regulations.)

Weight

0.434 kg
