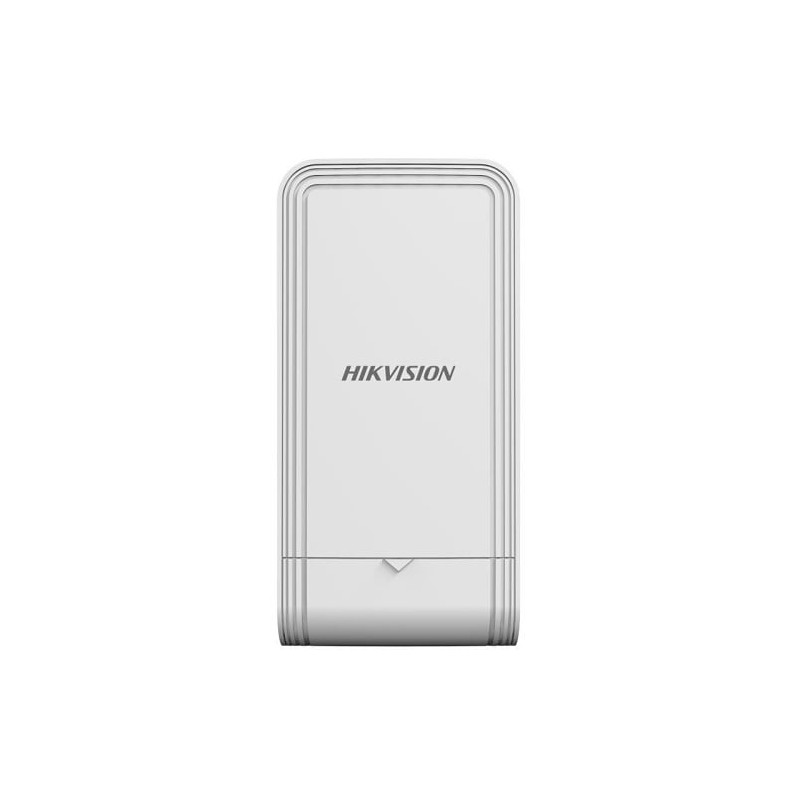

Wireless LAN transmission Hikvision DS-3WF02C-5AC / O(V3) (5GHz, 867Mbps, 5km)

Product reference: 26-6942160495743

You have 3 products in compare list, please remove someone and try again

Add to compare

5312 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Home
Product Dimensions (W × H × D) 92 mm × 187 mm × 58 mm (3.62'' × 7.36'' × 2.28'')
Packaging Dimensions (W × H × D) 132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
Weight without packaging 0.307 kg (0.677 lb)
Weight with packaging 0.807 kg (1.779 lb)
In the package Wireless Bridge × 1, Power Adapter (12 VDC, 1 A) × 1, Binding Tape × 2, Quick Start Guide × 1
Packing Method Single unit packing
Operating temperature -30 °C to 70 °C (-22 °F to 158 °F)
Moisture resistance 5% to 95% (no condensation)
Storage conditions temperature -40 °C to 85 °C (-40 °F to 185 °F)
Storage conditions humidity 5% to 95% (no condensation)
Installation Mode Pole Mounting
Ingress Protection IP55
Energy consumption 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W

Wireless settings
Throughput Rate Point to point: Support up to 4-ch IPC (2MP) in Max. 5 KM distance and Max. 20 Mbps bandwidth, Point to point: Support up to 40-ch IPC (2MP) in Max. 1 KM distance and Max. 200 Mbps bandwidth, Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 1 KM distance and Max. 80 Mbps bandwidth within 30°, Max. 1 to 8 PTMP connection
Max. Transmission Rate of Air Interface ≤ 867Mbps
Wireless standard IEEE 802.11/a/n/ac
Working Frequency Band 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz
Antenna amplification 12 dBi
Antenna Angle (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
Transmitting Power 22 dBm (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity -58±2 dBm@AC80-MCS9,-84±2dBm@AC80-MCS0

Software features
Application Function TDMA,DFS,TPC,IFM,IPM
Channel width 20/40/80MHz
Channel Selection Auto/manual selection
Protocols NTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management), SSH (debugging)
Security Mode WPA2-PSK
Security Mechanism Wireless network name hidden
Management Method Web,iVMS-4200,HCP
Upgrade Web,iVMS-4200,HCP
System Log Syslog, Control center information

Approvals
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Security UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemical analysis CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,FCC Part 15.247

Weight

0.393 kg
