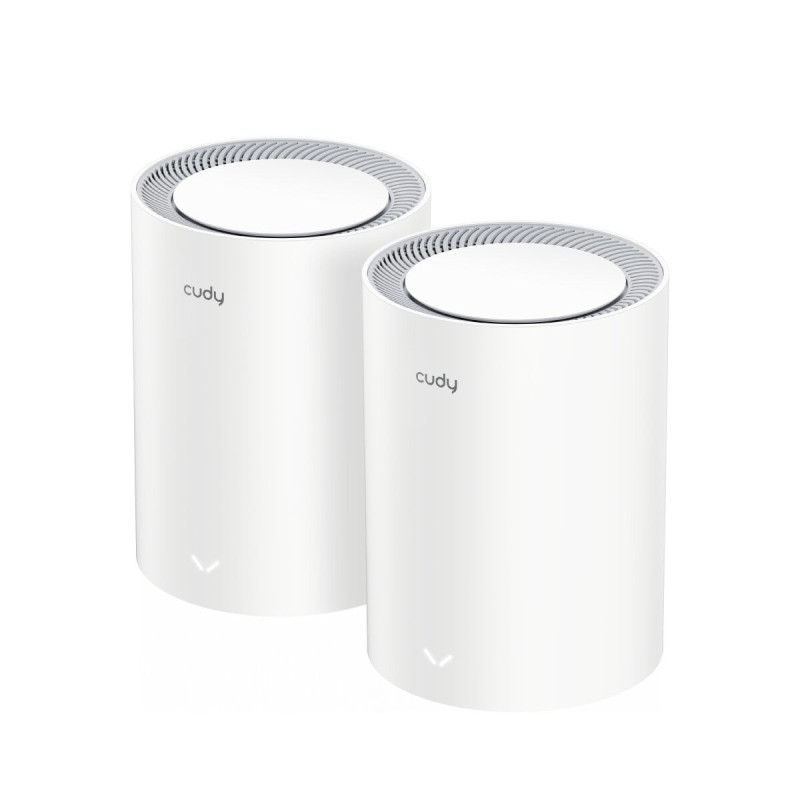

Wi-Fi Mesh system Cudy M3000 1.0 (2 pcs.)
Product reference: 26-6971690792954
  • Type: Wi-Fi Mesh system
  • Model: CUDY M3000 1.0
  • Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • Ports: 2 x RJ45 (1 x 2.5 Gbps WAN; 1 x 1 Gbps LAN)
  • Wi-Fi speed: up to 574 Mbps @ 2.4 GHz; 2402 Mbps @ 5 GHz
  • Recommended number of connected devices: 200 (max 512)
  • MIMO technology: 2x2 MIMO
  • Security protocols: WPA/WPA2/WPA3
  • Operating modes: Router, AP, Extender, WISP, Client
  • Cudy Mesh: Yes
  • Wi-Fi distance: up to 220 m
  • Wi-Fi coverage area: 200 m2
  • Flash memory: 128MB NAND
  • DDR memory (RAM): 256MB DDR3
  • Power supply: 12V 1A DC
  • Set includes 2 pieces.
  • In stock
Wi-Fi Mesh system Cudy M3000 1.0 (2 pcs.)

Wi-Fi Mesh system Cudy M3000 1.0 (2 pcs.)

Product reference: 26-6971690792954
  • Type: Wi-Fi Mesh system
  • Model: CUDY M3000 1.0
  • Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • Ports: 2 x RJ45 (1 x 2.5 Gbps WAN; 1 x 1 Gbps LAN)
  • Wi-Fi speed: up to 574 Mbps @ 2.4 GHz; 2402 Mbps @ 5 GHz
  • Recommended number of connected devices: 200 (max 512)
  • MIMO technology: 2x2 MIMO
  • Security protocols: WPA/WPA2/WPA3
  • Operating modes: Router, AP, Extender, WISP, Client
  • Cudy Mesh: Yes
  • Wi-Fi distance: up to 220 m
  • Wi-Fi coverage area: 200 m2
  • Flash memory: 128MB NAND
  • DDR memory (RAM): 256MB DDR3
  • Power supply: 12V 1A DC
  • Set includes 2 pieces.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
13287 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General data
  • Model version M3000 1.0
  • CPU chipset MT7981
  • Processor information 1.3 GHz Dual-Core, ARM Cortex-A53
  • Flash/ROM memory 128MB (1Gbit) NAND
  • DDR/RAM memory 256MB (2Gbit) DDR3
  • 5 GHz Wi-Fi Speed 2402 Mbps
  • 2.4 GHz Wi-Fi speed 574 Mbps
  • 5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • Wi-Fi antennas 5× Internal
  • 5 GHz antenna gain max 5.1 dBi
  • 2.4 GHz antenna gain max 4.2 dBi
  • FEM or PA/LNA 5 GHz: 3× Internal, 2.4 GHz: 2× Internal
  • Beamforming True
  • Operating range Max: 220 m (722 ft); Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
  • Wall permeability Two wooden walls with thickness < 10 cm (4''), One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
  • Indoor Coverage Reference 2 Pack: 200 m² (2150 sq ft), 3 Pack: 270 m² (2900 sq ft); Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.
  • 2.5G RJ45 Ports 1
  • Gigabit RJ45 Ports 1
  • Ethernet Notes The 2.5G port is a WAN port, the Gigabit port is a LAN port
  • LED indicators System, Speed/Link/ACT of Ethernet Port
  • Physical buttons WPS Button, Reset Button
  • Power input DC Jack
  • Feeding methods DC
  • DC 12V 1A
  • Power adapter Input: 100 ~ 240 V, 50/60 Hz AC; Output: 12V 1A DC
  • Max. power consumption 11.5W
  • Standby power consumption 4.2W
  • Work environment Operating Temperature: 0~40 (32~104 ); Humidity: 10% ~ 90% non-condensing
  • Storage environment Storage Temperature: -40 ~ 70 (-40 ~ 158 ); Storage Humidity: 5% ~ 95% non-condensing
  • Certificates FCC, CE
  • Installation Desktop
  • Dimensions Φ110×154.5 mm (Φ4.33×6.08 inches)
  • Product weight 360g (12.7oz)
  • Package contents M3000, Power Adapter, Ethernet Cable, Installation Guide

Manufacturer codeCUDYM30002P
ManufacturerCudi
Weight0.6 kg
