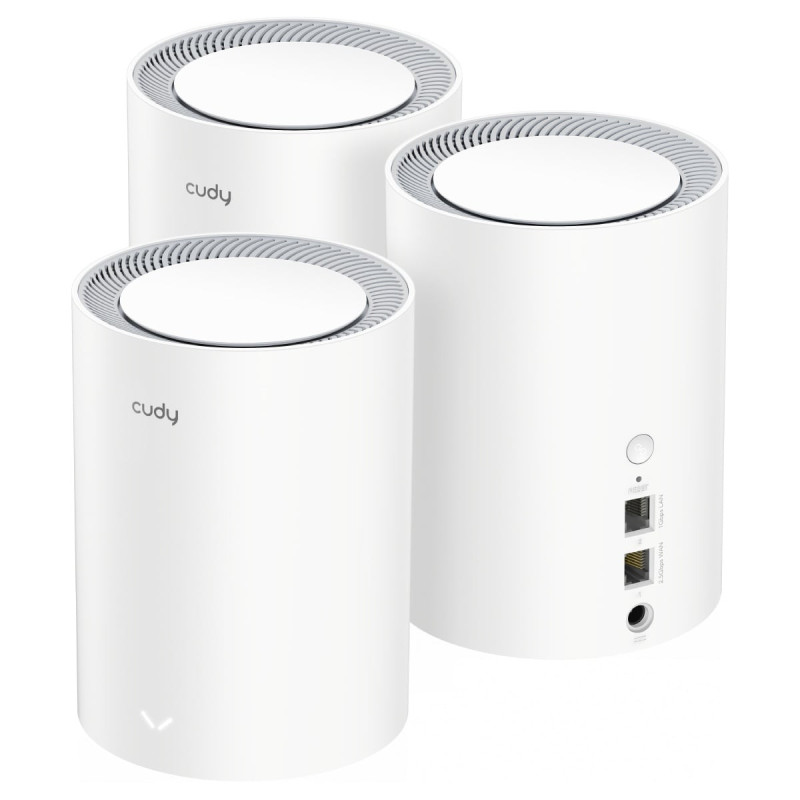

Wi-Fi Mesh system Cudy M1800 (3 pcs.)
Product reference: 26-6971690792824
  • Type: Wi-Fi Mesh system
  • Model: CUDY M1800 1.0
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • Ports: 2 x 1 Gbps RJ45 (1 x WAN; 1 x LAN)
  • Wi-Fi speed: up to 574 Mbps @ 2.4 GHz; 1201 Mbps @ 5 GHz
  • Recommended number of connected devices: 100 (max 128)
  • MIMO technology: 2x2 MIMO
  • Security protocols: WPA/WPA2/WPA3
  • Operating modes: Router, AP, Extender, WISP, Client
  • Cudy Mesh: Yes
  • Wi-Fi distance: up to 170 m
  • Wi-Fi coverage area: 230 m2
  • Flash memory: 16MB NOR
  • DDR memory (RAM): 256MB DDR3
  • Power supply: 12V 1A DC
  • Set includes 3 pieces.
Wi-Fi Mesh system Cudy M1800 (3 pcs.)

Wi-Fi Mesh system Cudy M1800 (3 pcs.)

Product reference: 26-6971690792824
  • Type: Wi-Fi Mesh system
  • Model: CUDY M1800 1.0
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • Ports: 2 x 1 Gbps RJ45 (1 x WAN; 1 x LAN)
  • Wi-Fi speed: up to 574 Mbps @ 2.4 GHz; 1201 Mbps @ 5 GHz
  • Recommended number of connected devices: 100 (max 128)
  • MIMO technology: 2x2 MIMO
  • Security protocols: WPA/WPA2/WPA3
  • Operating modes: Router, AP, Extender, WISP, Client
  • Cudy Mesh: Yes
  • Wi-Fi distance: up to 170 m
  • Wi-Fi coverage area: 230 m2
  • Flash memory: 16MB NOR
  • DDR memory (RAM): 256MB DDR3
  • Power supply: 12V 1A DC
  • Set includes 3 pieces.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
13831 €
Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General data
  • Model version M1800 2.0
  • CPU chipset MT7621
  • Processor information 880 MHz Dual-Core, MIPS1004Kc
  • Flash/ROM memory 16 MB (128 Mbit) NOR
  • DDR/RAM memory 256MB (2Gbit) DDR3
  • 5 GHz Wi-Fi Speed 1201 Mbps
  • 2.4 GHz Wi-Fi speed 574 Mbps
  • 5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • Wi-Fi antennas 4× Internal
  • 5 GHz antenna gain max 6.04 dBi
  • 2.4 GHz antenna gain max 4.9 dBi
  • FEM or PA/LNA 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
  • Beamforming True
  • Operating range Max: 170 m (558 ft); Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
  • Wall permeability Two wooden walls with thickness < 10 cm (4''), One concrete wall with thickness < 20 cm (7'')
  • Indoor Coverage Reference 2 Pack: 170 m² (1800 sq ft), 3 Pack: 230 m² (2500 sq ft); Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room.
  • Gigabit RJ45 Ports 2
  • Ethernet Notes Port 1 as default WAN port, both as LAN ports on Mesh satellite units
  • LED indicators System, Speed/Link/ACT of Ethernet Port
  • Physical buttons WPS Button, Reset Button
  • Power input DC Jack
  • Feeding methods DC
  • DC 12V 1A
  • Power adapter Input: 100 ~ 240 V, 50/60 Hz AC; Output: 12V 1A DC
  • Work environment Operating Temperature: 0~40 (32~104 ); Humidity: 10% ~ 90% non-condensing
  • Storage environment Storage Temperature: -40 ~ 70 (-40 ~ 158 ); Storage Humidity: 5% ~ 95% non-condensing
  • Certificates FCC, CE
  • Installation Desktop
  • Dimensions Φ110×154.5 mm (Φ4.33×6.08 inches)
  • Product weight 358 g (12.63 oz.)
  • Package contents M1800, Power Adapter, Ethernet Cable, Installation Guide

Manufacturer codeCUDYM18003P
ManufacturerCudi
Weight1.238 kg
