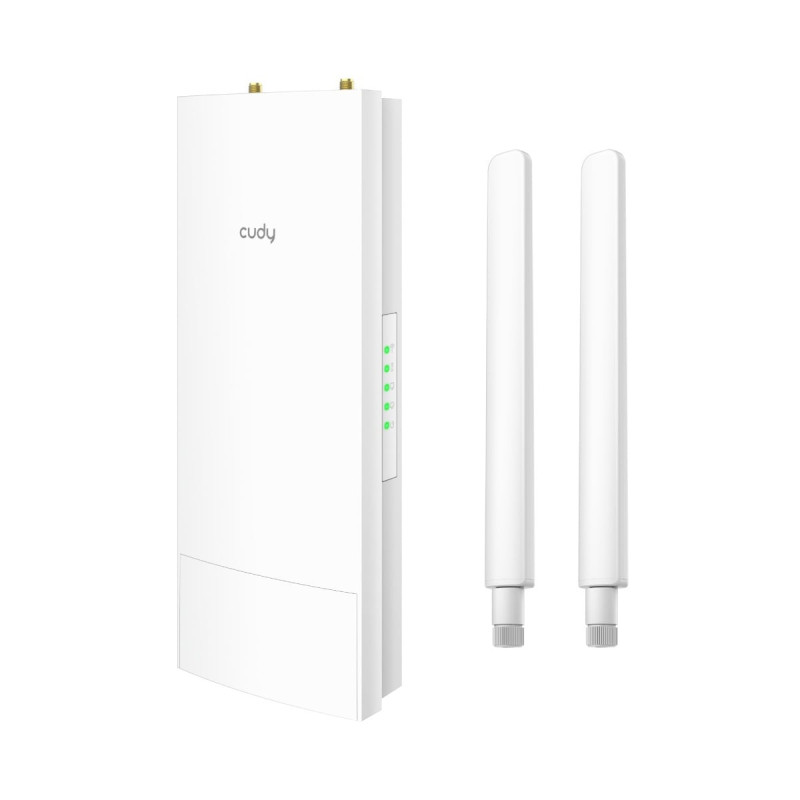

Wi-Fi extender/repeater Cudy RE1200 Outdoor (Outdoor installation)
Product reference: 26-6971690792855
  • Type: Wi-Fi extender
  • Model: Cudy RE1200 Outdoor 1.0
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • Ports: 1 x 100Mbps RJ45
  • Wi-Fi speed: up to 300 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • Recommended number of connected devices: 30 (max 128)
  • MIMO technology: 2x2 MU-MIMO
  • Security protocols: WPA/WPA2/WPA3
  • Operating modes: AP, Repeater
  • Cudy Mesh: Yes
  • Wi-Fi distance: up to 170 m
  • IP Standard: IP65
  • Operating temperature: -40°C to 65°C
  • Flash memory: 8MB NOR
  • DDR memory (RAM): 64MB DDR2
  • Power supply: 24 V Passive PoE or 100 - 220 V AC (supplied with PoE adapter)
Wi-Fi extender/repeater Cudy RE1200 Outdoor (Outdoor installation)

Wi-Fi extender/repeater Cudy RE1200 Outdoor (Outdoor installation)

Product reference: 26-6971690792855
  • Type: Wi-Fi extender
  • Model: Cudy RE1200 Outdoor 1.0
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • Ports: 1 x 100Mbps RJ45
  • Wi-Fi speed: up to 300 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • Recommended number of connected devices: 30 (max 128)
  • MIMO technology: 2x2 MU-MIMO
  • Security protocols: WPA/WPA2/WPA3
  • Operating modes: AP, Repeater
  • Cudy Mesh: Yes
  • Wi-Fi distance: up to 170 m
  • IP Standard: IP65
  • Operating temperature: -40°C to 65°C
  • Flash memory: 8MB NOR
  • DDR memory (RAM): 64MB DDR2
  • Power supply: 24 V Passive PoE or 100 - 220 V AC (supplied with PoE adapter)
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
68,23 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General
  • Model version RE1200 Outdoor 1.0
  • CPU chipset MT7628DA+MT7613B
  • Processor information 580 MHz Single-Core, MIPS24KEC
  • Flash/ROM memory 8 MB (64 Mbit) NOR
  • DDR/RAM memory 64MB (512Mbit) DDR2
  • 5GHz Wi-Fi speed 867Mbps
  • 2.4 GHz Wi-Fi speed 300Mbps
  • 5 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • Wi-Fi antennas 2× Detachable
  • 2.4 GHz antenna gain max 4.6 dBi
  • 5 GHz antenna gain max 4.4 dBi
  • FEM or PA/LNA 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
  • Removable Wi-Fi antenna connector RP-SMA Female
  • Operating range Max: 170 m (558 ft), Park: 150 m (492 ft), Street: 50 m (164 ft), Woods: 30 m (98 ft)
  • 10/100 Mbps RJ45 connectors 1
  • Ethernet Notes Accepts PoE powering
  • LED indicators Power, Internet, LAN, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi
  • Physical buttons WPS Button, Reset Button
  • Power input PoE via Ethernet Port
  • Feeding methods Passive PoE (24V), AC: 110V ~ 220V
  • Max. power consumption 12W
  • Standby power consumption 2.5W
  • Operating temperature -20 ~ 60 (-4 ~140)
  • Extended Operating Temperature (Industrial SIM) -40 ~ 65 (-40 ~ 149 )
  • Storage temperature -40 ~ 70 (-40 ~ 158 )
  • Operating humidity 0% ~ 100% non-condensing
  • Storage humidity 5% ~ 90% non-condensing
  • EMS Protection ESD: Contact: 4kV; Air: 8kV, Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV (IEC/EN 61000-4-5 Level 4)
  • Certificates FCC, CE
  • Daisy Chain Install Limit Recommend less than 3 repeaters in a wireless chain
  • Installation Options Wall-mount, Pole-mount
  • Housing material Plastic
  • Device Body Dimensions 240×100×53.7 mm (9.45×3.94×2.11 inches)
  • Antenna Dimensions 197.5×21.6×15.5 mm (7.78×0.85×0.61 inches)
  • Product weight 415 g (14.64 oz.)
  • Package contents RE1200 Outdoor, Detachable Antennas, PoE Adapter, Power Cord, Mounting Kit, Ethernet Cable, Installation Guide

Manufacturer codeCUDYRE1200OUT
ManufacturerCudi
Weight0.544 kg
