i-tec Universal Dual 4K Display Docking Station 2xDP 2xHDMI LAN Audio Power Delivery 85W

• Universal docking station compatible with notebooks and tablets with USB-C, USB-A, USB4 and Thunderbolt interfaces.
• 2x DisplayPort and 2x HDMI supporting up to two displays 4K/60Hz (applies to Apple M1/M2/M3 platform) or one display 5K/60Hz.
• 5x USB port including 1x USB-C 3.1 (5 Gbps, with fast charging BC 1.2 support) and 2x USB-A 3.1 (5 Gbps, with fast charging BC 1.2 support), which facilitates the connection of multiple USB peripheral devices for fast data transfer.
• The docking station can be operated without a USB-C charger, even if it is connected to a notebook via a USB-A connector.
• Provides up to 85W Power Delivery for compatible notebooks and tablets with USB-C, USB4 and Thunderbolt interfaces.
• GLAN Ethernet supports network speeds of 10/100/1000 Mbps, providing a robust and high-speed connection to the Internet.
• Separate 3.5mm audio input and output connectors for easy connection of head units or speakers.

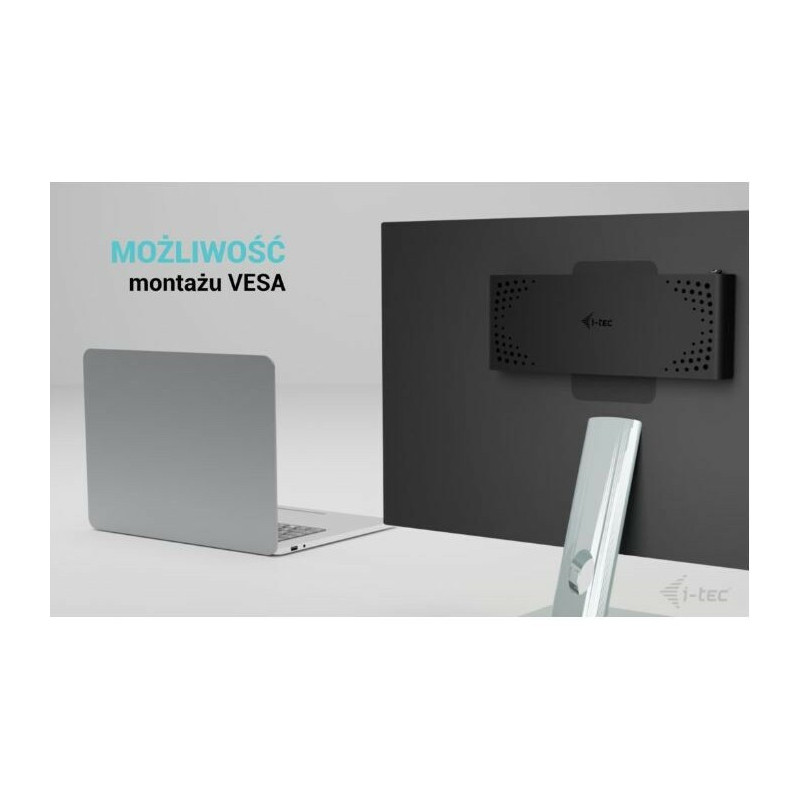

• The option of installing a VESA mount, which will help you keep the table clean and tidy with cables, and a K-lock slot for greater security.
Note: The USB-C charger is not included in the delivery. The docking station can be used without a charger, or with a charger provided, e.g. with your notebook, or if you can buy the charger separately, for example i-tec CHARGER-C100W. Alternatively, you can purchase the product set CADUA4KDOCKPDB100, which already includes a power supply.
A powerful yet affordable docking station that supports the output of up to two external monitors in high resolution, and up to 4K/60 Hz. The docking station can be used with practically all notebooks, because it supports connection to all common ports: 3.0, USB-C, USB4 and Thunderbolt 3/4, and at the same time supports all common current operating systems.
Dostatok ports, reliable and fast connection to the company's network thanks to integrated LAN ports and support for installing a monitor, all this makes this docking station an ideal company for real professionals. The docking station can be used with a simple connection to a notebook (without connecting a USB-C charger), or using a USB-C charger (not included in the package). In addition, it supports charging notebooks or tablets with a power of 85 W.
• Connection of 2 external monitors with a resolution of up to 4K/60Hz
• Power Delivery: up to 85W (if using a USB-C charger with a power of 100W; it is included in the package)
• Available 2 port DisplayPort a 2 port HDMI
• 2x USB 3.1 Gen 1 (5 Gb/s), 2x USB 2.0 and 1x USB-C Gen 1 (5 Gb/s) allow easy connection of your USB devices and peripherals
• Gigabit Ethernet RJ-45 provides a reliable, robust and high-speed connection to the Internet with speeds of 10/100/1000 Mb/s
• Combined connector for sound and microphone
• Zámok Kensington provides protection against theft, especially in shared office environments or in public places
• Vyvčinci večište dokovaj stanice allows maximum energy savings
• The docking station supports the VESA mount for intelligent vertical installation of monitors with VESA support
Supports Windows 10 / 11, macOS, Android 5 or newer, Chrome OS R51 or newer, Linux Ubuntu
If the docking station is connected via USB 3.0 port, charging is not supported.
Specifications
• 1x USB-C port for connection to USB-C or USB-A interfaces (USB-C adapter cable and USB-C to USB-A adapter are included in the package)
• Docking station technology: DisplayLink + USB-C PD
• Power Delivery: 85W

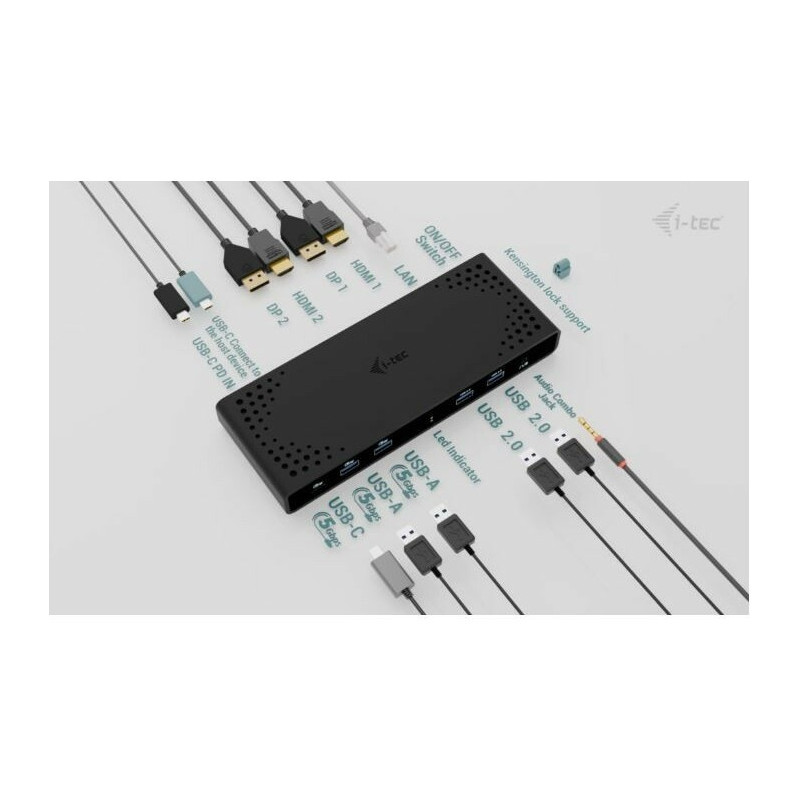

Video ports:
• 2x HDMI
• 2x DP (supporting DP++)
Resolutions:
• 1 monitor - 1x DP/HDMI 'up to 4K/60Hz
• 1 monitor - 2x DP ' up to 5K/60Hz*
• 2 monitors - 1x DP/HDMI + 1x DP/DHMI ' up to 2x 4K/60Hz
• 1x USB-C input for the power adapter (not included in the package)
• 1x USB-C 3.2 Gen.1 port with fast charging support (BC 1.2)**
• 2x USB 3.2 Gen.1 port with fast charging support (BC 1.2)**
• 2x USB 2.0 ports
• 1x Ethernet GLAN RJ-45 port (DisplayLink DL-6950)
• 1x 3.5mm combined audio connector
• Klonovanie MAC adresie: áno (for using software i-tec Docker Pro)
• WOL: S1, S2, S3
• Support for Kensington lock
• Support for VESA mounting
• Kábel USB-C na USB-C/USB-A (100 cm)
• OS: Windows 10 / 11, macOS 11 or later, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu
• Jednoduchá instalatícia ústřílovov ((Windows, macOS, Ubuntu, Android (externý link))
• Rozmery product: 223.8 x 83.4 x 27.1 mm
• Product weight: 340 g
• Rosemary balenia: 238 x 129 x 65 mm
• Package weight: 520 g
* 5K resolution is supported only by Windows
** Fast charging support only for one connected device
Hardware requirements:
The device has free USB-A, USB-C, USB4 or Thunderbolt™ 3/4 ports.
Poziadavky for the Power Delivery function:
The device with free USB-C, USB4 or Thunderbolt™ 3/4 ports supports Power Delivery
Operating system:
Windows 10 / 11, macOS 11 or later, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu
If the docking station is connected via USB 3.0, charging notebooks and tablets is not supported
* Charging external devices is only supported if the docking station is connected to the host device.

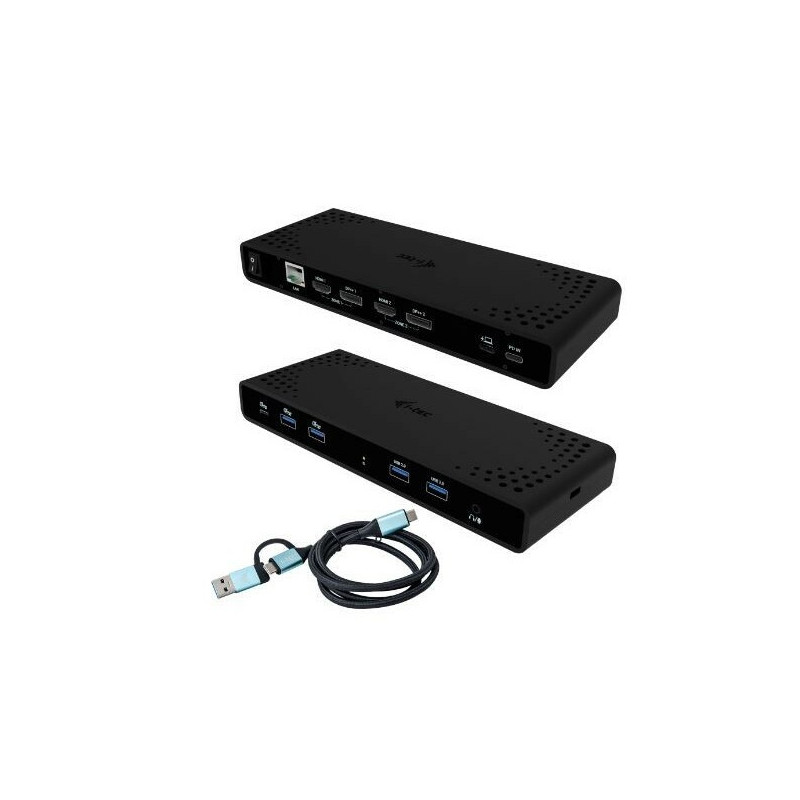

Package contents
• Product
• Prepájací kábel USB-C a adapter USB-C na USB-A (100 cm)
• Manual
