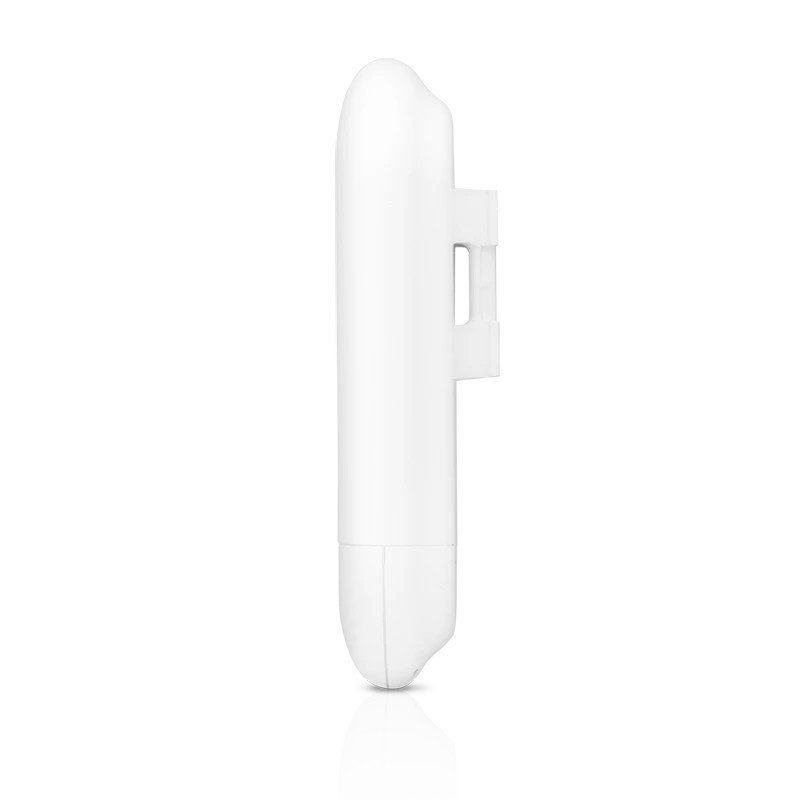

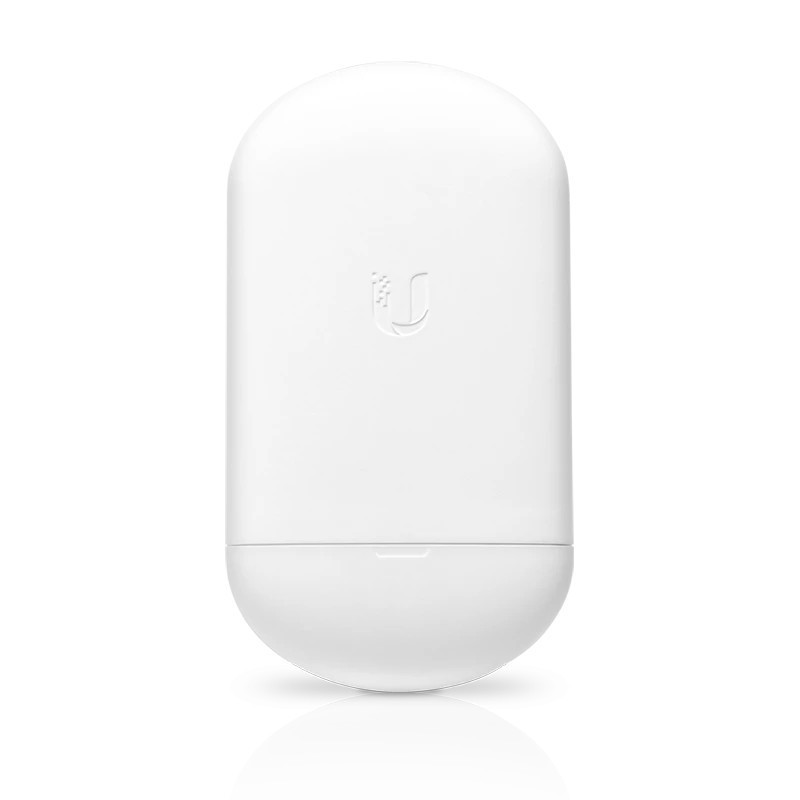

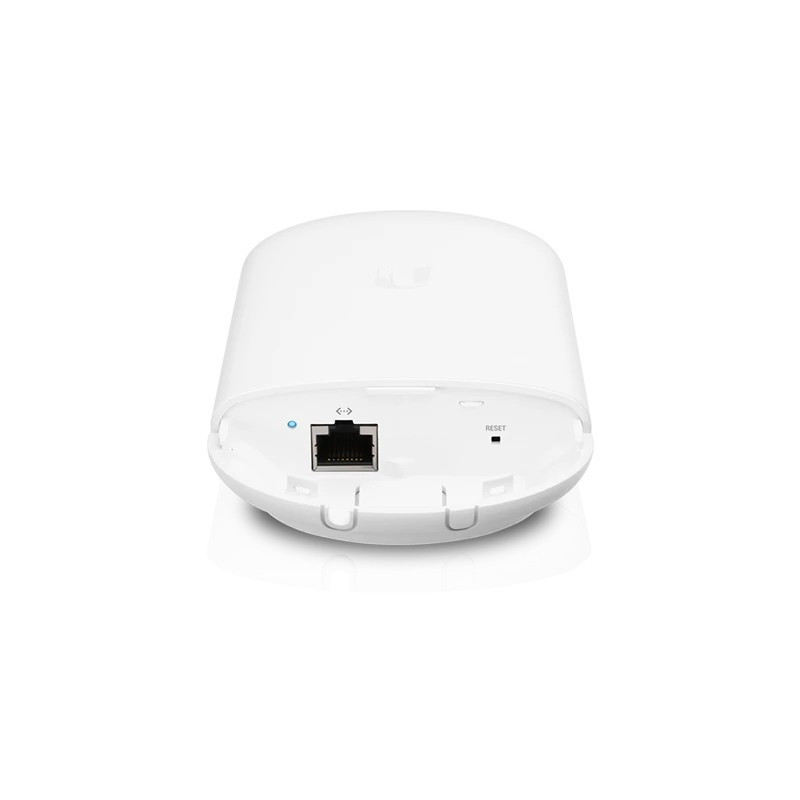

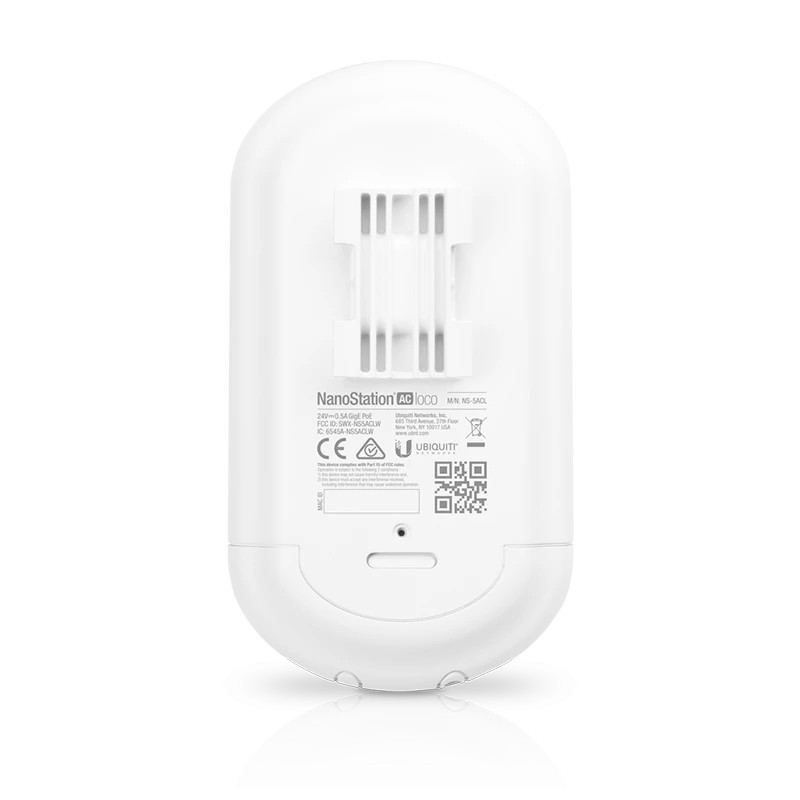

Ubiquiti NanoStation AC Loco, Access Point

Product details
NanoStation 5AC Loco is a very small client station with a performance of 13 dBi in the airMAX ac series, which achieves very high transmission speeds and a stable connection even in a crowded environment. The unit is only compatible with other airMAX products intended for outdoor use.
Thanks to the option of setting the width of the channel 10/20/30/40/50/60 to 80 MHz, it is possible to achieve a real bandwidth of up to 450 Mb/s+ with 256QAM modulation.
Technicians definitely appreciate the newly added WiFi 2.4 GHz interface, which is used for communication through mobile devices.
The UMOBILE app is available for Android and iOS.
Novinkou u produktov airMAX ac je operačný systém airOS 8. This system, for example, in real time displays a constellačný diagram and the value of SNR.
Warning: the package does not include a powered PoE adapter.
Technical parameters
Wireless frequency: 5 GHz
Transmission speed WiFi - 5 GHz [Mb/s]: 866
WiFi standards: airMAX ac
Output power 5 GHz [dBm]: 25
Encryption: WPA2 AES
5GHz MIMO: 2x2
Uhol vyžarovania - horizontal position [°]: 45
Uhol vyžarovania - vertical position [°]: 45
Antenna type: Built-in
Number of built-in antennas: 2
Antenna gain [dBi]: 13
Physical characteristics
Usage: Outdoor
Buttons: Reset
Prevádzková temperature [°C]: -40 to 70
Weight [g]: 180
Width [mm]: 59
Width [mm]: 78
Height [mm]: 179
Hardware
Size of operating memory [MB]: 64
CPU: Atheros MIPS 74KC
CPU frequency [MHz]: 560
Connectors and interfaces
LAN speeds: (1) 10/100/1000 Mbps
Gigabit LAN: Yes
Power supply
Max. energy consumption [W]: 8.5
Power supply via PoE: 24 V DC
PoE Types: Input
Software
Default mode: Client, Repeater, AP Router, AccessPoint, Client Router (wisp)
IPv6 support: Yes
Default IP address: 192.168.1.20
Default name and password: Ubiquiti / Ubiquiti
Package contents
* device
* plastic packing tape
