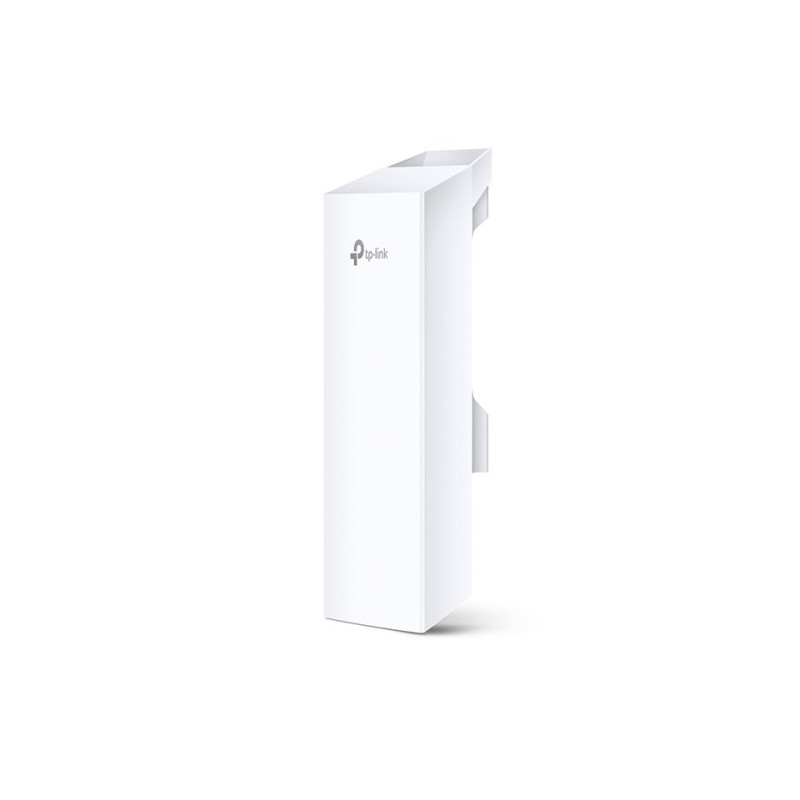

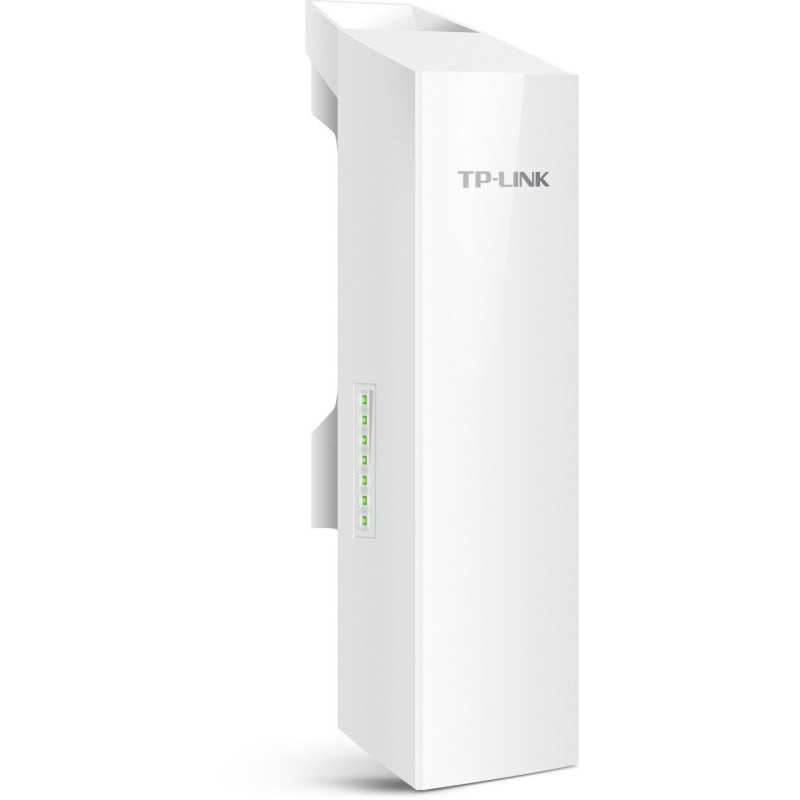

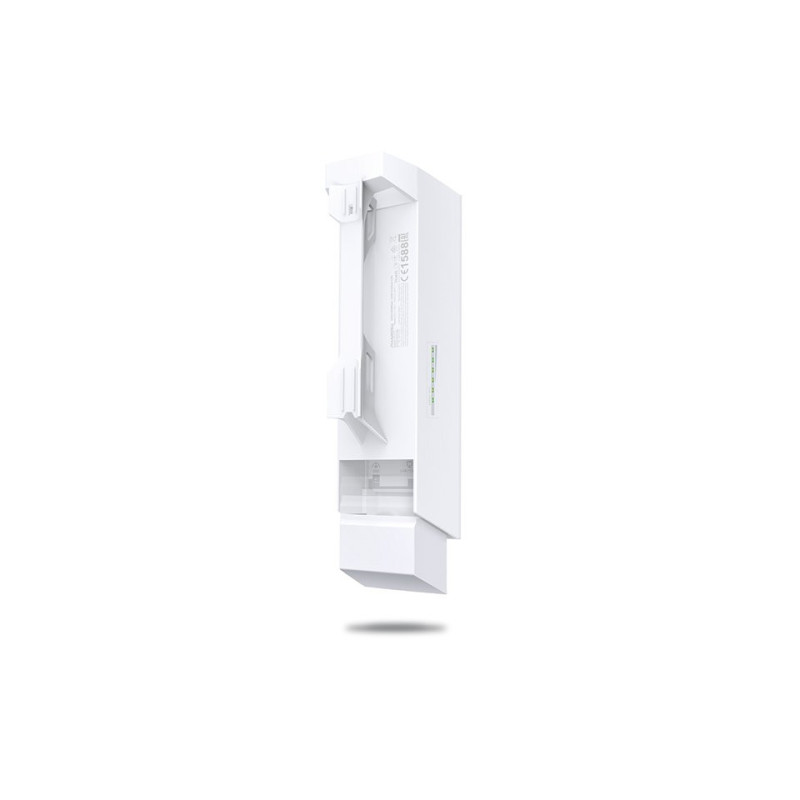

TP-LINK TPLINK Access Point Outdoor (CPE510)

TP-Link CPE510 Outdoor 5GHz 300Mbps



PŘEHLED

* Vestavěná 13dBi 2x2 duální polarizovaná směrová anténa MIMO

* Nastavitelný vysílací výkon od 0 do 27 dBm/500mW

* Optimalizace na úrovni systému pro bezdrátový přenos do vzdálenosti více než 15 km

* Technologie TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) zlepšuje výkon zařízení co se týče propustnosti, kapacity a latence, ideální pro aplikace PTMP

* Centralizovaný systém správy - řízení Pharos

* Provozní režimy AP / Klient / AP směrovač / Směrovač AP klienta (WISP)

* Pasivní PoE adaptér podporuje napájení přes Ethernet až na 60 metrů a umožňuje vzdálené resetování zařízení





SPECIFIKACE

HARDWAROVÉ FUNKCE

Processor

* Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc



Memory

* 64MB DDR2 RAM, 8MB Flash

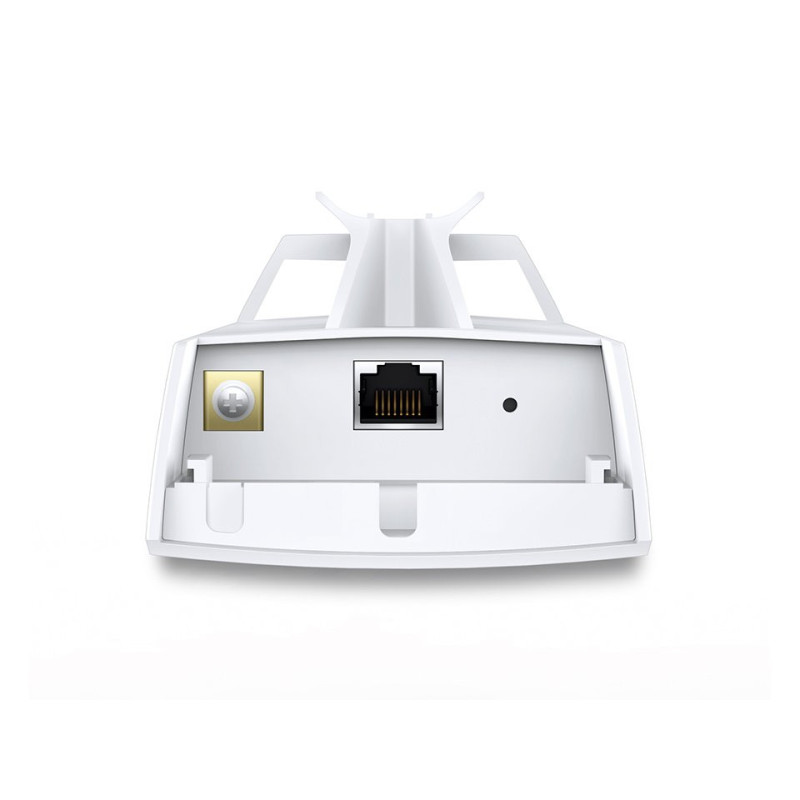

Rozhraní

* 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)

* 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)

* 1 Grounding Terminal

* 1 Reset Button



Rozměry (š*h*v)

* 224 x 79 x 60 mm



Typ antény

* Built-in 13dBi 2x2 Dual-polarized Directional Antenna

* Beam Width: 45° (H-Plane) / 30° (E-Plane)

* Note: For more details, please refer to datasheet



Ochrana

* 15KV ESD Protection

* 6000V Lightning Protection



Spotřeba

* 13 Watts Max

* Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.



Napájení

* Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)

* Voltage range: 16-27VDC



Enclosure

* Outdoor ASA stabilized plastic material

* IPX5 waterproof Certification



FUNKCE BEZDRÁTOVÉ SÍTĚ

Standardy bezdrátové sítě

* IEEE 802.11a/n (with Pharos MAXtream disabled)



Proprietary Protocol

* TDMA Mode (with Pharos MAXtream enabled)



Wireless Speeds

* Up to 300Mbps (40MHz,Dynamic)

* Up to 144.4Mbps (20MHz,Dynamic)

* Up to 72.2Mbps (10MHz,Dynamic)

* Up to 36.1Mbps (5MHz,Dynamic)



Frekvence

* 5.15~5.85GHz

Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.



Citlivost příjmu

* 802.11a:

* 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm

* 802.11n:

* MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,

* MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,

* MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,

* MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,

* MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm



Transmission Power

* 27dBm/500mw (Adjustable power by 1dBm)

* Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.



SOFTWAROVÉ FUNKCE

Wireless Configurations

* Pharos MAXtream TDMA Technology

* 802.11a/n Modes

* Selectable Channel Width: 5/10/20/40MHz

* Automatic Channel Selection

* Transmission Power Control

* Dynamic Frequency Selection (DFS)

* WDS Enable/Disable

* Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption

* SSID Broadcast Enable/Disable

* Multi-SSID with VLAN Tagging (AP mode only)

* Distance/ACK Timeout Setting

* Wireless MAC Address Filter

* Wireless Advanced:

* > Beacon Interval/RTS Threshold/Fragmentation

* > Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia



Správa

* Discovery and Remote Management via Pharos Control application

* HTTP/HTTPS Web-based management

* System Log

* SNMP Agent(v2c)

* Ping Watch Dog

* Dynamic DDNS

* SSH Server



System Tools

* Wireless Signal Quality Indicators:

* Signal Strength/Noise/Transmit CCQ/CPU/Memory

* Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP

* Spectrum Analyzer

* Speed Test

* Ping

* Traceroute



System-level Optimizations

* Optimized IGMP Snooping/Proxy for multicast applications

* Hardware watch dog



JINÉ

Certifikace

* CE, FCC, RoHS, IPX5



Obsah balení

* Outdoor Wireless CPE

* 24V 1A Passive PoE Adapter

* Pole Mountin
