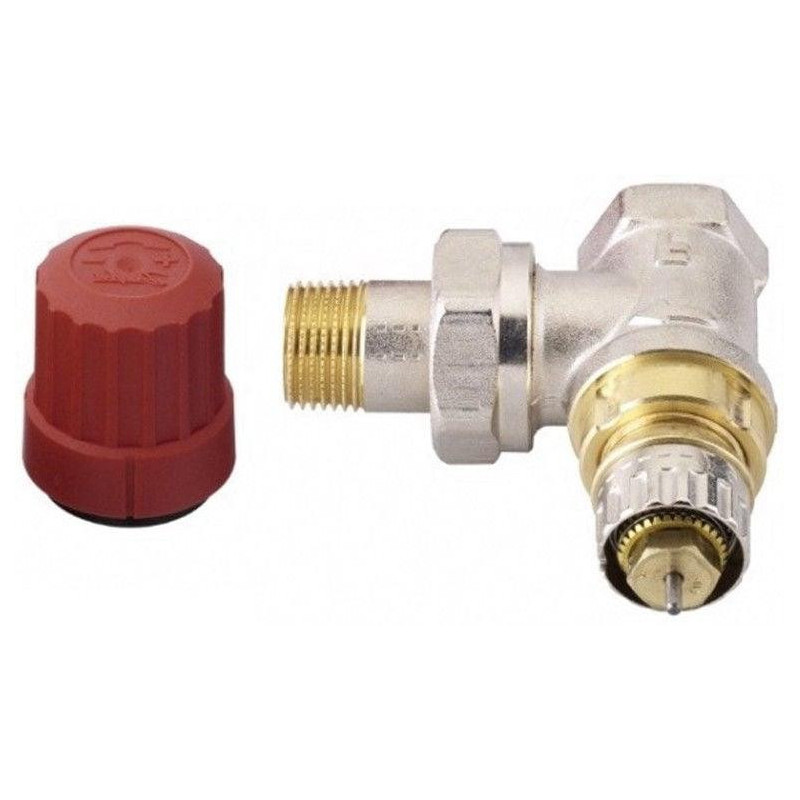

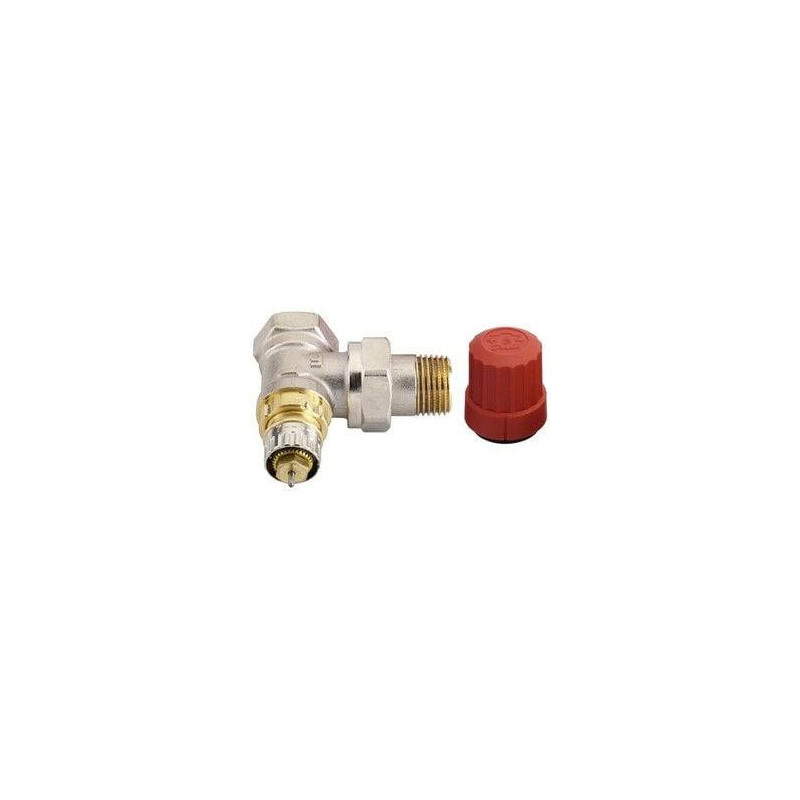

THERMOSTATIC VALVE RA-N 15. ANGULAR
Product reference:
28-2000509679675
THERMOSTATIC VALVE RA-N 15. ANGULAR
THERMOSTATIC VALVE RA-N 15. ANGULAR
Product reference:
28-2000509679675
THERMOSTATIC VALVE RA-N 15. ANGULAR
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 6
business days
Not available
| Height | 39 mm. |
| Operating temperature | 0 - 120°C |
| Length | 95 mm. |
| Maximum pressure | 10 Bar |
| Material | Brass |
| Country of manufacture | DK |
| Additional information | Normal-flow valve with presetting. Angled, KVS - 0.9 m³/h, differential pressure range - 0.6 bar, standard size - NF, application - two-pipe system, can be used with all types of RA 2000, RAW series thermostatic sensors and with TWA-A thermal actuators |
| Width | 80 mm. |
| Brand | DANFOSS, Danfoss |
| Mandatory warranty | 24 months |
| Pressure class | PN 10 |
| Weight | 0.23 kg. |
| Valve type | Thermostatic, Corner |
| The valve is designed for | For heating systems. Plumbing connection, diameter - 1/2 inch - External thread, 1/2 inch - Internal thread |
