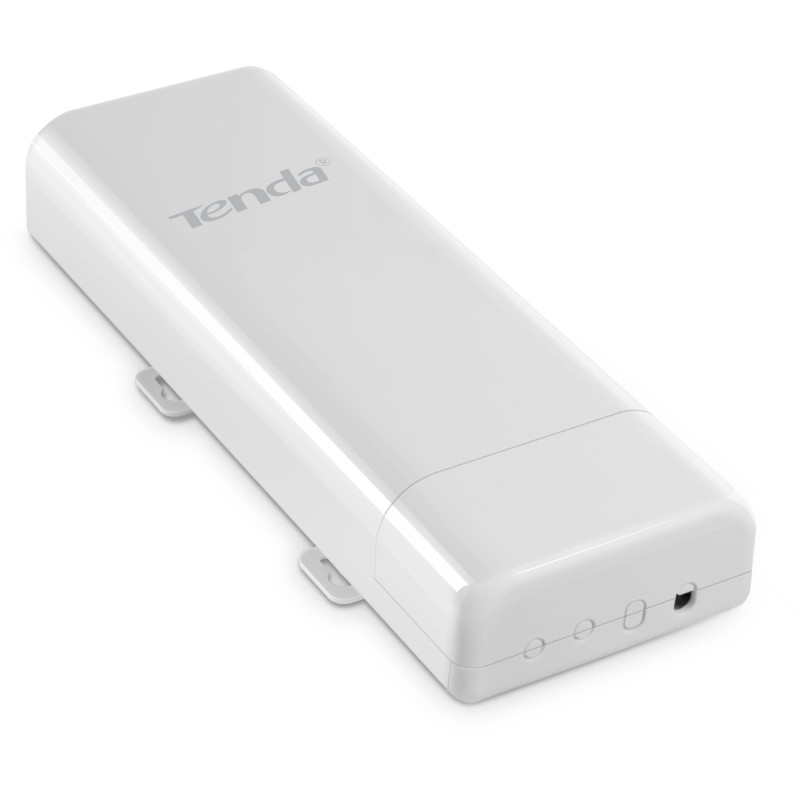

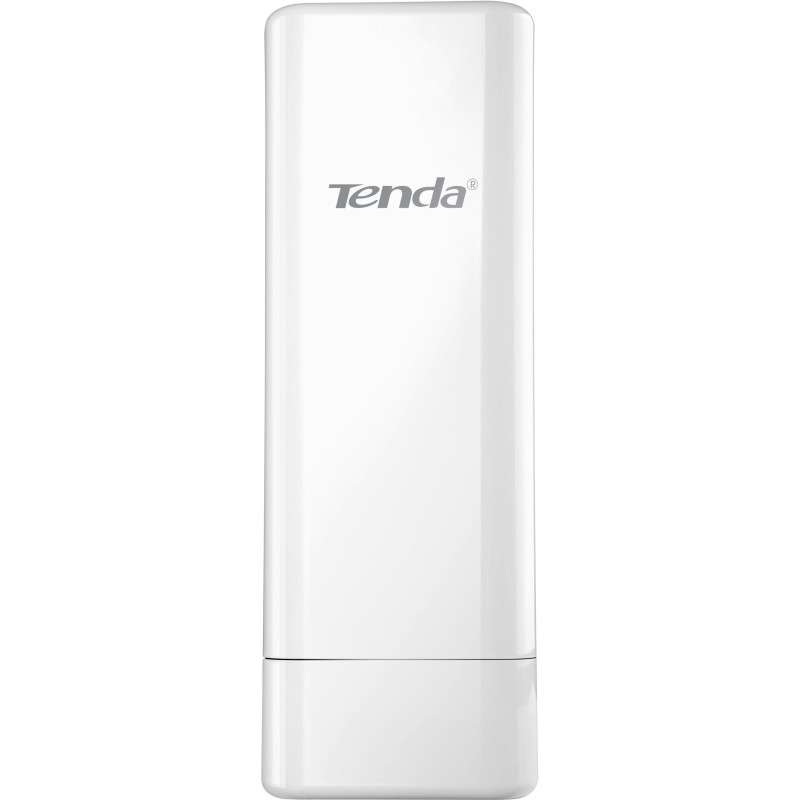

Tenda O3 Outdoor CPE 2,4 GHz WiFi-N 150 Mb / s, 12 dBi, IP65, pasívny PoE rozbočovač + adaptér

Tenda O3 is a wireless external Wi-Fi CPE unit that supports Access Point / Station / WISP / P2MP / WDS Repeater / Router modes, supports the 802.11b/g/n standard in the 2.4 GHz band with a speed of up to 150 Mb/s. Contains 2x port RJ45, supports passive PoE power supply or power adapter (power adapter and power adapter are part of the package). VPN Pass-Through, SSID Isolation, DDNS, DHCP, Transparent Bridge, VLAN tagging SSID and other technologies.
Tenda O3 supports many types of security: 64/128 WEP, WPA-PSK, WPA2-PSK, WPA&WPA2-PSK, WPA, WPA2, option to order the broadcast name of the wireless network (SSID), VLAN for individual SSIDs, setting output power to many others network functions. The device is equipped with an antenna with horizontal polarization with a signal of 12 dBi. Of course, there is increased resistance to environmental influences and a degree of protection IP65.
Main parameters Tenda O3
WiFi 2.4 GHz 11n 150 Mb/ss reach up to 5 km
Antenna with horizontal polarization 12 dBi, covered 60° horizontal, 30° vertical
External waterproof design stupňom krytia IP65
Mnoho právodných režimov: Access Point / Station / WISP / P2MP / WDS Repeater / Router
Contains 2x port RJ45 with speed 100 Mb/s
Tenda O3 supports several operating modes
- Prístupový bod - Access Point - in this mode, the O3 is connected to the network using an ethernet cable and transmits a wireless network.
- The station - O3 is connected to the WiFi network and provides connectivity to the LAN port, which it contains, without connecting to another device cable. Ďalšiu Wi-Fi network no longer connected.
- WISP - Client + Router - in this mode with O3 pripoje k WiFi network (WISP station/hotspot), separate the network of the provider from the local network using routing and create a home WiFi network with its own DHCP server. This local connectivity is also shared through its LAN port.
- P2MP - O3 supports Point-To-Multipoint communication, where one station can communicate with several stations in different locations.
- WDS Repeater - WiFi signal encapsulation mode, O3 in this case receives a WiFi signal from one source and provides it further.
- Router - standard router mode, where one of the RJ45 ports is set as WAN for connecting to an external network, the other RJ45 is LAN for a local network, and O3 creates a WiFi network with Internet access.
Auto-Bridge function
Akonáhle pripojte k napajaniu dve units Tenda O3 a sú nasmerované priamo na seba, automática útvoria most (Bridge).
Intelligent signal indicator
Thanks to several LED indicators, it is clear to see that the sila signal of this unit O3, the indicator is located on the remote device (1 to 3 LED).
Technical parameters
WiFi 802.11b/g/n 150 Mb/s 2.4 GHz
Power supply: passive PoE power supply or power adapter, power adapter included in the package 12 V DC 1 A
Passive PoE: using PoE/LAN (piny 4.5 +, piny 7.8 -), voltage: 9-13.8 V DC
Podpora active power supply PoE: Nie
Working modes: Access Point / Station / WISP / P2MP / WDS Repeater / Router
Maximum performance a sensitivity: 11b 1Mbps -92dBm±1,5dBm, 11n MCS0: -92±1,5dBm, 11n MCS7: -72±1,5dBm_
Setting: no, po 1 dBm
DHCP server: Áno
VPN Pass-Through: L2TP, PPTP
Stupeň krytia proti vlovom poznavia: IP65
Spotreba energy: 4.3 W
Antenna - polarization: horizontal polarization
Antenna - gain: 12 dBi
Antenna - coverage: 60° horizontal, 30° vertical
LED indication: PoE/LAN, WiFi, LED1, LED2, LED3
Security 64/128 WEP, WPA-PSK, WPA2-PSK, WPA&WPA2-PSK, WPA, WPA2, isolation of WiFi clients
Placements na stojtiar aj na stenu

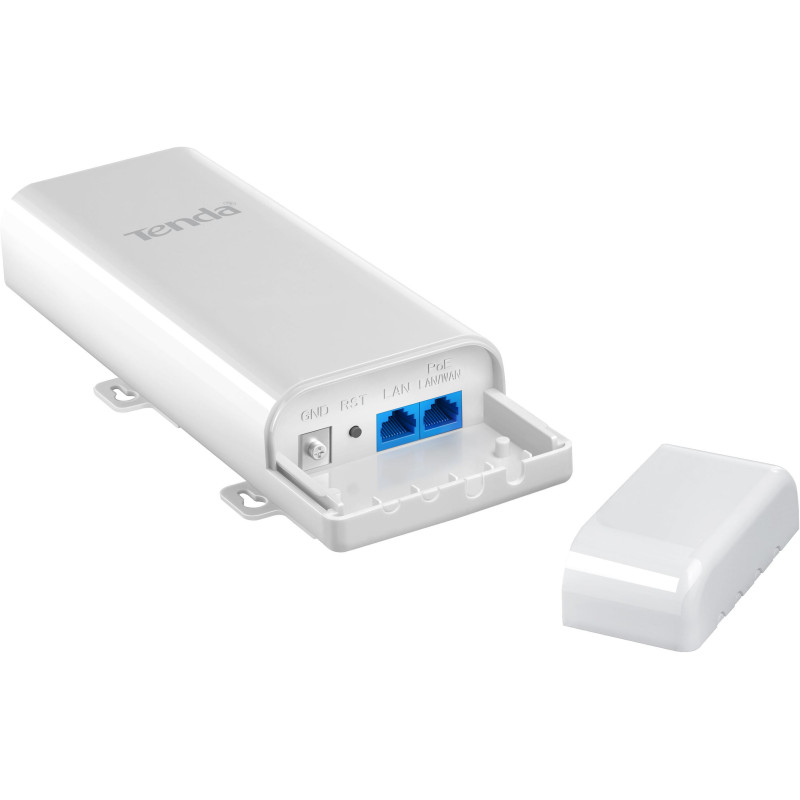

Porty: 2x RJ45 10/100 Mb/ss support passive PoE
Centralized management: using PC software "CPE Assistant"
Bandwidth: 20/40 MHz
DDNS: noip, dyndns.org
Setting LAN: statická IP, dynamická IP
Diagnostika siete: Ping, Traceroute, Signal Scan
Other functions: Vypnutie/Zapnutie WiFi, Hidden SSID, Isolation of SSID, Isolation of wireless clients, Control of access to the wireless network, Restricting clients with weak signals, Support WMM, Support APSD, Transparent bridge, VLAN Tagging for SSID, Remote web access, Planned restart, Time limit pages, Ping Watchdog
Administration: Restart, Restore factory settings, System protocols, Update firmware, Set time and date, Backup/restore configuration, User management
Certifikacia: FCC/CE/RoHS
Tlakidlá: 1x Reset
Rozmery: 270 x 95 x 68 mm
Prevádzková temperature: -30 °C to +60 °C
Package contents
1x Tenda O3
1x holder for securing the pole to the wall
1x power adapter 12 V DC 1 A
1x pasívna PoE napájacia rozbočka
1x stručný instalačný úžad (CZ, SK, PL)
1x accessories na upevnenie
