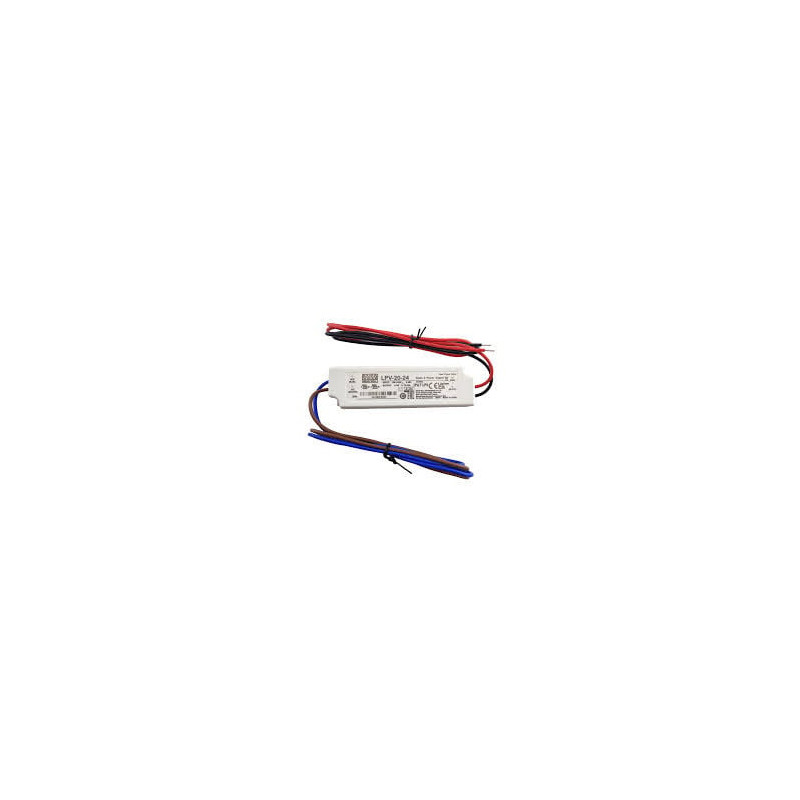

Switching power supply LED 24V 20W 0.84A IP67, Mean well, LPV-20-24
Product reference: 26-4711287440910
  • Type: Switching power supply for LED
  • Model: LPV-20-24
  • Output voltage: 24 V
  • Power: 20W
  • Current: 0.84 A
  • Protection class: IP67
  • Brand: MEAN WELL
Switching power supply LED 24V 20W 0.84A IP67, Mean well, LPV-20-24

Switching power supply LED 24V 20W 0.84A IP67, Mean well, LPV-20-24

Product reference: 26-4711287440910
  • Type: Switching power supply for LED
  • Model: LPV-20-24
  • Output voltage: 24 V
  • Power: 20W
  • Current: 0.84 A
  • Protection class: IP67
  • Brand: MEAN WELL
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
1436 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • General information
  • Model LPV-20-24
  • DC voltage 24V
  • Rated current 0.84A
  • Current range 0 ~ 0.84A
  • Rated power 20.2W
  • Noise and vibration (max.) 150mVp-p
  • Voltage error ±5.0%
  • Linear regulation ±1.0%
  • Load regulation ±2.0%
  • Set-up, take-off time 500ms, 20ms / 230VAC; 500ms, 20ms / 115VAC at full load
  • Holding time 50ms / 230VAC; 16ms / 115VAC at full load
  • Voltage range 90~264VAC; 127~370VDC
  • Frequency range 47~63Hz
  • Efficiency (typ.) 83%
  • Alternating current strength (typ.) 0.55A / 115VAC; 0.35A / 230VAC
  • Inrush current (typ.) 70A at 230VAC (cold start)
  • Leakage current 0.25mA / 240VAC
  • Overload protection 110 ~ 150% rated output power; hiccup mode; auto recovery
  • Surge protection 28~32V; shut down output; clamping by zener diode
  • Withstand voltage I/PO/P: 3KVAC
  • Insulation resistance I/PO/P: > 100M Ohms / 500VDC / 25 / 70% RH
  • Operating temperature -30 ~ +70 (Refer to Derating Curve)
  • Operating humidity 20 ~ 90% RH non-condensing
  • Storage temperature and humidity -40 ~ +80 ; 10 ~ 95% RH
  • Temperature coefficient ±0.03%/ (0 ~ 50 )
  • Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. on X, Y, Z axes
  • MTBF 6025.8K hrs min. (Telcordia SR-332); 786.5K hrs min. (MIL-HDBK-217F, 25 )
  • Dimensions 118 x 35 x 26 mm (L x W x H)
  • Certificates UL879, UL1310, CSA C22.2 No. 207-M89, CAN/CSA C22.2 No. 223-M91, IEC/EN 62368-1, IS 15885 (Part2/Sec13), IP67, EAC TP TC 004
  • EMC emission EN55032 (CISPR32) Class B, EN61000-3-2 Class A, EN61000-3-3, EAC TP TC 020
  • EMC immunity EN61000-4-2,3,4,5,6,8,11; EN55035; light industry level; EAC TP TC 020
  • Packaging 0.20Kg/unit; 60pcs/13.3Kg/0.74CUFT
  • Features Constant voltage design, universal AC input/full range, withstand 300VAC surge input for 5 seconds, protections: short circuit/overload/overvoltage, cooling by free air convection, small and compact size, fully encapsulated with IP67, fully isolated plastic case, Class II power unit, Class 2 power unit, LPS compliant, suitable for LED-related fixtures or appliances (eg, LED decoration or advertisement devices), 100% full load burn-in test, high reliability, 2-year warranty
  • Max. number of power supplies in 16A fuse 8 units (Type B) / 14 units (Type C) at 230VAC

Manufacturer codeMBLPV2024MEANWELL
ManufacturerMean Well
Weight0.22 kg
