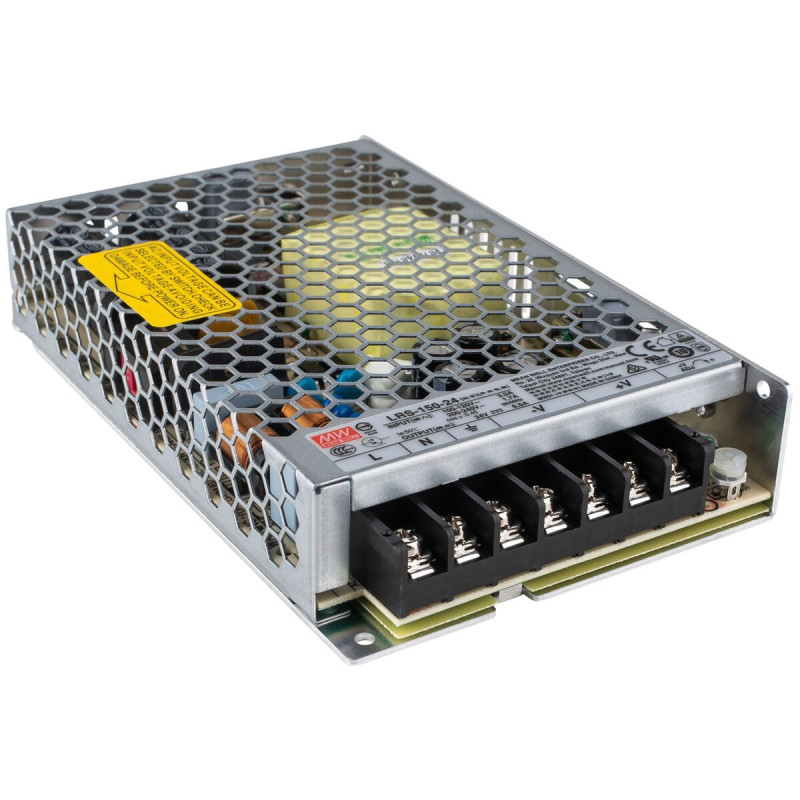

Switching power supply 24V 6.5A closed MEAN WELL
Product reference: 26-MWLRS15024
  • Type: Enclosed switching power supply
  • Model: LRS-150-24
  • Input voltage range: IN 170-264VAC / 240-370VDC
  • Output voltage range: OUT 21.6-28.8VDC
  • Power: 156W
  • Current: 6.5A
  • Voltage: 24V
  • Operating temperature: -30°C ÷ +70°C
  • Output voltage adjustment: with potentiometer integrated in the housing
  • Protection class: OVC III
  • Dimensions: 159 x 97 x 30 mm
  • Brand: MEAN WELL
Switching power supply 24V 6.5A closed MEAN WELL

Switching power supply 24V 6.5A closed MEAN WELL

Product reference: 26-MWLRS15024
  • Type: Enclosed switching power supply
  • Model: LRS-150-24
  • Input voltage range: IN 170-264VAC / 240-370VDC
  • Output voltage range: OUT 21.6-28.8VDC
  • Power: 156W
  • Current: 6.5A
  • Voltage: 24V
  • Operating temperature: -30°C ÷ +70°C
  • Output voltage adjustment: with potentiometer integrated in the housing
  • Protection class: OVC III
  • Dimensions: 159 x 97 x 30 mm
  • Brand: MEAN WELL
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
2439 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • General data
  • Model LRS-150-24
  • Output voltage 24V DC
  • Rated current 6.5A
  • Current range 0 - 6.5A
  • Rated power 156W
  • Noise and vibration (max.) 200 mVp-p
  • Voltage regulation range 21.6 - 28.8V
  • Voltage error ±1.0%
  • Linear regulation ±0.5%
  • Load regulation ±0.5%
  • Efficiency (typ.) 89%
  • Input voltage range 85 - 132 VAC / 170 - 264 VAC (selectable by switch), 240 - 370 VDC (switch on 230 VAC)
  • Frequency range 47 - 63 Hz
  • Alternating current strength (typ.) 3A @ 115VAC / 1.7A @ 230VAC
  • Inrush current Cold start 60A @ 230 VAC
  • Leakage current <0.75mA @ 240VAC
  • Hold-up Time (Typ.) 40 ms @ 230 VAC / 35 ms @ 115 VAC at full load
  • Set-up, take-off time 500 ms, 30 ms @ 230/115 VAC at full load
  • Overload protection 110 - 140% rated output power (hiccup mode, auto recovery)
  • Overvoltage Protection 28.8 - 33.6V (shutdown, re-power to recover)
  • Overtemperature Protection Shutdown output, re-power to recover
  • Operating temperature -30°C to +70°C (refer to derating curve)
  • Storage temperature -40°C to +85°C
  • Working humidity 20 - 90% RH (non-condensing)
  • Storage humidity 10 - 95% RH (non-condensing)
  • Temperature coefficient ±0.03% / °C (0 - 50°C)
  • Vibration 10 - 500 Hz, 5G, 10 min/cycle, 60 min along X, Y, Z axes
  • MTBF 2707.7K hrs (Telcordia SR-332); 558.2K hrs (MIL-HDBK-217F, 25°C)
  • Insulation resistance 100M Ohms @ 500 VDC, 25°C, 70% RH
  • Withstand voltage I/PO/P: 4kVAC; I/P-FG: 2kVAC; O/P-FG: 1.25kVAC
  • Enclosure Dimensions 159 × 97 × 30 mm (L×W×H)
  • Weight 0.42 kg; Packing: 30 pcs / 13.8 kg / 0.80 CUFT
  • Cooling method Free air convection (fanless)
  • Case Number 241A
  • Terminal Pin Assignments Pin 1: AC/L, Pin 2: AC/N, Pin 3: FG, Pins 4/5: -V, Pins 6/7: +V
  • Certificates UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, GB 4943.1, BSMI CNS15598-1, EAC TP TC 004, KC K60950-1, BIS IS13252 (Part1):2010, AS/NZS 62368.1 (CB)
  • EMC compliance EN55032 (CISPR32) Class B, EN61000-3-2 (Class A ≤75% load), EN61000-3-3, EN61000-4-2/3/4/5/6/8/11, EN61000-6-2, EN55035
  • Features Selectable AC input (115/230VAC), withstands 300VAC surge for 5 sec, no-load power <0.5W, high efficiency, metallic mesh case, LED indicator, full protections (OVP/OLP/OTP/SCP), 5G vibration, compact 1U design
  • Warranty 3 years
  • Usage Industrial automation, control systems, electrical/electronic equipment, instruments, household appliances

Manufacturer codeMWLRS15024
ManufacturerMean Well
Weight0.393 kg
