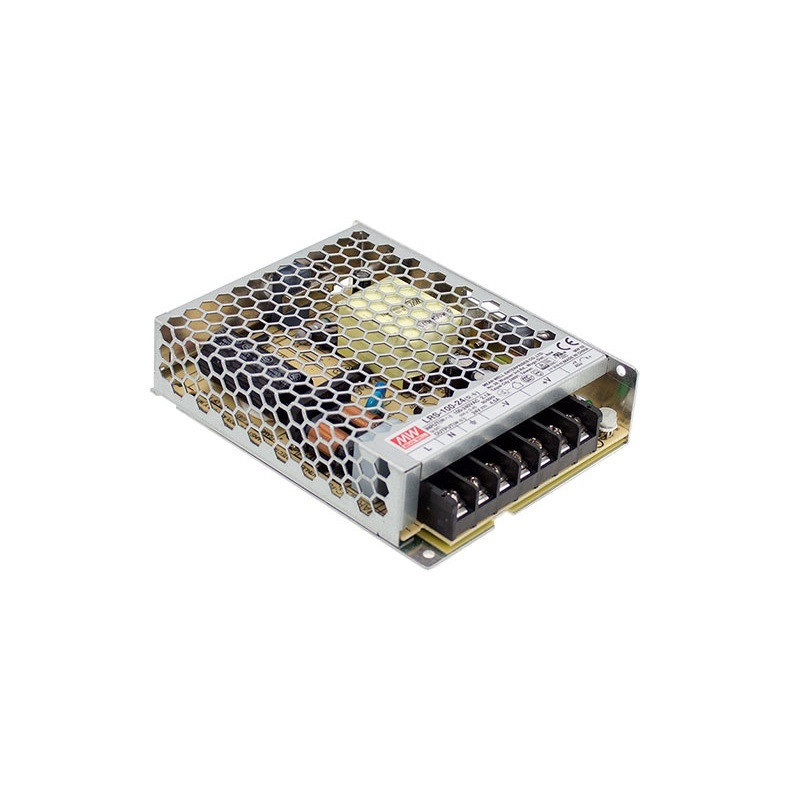

Switching power supply 24V 4.5A closed MEAN WELL
Product reference: 26-MB45A24VUZDMEANWELL
  • Type: Enclosed switching power supply
  • Model: LRS-75-24
  • Input voltage range: IN 85-264VAC / 120-373VDC
  • Output voltage range: OUT 21.6-28.8VDC
  • Power: 76.8W
  • Current: 3.2A
  • Voltage: 24V
  • Operating temperature: -30°C ÷ +70°C
  • Output voltage adjustment: with potentiometer integrated in the housing
  • Protection class: OVC III
  • Dimensions: 99 x 97 x 30 mm
  • Brand: MEAN WELL
Switching power supply 24V 4.5A closed MEAN WELL

Switching power supply 24V 4.5A closed MEAN WELL

Product reference: 26-MB45A24VUZDMEANWELL
  • Type: Enclosed switching power supply
  • Model: LRS-75-24
  • Input voltage range: IN 85-264VAC / 120-373VDC
  • Output voltage range: OUT 21.6-28.8VDC
  • Power: 76.8W
  • Current: 3.2A
  • Voltage: 24V
  • Operating temperature: -30°C ÷ +70°C
  • Output voltage adjustment: with potentiometer integrated in the housing
  • Protection class: OVC III
  • Dimensions: 99 x 97 x 30 mm
  • Brand: MEAN WELL
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
2536 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • General data
  • Model LRS-100-24
  • Output voltage 24V DC
  • Rated current 4.5A
  • Current range 0 - 4.5A
  • Rated power 108W
  • Voltage regulation range 21.6 - 28.8V
  • Voltage error ±1.0%
  • Linear regulation ±0.5%
  • Load regulation ±0.5%
  • Noise and vibration (max.) 150 mVp-p
  • Efficiency (typ.) 90%
  • Input voltage range 85 - 264 VAC / 120 - 373 VDC (withstands 300 VAC surge for 5 sec)
  • Frequency range 47 - 63 Hz
  • Alternating current strength (typ.) 1.9A @ 115 VAC / 1.2A @ 230 VAC
  • Inrush current (typ.) Cold start 50A @ 230 VAC
  • Leakage current <0.75mA @ 240VAC
  • Hold-up Time (Typ.) 55 ms @ 230 VAC / 10 ms @ 115 VAC at full load
  • Set-up, take-off time 500 ms, 30 ms @ 230 VAC / 115 VAC at full load
  • Overload protection 110 - 150% rated output power, hiccup mode, auto recovery
  • Overvoltage Protection 28.8 - 33.6V, shut down output, re-power to recover
  • Operating temperature -30°C to +70°C (refer to derating curve)
  • Storage temperature -40°C to +85°C
  • Working humidity 20 - 90% RH non-condensing
  • Storage humidity 10 - 95% RH non-condensing
  • Temperature coefficient ±0.03% / °C (0 - 50°C)
  • Vibration Resistance 10 - 500 Hz, 5G, 10 min/cycle, 60 min along X, Y, Z axes
  • MTBF 3348.9K hrs (Telcordia SR-332), 677.4K hrs (MIL-HDBK-217F, 25°C)
  • Insulation resistance 100M Ohms @ 500 VDC (25°C, 70% RH)
  • Withstand voltage I/PO/P: 4kVAC; I/P-FG: 2kVAC; O/P-FG: 1.25kVAC
  • Dimensions 129 x 97 x 30 mm (L x W x H)
  • Weight 0.34 kg; Packing: 40 pcs / 14.6 kg / 0.92 CUFT
  • Enclosure Case Case No. 238A
  • Cooling method Free air convection (fanless)
  • Certificates UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, GB 4943.1, BSMI CNS15598-1, EAC TP TC 004, AS/NZS62368.1 (CB), KC K60950-1, BIS IS13252(Part1):2010
  • EMC compliance EN55032 Class B, EN61000-3-2/3, EN61000-4-2~6,8,11, EN55035, EN61000-6-2
  • Features Withstands 300 VAC surge input for 5 seconds, LED indicator for power on, <0.3W no load power consumption, full protections, 5G vibration test, high efficiency and reliability
  • Warranty 3 years
  • Usage Industrial automation machinery, control systems, electrical/electronic instruments, household appliances

Weight0.299 kg
