TP-LINK Wireless Bridge 5 GHz 867 Mbps Indoor / Outdoor Access Point
Product reference:
3-4895252502541
TP-LINK Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point
TP-LINK Wireless Bridge 5 GHz 867 Mbps Indoor / Outdoor Access Point
Product reference:
3-4895252502541
TP-LINK Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 19
business days

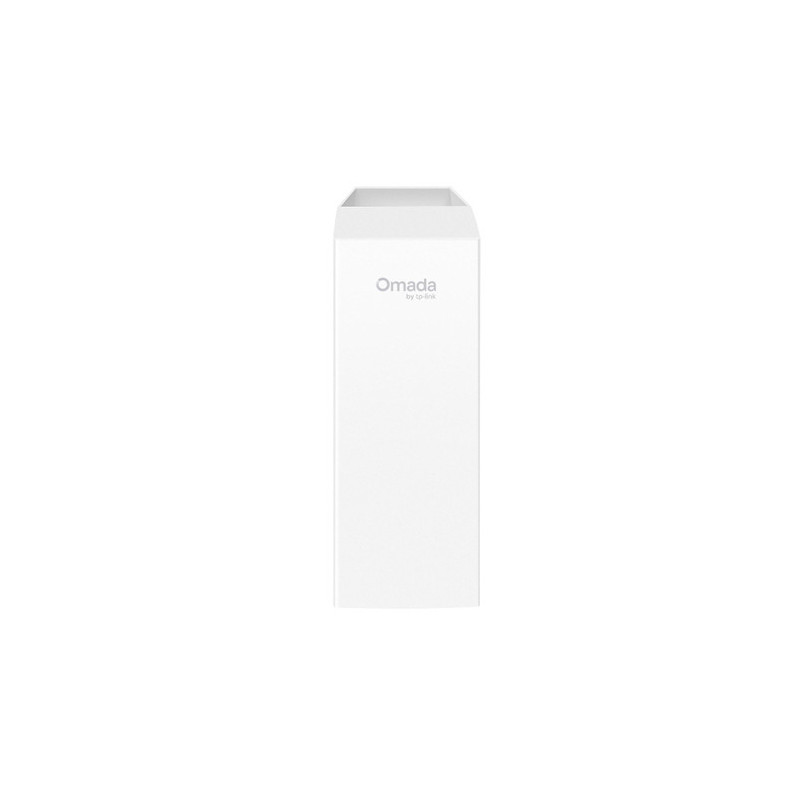

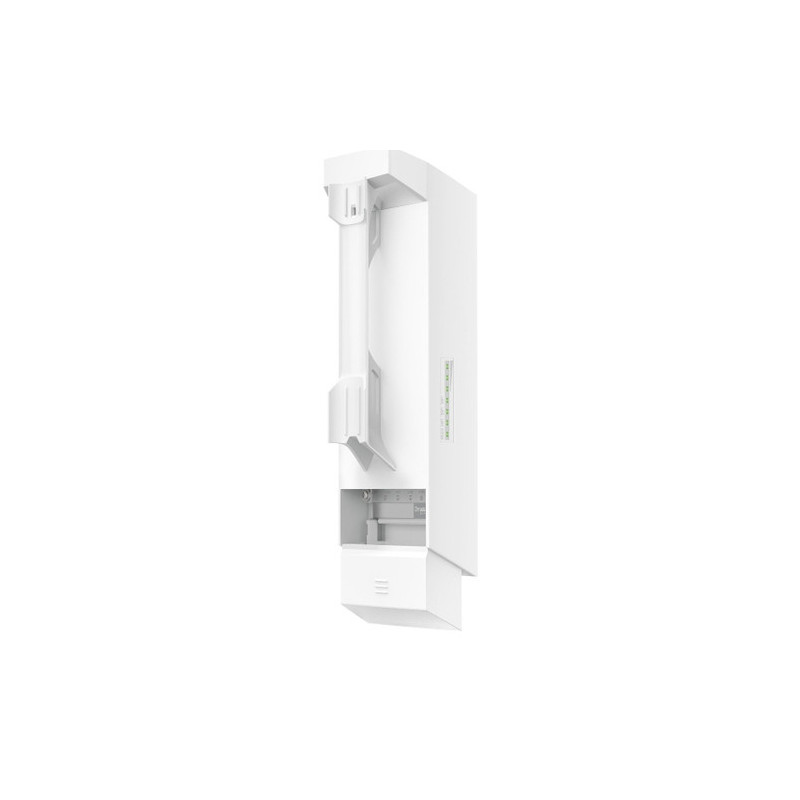

EAP211-Bridge KIT
Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge
- 802.11ac, up to 867 Mbps on 5 GHz
- Up to 0.62 mi (1 km) Long-Range Transmission
- Auto-Pairing and Multi-Bridge Auto-Pairing
- App-Guided Alignment and Speed Testing
- 3× Gigabit Ethernet Ports
- 802.3af PoE DC Power Supply Passive PoE
- IP65 Weatherproof and Operating Range of -40 °C to +70 °C.
- Remote Monitoring Management
- Up to 0.62 mi (1 km) Transmission Distance
- Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever
- Plug-and-Play with Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go-ideal for quick deployments
- Unique Design for Multi-Bridge Auto-Pairing: Effortlessly connect multiple bridges with PtMP Auto-Pairing. Simply dial the role switch and press the pair button - no portal login needed. Supports up to 1-to-4 multi-bridge connections
- App-Guided Alignment: Visualized App-Guided Alignment for Long-Distance Setups and Instant Speed Testing for Installation Verification
- Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply system)
- 3× Gigabit Ethernet Ports: Connects more cameras and devices without an extra switch△
- Ideal for Outdoor Scenarios: IP65 weatherproof enclosure and operating range of -40 °C to +70 °C
- Remote Monitoring Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App
| Summary: | TP-Link Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge. Maximum data transfer rate: 867 Mbit/s, Maximum transfer distance: 1000 m. Antenna design: Internal, Antenna type: 2x2, Antenna gain level (max): 7 dBi. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Connectivity technology: Wired Wireless |
| Vendor Homepage: | https://www.omadanetworks.com/uk/business-networking/omada-wifi-wireless-bridge/eap211-bridge-kit/v3.20/#highlights |
| Category Code: | BRE |
| CnCode: | 85176200 |
| Unit Box Height: | 0.235 |
| Unit Box Length: | 0.27 |
| Unit Box Width: | 0.095 |
| Maximum data transfer rate: | 867Mbit/s |
| Maximum transfer distance: | 1000m |
| Antenna design: | Internal |
| Antenna gain level (max): | 7dBi |
| Antenna type: | 2x2 |
| Frequency band: | 5GHz |
| Top Wi-Fi standards: | Wi-Fi 5 (802.11ac) |
| Wi-Fi: | Yes |
| Wi-Fi band: | Single-band (5 GHz) |
| WLAN data transfer rate (max): | 867Mbit/s |
| Cabling technology: | 10/100/1000Base-T(X) |
| Ethernet LAN: | Yes |
| Ethernet LAN data rates: | 10/100/1000Mbit/s |
| Ethernet LAN interface type: | Gigabit Ethernet |
| Networking standards: | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Connectivity technology: | Wired Wireless |
| DC-in jack: | Yes |
| Ethernet LAN (RJ-45) port: | 3 |
| MAC address filtering: | Yes |
| Security algorithms: | SNMP/SNMPv2/SNMPv3/SSH |
| Web-based management: | Yes |
| International Protection (IP) code: | IP65 |
| LED indicators: | Power |
| Mounting type: | Pole |
| Product colour: | White |
| Product type: | Network bridge |
| Quality of Service (QoS) support: | Yes |
| Reset button: | Yes |
| DC input voltage: | 12V |
| Power over Ethernet (PoE): | Yes |
| Power over Ethernet (PoE) voltage: | 24V |
| Power source type: | DC,PoE |
| Operating relative humidity (HH): | 10 - 90% |
| Operating temperature (TT): | -40 - 70°C |
| Storage relative humidity (HH): | 5 - 90% |
| Storage temperature (TT): | -40 - 70°C |
| Certification: | CE, FCC, RoHS |
| Depth: | 79mm |
| Height: | 60mm |
| Width: | 224mm |
| Cables included: | AC |
| PoE+ Injector(s): | Yes |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 8 |
| Unit Calculated Volume: | 0.007718m³ |
| Unit Calculated Weight: | 1.61kg |
