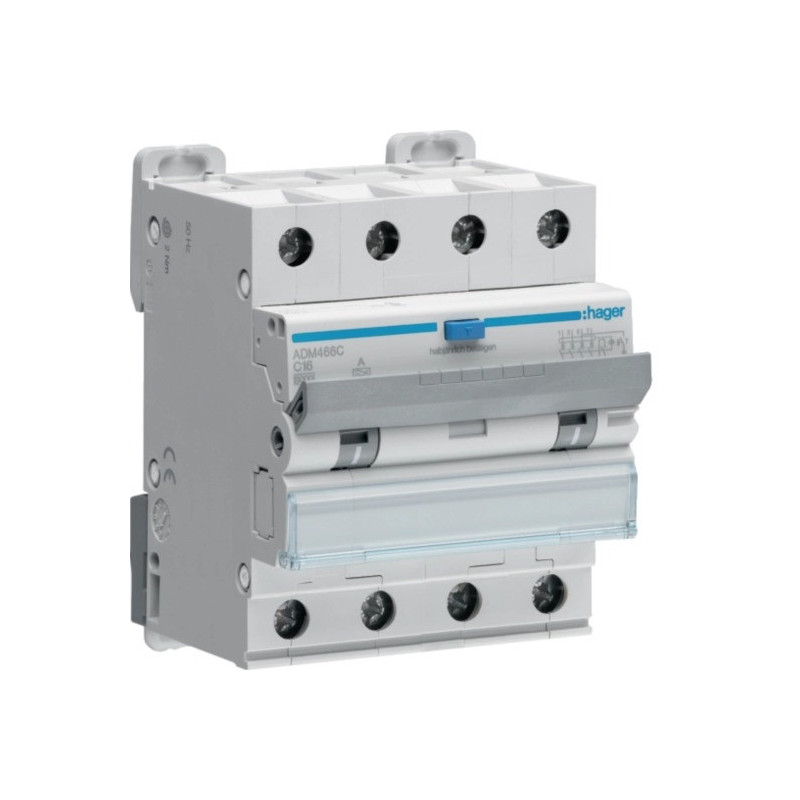

Residual current relay with circuit breaker Hager ADM466C (4P, 16A, C, A type, 30mA, 6kA)
Product reference:
26-3250611020301
- Type: Residual current circuit breaker (RCBO)
- Model: Hager ADM466C
- Number of poles: 4P
- Rated current: 16 A
- Characteristic: C
- Leakage current: 30 mA
- Short-time short-circuit current: 6 kA
- Type: A (suitable for alternating and pulsating direct current)
- Manufacturer: Hager
Residual current relay with circuit breaker Hager ADM466C (4P, 16A, C, A type, 30mA, 6kA)
Product reference:
26-3250611020301
- Type: Residual current circuit breaker (RCBO)
- Model: Hager ADM466C
- Number of poles: 4P
- Rated current: 16 A
- Characteristic: C
- Leakage current: 30 mA
- Short-time short-circuit current: 6 kA
- Type: A (suitable for alternating and pulsating direct current)
- Manufacturer: Hager
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- General information
- Rated current 16 A
- Rated residual operating current Idn 30 mA
- Rated short-circuit breaking capacity Icn (400 V AC, IEC 60898-1) 6kA
- Rated current at -25 °C 19.40 A
- Rated current at -20 °C 19.10 A
- Rated current at -15 °C 18.90 A
- Rated current at -10 °C 18.60 A
- Rated current at -5 °C 18.30 A
- Rated current at 0 °C 18.00 A
- Rated current at 5 °C 17.60 A
- Rated current at 10 °C 17.30 A
- Rated current at 15 °C 17.00 A
- Rated current at 20 °C 16.70 A
- Rated current at 25 °C 16.30 A
- Rated current at 30 °C 16.00 A
- Rated current at 35 °C 15.60 A
- Rated current at 40 °C 15.20 A
- Rated current at 45 °C 14.90 A
- Rated current at 50 °C 14.40 A
- Rated current at 55 °C 14.00 A
- Rated current at 60 °C 13.60 A
- Curve type C
- Neutral position Left, Right
- Pole type 4P
- Number of protected poles 4
- Number of modules 4
- Residual current type A
- IP protection class IP2X
- Voltage supply type AC
- Rated operating voltage Ue 230-400V
- Rated insulation voltage Ui 500V
- Dielectric strength (at power frequency) 2 kV
- Rated impulse withstand voltage Uimp 4,000V
- Overvoltage category (IEC 60947-1) 3
- Nominal tightening torque (upper terminal) 2 Nm
- Nominal tightening torque (lower terminal) 2 Nm
- Nominal tightening torque (total) 2 Nm
- 360° mounting position Yes
- Top connection type (modular units) Screw terminal
- Bottom connection type (modular units) Biconnect
- Rated short-circuit breaking capacity Icn AC (IEC 60898-1) 6kA
- Frequency 50Hz
- Input cross-section (flexible conductors) 1-16 mm²
- Input cross-section (rigid conductors) 1-25 mm²
- Energy limitation class I²t 3
- Operating temperature -25 to +40 °C
- Height 84 mm
- Width 71 mm
- Depth 70mm
- Connection type Screw terminal
- Total power loss at In 10.90 W
| Manufacturer code | HADM466C |
| Manufacturer | Hager |
| Weight | 0.5 kg |
