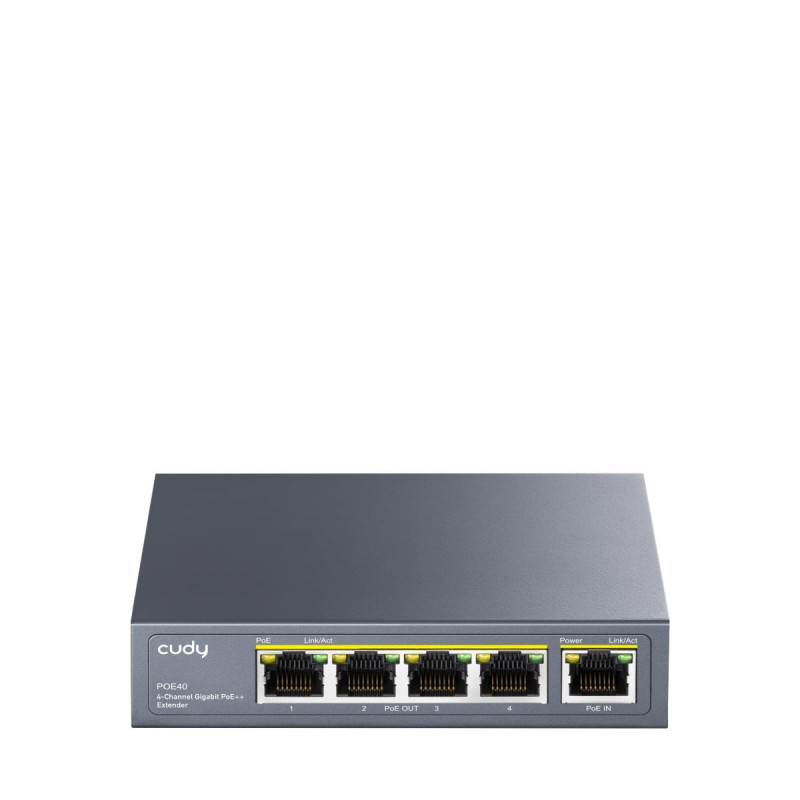

PoE extender Cudy POE40
Product reference: 26-6971690791513
  • Type: PoE extender
  • Model: CUDY POE40
  • Uplink: 1 x GbE 802.3bt/at/af
  • PIN modes: Mode A, Mode B, Four-Pair
  • Downlink: 4 x GbE 802.3at/af
  • Transmission distance: 100 m @ GbE, up to 250 m @ 10 Mbps
  • Input power: 60 W
  • Output: 2 x 30 W or 4 x 12.95 W
PoE extender Cudy POE40

PoE extender Cudy POE40

Product reference: 26-6971690791513
  • Type: PoE extender
  • Model: CUDY POE40
  • Uplink: 1 x GbE 802.3bt/at/af
  • PIN modes: Mode A, Mode B, Four-Pair
  • Downlink: 4 x GbE 802.3at/af
  • Transmission distance: 100 m @ GbE, up to 250 m @ 10 Mbps
  • Input power: 60 W
  • Output: 2 x 30 W or 4 x 12.95 W
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
4490 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General data
  • Model version POE40 1.0
  • Supported protocols IEEE 802.3i (10 Mbps), 802.3u (100 Mbps), 802.3ab (1 Gbps), 802.3x (Flow Control), 802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++)
  • Uplink traffic 1× GbE, 802.3bt/at/af
  • Uplink PIN assignment Mode A / Mode B / Four-Pair
  • Downlink traffic 4× GbE, 802.3at/af
  • Downlink PIN assignment Mode A
  • Transmission distance Cat 5e or higher cable: 100 m at Gigabit
  • Power input ≥60W recommended
  • Maximum output power 2× 30W or 4× 12.95W
  • Note on output power Actual power output depends on input
  • Maximum power consumption 2W
  • Customer protection Polarity Protection, Overvoltage Protection, Short-Circuit Protection, Automatic Voltage Regulation
  • EMC compliance IEC/EN 61000-4-2 Level 3 (ESD Contact: 6kV, Air: 8kV)
  • Grounding method Grounding Point
  • Ambient operating temperature 0°C ~ 45°C (32°F ~ 113°F)
  • Storage temperature -40°C ~ 70°C (-40°F ~ 158°F)
  • Operating humidity 10% ~ 95% non-condensing
  • Storage humidity 5% ~ 95% non-condensing
  • Certificates FCC, CE
  • Daisy Chain Support Up to 3 extenders in a chain
  • Installation type Desktop, Wall-mount
  • Dimensions 119×85×28 mm (4.69×3.35×1.1 inches)
  • Housing material Metal
  • Product weight 254.5 g (8.98 oz.)

Manufacturer codeCUDYPOE40
ManufacturerCudi
Weight0.28 kg
