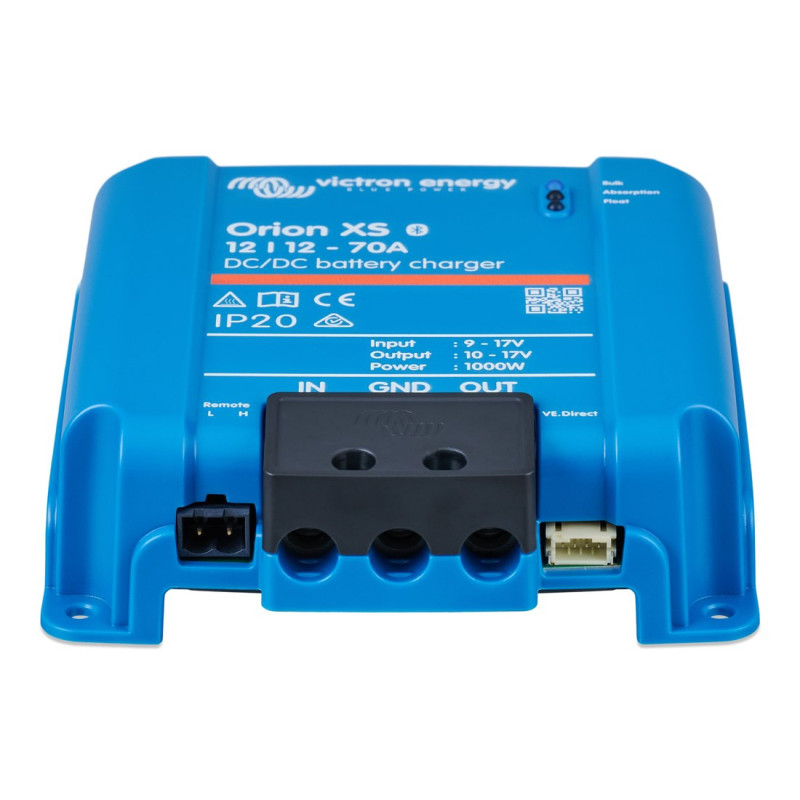

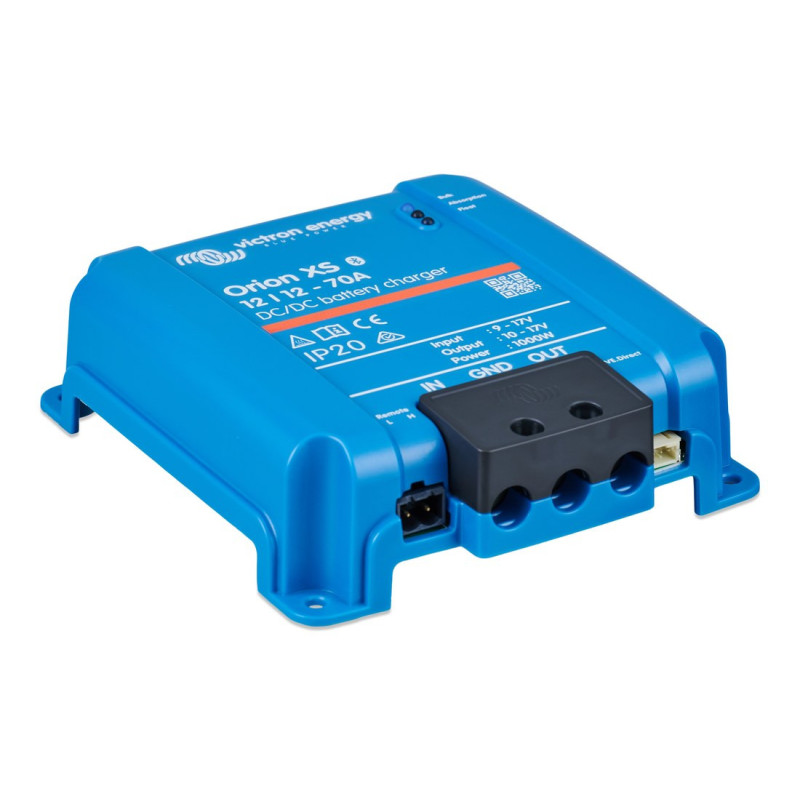

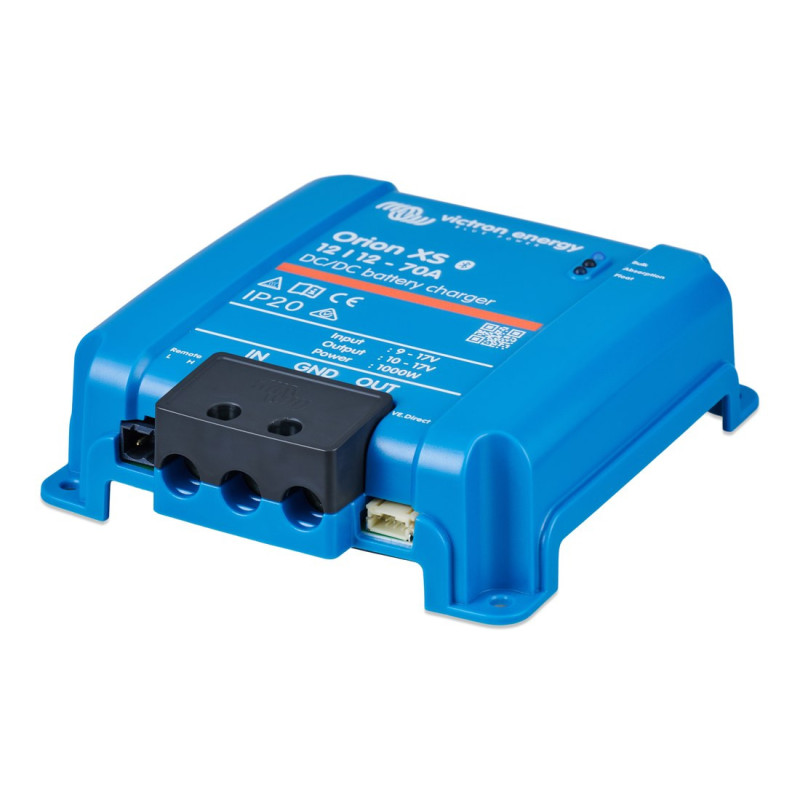

Orion XS 12 / 12-70A DC-DC battery charger
Product reference:
39-8719076075257
The Victron Orion XS 12/12-70A charger is an effective DC-DC device for batteries in vehicles with an alternator.
Orion XS 12 / 12-70A DC-DC battery charger
Product reference:
39-8719076075257
The Victron Orion XS 12/12-70A charger is an effective DC-DC device for batteries in vehicles with an alternator.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
5 - 8
business days
Victron Orion XS 12/12-70A This modern DC-DC charger is designed for vehicles whose electrical system may not provide sufficient voltage to effectively charge their batteries. This device is ideal for use in systems where two batteries must be charged from the alternator, including modern vehicles with Euro 5/6 alternators. Thanks to its advanced technology, the Orion XS 12/12-70A ensures optimal charging, precisely adapting to the battery requirements.
The device boasts a very high efficiency of up to 98.5%, meaning it operates quietly and reliably, eliminating the need for fans. It offers an output current of up to 70A (at 14.3V), making it a highly efficient solution for battery systems that frequently experience voltage drops due to long cables, such as those found in RVs and boats.
Key Features:
- Adjustable charging current: Users can adjust the charging current in 0.1A steps via the VictronConnect app.
- Alternator operation detection: The device only consumes energy when the engine is running, which increases its efficiency.
- Adaptive charging algorithm: Offers a 4-stage charging process and the ability to program eight different battery profiles.
- Lithium battery protection: Built-in protection switches the charger off at low temperatures and when the voltage drops below a set threshold.
- Possibility of parallel operation: Allows you to connect multiple devices to increase the output current.
- Bluetooth Smart: Facilitates configuration, monitoring and software updates via the app.
- Full electronic protection: Protects against overload, short circuit and overheating.
The Orion XS 12/12-70A is designed for use in dry indoor environments, meaning it should not be installed outdoors or in damp rooms. This is crucial information when planning your installation to ensure long-term, trouble-free use.
Technical data
| Producer | Victron Energy |
|---|---|
| Type | DC-DC charger (battery-battery) |
| Input voltage (range) | 9-17 May |
| Output voltage adjustment range | 10-17 V |
| Output voltage tolerance | ±0.25% (max) |
| Output voltage ripple | 10 mV rms |
| Input/output current setting range | 1-70 A |
| Max continuous short circuit current | 70 A |
| Continuous power up to 40°C | 1000W (at 14.3V) |
| Maximum efficiency | 98.5% |
| No-load consumption | < 100 mA |
| Conscription in standby | < 1.5 mA |
| Working as a power supply | Yes (voltage set in VictronConnect) |
| Communication | Bluetooth Smart (VictronConnect), VE.Smart Networking, VE.Direct (with DVCC) |
| Cooling | Passive (fanless) |
| Operating temperature | -20 to +60°C (derating 1.5%/°C above 40°C) |
| Humidity | 95%, non-condensing |
| Max working height | 2000 m |
| DC connection | Screw terminals |
| Max cable cross-section | 4 AWG (25 mm²) |
| Libra | 0.340 kg |
| Dimensions (H×W×D) | 137.3 × 123.1 × 40 mm |
| Degree of protection | IP20 (installation in a dry interior) |
| Security | IEC 62477-1 |
| EMC | EN 300 328, EN 301 489-1/-17, FCC 15B, ICES-003 |
| Automotive Directive | ECE R10-6 |
| Guarantee | 5 years |
Set contents: The package includes an Orion XS 12/12-70A charger. Users should ensure compliance with installation requirements and proper operating conditions to ensure the device operates optimally. The Orion XS 12/12-70A is a robust and efficient solution for anyone requiring a reliable source of battery charging for vehicles with alternators.
